Panduit 12-fiber, SFQ Cassette, OS1/OS2 9/125µm - FQ9N-12-10AS

Panduit Opticom Fiber Optic Drawer: Pre-Loaded 24 Duplex LC Multi-Mode OM3/4 - FD1W24AQDLCZ

Upgrade your fiber optic network infrastructure with the Panduit Opticom Fiber Optic Drawer: Pre-Loaded 24 Duplex LC Multi-Mode OM3/4. Manufactured by Panduit, a trusted leader in network solutions, this drawer is designed to optimize fiber optic connectivity in data centers, telecommunications networks, and enterprise environments. With its pre-loaded configuration and 24 duplex LC connectors, it offers seamless and efficient connectivity for your critical applications.

Featuring multimode OM3/4 fiber type, this drawer ensures high-speed data transmission over short to medium distances, making it ideal for high-bandwidth applications. With 48 ports (24 duplex) and Aqua adapter color, it provides ample capacity and easy identification for organizing your fiber optic connections. The split sleeve material made of zirconia ensures precision and reliability in fiber optic alignment, minimizing signal loss and maximizing performance.

Features

• Pre-Loaded Configuration: Ready for immediate deployment, saving time and effort on installation.

• High Port Density: 48 ports (24 duplex) in a single rack space maximize rack efficiency and space utilization.

• Multimode Fiber: OM3/4 fiber type ensures high-speed data transmission for high-bandwidth applications.

• Aqua Adapter Color: Allows for easy identification and organization of fiber optic connections.

• Zirconia Split Sleeve: Ensures precise alignment and reliable connectivity, minimizing signal loss.

Specification

What Our Experts Think

• High-Performance Fiber Optic Solution: The Panduit 12-fiber SFQ Cassette (FQ9N-12-10AS) is designed for superior performance in OS1/OS2 single-mode fiber optic networks, providing high-quality, low-loss connectivity for long-distance transmissions.
• Efficient & Compact Design: With a 12-fiber capacity, this cassette offers a compact and space-efficient solution for managing fiber connections, ensuring easy integration into network infrastructure.
• Ideal for OS1/OS2 Networks: The 9/125µm fiber specification is optimized for high-speed, long-distance data transfer, making it a perfect fit for enterprise, telecom, and data center applications.
• Easy Installation & Maintenance: The SFQ Cassette is designed for quick, hassle-free installation and can be easily maintained, allowing for efficient upgrades or troubleshooting.
• Durable & Reliable: Built for robustness and longevity, this cassette ensures consistent performance, reducing downtime and ensuring reliable fiber optic connections.

Q&A

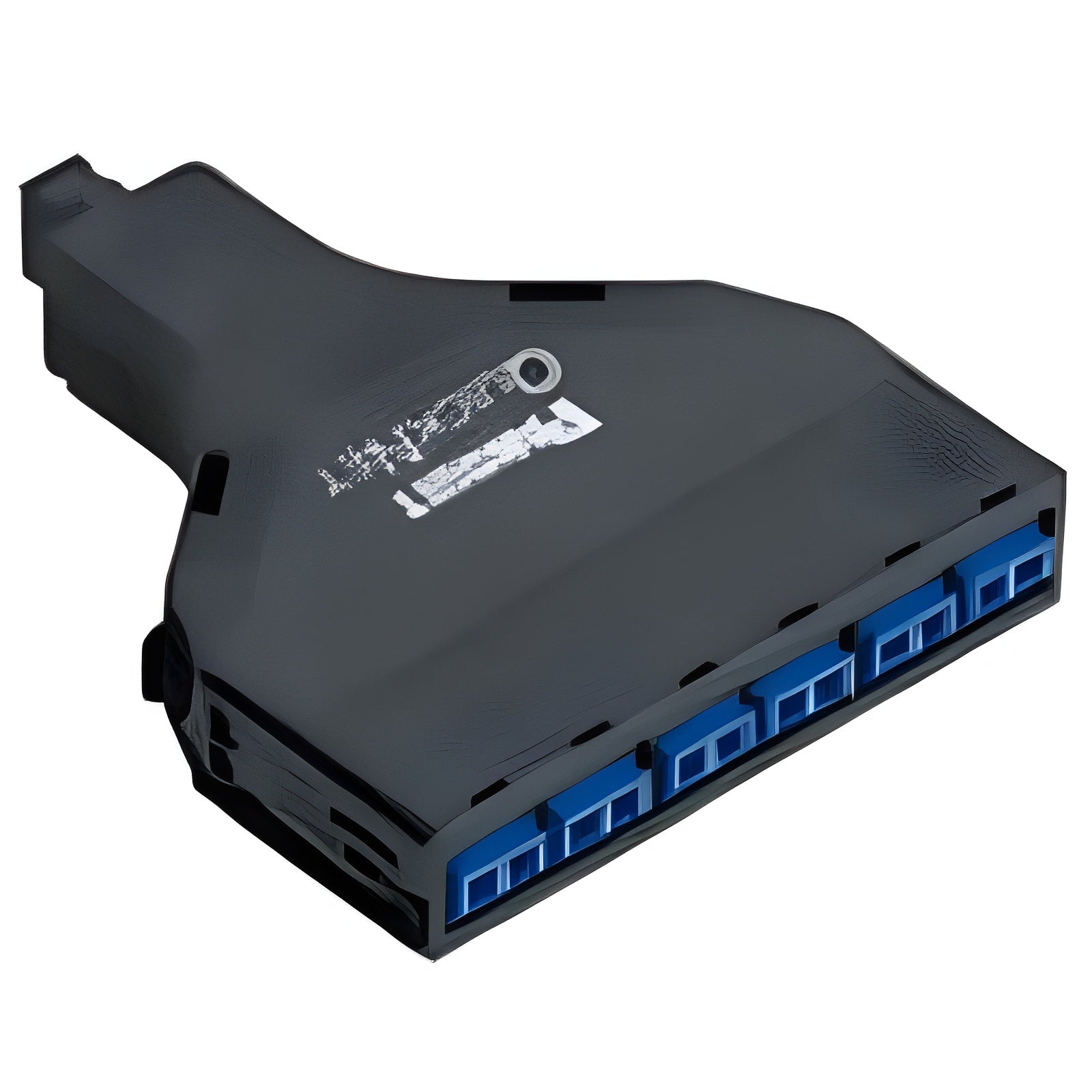

Q: What is the Panduit 12-fiber SFQ Cassette, OS1/OS2 9/125µm - FQ9N-12-10AS?
A: A high-performance 12-fiber optical cassette designed for OS1/OS2 9/125µm fiber cables, providing efficient, reliable connectivity for fiber optic networks.

Q: What are the key features?

• 12-Fiber Configuration: Supports up to 12 fiber connections in a single, compact cassette.
• OS1/OS2 9/125µm: Optimized for single-mode fiber applications, offering excellent performance over long distances.
• High-Density Design: Saves space while providing the flexibility to manage multiple fiber connections in a small form factor.
• Durable Construction: Built for reliability and longevity in demanding networking environments.
• Easy Installation: Designed for quick integration into Panduit fiber systems, with user-friendly features for installation and maintenance.

Q: Who is this cassette ideal for?
A: Ideal for network engineers and data center professionals needing reliable and high-density fiber optic connectivity for enterprise and telecommunications networks.

Q: What makes it unique?
A: Its high-density 12-fiber configuration and OS1/OS2 9/125µm compatibility ensure optimal performance and scalability for modern fiber optic networks, offering easy installation and long-term reliability.

Q: Is it easy to install?
A: Yes, the cassette is designed for easy integration with Panduit fiber systems, allowing for straightforward installation and quick setup.

Q: What kind of applications is this cassette used for?
A: Used in high-speed, long-distance telecommunications and enterprise networks, including data centers, fiber-to-the-premises (FTTP) deployments, and other fiber optic systems.

Maintenance Tips

• Inspect Fiber Optic Cables Regularly:

  • Periodically check the fibers and connectors for any visible damage, such as bends, frays, or cuts, which could affect performance.
  • Ensure the fiber ends are not scratched or damaged, as this can cause signal loss or degradation.

• Keep Fiber Ends Clean:

  • Clean the fiber ends before connecting or disconnecting the cassette to prevent dust or contaminants from affecting signal quality.
  • Use specialized fiber cleaning tools or lint-free wipes and fiber optic cleaning solutions. Avoid using harsh chemicals or abrasive materials that could damage the fibers.

• Monitor and Maintain Proper Storage:

  • Store the cassette in a clean, dry, and temperature-controlled environment to prevent exposure to dust, humidity, or extreme temperatures, which could affect the fiber quality.
  • Avoid coiling the fiber too tightly, as excessive bending can damage the fibers and degrade signal integrity.

• Avoid Physical Stress:

  • Ensure that the cassette is not subjected to physical stress or excessive pulling that could cause strain on the fibers or connectors.
  • Securely mount and store the cassette in a location where it won't be bumped or subjected to accidental damage.

• Properly Handle and Connect the Cassette:

  • When installing or removing the cassette, handle it by the edges to avoid touching the fiber ends or connectors.
  • Ensure that connections are properly aligned and secure to maintain optimal signal transfer.

• Check for Contaminants:

  • Fiber optic connectors are sensitive to contaminants. Check regularly for dust, dirt, or other particles that may have accumulated in the connector ports or on the fibers themselves.
  • Use a fiber optic cleaning kit for periodic cleaning of connectors and the cassette.

• Avoid Overloading the System:

  • Ensure that the network equipment connected to the cassette is operating within its specified limits. Overloading can lead to performance issues and potential damage to the fiber optic cables.
  • Follow manufacturer guidelines for optimal system configuration and fiber loading.

• Keep Fiber Connections Dry:

  • Prevent moisture or humidity from coming into contact with the fiber optic connectors and cassettes, as water can cause degradation of signal quality.
  • Store and install fiber optics in dry environments and avoid exposing them to damp conditions.

• Test Performance Regularly:

  • Perform regular signal tests to ensure that the fiber optic system is operating efficiently. If signal degradation is noticed, inspect the fiber and connectors for any signs of wear, contamination, or damage.

• Professional Servicing:

  • If you experience persistent signal loss, physical damage to fibers, or connector issues, consult a professional for cleaning, repairs, or replacement of damaged components.
  • Contact Panduit customer support for advice or to inquire about replacement parts if needed.
