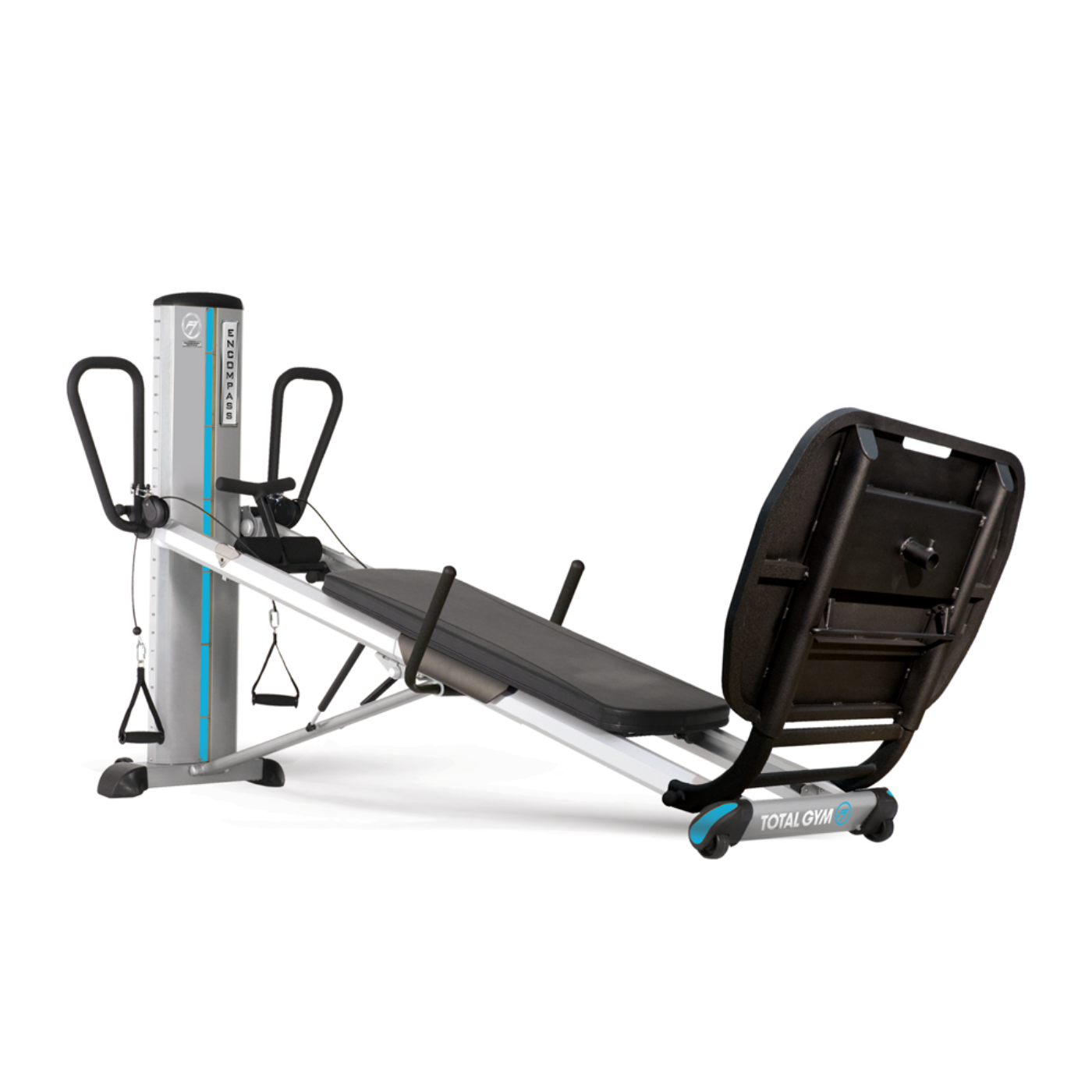

Total Gym RS Encompass Full Body Trainer - 5200-E1
The RS Encompass enables clinicians to develop customized, injury-specific treatment protocols and training methods that can accelerate patient recovery across a range of needs. By replicating and strengthening the body’s natural movements, the RS Encompass helps embed these functions into muscle memory. This approach allows patients to recover more effectively and functionally, using their own bodyweight as resistance. Clinicians can fine-tune incremental levels to precisely adjust bodyweight percentages for targeted increases or decreases.
The result is full body conditioning through the fitness continuum from early post-injury to high performance training.
Now featuring a built-in Slide Distance Regulator! Also comes standard with the Closed Chain Platform, Retractable Dip Bars, and Squat Handle Bar.
Item #: 5200-E2
Key Benefits
Benefits for the individual exerciser:
-
Short, efficient, full-body workout producing fast, observable, body-changing results
-
Body sculpting – recruits core abdominal and back muscles in every exercise
-
Increased strength and endurance
-
Improved coordination and balance
-
Weight and inch loss, improved BMI
-
Increased metabolism
-
Enhanced functional performance of daily activities and athleticism
-
Cardio-endurance gains during resistance training
-
Hydraulic lift system allows the fitness professional or physical therapist to raise or lower the levels easily
-
Low impact, safe, complete back support.
Training applications and biomechanics:
-
Closed-chain partial loading of the joints
-
Work in all three cardinal planes plus multi-plane (3-D) movement
-
Unrestricted range of motion
-
Adjust cable-pulley force angles based on client size, girth, and training objective
-
Train prime stabilizers & proprioception
-
Activity-specific work hardening, including sports-specific movement
-
Explosive plyometric training for upper & lower extremities
-
Full body support, joint friendly, non-compressive
-
Over 200 exercises & variations
-
Pilates evolved training & education
-
Reliable tool for assessing lower body strength
-
Full spectrum of training DVDs available.
Features
-
Adjustable glideboard promotes optimal spinal alignment and training variations.
-
Automatic rail locks allow for explosive plyometric jumping.
-
Closed Chain Platform and BAPS Adapter now included as standard.
-
Retractable Dip Bars now included as standard.
- Now featuring a built-in Slide Distance Regulator.
- Squat Handle Bar now included as standard.
-
Multiple center-pulley attachment points double arm-cable load and increase lower extremity ROM.
-
LAT bars promote line-of-pull specificity for arm-cable exercises.
-
More than 200 exercises and variations from resistance training to Pilates.
-
Resistance—1% to 72% of bodyweight.
Specs
- Unfolded: 106” x 38” x 57” [L/W/H] (2.69 m x 0.96 m x 1.45 m)
-
Folded: 20” x 38” x 57” [L/W/H] (0.51 m x 0.96 m x 1.45 m)
-
Tubing: 1.7" x 3.2" Aluminum Extrusion (4.4cm x 8.1cm)
-
Tower Construction: Tower is all reinforced steel, silver powder coating with self locking motorized lead screw level changer
-
User Weight: Rated to 350 lbs. body weight. (159 kg)
-
Maximum Load Capacity: 650 lbs. (295 kg) Inclusive of glideboard
-
User Height Limit: 6' 5" (2.0 meters)
-
Glideboard: 16" x 48" (41 cm x 122 cm). 7 position Adjustable angles
-
Rollers: Better Sealed precision ball bearings
-
Pulleys: ABS plastic protective sheilds over a steel frame, Nylon roller with precision ball bearings
-
Cables: 2000 lb. test (907.2 kg) nylon 12 coated steel aircraft cable
-
Handles: Soft synthetic rubber Padded Handles with ABS swivel handle and nylon webbing for hammer grip action
- Frame & Rail Construction: Anodized Aluminum Rails with all connections reinforce by steel or forged aluminum
- Unit Weight: 218 lbs (99 Kg)
- Board Upholstery: Glideboard - Heavy duty, Two tone design, box stitched, tear resistant vinyl
- Foam Padding: 1 1/2" (4 cm) high rebound, high density foam.
- Resistance Levels: 22 calibrated incline levels, with infinite adjustment between levels. 1% - 62% bodyweight.
- Rolling Range: 40" (1.0 meters)
Downloads
Owner's Guide
Resistance Chart
Product Sheetq
What Our Experts Think
-
Specifically designed for clinical and rehab use
-
Allows progressive training with bodyweight-based incline resistance
-
Versatile for mobility, strength, and functional movement training
-
Durable and reliable for long-term medical facility use
Q&A
Q: What makes this model different from the GTS?
A: The RS Encompass is tailored for clinical and rehab environments with specialized functionality.
Q: Can it be used for post-surgery patients?
A: Yes, it’s designed to safely support recovery and rehabilitation.
Q: Does it support full-body training?
A: Absolutely—upper body, lower body, and core exercises can all be performed.
Q: Is it suitable for all patient types?
A: Yes, it accommodates a wide range, from mobility-limited patients to athletes in rehab.
Maintenance Tips
-
Wipe down after each session to maintain hygiene
-
Regularly check and tighten all bolts and hardware
-
Lubricate glideboard rails to ensure smooth operation
-
Inspect for wear on straps and handles
-
Store in a clean, dry environment to extend equipment life
