Nvent Hoffman Continuous Hinge with Clamps Junction Box Type - A1212CHNFSS

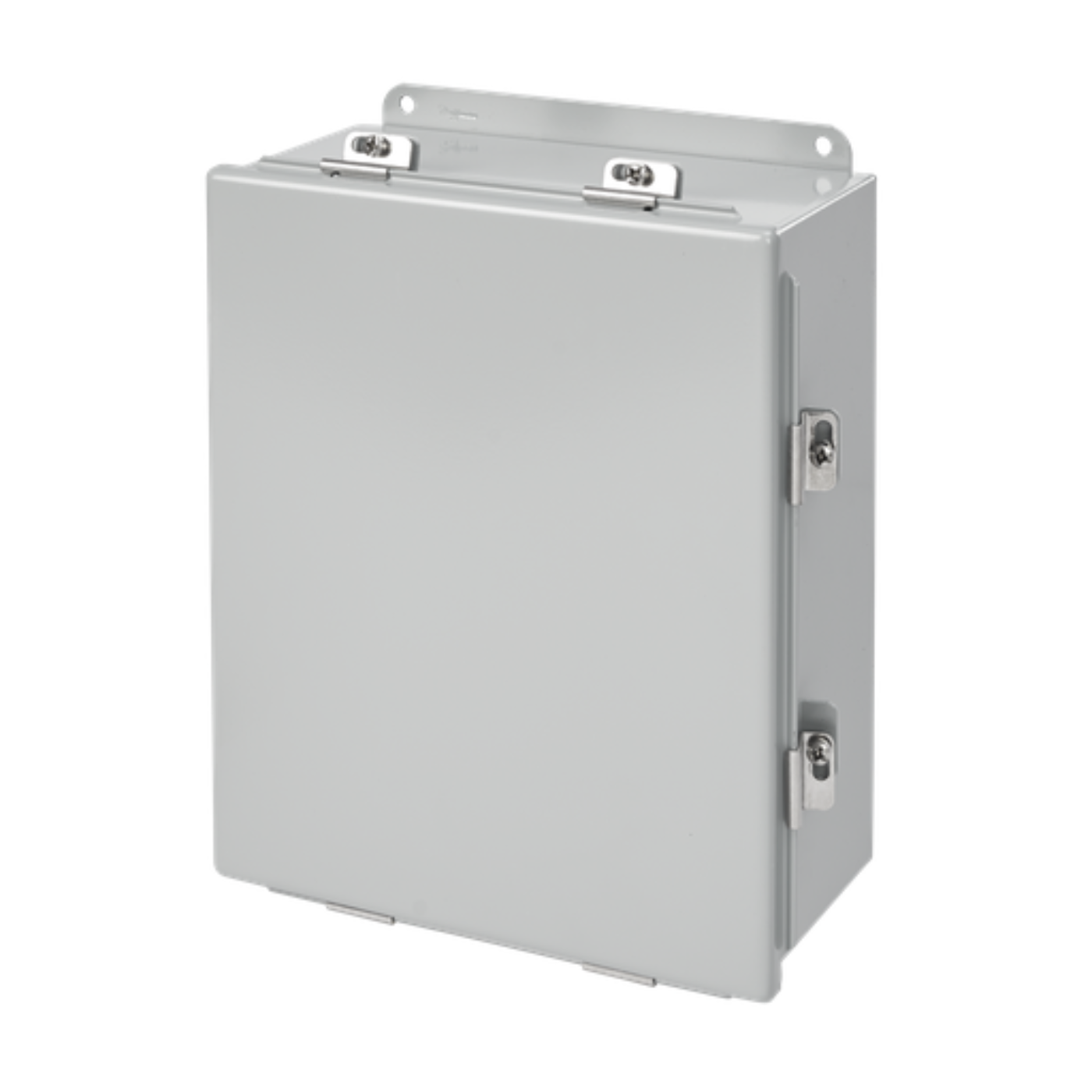

The nVent HOFFMAN A1212CHNFSS is a stainless steel junction box measuring 12 inches in height, 12 inches in width, and 6 inches in depth.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Nvent Hoffman
|
| Category |
Panel Accessories |
| Part Number |
A1212CHNFSS |
| Subcategory |
Panel Enclosures |
| Body Thickness |
1.98 mm |
| Cover Type |
Continuous Hinged with Clamp |
| Material |
Stainless Steel |
| Size |
12.00x12.00x6.00 in |
| Type |
Two Lock, Single Door |
| Body Gauge |
14 |
| Cover Gauge |
16 |
| Mounting Type |
Wall |
| Standard |
12,4,4X,50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27567,File No. E61997,NEMA/EEM,Type 3R,UL 50,UL 508A Listed |
| Finish |
Brushed |
| Weight |
12.8 lbs |
| Dimensions |
12 inches in height, 12 inches in width, and 6 inches in depth. |
| Material Finish: |
Smooth #4 brushed finish on the cover and sides. |
Key Features
-
Construction: Made from 16- and 14-gauge Type 304 stainless steel with seams that are continuously welded and ground smooth for enhanced durability.
-
Design: Features a continuous hinge with stainless steel screw-down clamps on three sides of the door, ensuring a secure and reliable seal. The seamless foam-in-place gasket further enhances its protective capabilities.
-
Accessibility: The stainless steel continuous hinge pin can be pulled to remove the door easily, facilitating straightforward access for maintenance or modifications.
-
Mounting: Equipped with weldnuts for mounting optional panels and terminal block kits, along with bonding provisions on both the door and body. External wall-mounting brackets are included for easy installation.
What Our Experts Think
-
High Cooling Capacity: The nVent HOFFMAN SpectraCool Narrow Air Conditioner provides powerful cooling for protecting sensitive electrical equipment in both indoor and outdoor environments.
-
Energy-Efficient: Engineered to deliver effective cooling performance while minimizing energy use, helping reduce operating costs.
-
Durable & Reliable: Built with corrosion-resistant materials, it is designed for long-lasting reliability even in harsh industrial settings.
-
Quiet Operation: Designed to run quietly, making it suitable for environments where low noise levels are important.
-
Easy Installation: Compact and narrow design allows for straightforward installation on standard electrical enclosures.
Q&A
Q: What is the nVent HOFFMAN SpectraCool Narrow Air Conditioner used for?
A: It is designed to cool electrical enclosures, protecting sensitive components from overheating in both indoor and outdoor environments.
Q: What features are included in the nVent HOFFMAN SpectraCool Narrow Air Conditioner?
A: It includes a compact design, high cooling capacity, corrosion-resistant construction, and options for remote monitoring with select models.
Q: Is the nVent HOFFMAN SpectraCool Narrow Air Conditioner energy-efficient?
A: Yes, it is built to provide efficient cooling while minimizing energy consumption, making it ideal for industrial applications.
Q: How does the nVent HOFFMAN SpectraCool Narrow Air Conditioner compare to other enclosure cooling solutions?
A: With its narrow design, durable build, and efficient cooling, it is a strong choice for applications requiring space-saving and reliable temperature control.
Maintenance Tips
-
Clean Air Filters: Inspect and clean or replace the filters regularly to ensure proper airflow and system efficiency.
-
Inspect Coils: Check the evaporator and condenser coils for dirt buildup and clean them as needed.
-
Check Refrigerant Levels: Ensure refrigerant levels are correct and address any signs of leakage immediately.
-
Clear Drain Paths: Make sure condensate drains are clear to prevent water buildup inside the enclosure.
-
Annual Professional Service: Schedule a yearly maintenance check by a qualified technician to inspect all system components.
