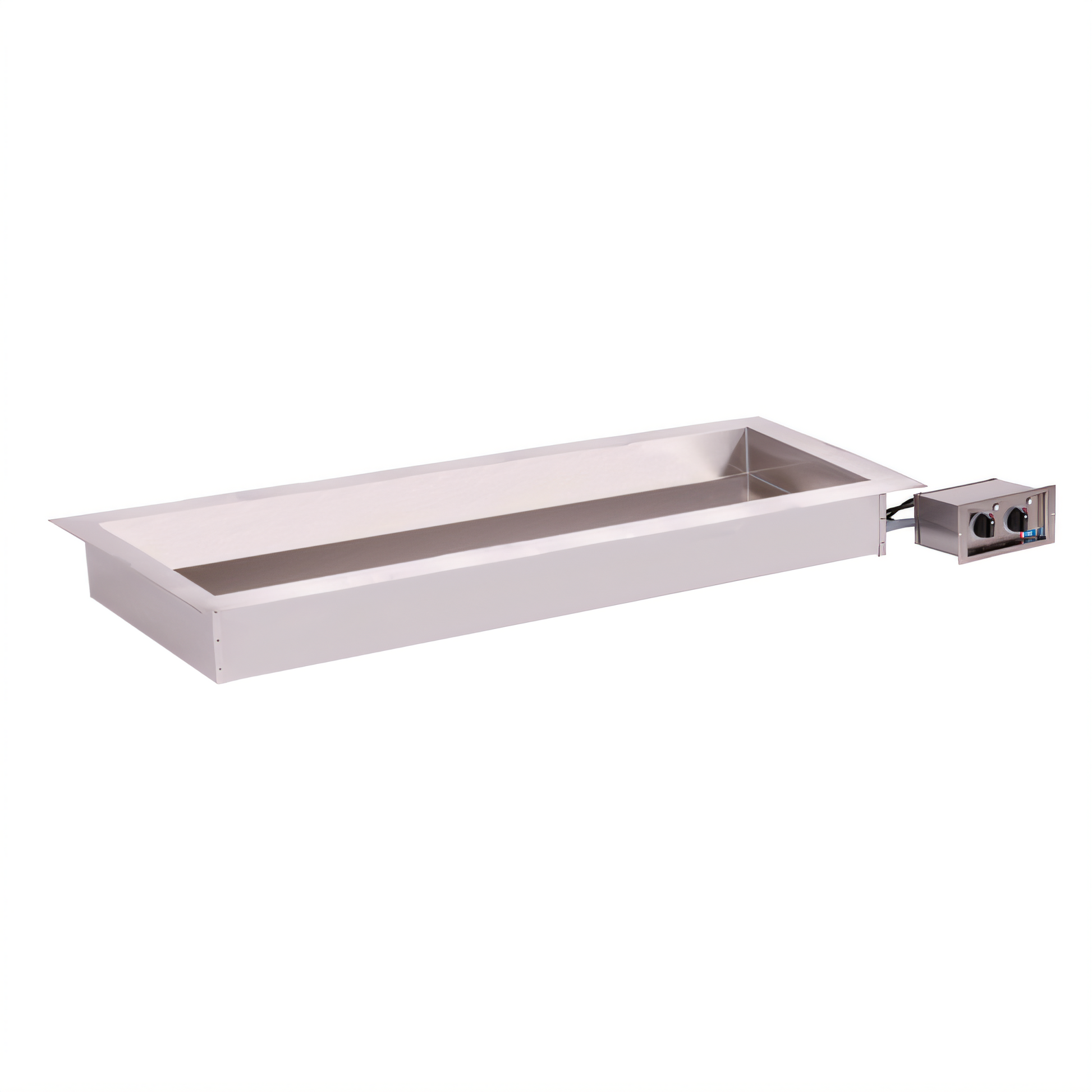

Alto-Shaam 500-HWLF/D4 Halo Heat® Waterless Drop-In Hot Food Well – 5 Wells
Large flange | Electric | Holds (5) 12″ × 20″ full-size pans
Upgrade your serving line with the same gentle, radiant Halo Heat® technology that made Alto-Shaam famous.
This EcoSmart® drop-in well eliminates water, steam and plumbing while keeping entrées at perfect serving
temperature and quality for hours.
Key Benefits
-
Waterless Halo Heat® envelopes food with even, radiant heat—no cal-rod elements, fans or hot spots.
-
Lower operating costs by eliminating water refills, drain lines, scale build-up and steam.
-
Five individually controlled wells let you dial in the ideal temperature for every menu item.
-
Large flange design covers cut edges for a clean, finished install in combustible or non-combustible counters.
-
Stainless-steel construction stands up to busy commercial kitchens and makes cleaning fast.
-
EcoSmart® efficiency delivers only 304 BTU/hr of heat rejection, keeping the kitchen cooler.
What’s Included
- (10) half/third-size pan divider bars
- (4) large pan divider bars
- Remote control box with (5) adjustable thermostatic controllers
- 6 ft (1.8 m) power cord and NEMA L5-30P plug on 120 V models
9 ft (2.7 m) cord and NEMA 6-15P on 208–240 V models
9 ft (2.7 m) or 8 ft (2.5 m) cord with CEE 7/7, CH2-16P or BS 1363 plug on 230 V models
Certifications
- cULus Listed
- UL EPH Classified (NSF/ANSI 4)
- CE Marked
- IPX3 drip-proof protection
- TÜV NORD
Specifications
| Model |
500-HWLF/D4 (Large Flange) |
| Capacity |
(5) full-size 12″ × 20″ pans • (10) half-size • (15) third-size
Supports 4″ (100 mm) or 2½″ (65 mm) deep pans |
| Well Depth |
4-3/8″ (111 mm) |
| Exterior Dimensions (H × W × D) |
7-5/16″ × 70-7/16″ × 27-1/16″
(185 mm × 1787 mm × 686 mm) |
| Cut-out (non-combustible) |
66″ × 22-1/8″ (1676 mm × 562 mm) |
| Cut-out (combustible) |
68″ × 24-1/8″ (1727 mm × 613 mm) |
| Net Weight |
89.5 lb (41 kg) |
| Voltage Options |
120 V / 208 V / 240 V / 230 V, 1-phase, 50/60 Hz |
| Amps / kW (per well set) |
25 A / 3.0 kW @ 120 V
10.8 A / 2.3 kW @ 208 V
12.5 A / 3.0 kW @ 240 V
12.0 A / 3.0 kW @ 230 V |
| Heat Rejection |
304 BTU/hr (0.09 kW) |
| Construction |
All stainless steel; uninsulated, waterless design |
Backed by Alto-Shaam’s limited 1-year parts & labor warranty.
Heating elements on Halo Heat® cook-and-hold ovens are covered for the life of the original owner.
Important: Food pans are not included.
Unit must be installed level in a counter surface rated to at least 200 °F (93 °C) and clear of steam, grease or dripping water.
