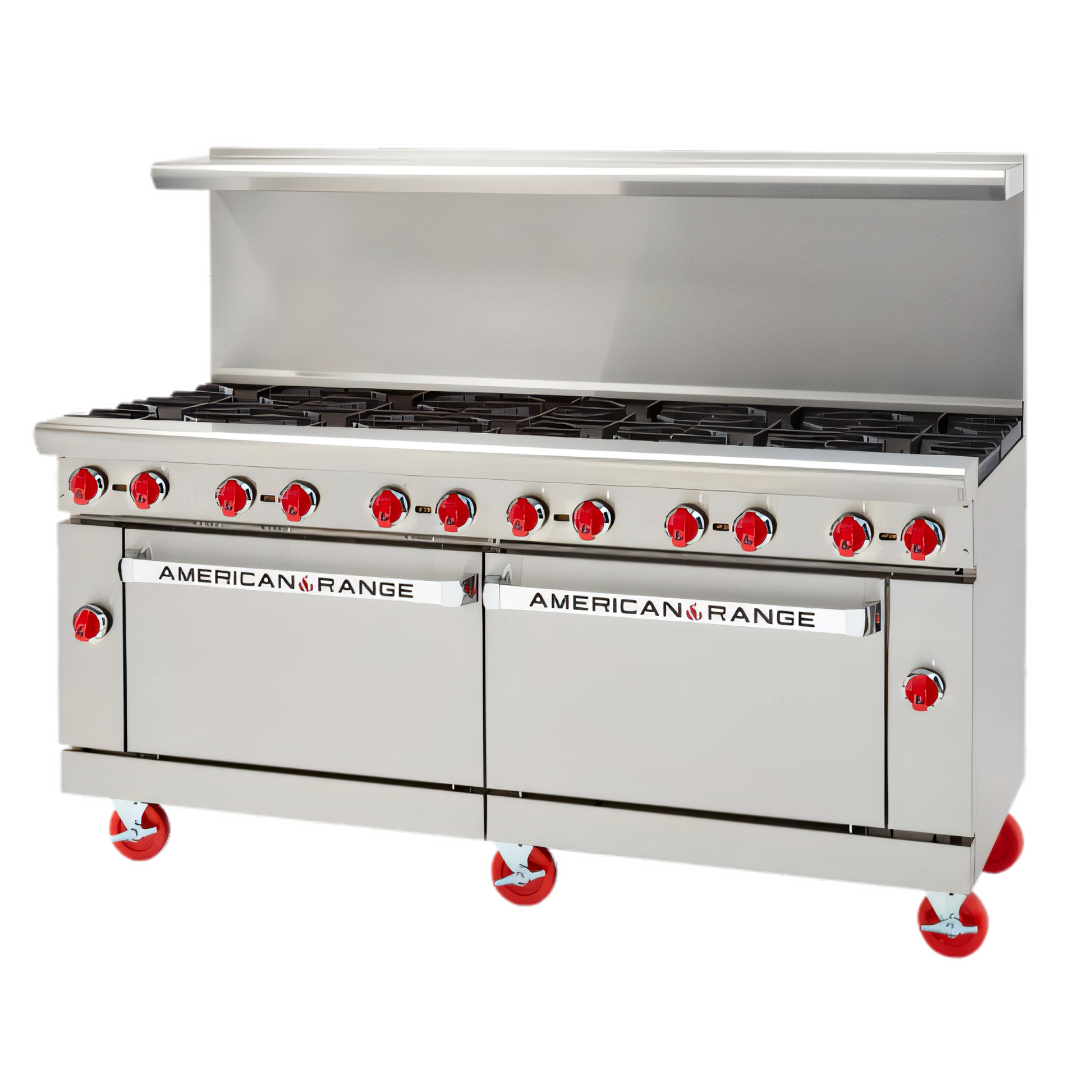

72" Gas Restaurant Range with 12 Open Burners & (2) Standard Ovens
American Range Model AR-12 | Made in USA
Engineered for high-volume kitchens that refuse to compromise on power or durability, the American Range AR-12 delivers a massive 454,000 BTU of cooking performance across 12 open burners and two full-size standard ovens—all in one 72" footprint.
Key Features
-
(12) 32,000 BTU open burners with lift-off heads for quick cleaning
- 12" × 12" heavy-duty cast-iron top grates—fully interchangeable
- Removable full-length drip pan keeps the cooktop tidy
- (2) 26 ½" standard ovens — 35,000 BTU/hr each
- Oven thermostat adjusts from 250 °F – 500 °F (121 °C – 260 °C)
- Porcelain-enamel oven interior with two chrome racks per cavity
- Counter-balanced oven doors with easy-grip handles
- Stainless steel front, sides & 6" deep front landing ledge
- Choice of backguard at no extra charge: 6" stub back, 20" riser, or 6" high shelf/riser
- 6" adjustable chrome-plated legs for a perfect working height (36")
- Certified cETLus & ETL-Sanitation for commercial use
- Two-year limited parts & labor warranty
Specifications
| Overall width |
72" (1829 mm) |
| Depth |
32 ½" (825 mm) |
| Working height |
36" (914 mm) to cooktop |
| Height w/ 20" riser |
56" (1422 mm) |
| Total BTU input |
454,000 BTU/hr | 133 kW |
| Open burners |
12 × 32,000 BTU/hr |
| Ovens |
2 × 35,000 BTU/hr standard ovens |
| Oven interior (each) |
26 ½"W × 22 ½"D × 13 ½"H (673 × 572 × 343 mm) |
| Gas connection |
3/4" NPT rear |
| Manifold pressure |
Natural 5.0" W.C. | LP 10.0" W.C. |
| Shipping weight |
Approx. 810 lb (367 kg) |
Popular Options & Accessories
- Swivel casters (set of 6, front casters with brakes)
- Storage base (in place of one or both ovens)
- Convection ovens (in place of standard ovens)
- Thermostatic griddle plate (factory-installed)
Warranty & Certifications
Backed by a two-year limited parts & labor warranty. Certain components (broiler burners, lower & upper grates, radiants) carry a 90-day warranty. Made in the USA and listed by cETLus & ETL-Sanitation.
Specifications and options are subject to change without notice. Always consult the installation manual and local codes before ordering or installing.
