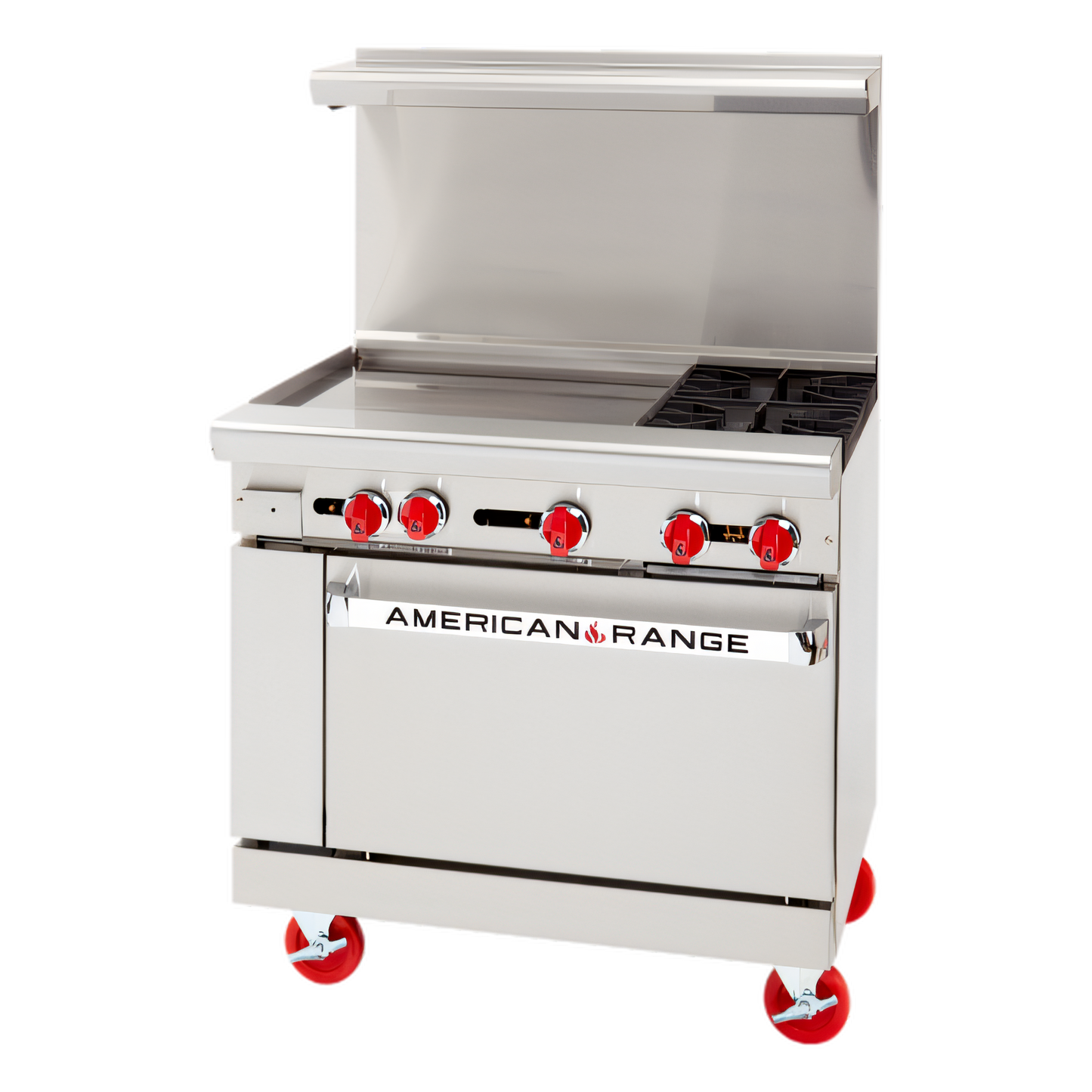

American Range AR-24G-2B 36" Gas Restaurant Range
24" Manual Griddle • 2 Open Burners • Standard Oven • 139,000 BTU
Built in the USA for demanding commercial kitchens, the American Range AR-24G-2B combines a heavy-duty 24" griddle, two high-performance open burners, and a full-size standard oven—all in a space-saving 36" footprint. Stainless construction, powerful BTU output, and field-configurable backsplash options make this range a workhorse that’s ready for the rush.
Why You’ll Love It
-
1" thick griddle plate (24"W) on the left side for consistent heat retention and fast recovery.
-
(2) 32,000 BTU open burners with 12" x 12" cast-iron top grates; lift-off heads for easy cleaning.
-
26-1/2" standard oven (35,000 BTU) with porcelain-enamel interior, two chrome racks, and spring-assisted door.
- Manual burner valves give chefs precise, immediate flame control.
- Full-width removable drip pan under the griddle and burners simplifies cleanup.
- Stainless steel front, sides, landing ledge, and kick plate stand up to daily abuse.
- Choose your backsplash: 6" stub back, 20" riser, or high riser with shelf at no extra charge.
- 6" adjustable chrome-plated legs level the unit on uneven floors.
- Certified cETLus & ETL-Sanitation; proudly Made in the USA.
Technical Specifications
| Model |
AR-24G-2B |
| Total BTU |
139,000 BTU / 41.0 kW |
| Open Burners |
(2) × 32,000 BTU lift-off heads |
| Griddle |
24"W × 3⁄4"D cooking area, 1" thick steel, (2) × 20,000 BTU “U” burners |
| Oven Type |
Standard (static) – 35,000 BTU |
| Oven Interior |
26-1/2"W × 22-1/2"D × 13-1/2"H; 2 chrome racks, 2 positions |
| External Dimensions |
36"W × 32-1/2"D × 36"H to cooking surface
(56"H with optional high shelf) |
| Gas Connection |
3/4" NPT rear manifold; 5.0" W.C. Nat. or 10.0" W.C. LP |
| Shipping Weight |
Approx. 440 lb (199 kg) |
| Certifications |
cETLus, ETL-Sanitation |
| Country of Origin |
United States of America |
Important: This appliance must be installed by a qualified technician in accordance with local codes. Adequate ventilation and combustion air are required. Failure to follow installation instructions will void the warranty.
Warranty Coverage
American Range backs the AR-24G-2B with a two-year limited parts & labor warranty (90-day warranty on broiler burners, grates, radiants, and replacement parts). Product registration within 90 days of shipment is required for extended coverage. See full terms at
americanrange.com/terms-of-sale.
