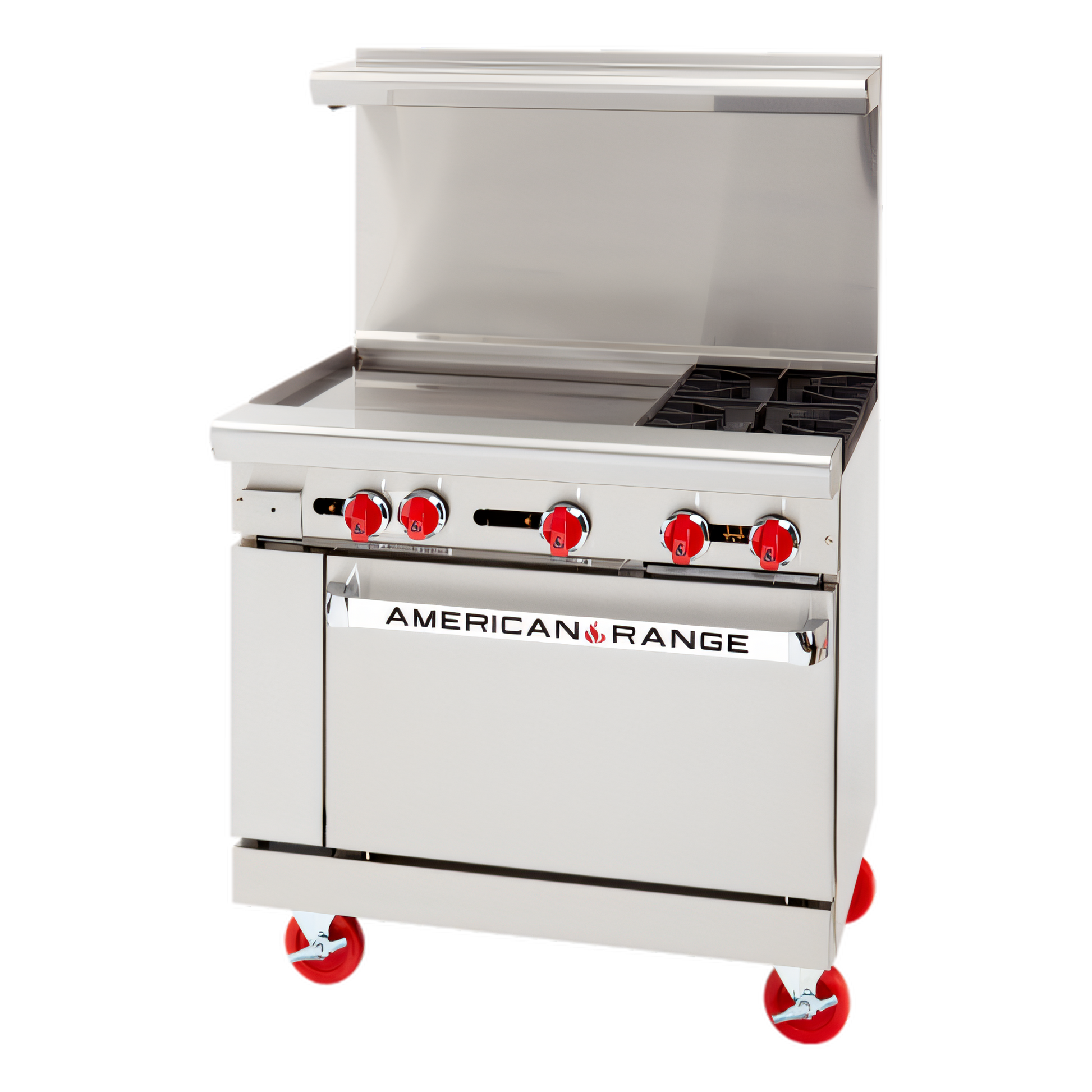

American Range 36" Gas Restaurant Range with 24" Griddle & 2 Open Burners – Storage Base
Model AR-24G-2B-SB | 104,000 BTU
Built in the USA for serious commercial kitchens, the American Range AR-24G-2B-SB combines a high-capacity griddle, two powerful open burners and a full-size storage base in one rugged 36-inch platform—delivering maximum versatility while saving precious line space.
Key Features
-
24" manual griddle (left) – 1" thick polished steel plate for superb heat retention; 3" wide grease trough and large-capacity drawer for fast clean-up.
-
2 open burners (right) – 32,000 BTU lift-off heads with anti-clog design; heavy-duty 12" × 12" cast-iron top grates.
-
26 ½" storage base – Unheated cabinet keeps pans, smallwares and cleaning tools at arm’s reach; spring-assisted door.
- All-stainless front, sides & 6" landing ledge for long-lasting durability and easy wipe-down.
-
6" adjustable chrome-plated legs; optional swivel casters available.
- Removable full-width drip pan beneath the cooking surface collects runoff from burners and griddle.
-
Backguard options included – Choose 6" stub back, 20" low riser, or 20" high riser with shelf at no extra charge.
-
Total output: 104,000 BTU / 31.0 kW.
Performance & Utility
- Independent manual gas valves for precise flame and griddle control.
- Factory-configured for Natural Gas; LP conversion kit included.
- ¾" NPT rear gas connection with pressure regulator supplied.
- 0" clearance to non-combustible sides & rear allows flexible installation.
Certifications
- cETLus listed for gas safety (US & Canada)
- ETL Sanitation listed
- Designed & built in the USA
Specifications
| Overall width |
36" (914 mm) |
| Overall depth |
32 ½" (826 mm) |
| Cooking height |
36" (914 mm) |
| Open burners |
2 × 32,000 BTU lift-off heads |
| Griddle plate |
24" W, 1" thick steel, manual controls |
| Base |
26 ½" storage cabinet (unheated) |
| Total gas input |
104,000 BTU/h (31.0 kW) |
| Gas manifold pressure |
NG 5.0" W.C. | LP 10.0" W.C. |
| Gas connection |
¾" NPT (rear) |
| Approx. ship weight |
370 lb (168 kg) |
Warranty
Protected by American Range’s 2-year limited parts & labor warranty (90-day warranty on replacement parts). Refer to the full warranty statement for complete terms.
