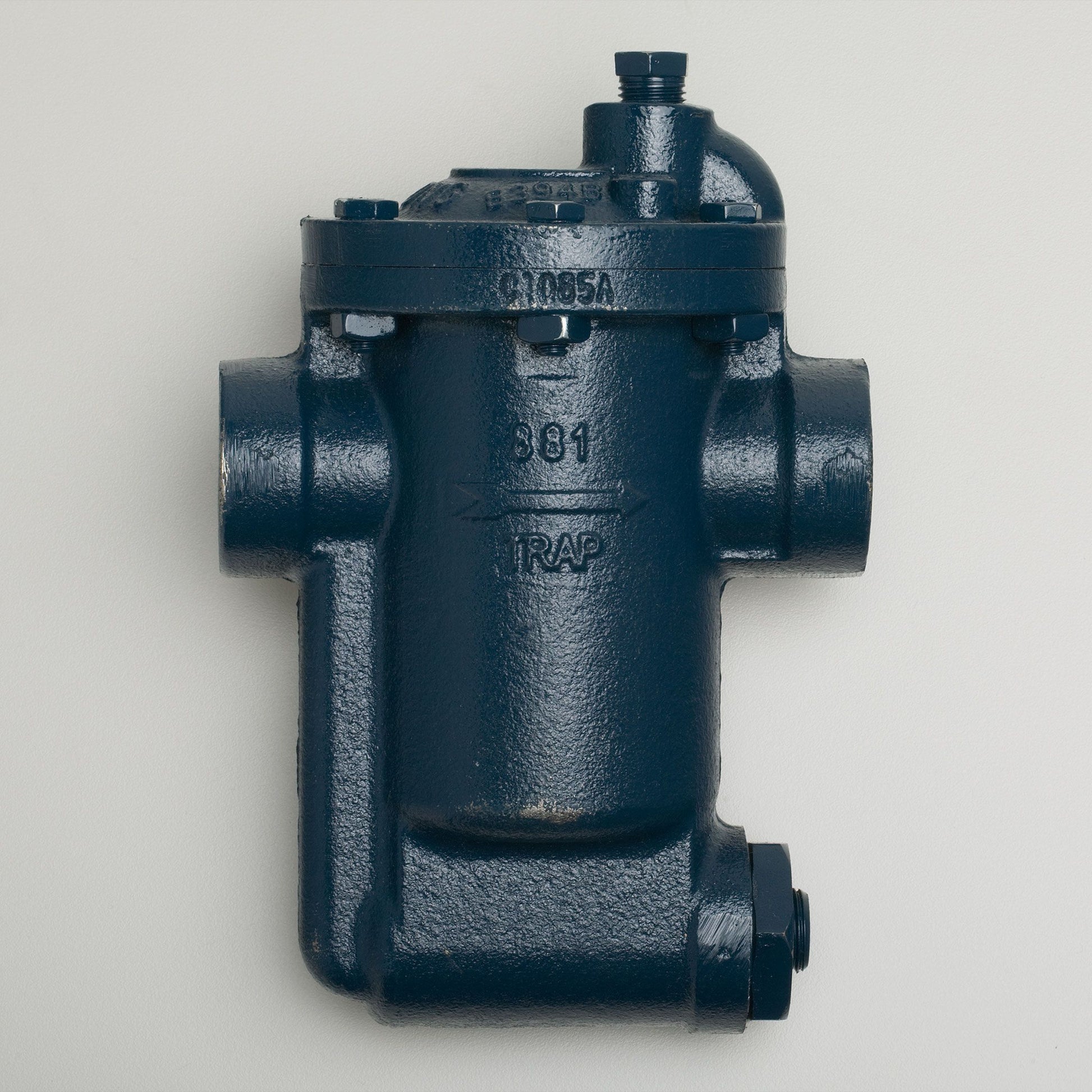

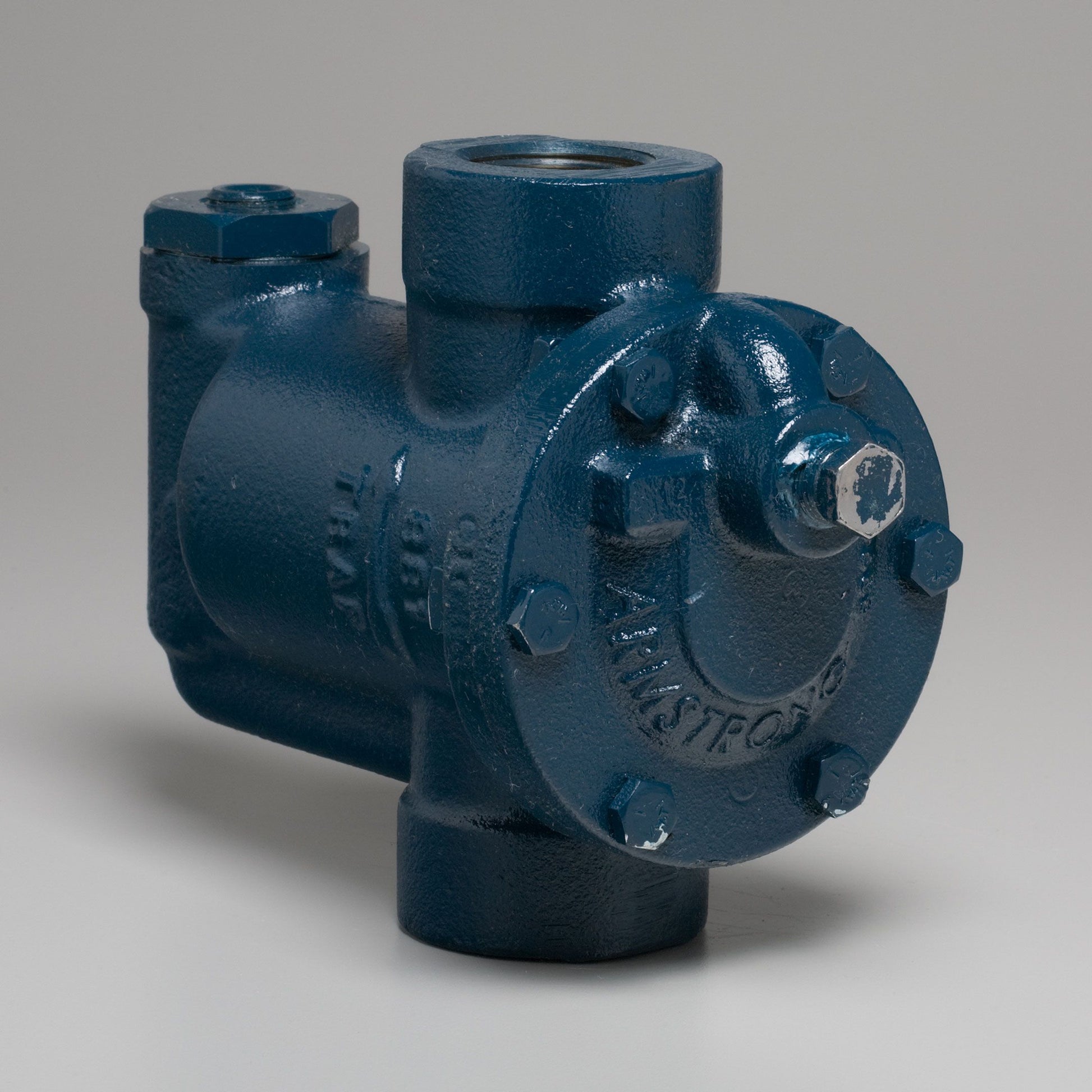

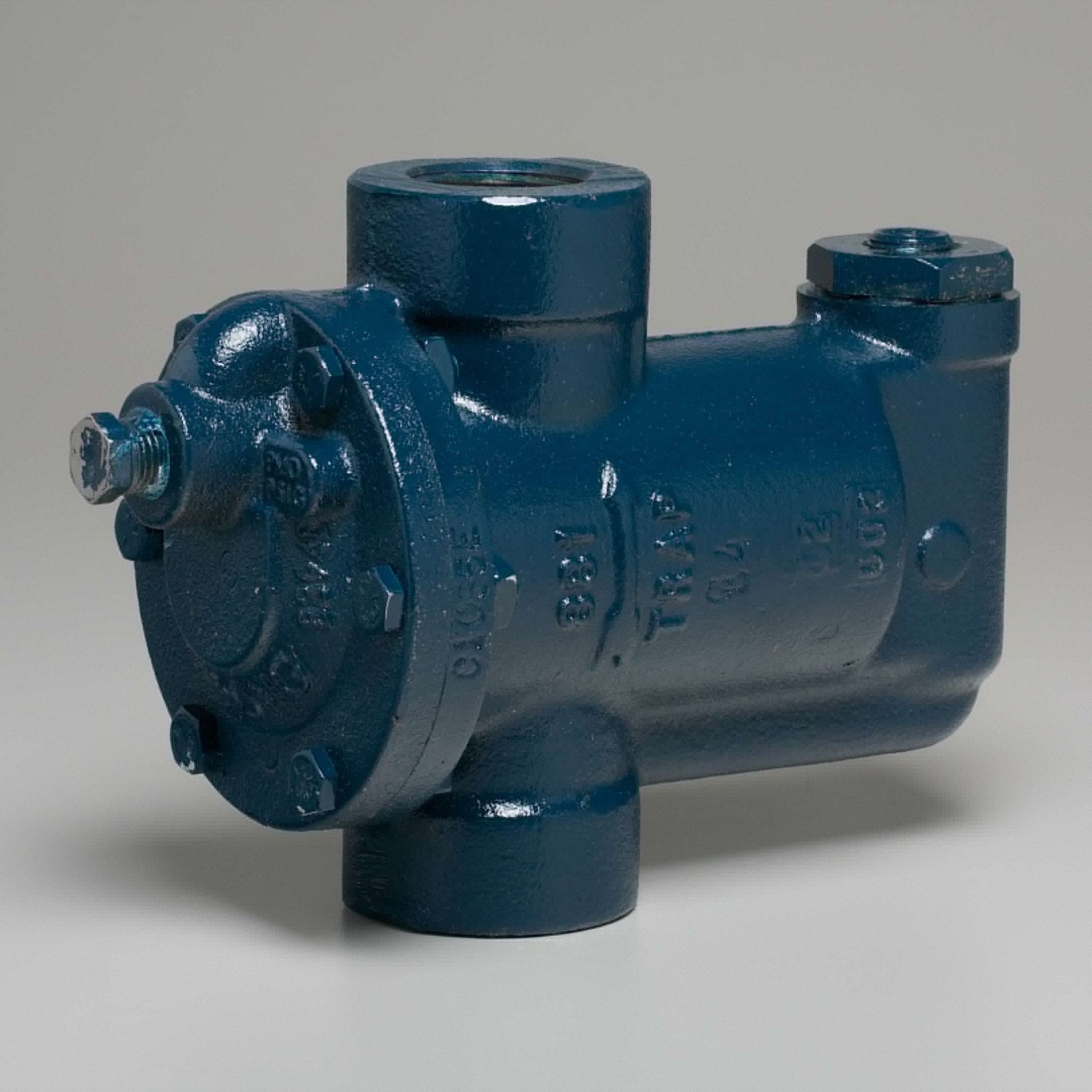

Armstrong Air C5297-70 Armstrong 881 Inverted Bucket Trap w/ Strainer 1 inch NPT 125 PSI 1/8 inch Orifice C5297-70 - C5297-70
The Armstrong Air model C5297-70 is an inverted bucket steam trap renowned for its robust design and efficient performance. The trap features a 1 inch NPT in-line horizontal pipe connection, and is constructed from heavy-duty cast iron. Capable of handling pressures up to 125 PSI and an orifice size of 1/8 inch, it is an excellent choice for steam management in heat exchange systems
.This steam trap operates using a leverage system that uses the weight of the bucket to open against pressure, effectively managing steam and condensate flows.
Features
- High resistance to wear and corrosion
- Performance under varying loads and against back pressure
- Features an integral strainer and a heavy-duty stainless steel bucket
-
Brand: Armstrong International
-
MPN: C5297-70
 Specifications
| Body Material |
Cast Iron |
| Maximum Pressure |
125 PSI |
| Connection Size |
1 inch |
| Orifice Size |
1/8 inch |
| Series |
880 Series |
| Model |
881-1-125 |
| Type |
Inverted Bucket |
| Mounting |
In-Line Horizontal |
| Brand |
Armstrong International |
| MPN |
C5297-70 |
What our Expect Think
-
High-Pressure Performance: Rated for up to 125 PSI, making it ideal for high-demand steam and HVAC systems.
-
Efficient Steam Management: Inverted bucket design ensures effective condensate removal, improving system efficiency.
-
Durable Construction: Built with high-quality materials and includes a strainer for long-lasting, reliable operation.
-
Precise Air and Condensate Removal: 1/8-inch orifice ensures optimal performance in managing air and condensate flow.
-
Easy Installation: 1-inch NPT threading allows for seamless integration into various system configurations.
Q&A
Q: What is the Armstrong Air C5297-70 Inverted Bucket Trap?
A: The C5297-70 is an inverted bucket steam trap designed for efficient condensate removal in steam systems, featuring a 1-inch NPT connection, a 125 PSI pressure rating, and a 1/8-inch orifice, along with a built-in strainer.
Q: Is this steam trap suitable for all steam systems?
A: The C5297-70 is ideal for use in various steam systems. Be sure to verify compatibility with your system’s requirements before purchasing.
Q: How does the inverted bucket design improve performance?
A: The inverted bucket design allows for effective condensate drainage, reduces water hammer, and ensures optimal steam system performance, improving reliability and efficiency.
Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper setup and maintain optimal system efficiency.
Maintenance Tips
-
Inspect for Leaks – Regularly check for any steam or fluid leaks at the trap’s connections to ensure a secure seal and efficient operation.
-
Clean the Strainer and Bucket – Periodically clean the strainer and inverted bucket to remove debris, dirt, or scale buildup that could impair function.
-
Check for Corrosion – Inspect all components, especially around the inlet, outlet, and orifice, for corrosion and replace any damaged parts.
-
Ensure Proper Bucket Movement – Ensure the inverted bucket is moving freely and is not obstructed by debris or buildup.
-
Monitor Pressure – Verify that the trap operates within the 125 PSI pressure rating to avoid over-pressurization and possible damage.
-
Inspect the Orifice – Ensure the 1/8-inch orifice is clear of any blockages to maintain proper fluid and steam flow.
-
Ensure Proper Drainage – Confirm that condensate drainage is functioning properly to prevent water buildup that could hinder the trap’s operation.
-
Annual Professional Inspection – Have a technician inspect the trap annually to ensure it is functioning correctly and to address any potential issues.
