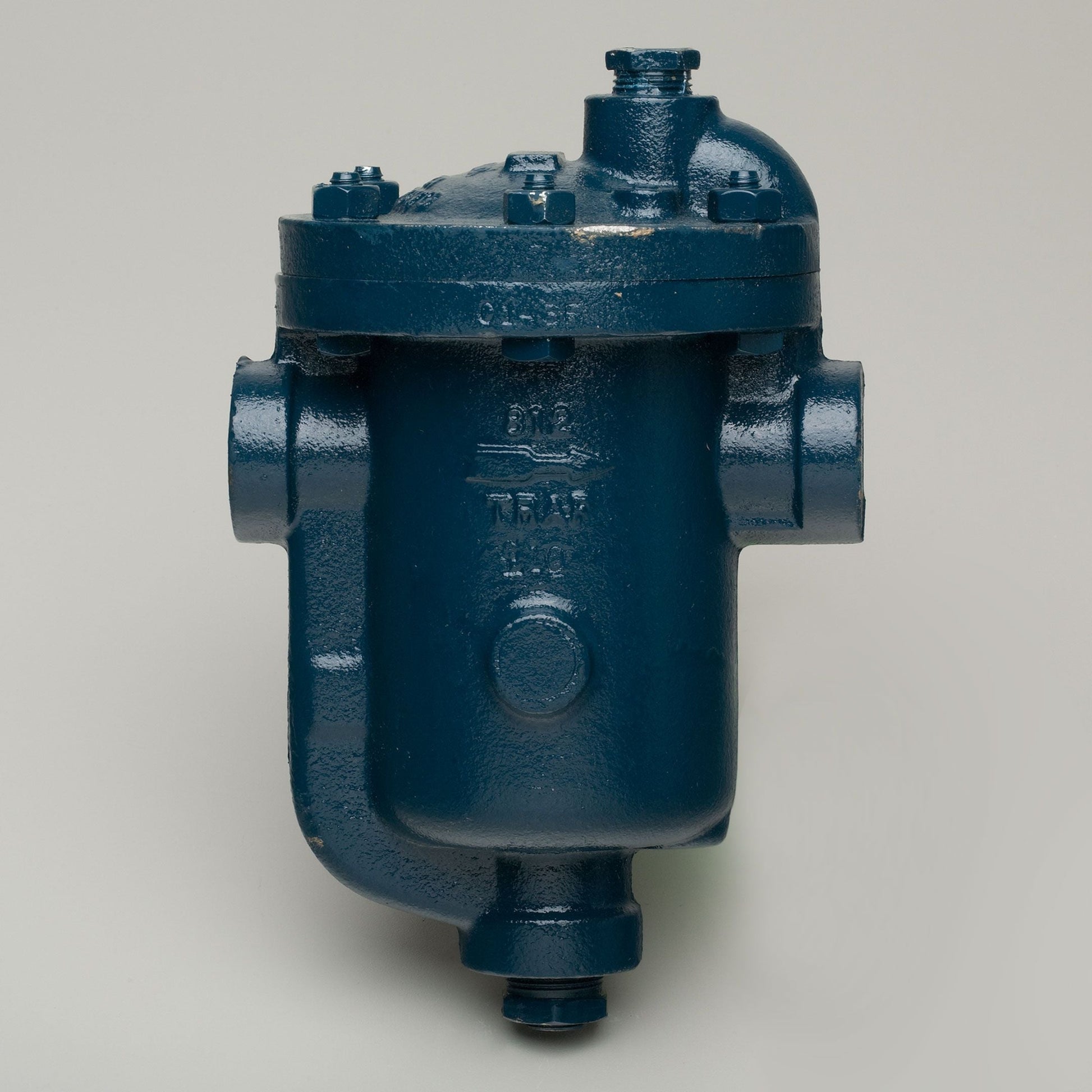

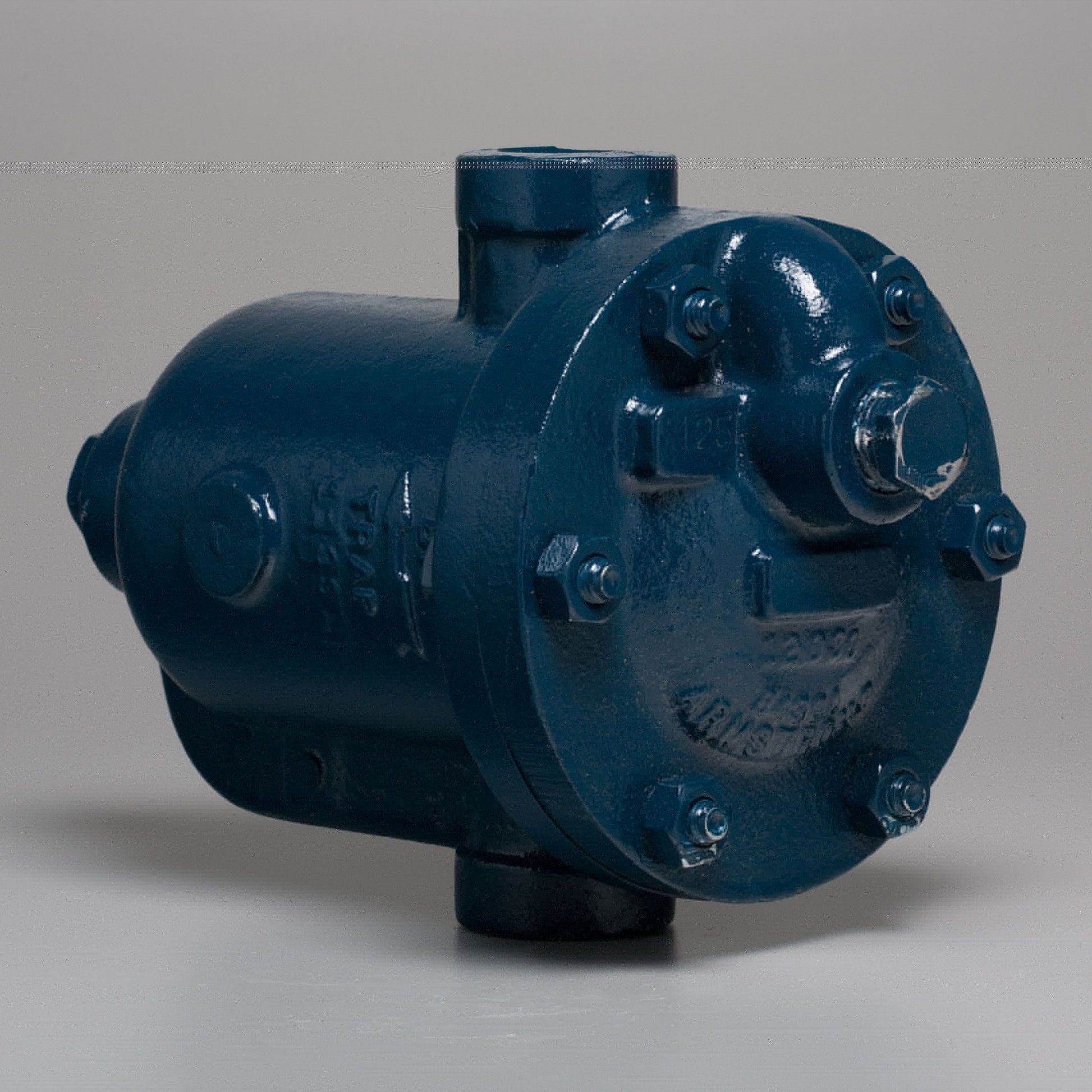

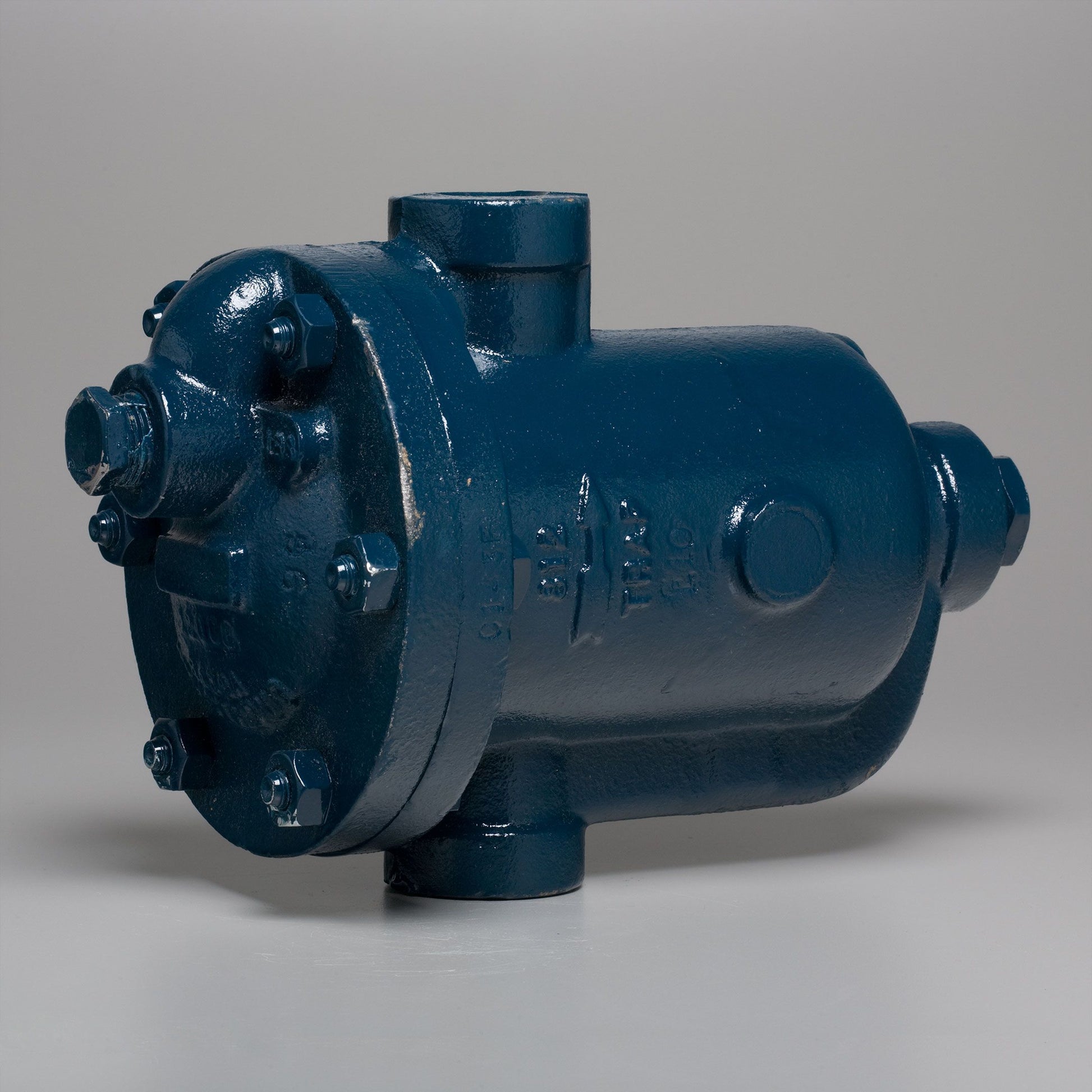

Armstrong International C5318-4 800-813 Series 3/4 in. 450F 125# 250 psi Steam Trap - C5318-4
The Armstrong International C5318-4 800-813 Series steam trap is designed for durable performance in a variety of steam applications. It has a three-fourths inch connection and operates efficiently, managing steam pressures up to 250 psi.
The Armstrong float and thermostatic (F&T) steam trap, model 75-A3, has a 3/4 trap connection in a same side configuration. This allows steam to enter from one side while condensate discharges from the same side. This design is ideal for industrial applications.
Features
- Designed for pressures up to 250 psi.
- Capable of handling capacities up to 20,000 lb/hr.
- Constructed from durable cast iron for longevity.
Specifications
| MPN |
C5318-4 |
| Series |
800 Series |
| Brand |
Armstrong International |
| Steam Trap Type |
Inverted Bucket |
| Body Material |
Cast Iron |
| Steam Trap Connection Size |
3/4 inch |
| Steam Trap Mounting |
In-Line Horizontal |
| Max Pressure |
125 PSI |
| Orifice Size |
5/32 inch |
| Weight |
15.00 lb |
What Our Experts Think
-
250 PSI Capacity – Designed for demanding steam applications.
-
Handles Up to 450°F – Ideal for high-temperature environments.
-
3/4" NPT Connection – Standard threading for easy installation.
-
Durable Construction – Engineered for long-lasting performance in industrial settings.
-
Energy Efficient – Minimizes steam loss while optimizing condensate drainage.
Q&A
Q: What applications is this steam trap best suited for?
A: Designed for industrial and commercial steam systems, including heat exchangers, process equipment, and high-pressure steam distribution lines.
Q: How does this steam trap improve system efficiency?
A: It effectively removes condensate while preventing steam loss, ensuring optimal energy efficiency and system performance.
Q: What is the benefit of its high-temperature and high-pressure capacity?
A: It provides reliable operation in demanding steam environments, reducing maintenance needs and extending system lifespan.
Q: Is this steam trap durable?
A: Yes, it is built with robust materials to withstand extreme steam conditions, ensuring long-term performance.
Maintenance Tips
-
Inspect for Leaks – Check pipe connections and seals for steam or water leaks.
-
Monitor Trap Operation – Ensure proper condensate drainage without excessive steam loss.
-
Clean the Strainer – Regularly remove debris to prevent blockages.
-
Check Valve & Bucket Mechanism – Ensure smooth movement and proper sealing.
-
Verify Pressure & Temperature Limits – Operate within 250 PSI and 450°F ratings.
-
Test Discharge Cycle – Confirm consistent performance to prevent water hammer.
-
Schedule Routine Maintenance – Periodic checks extend efficiency and lifespan.
