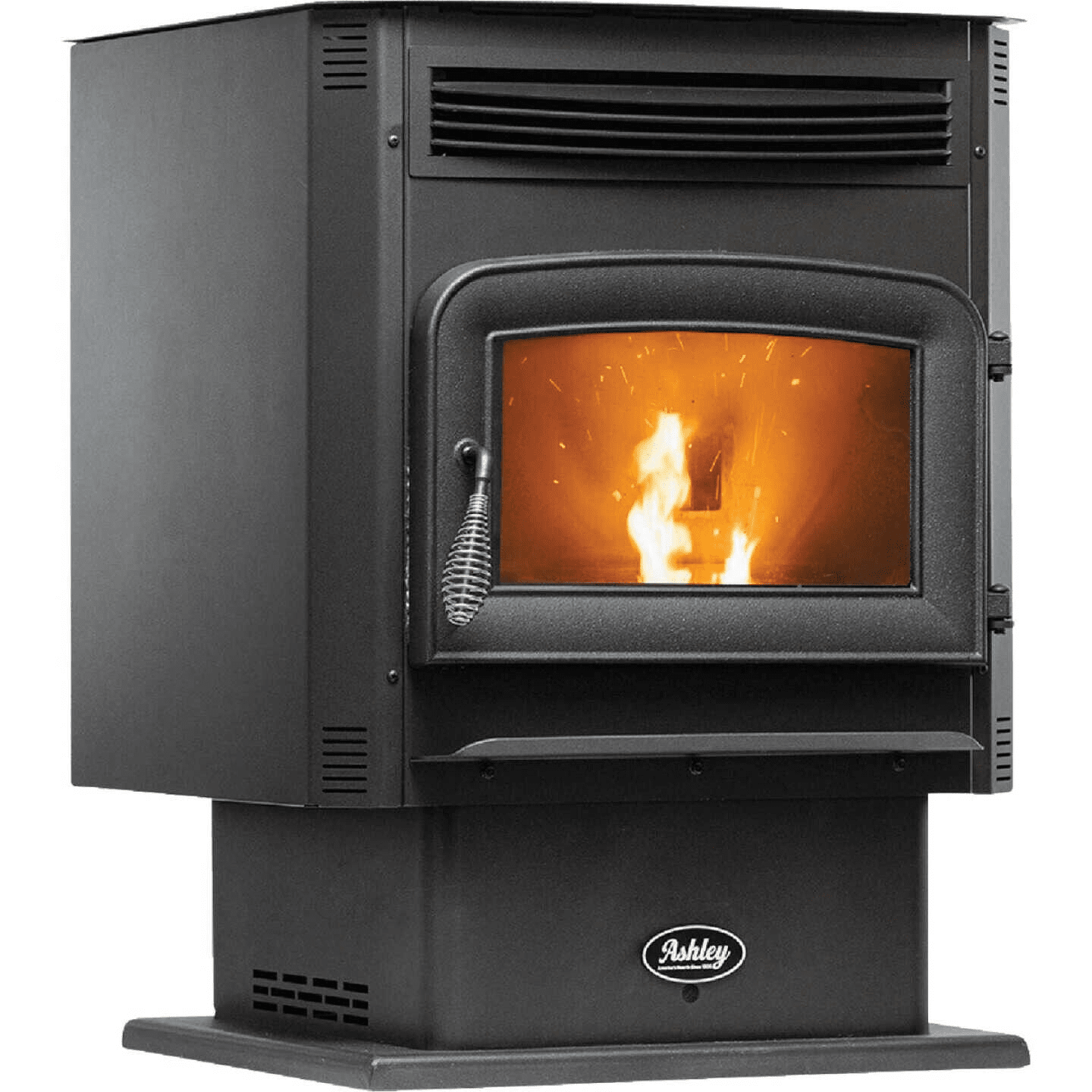

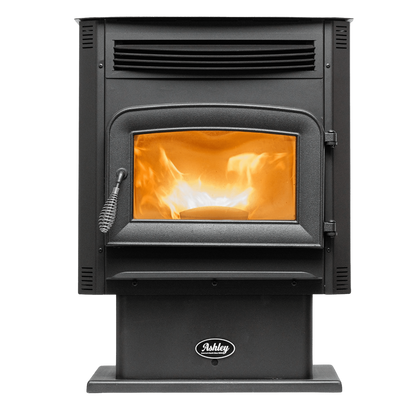

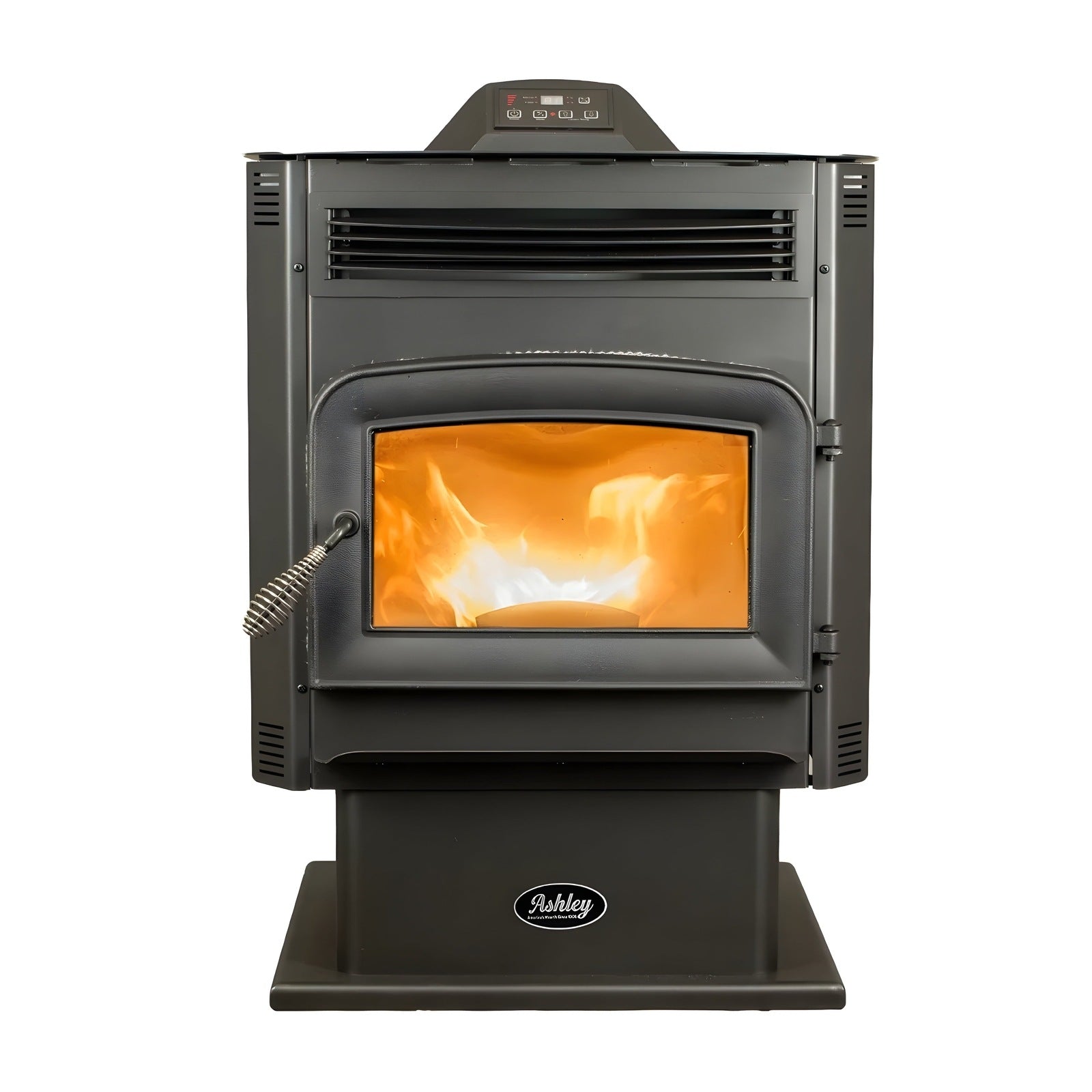

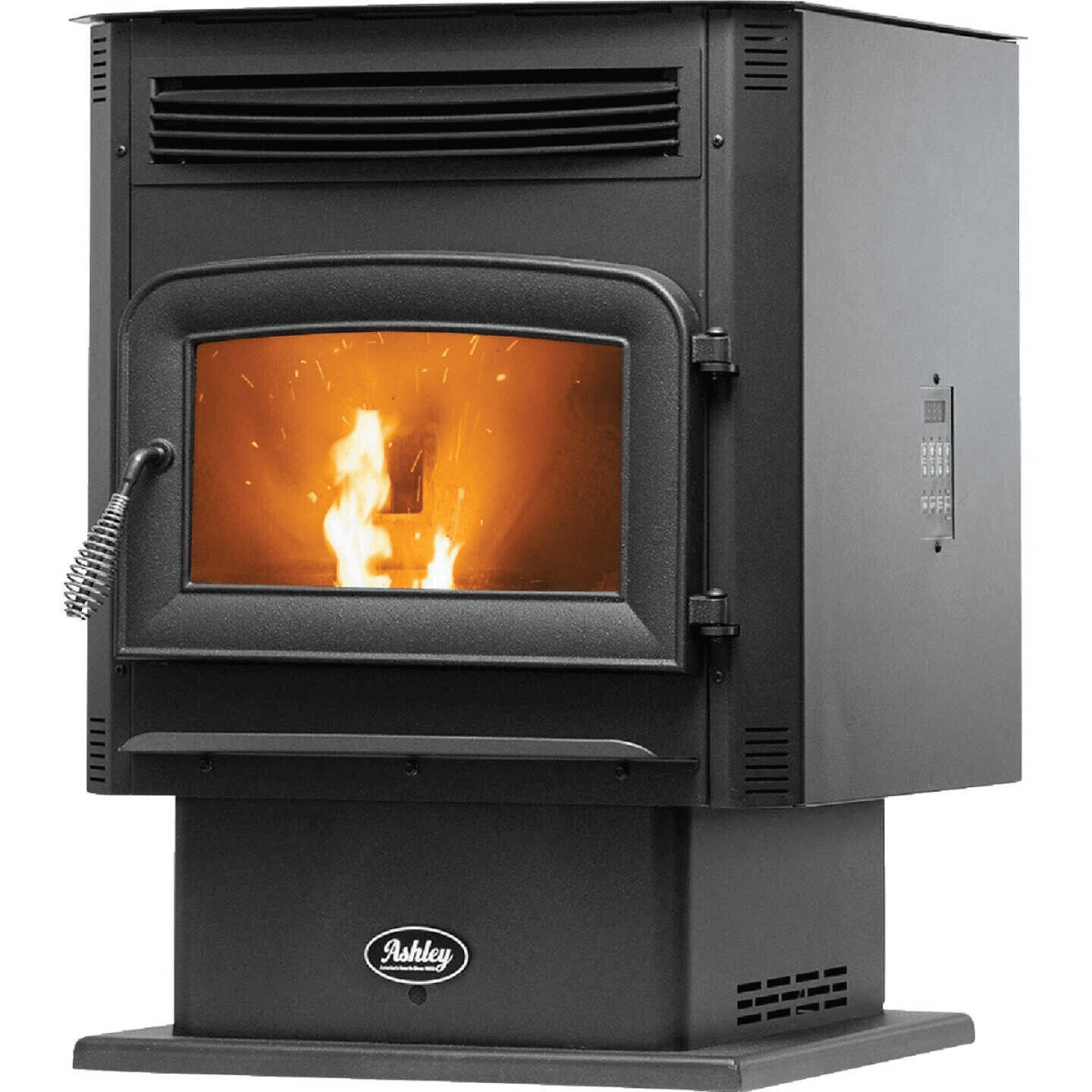

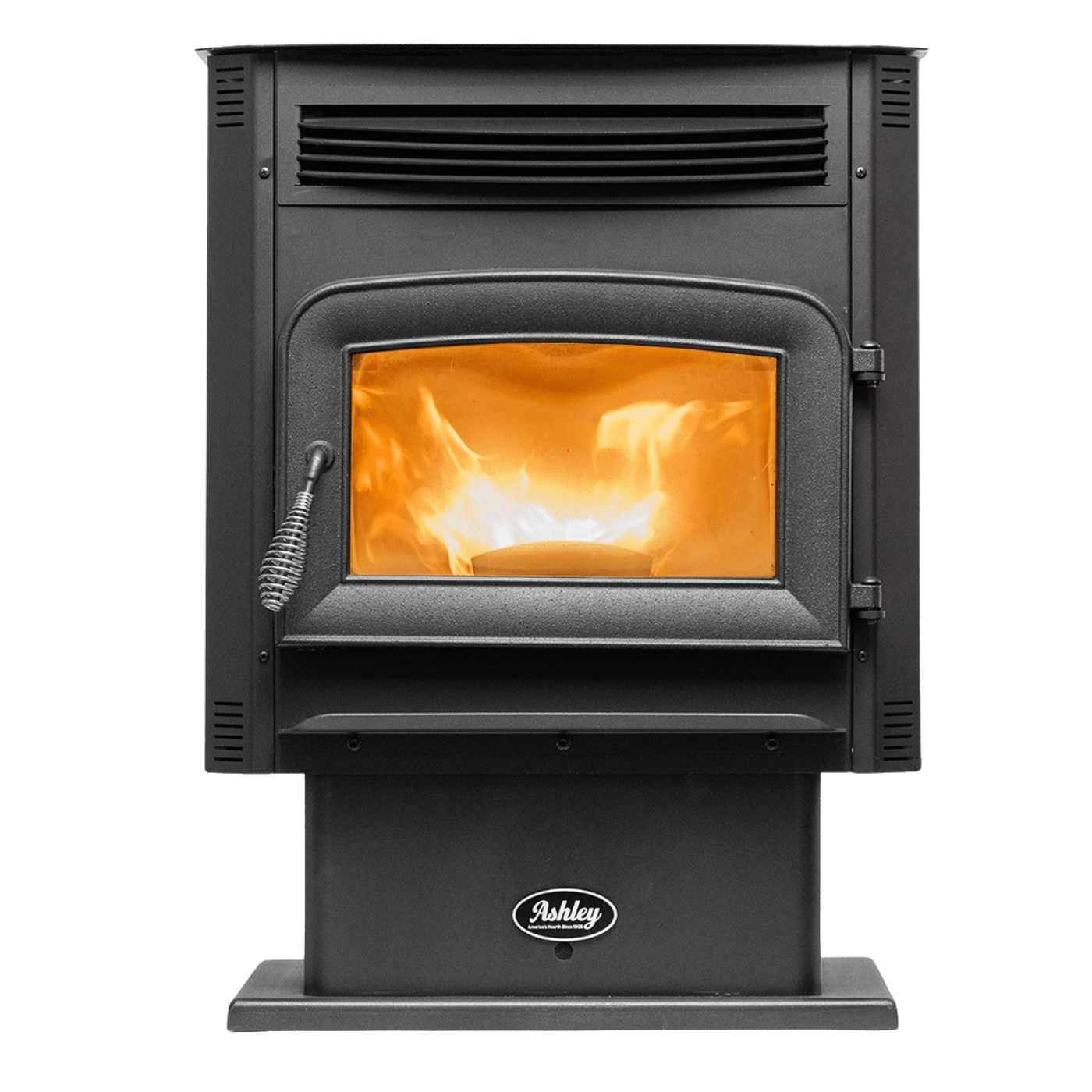

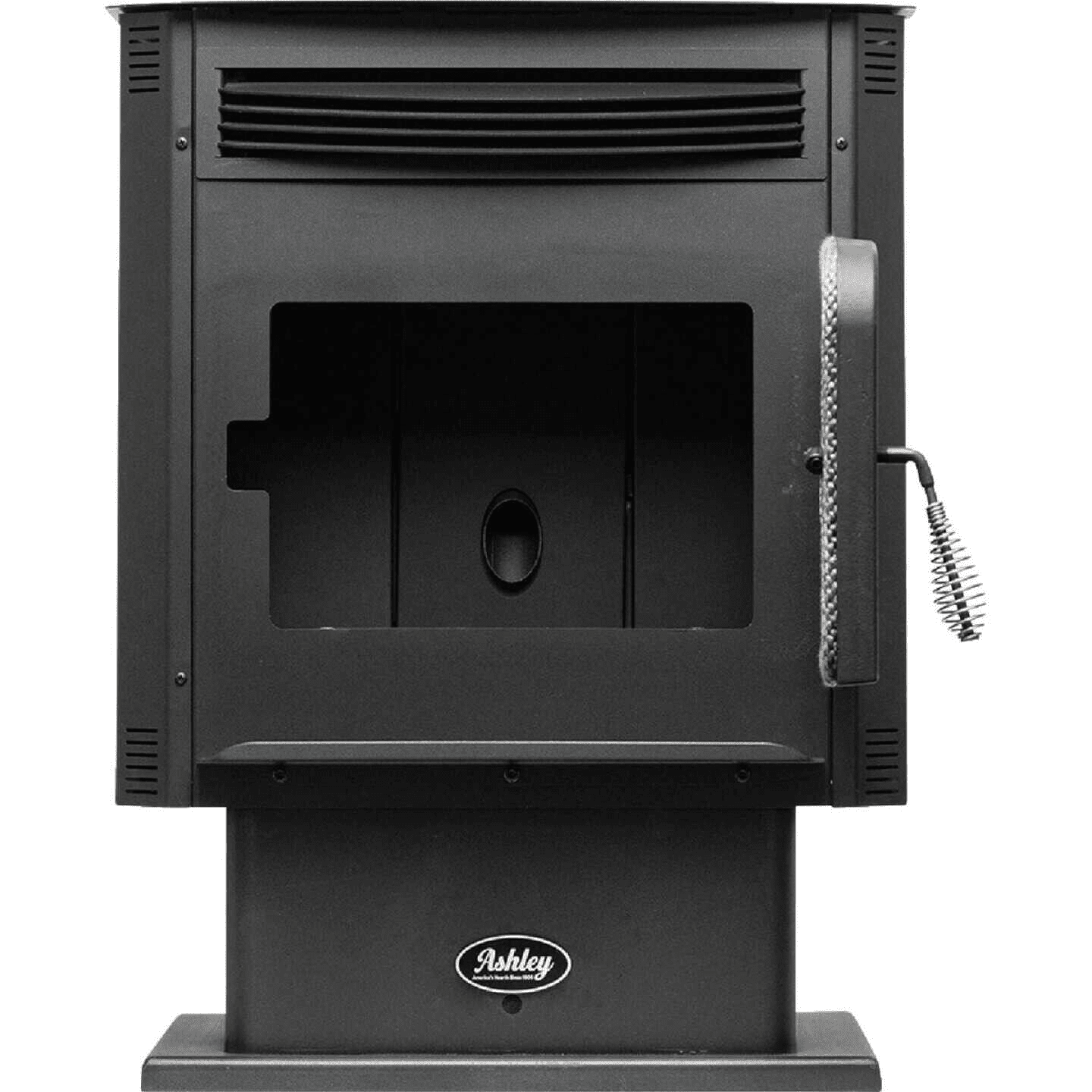

The Ashley Hearth AP5617-P medium size wood pellet stove efficiently heats up to 1,700 sq ft. The AP5617-P wood pellet stove incorporates a 50% larger 90 lb. pellet hopper for up to 45 hours of continuous warmth and comfort. The advanced AURORA diverse airflow burner system provides your family with a beautiful flame and an unmatched increase in airflow and heat output. This combination of traditional pedestal styling, improved heat output, significant heating efficiency, and a larger wood pellet hopper capacity provides a great solution to your heating needs. THE AP5617-P comes complete with a wireless remote control to allow easy operation and heat adjustment at the touch of a button. Wood pellet fuel is a carbon neutral green energy and the most environmentally friendly fuel on the market today. The AP5617-P wood pellet stove exceeds 75% efficiency and qualifies for the 30% IRS Sec.(25C) Residential Energy Tax Credit.
Features
- Heats Up To 1,700 Square Feet of Living Space
- Compact 90 lb. Hopper Operates Up To 45 Hours
- Utilizes Exclusive AURORA High Effeciency Technology

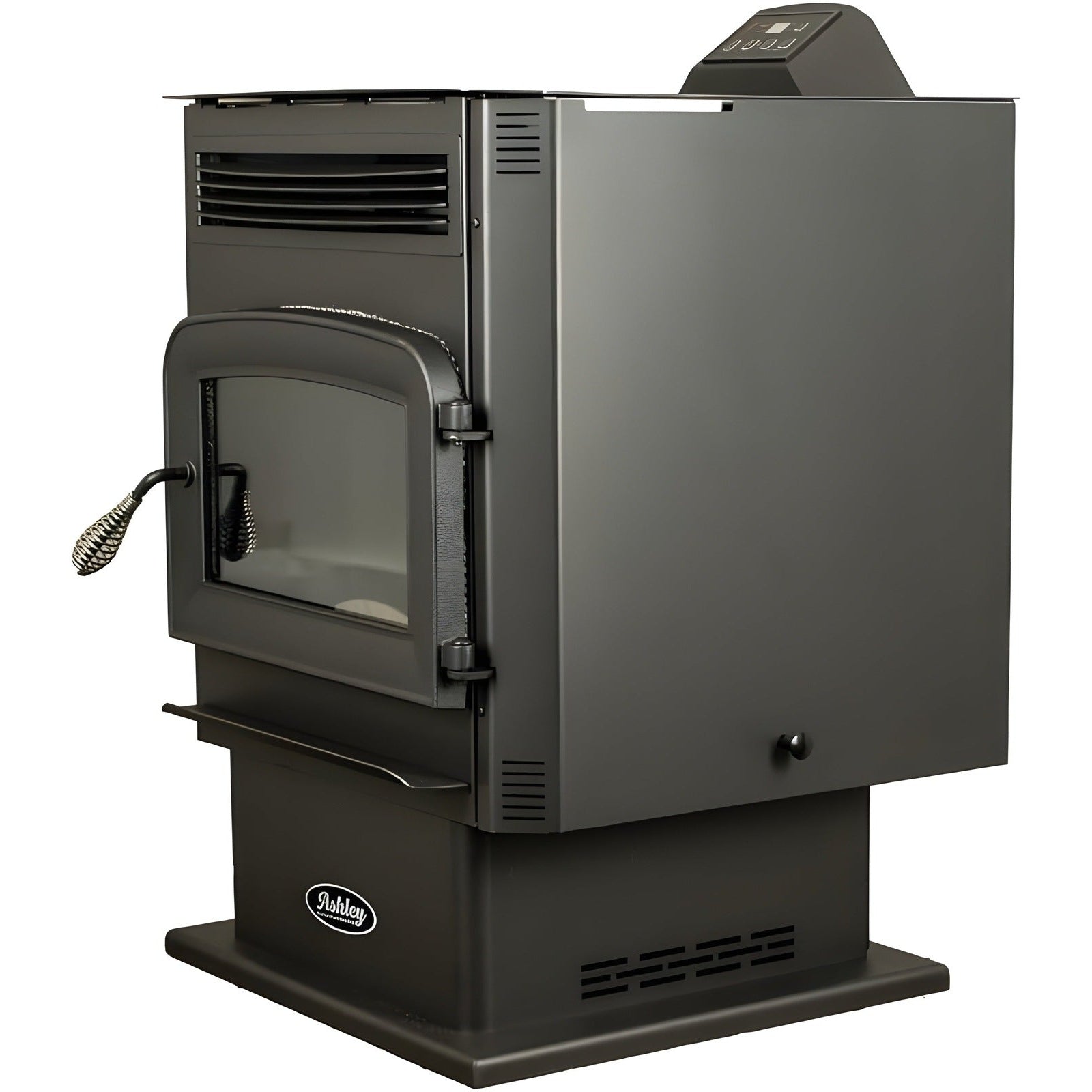

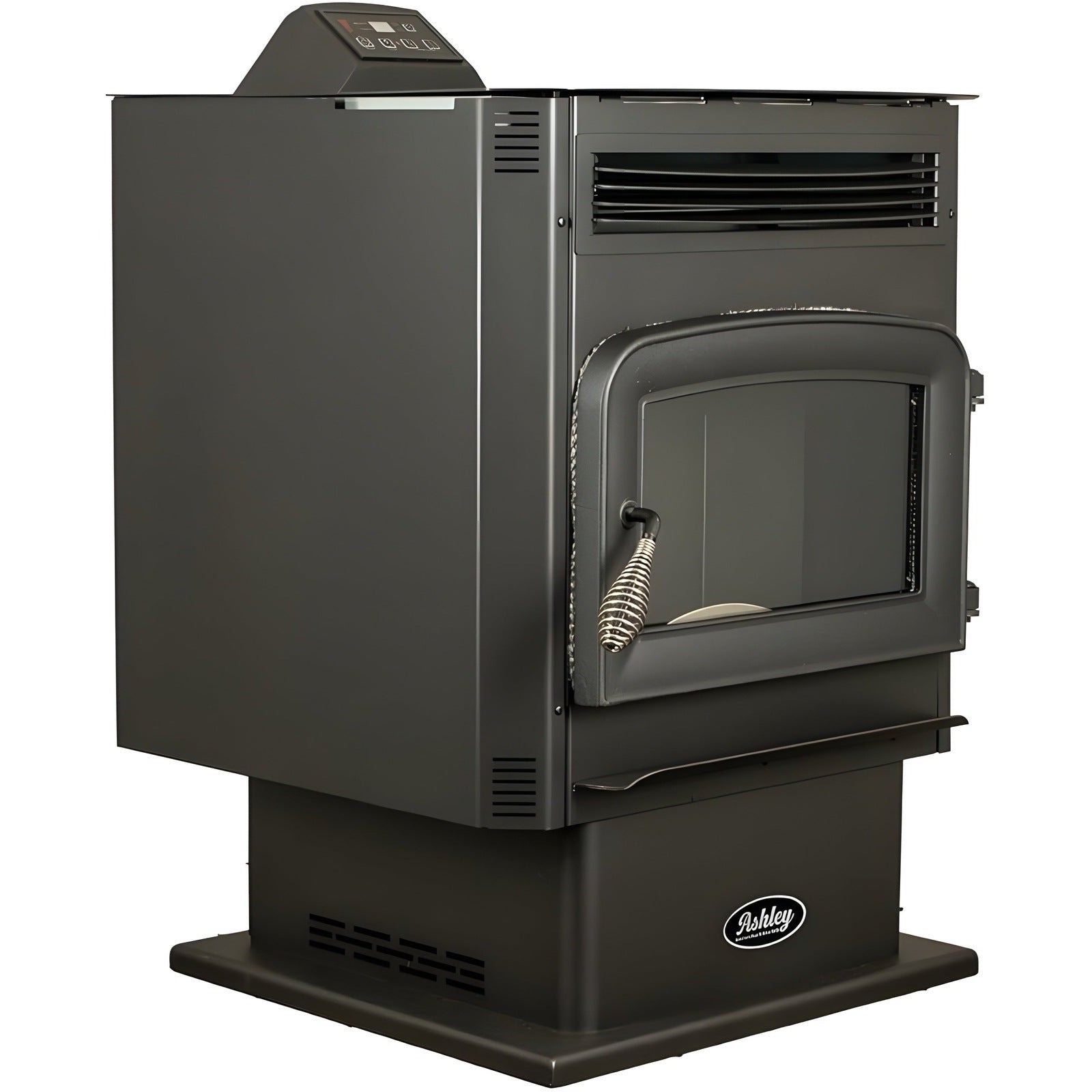

- Easy To Use Top Mounted Digital Controls and Convenient Remote Control
- Qualifies For IRS 25C Residential Energy Tax Credit
- Features Upgraded Ceramic Glass And Air Wash System
- Mobile Home Approved (USA) - Optional Fresh Air Kit (69FAK) Available
Specifications
| Product Wood Or Pellet Burning |
Pellet |
| Heating Coverage |
1,700 sq. ft. |
| Burn Time (lowest setting) |
Up to 45 hours |
| Hopper Capacity |
90 lbs. |
| Stove Type |
Freestanding |
| Electrical Rating |
120V, 60 Hz, 3.0 Amps |
| Watts (operational) |
Approximately 180 |
| Watts (igniter running) |
Approximately 260 |
| Remote Control |
Yes |
| Vented Or Vent-Free |
Vented |
| Brick-Lined Firebox |
No |
| Cooktop |
No |
| Outside Air Kit |
No |
| Pedestal Base Included |
Yes |

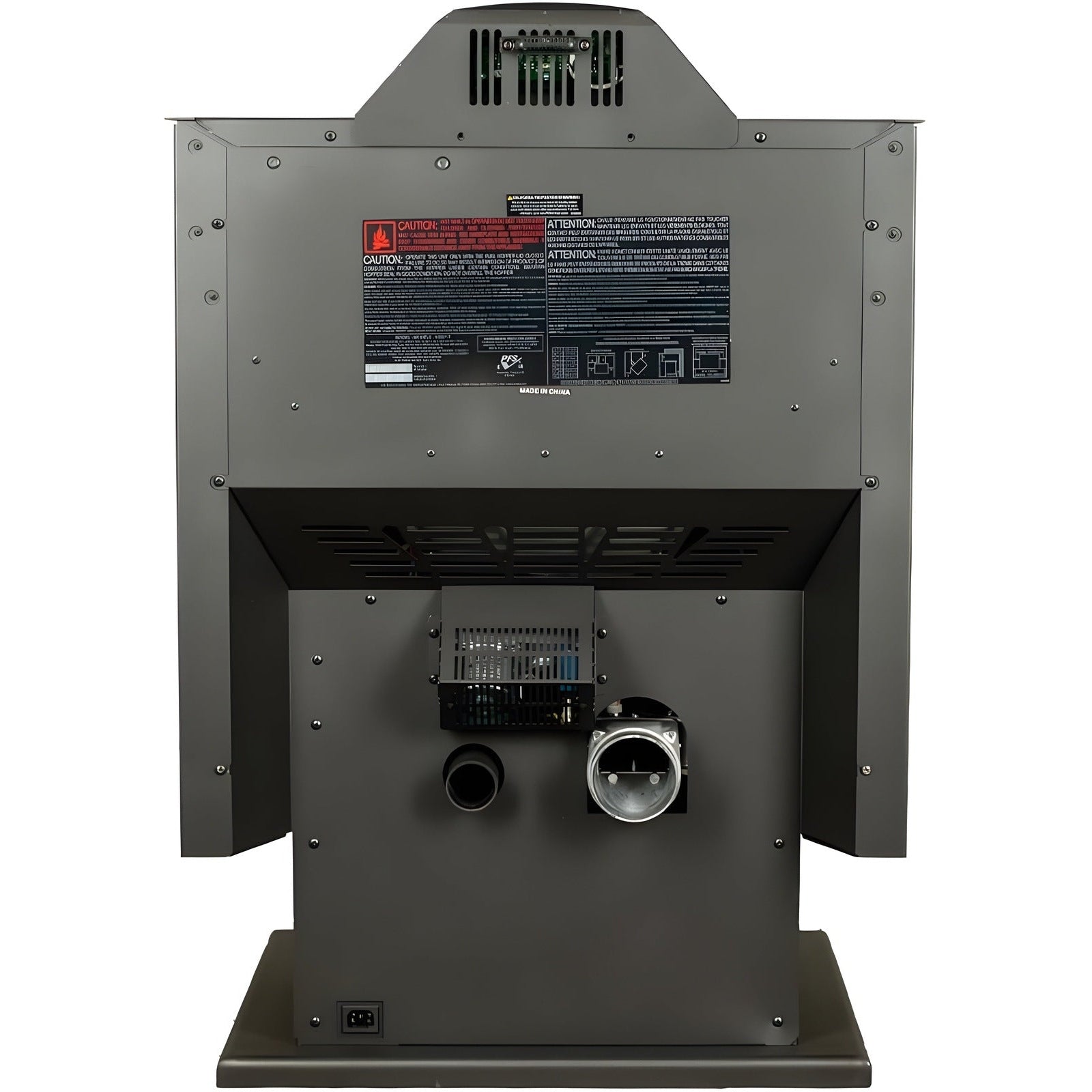

| Vent Location |
Rear |
| Auto Ignition |
Yes |
| Blower |
Yes |
| Catalytic/Non Catalytic |
Non Catalytic |
| Removable Water Reservoir |
No |
| Air Wash System |
Yes |
| Temperature Gauge |
Yes |
| Venting Required |
Yes |
| Vent Diameter (in) |
3 |
| Touchpad Controls |
Yes |
| Ash Drawer |
No |
| ETL Listed |
Yes |
| EPA Approved |
Yes |
| CSA Certified |
Yes |
| UL Listed |
Yes |
| Package Depth |
25.75 in |
| Package Width |
29.75 in |
| Package Height |
38 in |
| Package Weight |
214 lbs. |
| Assembled Depth |
23.6 in |
| Assembled Width |
24.8 in |
| Assembled Height |
37.5 in |
| Assembled Weight |
181 lbs. |
| Product Manufacturer Warranty |
5 year limited firebox warranty, 1 year all other parts, 1 year electrical parts |
PACKAGE CONTENTS:
- Ashley Hearth AP5617
- User's Manual
Manual
User's Manual
What Our Experts Think
-
Reliable Heating: The Ashley Hearth AP5617-P Pellet Stove provides 42,000 BTUs, effectively heating up to 1,700 sq. ft., making it ideal for medium-sized homes or spaces.
-
Large Hopper Capacity: With a 90 lb hopper, this stove offers longer burn times, reducing the need for frequent reloading while maintaining a consistent heat source.
-
Remote Control Functionality: The included remote control allows for convenient adjustments to the stove’s settings and temperature, enhancing user comfort and ease of operation.
-
Eco-Friendly Operation: Designed for clean and efficient pellet burning, the stove provides a more eco-conscious heating solution with reduced emissions and better fuel efficiency.
-
Effective Heat Distribution: The built-in blower ensures that heat is evenly distributed across the room, enhancing comfort and warmth throughout the space.
Q&A
Q: What is the Ashley Hearth AP5617-P Pellet Stove?
A: The Ashley Hearth AP5617-P is a pellet stove designed to heat up to 1,700 square feet. It features a 90 lb hopper for extended burn times and comes with a remote control for convenient operation, making it a reliable and efficient heating solution for medium-sized homes.
Q: What are the key features of the Ashley Hearth AP5617-P Pellet Stove?
A: The AP5617-P includes a 90 lb hopper, allowing for longer heating cycles, and a powerful output to efficiently heat up to 1,700 sq. ft. It comes with a remote control for easy temperature adjustments and a user-friendly control panel for simplified operation.
Q: How efficient is the Ashley Hearth AP5617-P Pellet Stove?
A: The AP5617-P is designed for high efficiency, with a clean burn system that ensures minimal pellet consumption and consistent heat output. Its 90 lb hopper reduces the need for frequent reloading, making it convenient and energy-efficient.
Q: Is the Ashley Hearth AP5617-P Pellet Stove easy to operate?
A: Yes, the AP5617-P is easy to operate with a remote control for quick adjustments from anywhere in the room. The stove also features an intuitive control panel to manage heat settings, fan speed, and ignition.
Q: Why choose the Ashley Hearth AP5617-P Pellet Stove?
A: The AP5617-P offers efficient heating with a large hopper, remote control for added convenience, and a sleek design, making it a great choice for homeowners who need reliable and eco-friendly heating for medium-sized spaces.
Maintenance Tips
-
Regular Cleaning: Clean the firebox, burn pot, and surrounding areas regularly to remove ash and debris. Use a soft brush and a vacuum to ensure there are no obstructions that could interfere with the stove's operation. A clean stove runs more efficiently and safely.
-
Chimney & Vent Inspection: Clean and inspect the chimney and vent pipe annually to remove creosote buildup. Creosote buildup can cause dangerous chimney fires, so it’s important to have it cleaned professionally if needed.
-
Check Pellet Hopper: Regularly inspect the 90 lb pellet hopper to ensure pellets are dry, free of moisture, and not obstructed by debris. Moist pellets can cause feeding issues and reduce combustion efficiency.
-
Burn Pot Cleaning: Clean the burn pot frequently to remove ash and prevent buildup, which can obstruct airflow and reduce efficiency. A clean burn pot ensures better combustion and optimal heat output.
-
Blower & Fan Maintenance: Clean the blower fan and motor to ensure proper airflow. Dust and debris can clog the fan and reduce heating efficiency. Lubricate the fan motor according to the manufacturer’s recommendations to keep it functioning smoothly.
-
Ash Removal: Empty the ash pan regularly, at least once a week or after several burns, to maintain good airflow. Ash buildup can restrict airflow and affect the stove’s performance. Always dispose of ash in a safe metal container once it has cooled down.
-
Inspect Gaskets: Check the door and hopper gaskets for wear, damage, or air leaks. Replace any worn gaskets to ensure a proper seal and maintain efficient operation.
-
Pellet Storage: Store pellets in a dry, cool, and well-ventilated area to keep them in optimal condition. Moisture can cause pellets to swell or disintegrate, leading to feeding problems and reduced stove performance.
-
Air Intake & Exhaust Cleaning: Periodically inspect and clean the air intake and exhaust to ensure there are no blockages. Blockages can lead to poor combustion and hinder airflow, reducing efficiency.
-
Safety Checks: Ensure the stove is properly installed and vented. Check the wiring, connections, and components for signs of wear or damage to ensure safe operation. Make sure the stove is venting properly to avoid the buildup of carbon monoxide.
-
Remote Control & Electronics: Test the remote control and electronic components regularly to ensure they are working correctly. Replace batteries as needed, and ensure there are no loose connections that could affect the stove’s operation.
-
Monitor Performance: Keep an eye on the stove's performance, checking the flame height and consistency. If you notice any issues, such as irregular flame or poor heating, troubleshoot or consult the manufacturer for further assistance.
