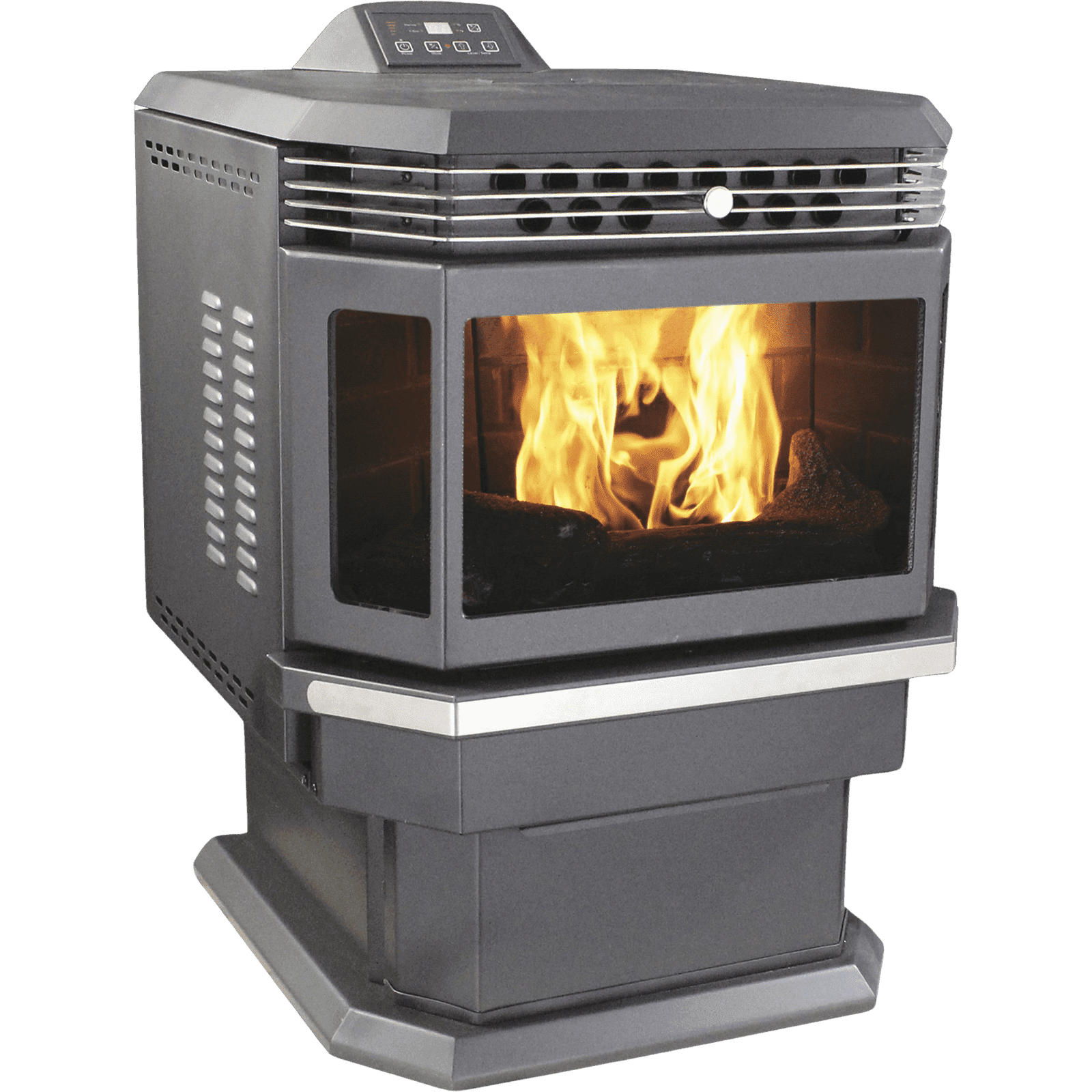

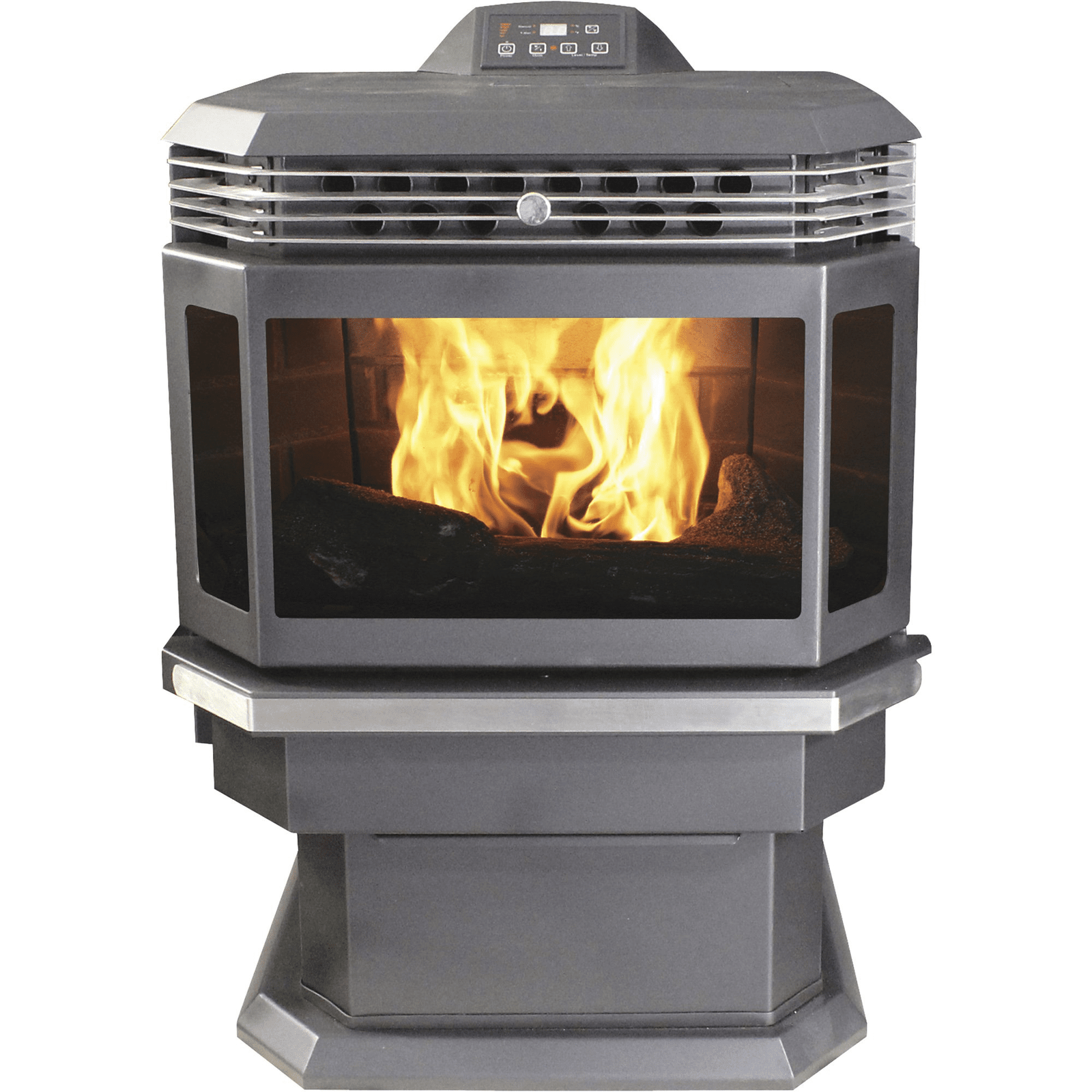

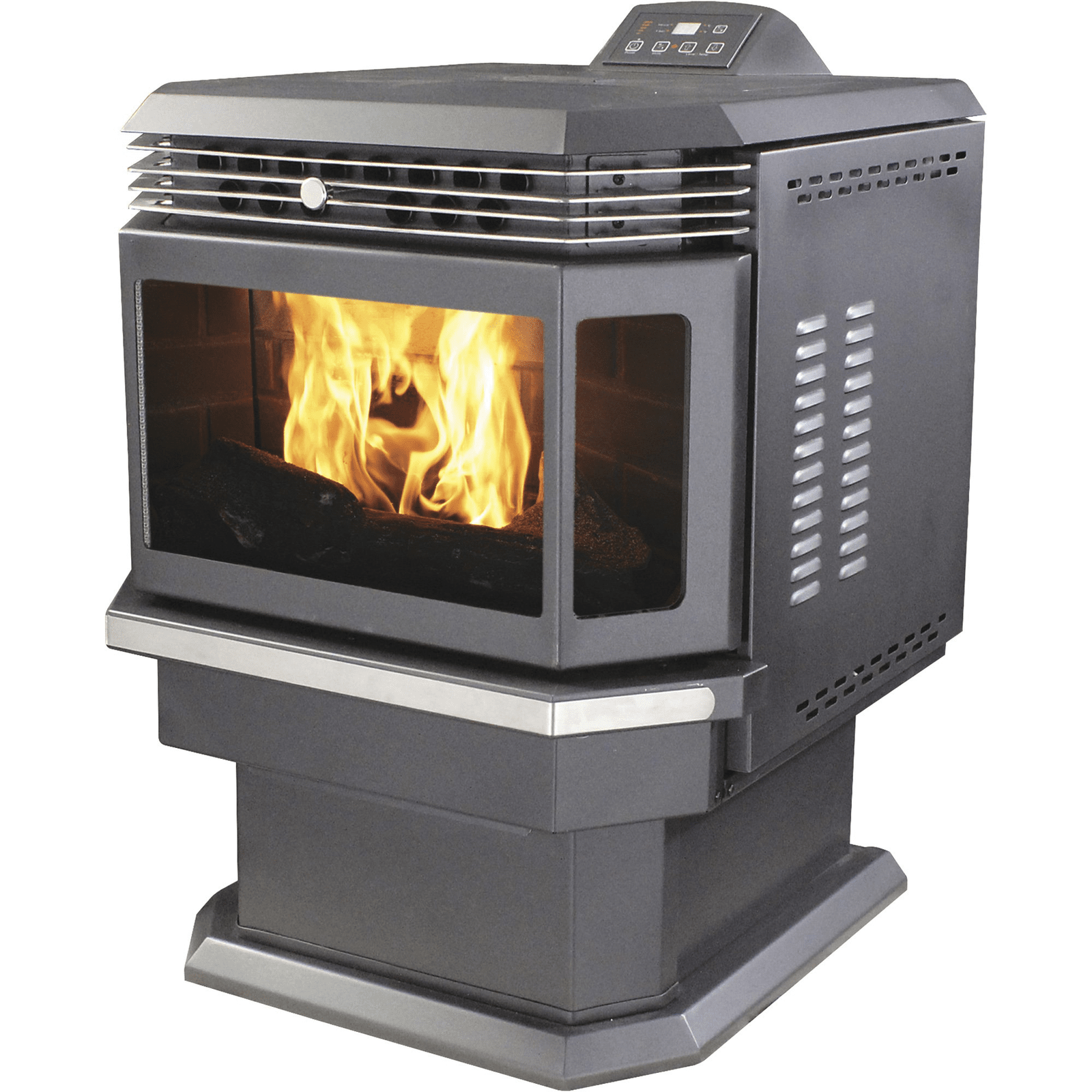

The AP5660 bay front pellet stove is a fully automatic pellet stove with auto ignition and easy to use electronic controls. Setting this pellet heater apart is the wide bay front glass design that gives you a wonderful view of the fire. The stove also has a faux log set and brick fireplace backer giving you the look of a traditional fireplace. It utilizes a temperature control circulation blower to spread heat evenly it is a durable yet sleek design, built for years of high performance.
Features
- Provides up to 48,000 BTUs of clean heat for up to 2,200 sq. ft.
- 120 cfm blower with automatic circulation to spread heat evenly
- Air Wash Glass
- Large bay front window for viewing
- Integrated Damper Control
- Digital heat settings allow the ability to adjust to your heating needs
- LED display makes it easier to set and operate
- Approved for mobile and modular homes with optional fresh air kit
- Digital control board allows adjusting heat and draft control with the push of a button
- 45 lb hopper allows for up to 30 hours between refills (lowest setting)
Specifications
| Product Wood Or Pellet Burning |
Pellet |
| Product Color / Finish |
Black |
| Product Heating Area (ft²) |
2200 |
| Product Maximum BTU |
48000 |
| Hopper Capacity (ft³) |
45 |
| Pedestal Base Included |
Yes |
| Stove Type |
Freestanding |
| Brick-Lined Firebox |
No |
| Vented Or Vent-Free |
Vented |
| Temperature Gauge |
Yes |
| Touchpad Controls |
Yes |
| Auto Ignition |
Yes |
| Removable Water Reservoir |
No |
| Air Wash System |
Yes |
| Product Outside Air Kit |
No |

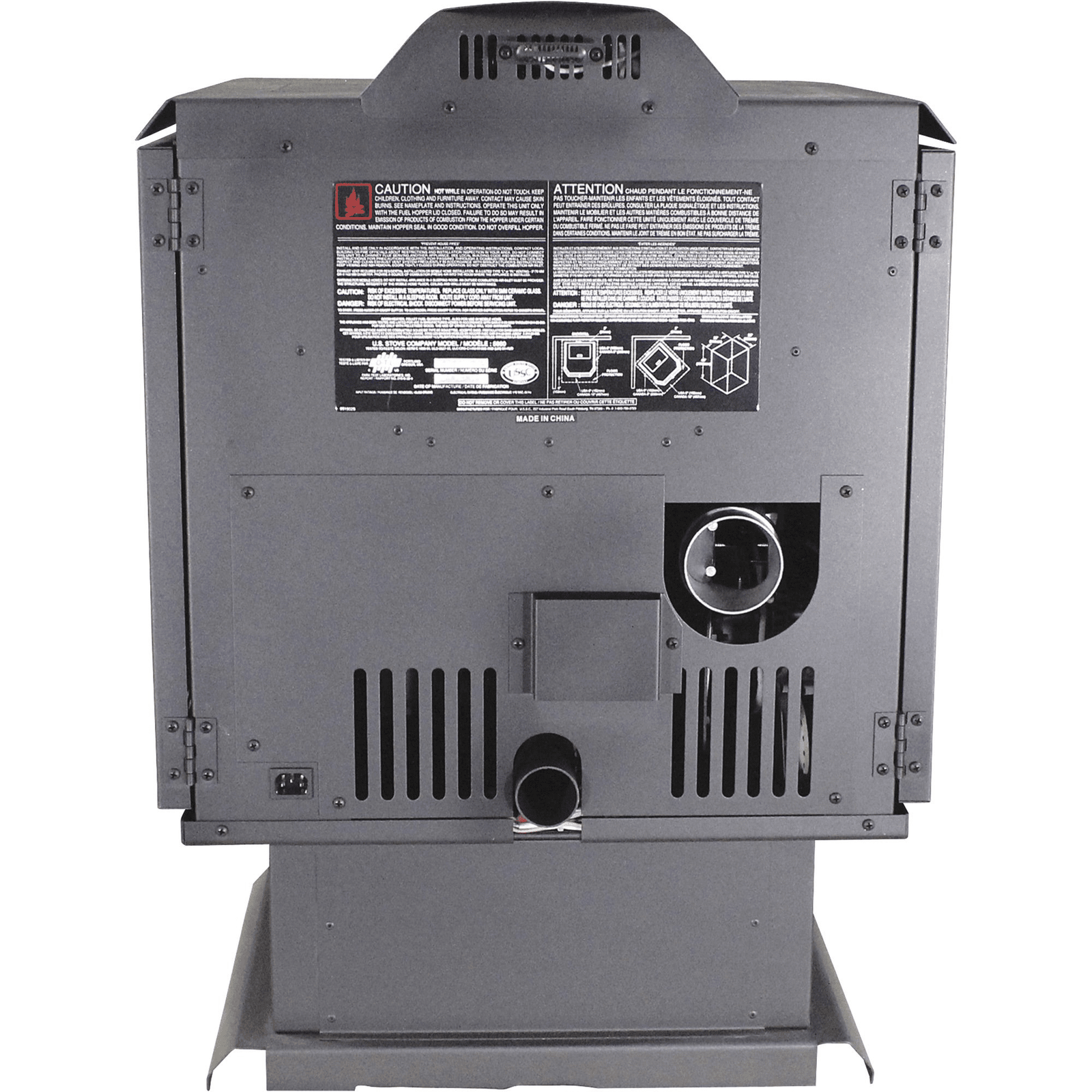

| Product Vent Location |
Rear |
| Product Blower |
Yes |
| Vent Diameter (in) |
3 |
| Built-In Variable Speed Blower |
Yes |
| Cooktop |
No |
| Catalytic/Non Catalytic |
Non Catalytic |
| Ignition System |
Automatic |
| Ash Drawer |
Yes |
| CSA Certified |
Yes |
| ETL Listed |
Yes |
| EPA Approved |
Yes |
| UL Listed |
Yes |
| Assembled Depth (in) |
26.19 |
| Assembled Width (in) |
24.25 |
| Assembled Height (in) |
30.5 |
| Package Depth |
25.5" |
| Package Width |
29" |
| Package Height |
39" |
| Package Weight |
275 lbs. |
| Product Manufacturer Warranty |
Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts |
PACKAGE CONTENTS
Ashley Hearth AP5660
User's Manual
Manual

User's Manual
What Our Experts Think
-
Impressive Heating Capacity: The Ashley Hearth AP5660 Bay Front Pellet Stove delivers 48,000 BTUs, capable of heating up to 2,200 sq. ft., making it perfect for larger homes or open-concept spaces.
-
Spacious Hopper: With a 45 lb hopper, this stove offers longer burn times, providing consistent warmth without the need for frequent reloading.
-
Elegant Bay Front Design: The bay front adds a stylish aesthetic to any room, providing a panoramic view of the flames, perfect for enhancing your home's ambiance.
-
Efficient & Clean Burning: The pellet stove is designed for clean, efficient burning, reducing emissions while maximizing heat output for an eco-friendly heating solution.
-
Powerful Heat Distribution: The built-in blower efficiently circulates heat, ensuring even warmth throughout the room or space.
Q&A
Q: What is the Ashley Hearth AP5660 Bay Front Pellet Stove?
A: The Ashley Hearth AP5660 Bay Front Pellet Stove is a high-efficiency heating solution designed to heat up to 2,200 square feet. It features a 45 lb hopper, 48,000 BTU output, and a bay front design for enhanced aesthetics and heat distribution.
Q: What are the key features of the Ashley Hearth AP5660 Pellet Stove?
A: The AP5660 includes a 45 lb hopper for extended burn time, a powerful 48,000 BTU output, a beautiful bay front design that provides a clear view of the fire, and an easy-to-use control panel. It also features an automatic ignition system and low emissions for eco-friendly heating.
Q: How efficient is the Ashley Hearth AP5660 Pellet Stove?
A: The AP5660 is designed for optimal efficiency, providing consistent heat with minimal pellet consumption. Its 48,000 BTU output allows it to effectively heat large areas while maintaining low emissions, making it an eco-friendly option for home heating.
Q: Is the Ashley Hearth AP5660 Pellet Stove easy to operate?
A: Yes, the AP5660 is user-friendly, featuring an intuitive control panel for temperature adjustments, fan speed settings, and automatic ignition. The bay front design also enhances the viewing experience while providing effective heat distribution.
Q: Why choose the Ashley Hearth AP5660 Bay Front Pellet Stove?
A: The AP5660 offers a combination of efficiency, power, and aesthetic appeal with its bay front design. It is perfect for heating large spaces, providing eco-friendly warmth with ease of operation, and adding a beautiful focal point to your home.
Maintenance Tips
-
Regular Cleaning: Clean the firebox, burn pot, and ash pan regularly to remove ash and debris. Use a soft brush to remove excess ash, and a vacuum to clear out hard-to-reach areas. Clean the burn pot to ensure consistent combustion and to avoid clogging.
-
Chimney and Vent Cleaning: Clean the chimney and vent pipe annually to remove creosote and prevent fire hazards. It's recommended to hire a professional chimney sweep if you're unsure about performing this task.
-
Pellet Hopper Inspection: Periodically inspect the pellet hopper for any moisture or debris that could block the pellet feed system. Keep the pellets dry and stored in a cool, dry location to prevent clogs and maintain efficient burning.
-
Blower and Fan Maintenance: Regularly clean the blower fan and motor to prevent dust or debris buildup. Dust can affect the airflow, leading to reduced heating efficiency. Lubricate the fan motor as recommended by the manufacturer.
-
Ash Removal: Empty the ash pan regularly, at least once a week or depending on usage. A full ash pan can restrict airflow, reducing the stove's performance. Always allow ash to cool before disposing of it in a metal container.
-
Inspect Gaskets: Check the door and hopper gaskets for any wear or damage. Worn gaskets can lead to air leaks, causing the stove to work less efficiently. Replace damaged gaskets to maintain a proper seal.
-
Air Intake and Exhaust: Inspect and clean the air intake and exhaust pipes regularly to prevent blockages. A blocked exhaust can lead to poor combustion and potential safety hazards.
-
Pellet Storage: Store pellets in a dry, covered area to prevent moisture absorption. Wet or damp pellets will not burn efficiently and can cause operational issues, including clogging the auger.
-
Safety Check: Ensure the stove is installed correctly and that all components, including the wiring, venting, and chimney, are secure and functioning properly. Check that the stove is properly venting to prevent carbon monoxide buildup.
-
Remote Control and Electronics: Test the remote control and other electronic components periodically to ensure proper operation. Replace the remote control batteries when needed, and ensure there are no loose connections or malfunctions.
-
Regular Performance Check: Ensure that the stove is operating smoothly, with even heat distribution and a steady flame. If you notice irregularities in heating or pellet flow, troubleshoot the system or consult the manufacturer.
