Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package - ATETCWB-COMBO1-FPD

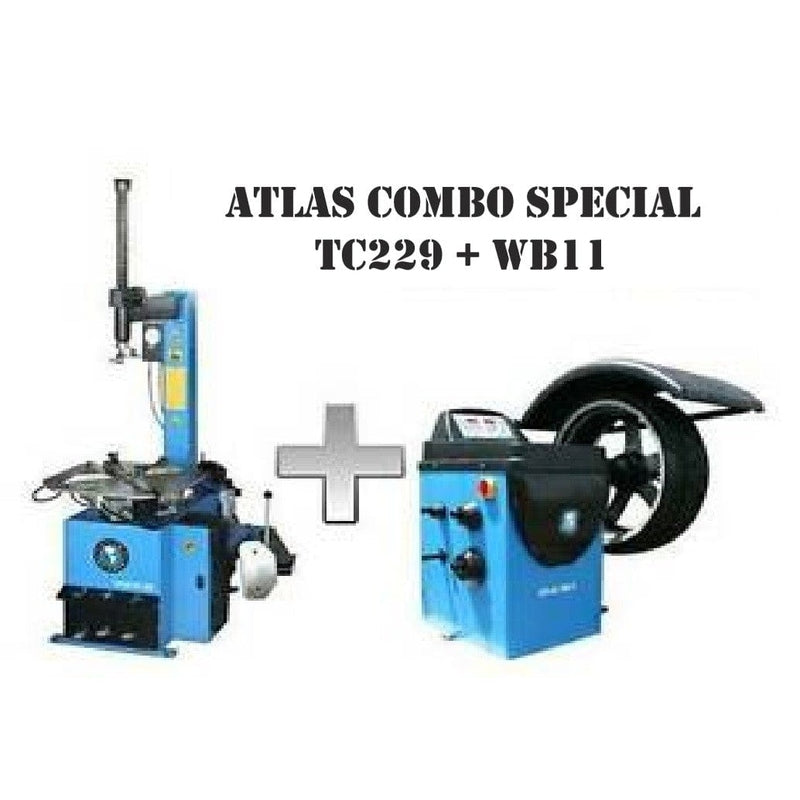

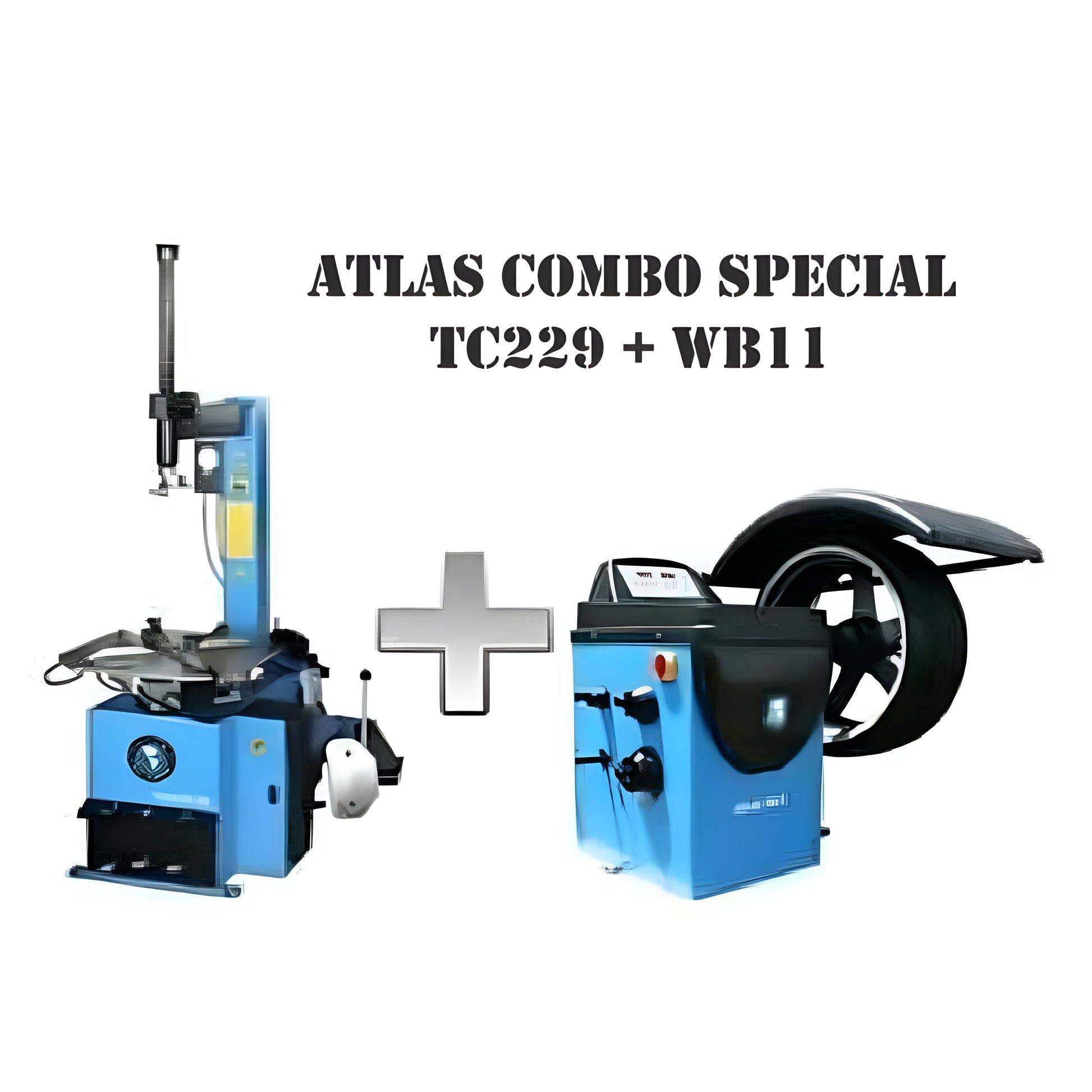

This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB11 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

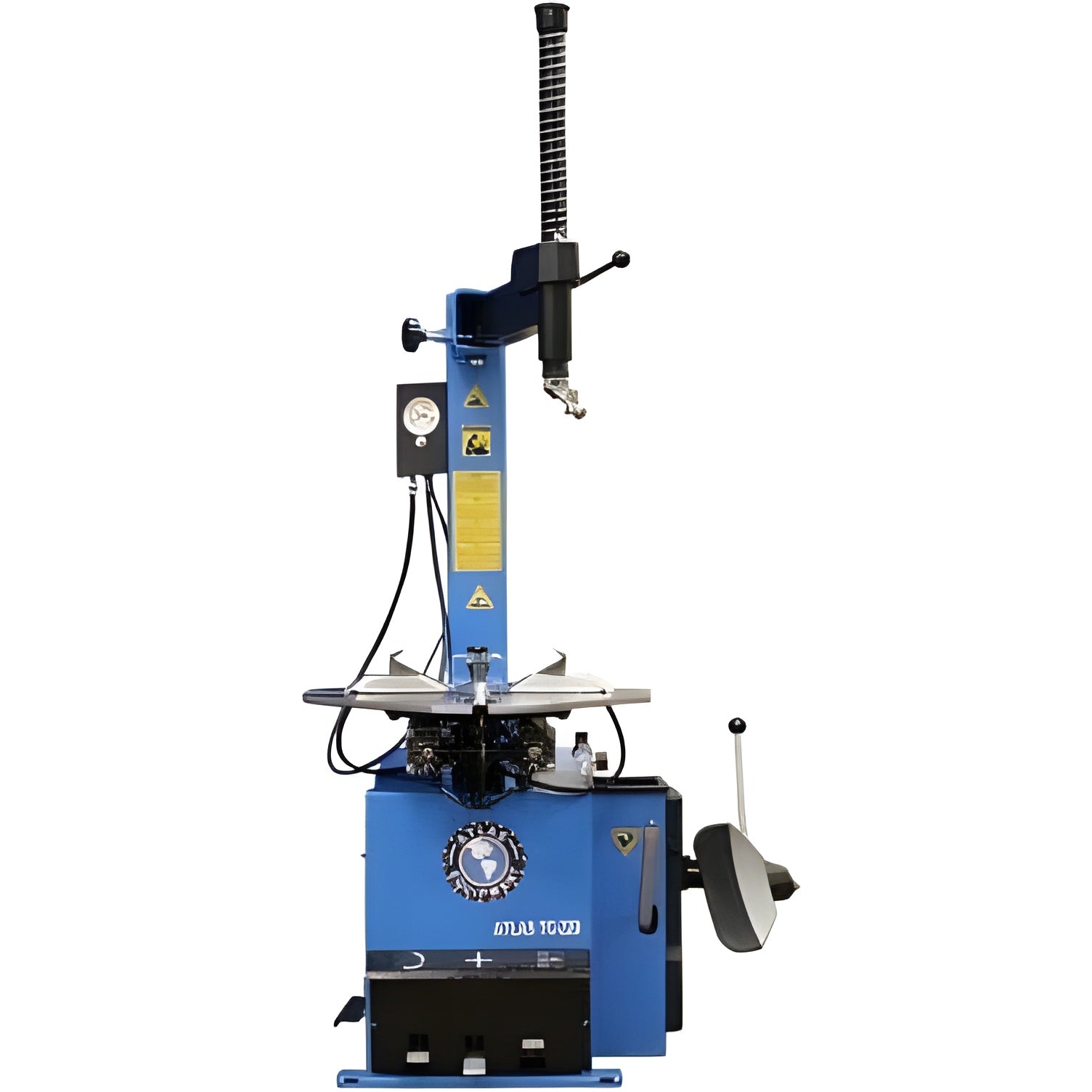

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

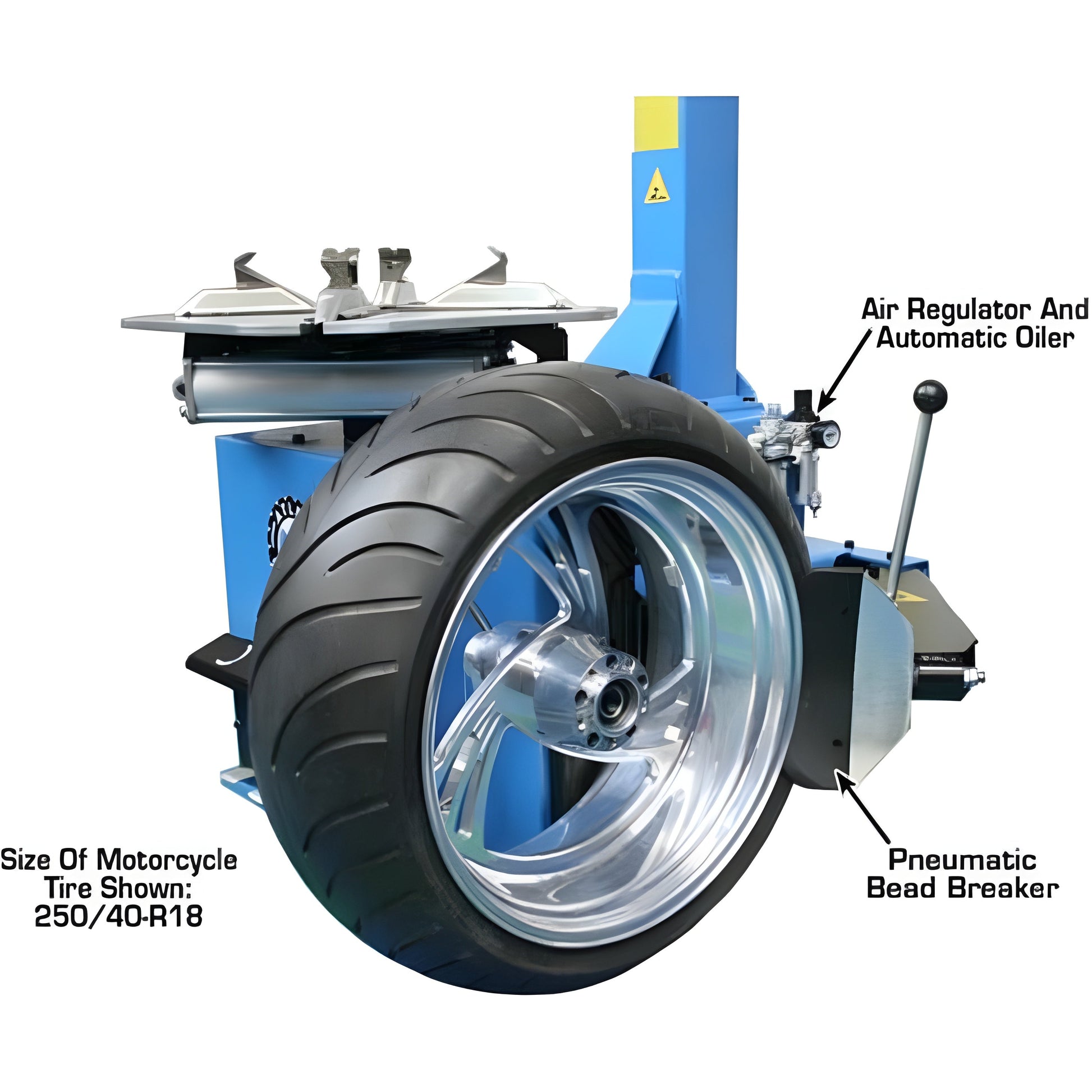

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

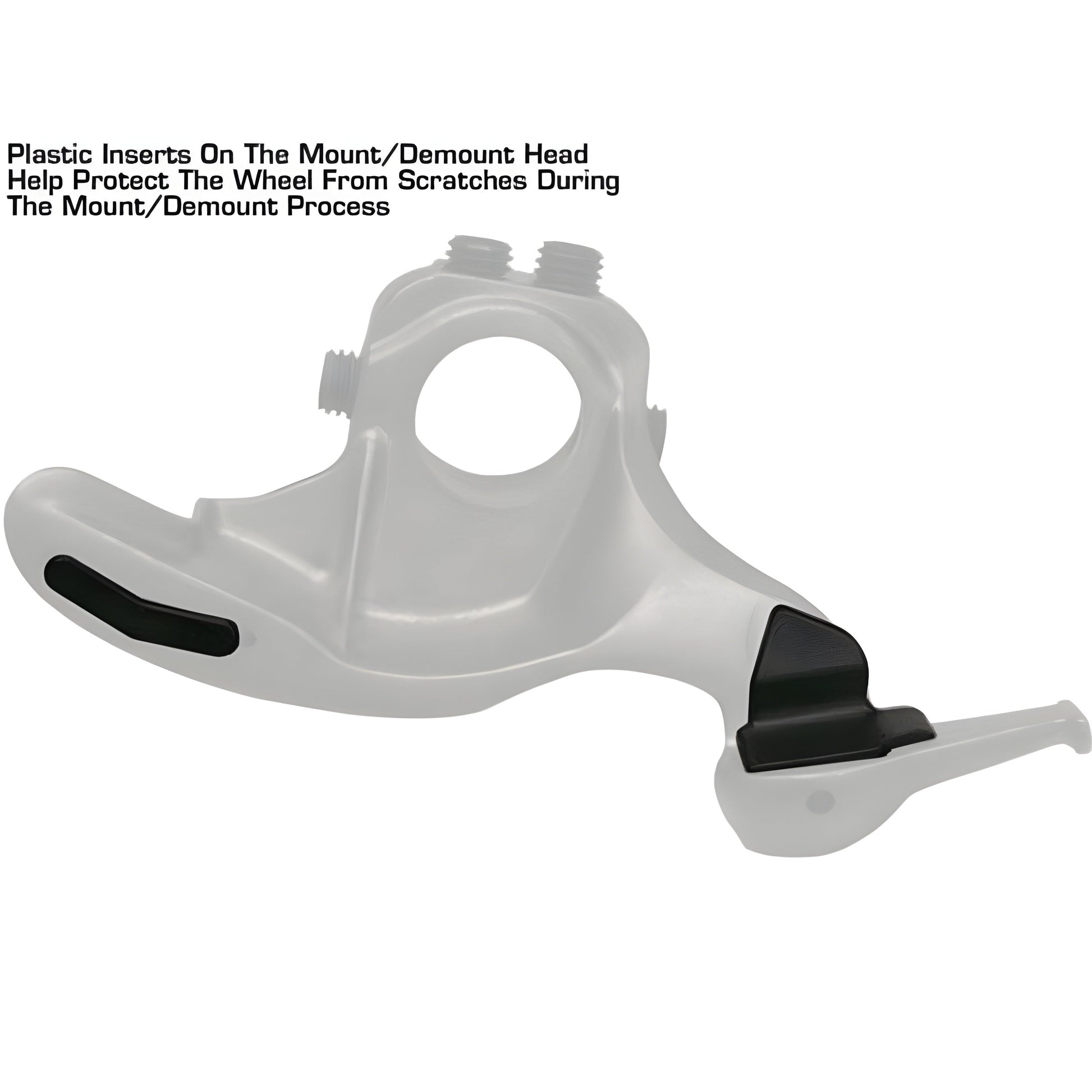

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

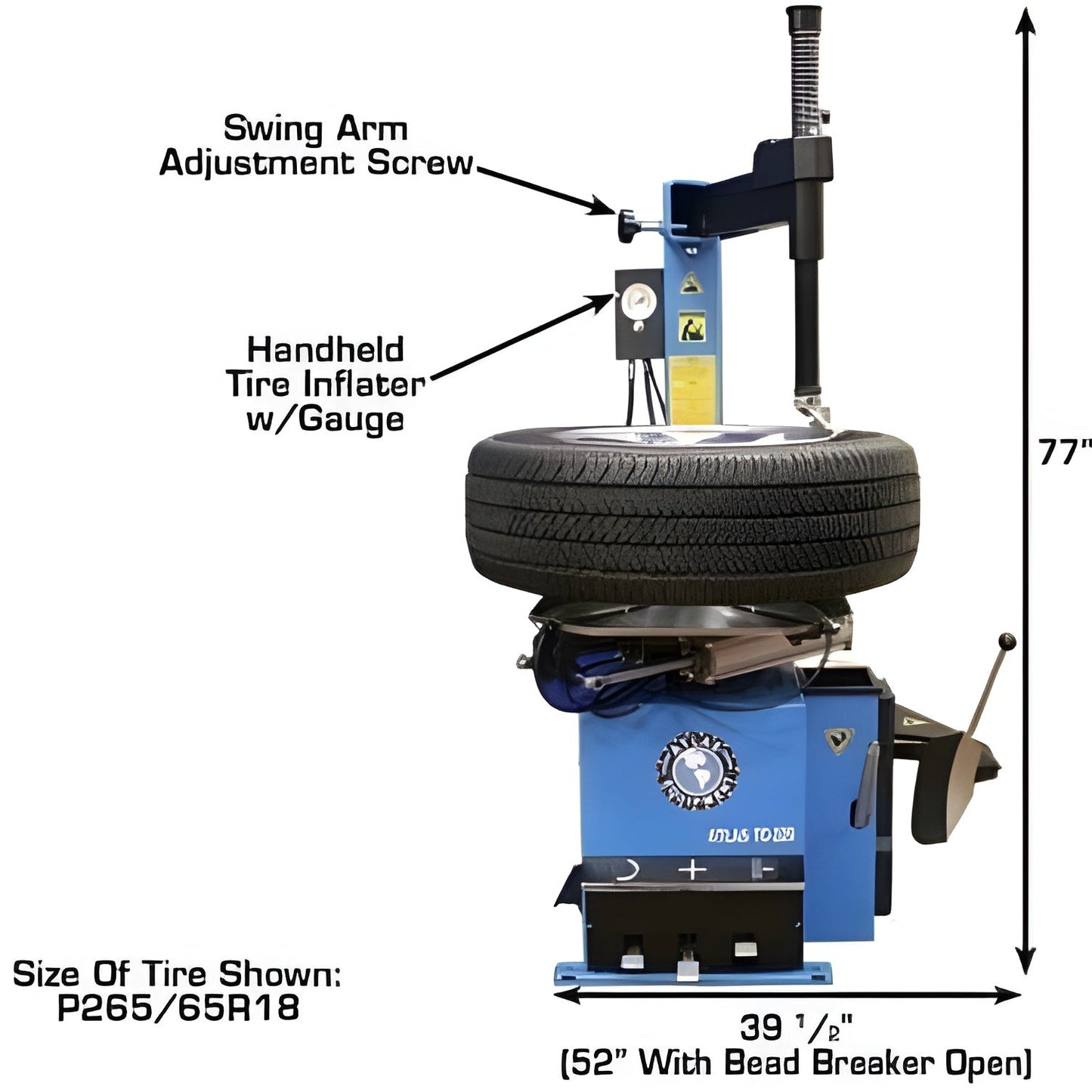

- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

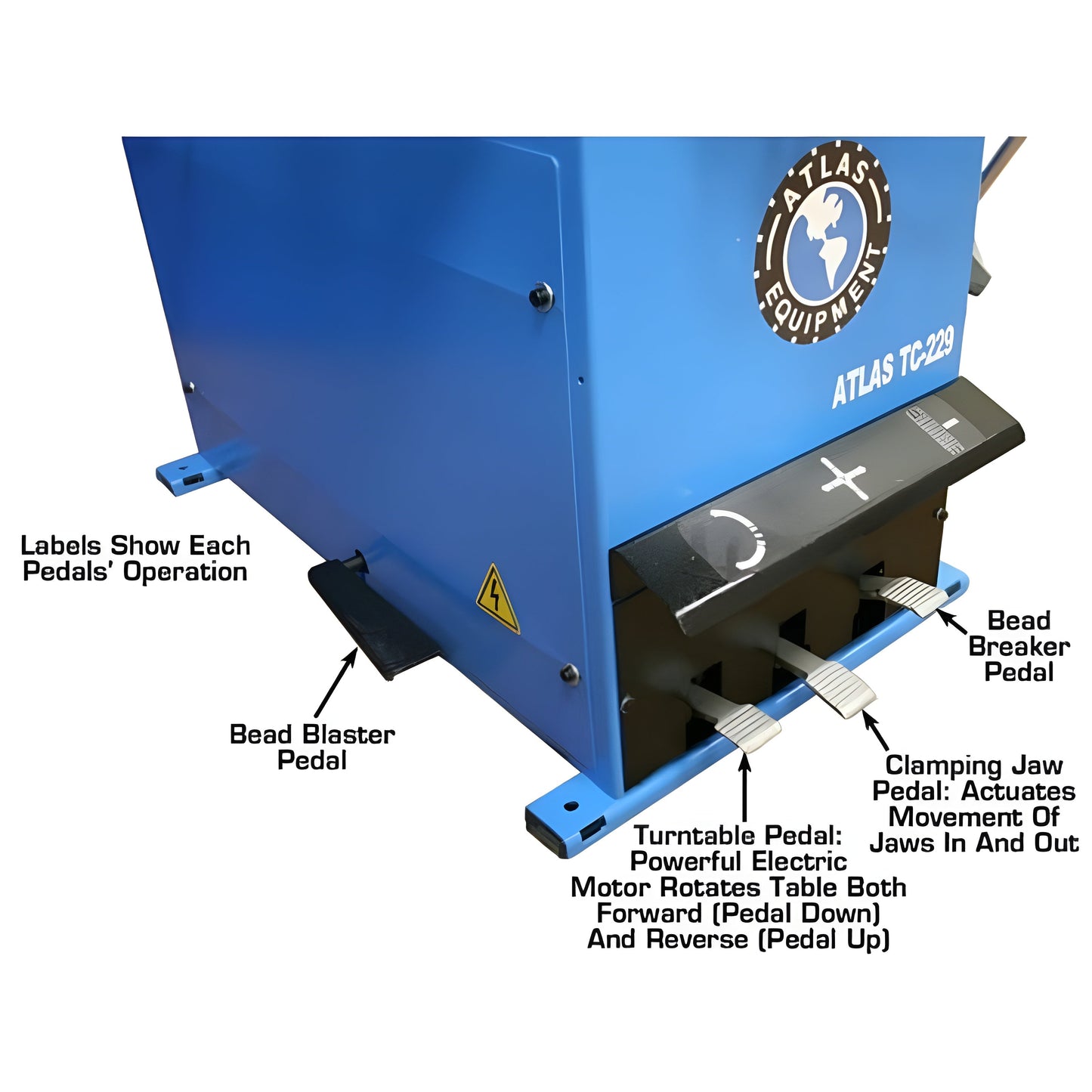

- Built in “Beadblaster”
WB11 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Caliper
Specifications
| Rims |
Steel, Aluminum, Alloy |

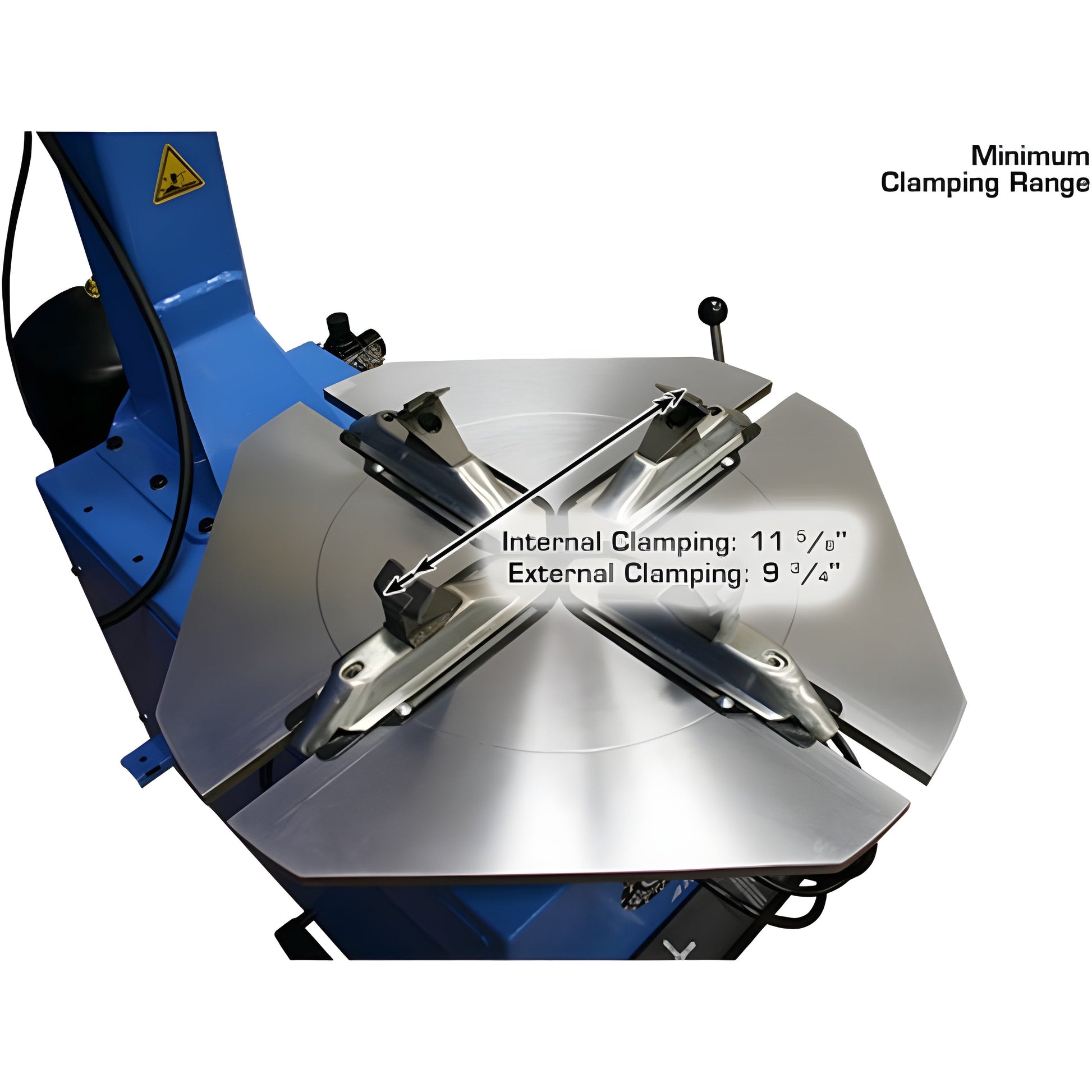

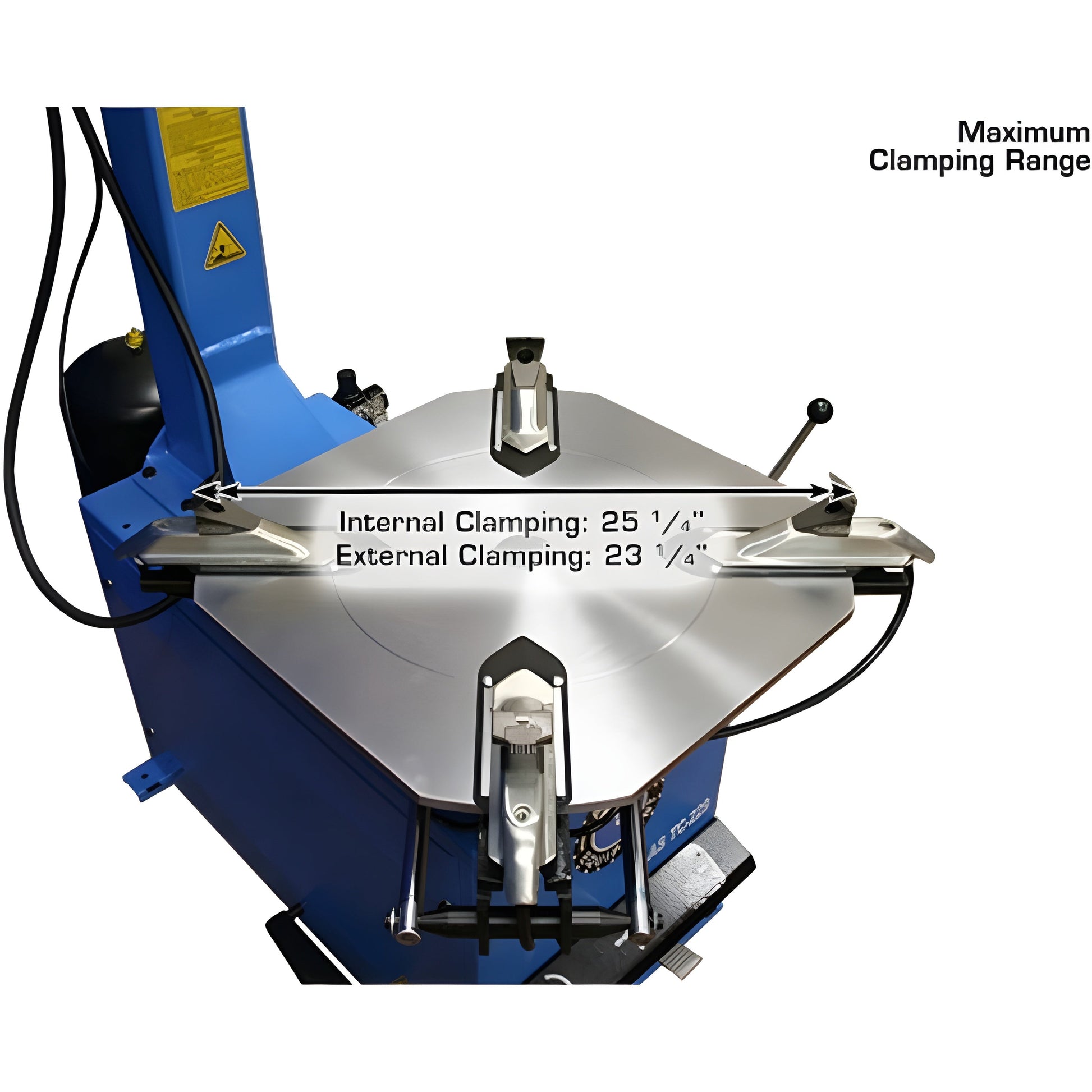

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Shipping Weight |
550 lbs. |
| Atlas® WB11 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB11 Manual
What our Expect Think
-
Comprehensive Combo – The Atlas TC229 Tire Changer paired with the WB11 Wheel Balancer provides a complete tire maintenance solution, saving time and effort with professional-grade performance.
-
Efficient Tire Changing – The TC229 Tire Changer is designed for quick and precise tire removal and installation, making it an excellent choice for busy shops or automotive enthusiasts.
-
Accurate Balancing – The WB11 Wheel Balancer delivers precise results for a smooth ride, ensuring that wheels are properly balanced to prevent uneven wear and vibrations.
-
Space-Saving Design – Both machines are compact yet powerful, ideal for shops with limited space but high demand for quality service.
-
Durability & Reliability – Built to last, both the tire changer and wheel balancer are crafted from high-quality materials, ensuring long-term performance even in high-volume environments.
Q&A
Q: What is included in the Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package includes a TC229 tire changer with bead breaker and mounting head for efficient tire installation, along with the WB11 wheel balancer to ensure precision and balance for smooth tire operation.
Q: Is this combo package easy to use?
A: Yes, both the TC229 tire changer and WB11 wheel balancer are designed for easy operation, making it ideal for both professional garages and DIY enthusiasts. The clear instructions and intuitive features ensure a seamless experience.
Maintenance Tips
-
Routine Cleaning – Regularly clean both the tire changer and wheel balancer with a damp cloth to remove dirt and debris. Avoid harsh chemicals that may damage the equipment.
-
Lubricate Moving Parts – Lubricate the moving components of the tire changer (e.g., bead breaker and arm) to ensure smooth operation and prevent wear.
-
Inspect for Wear – Check the tire changer’s mounting head and wheel balancer’s spindle for any signs of wear or damage. Replace worn parts promptly.
-
Ensure Proper Calibration – Calibrate the wheel balancer regularly to ensure accurate readings. Follow the manufacturer’s guidelines for calibration.
-
Check Tires and Rims – Ensure that the tire changer is being used with proper tire sizes and rim types. Overstretching or damaging components may lead to malfunction.
-
Secure Fasteners – Tighten any loose bolts or screws to maintain stability and safe operation.
-
Wheel Balancer Calibration – Periodically check and calibrate the wheel balancer for precise balancing and accurate measurements.
