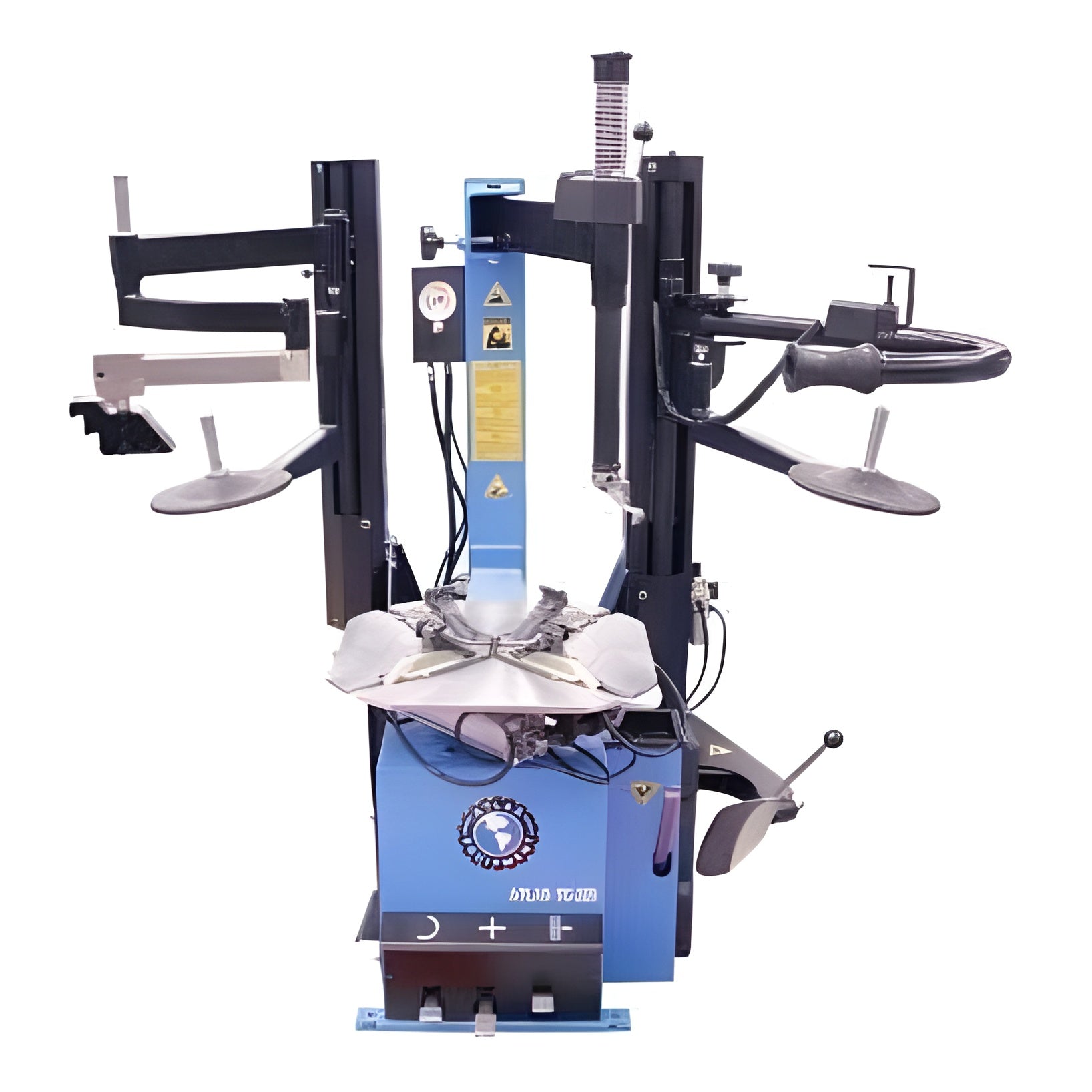

Atlas TC229DAA Rim-Clamp Tire Changer w/ Dual Assist Arms - ATETC229DAA-FPD

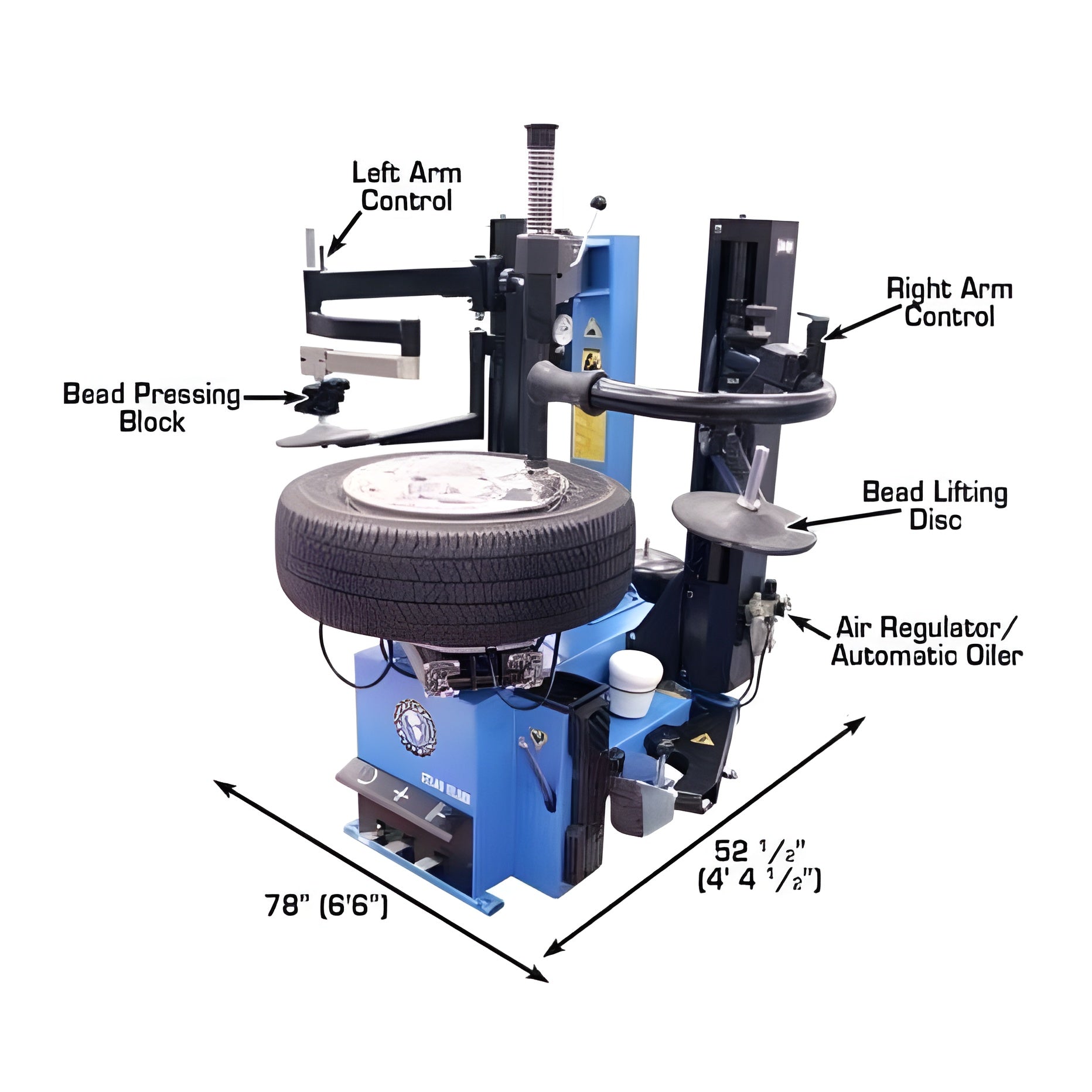

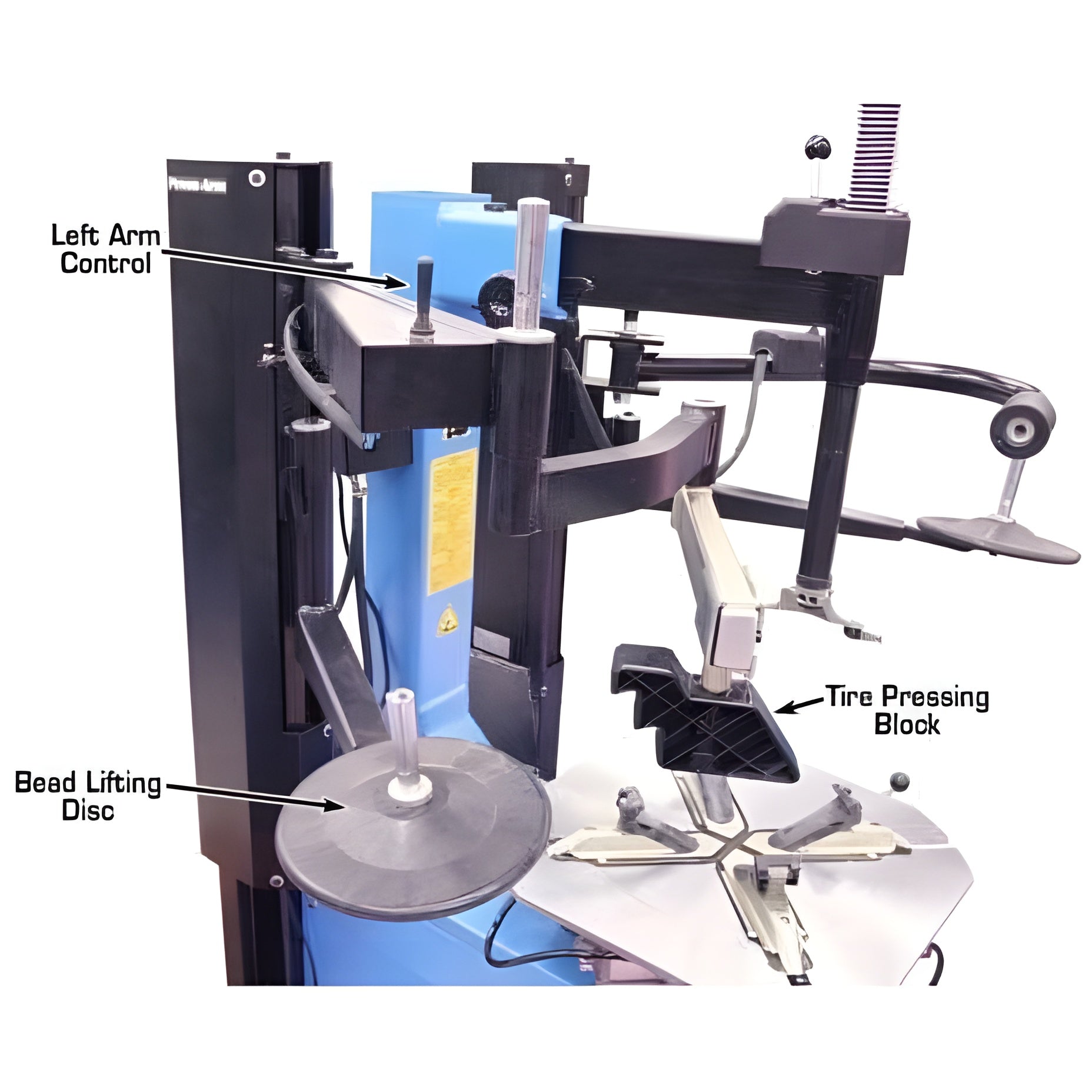

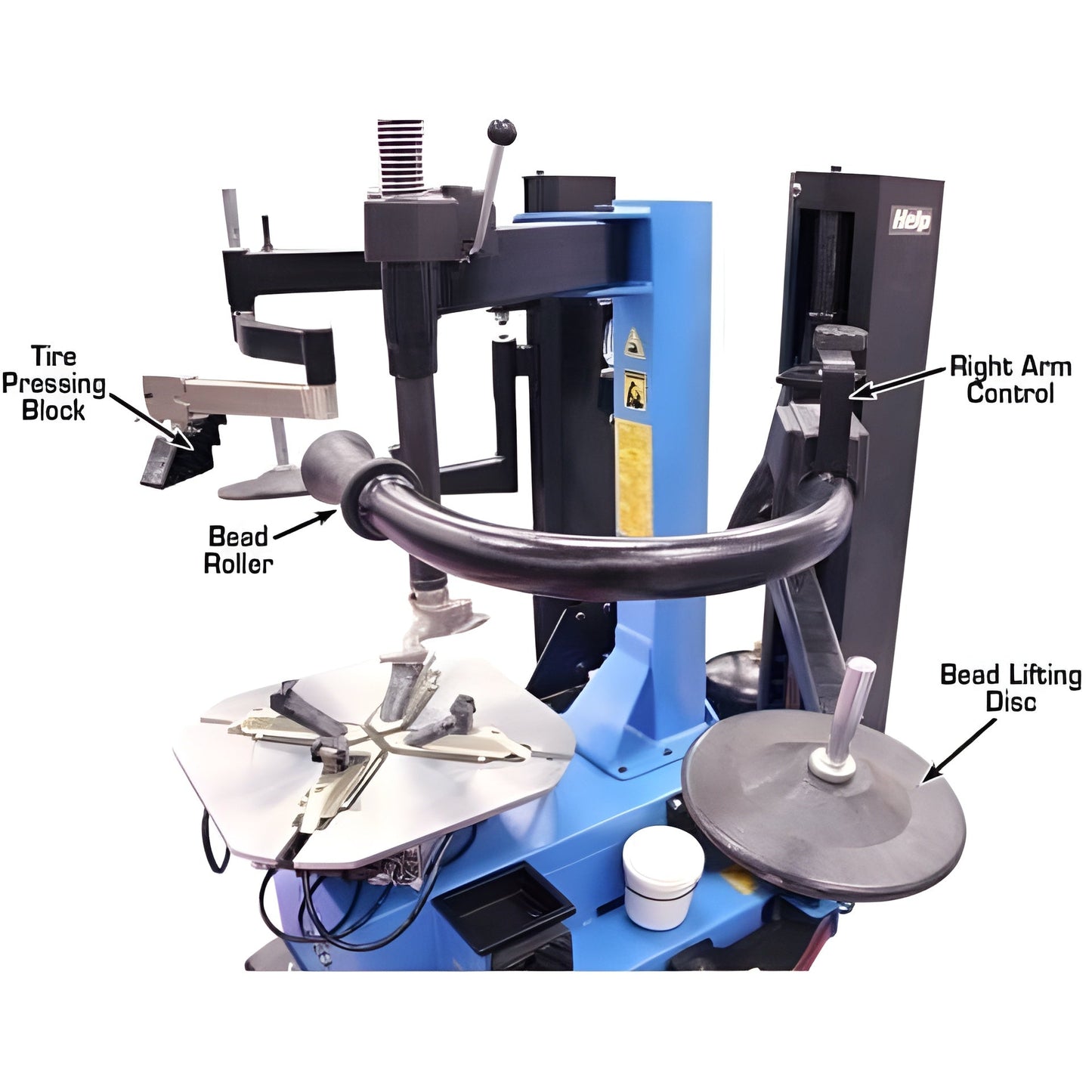

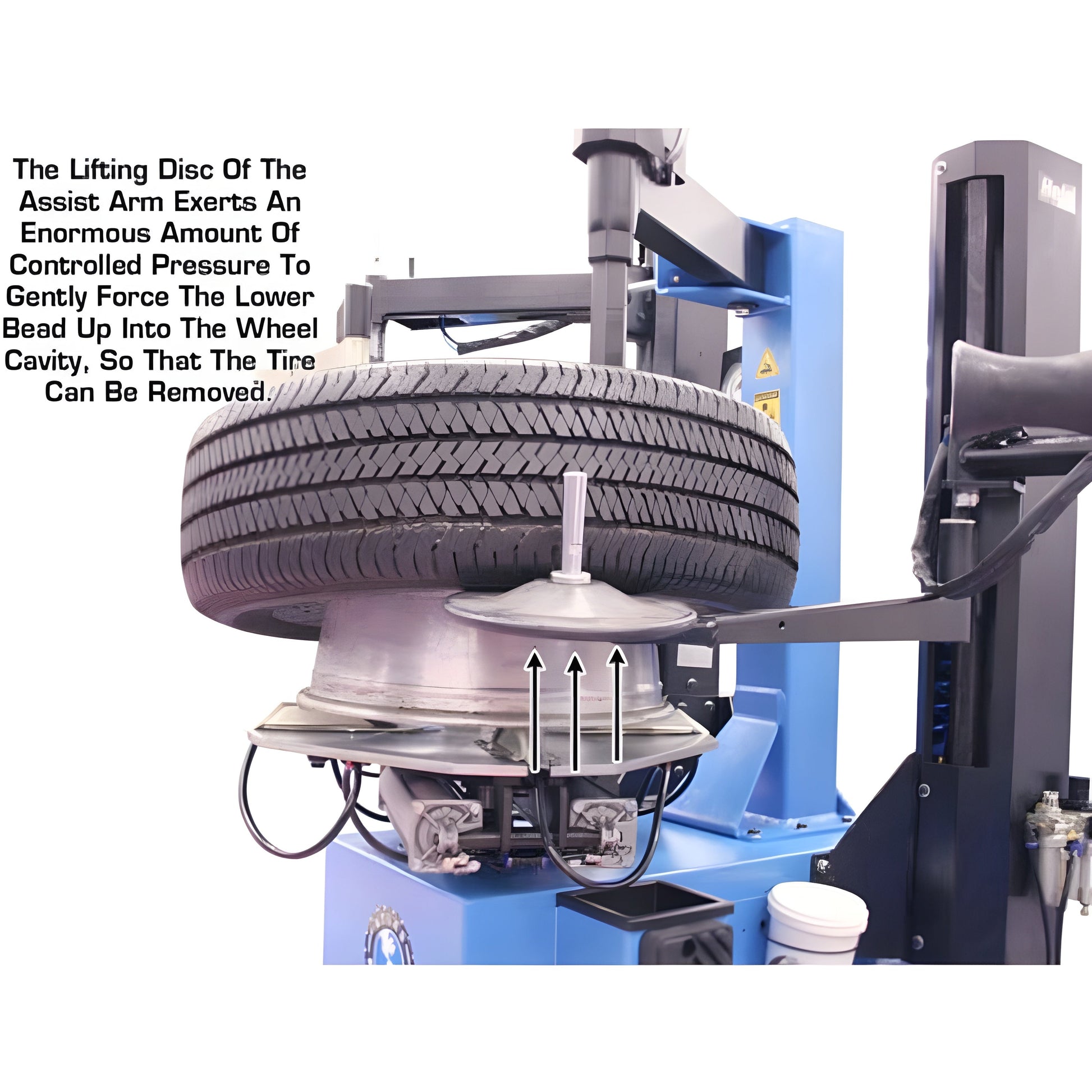

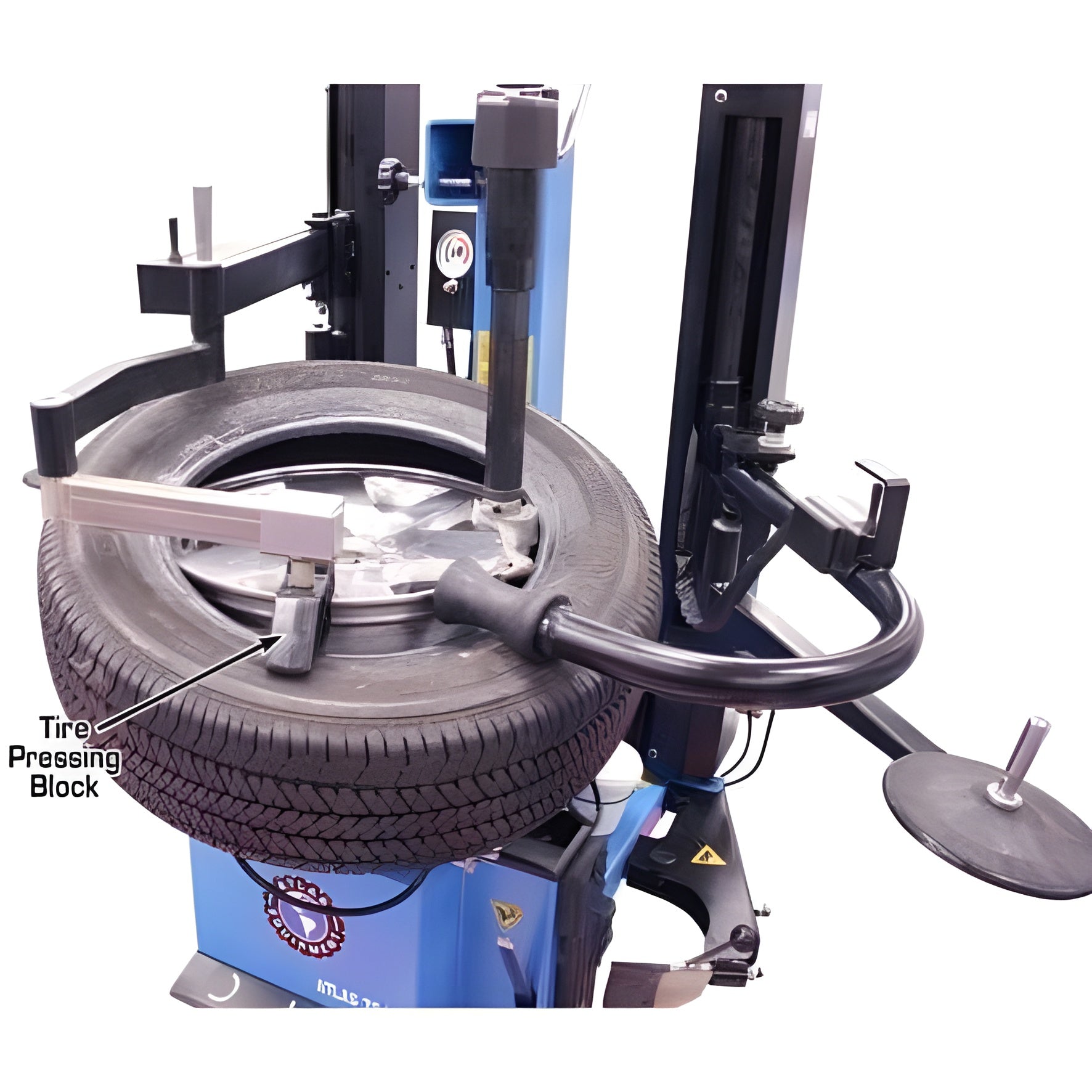

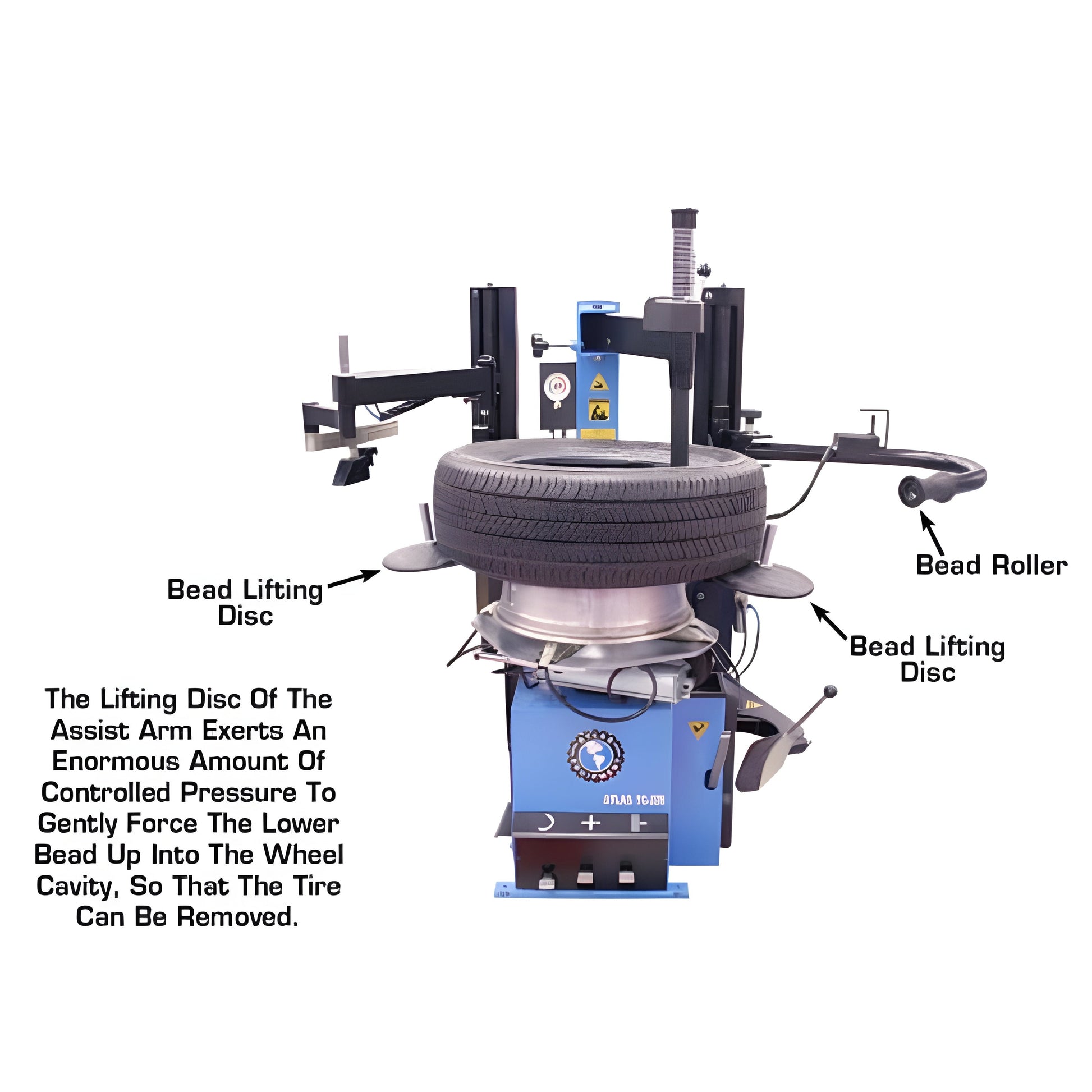

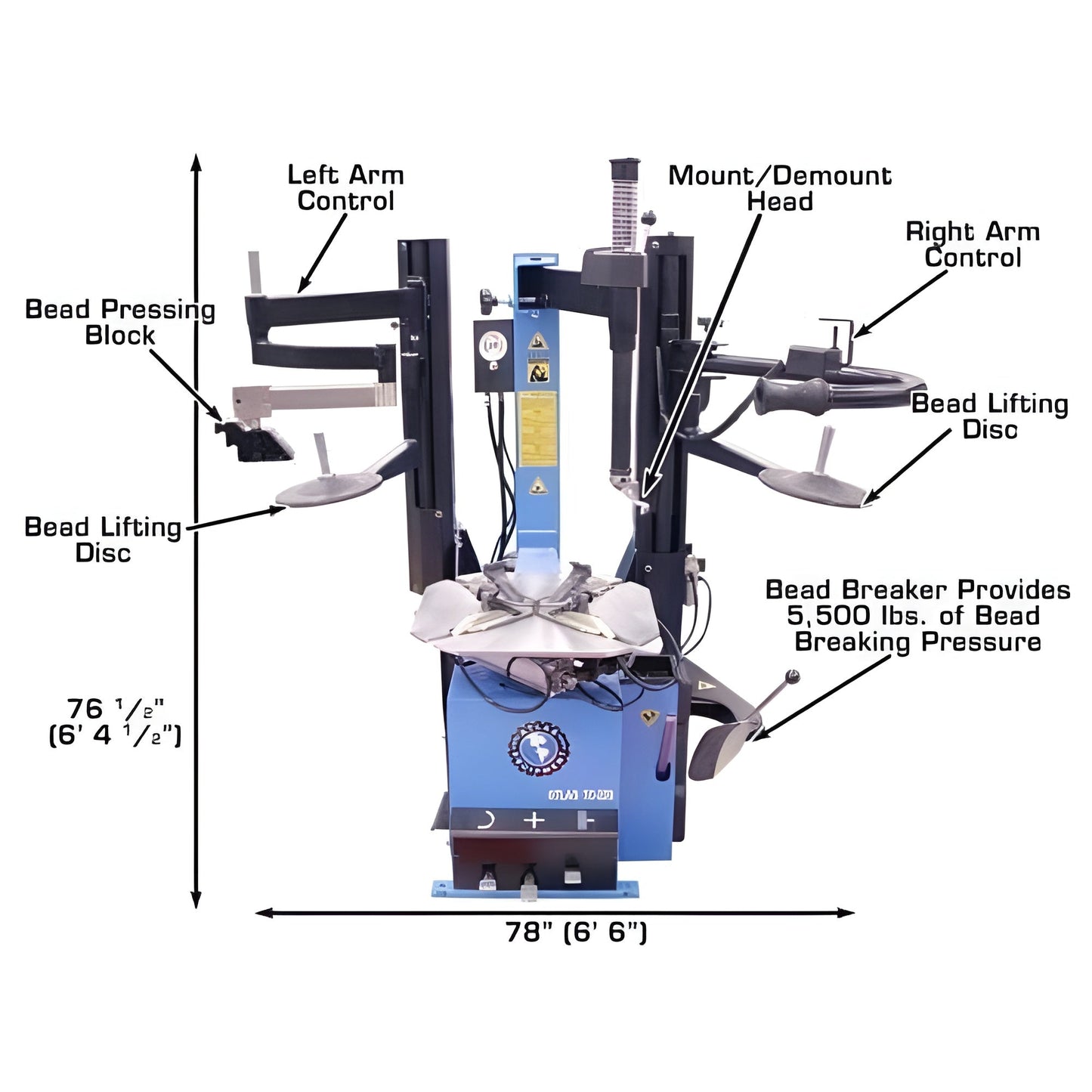

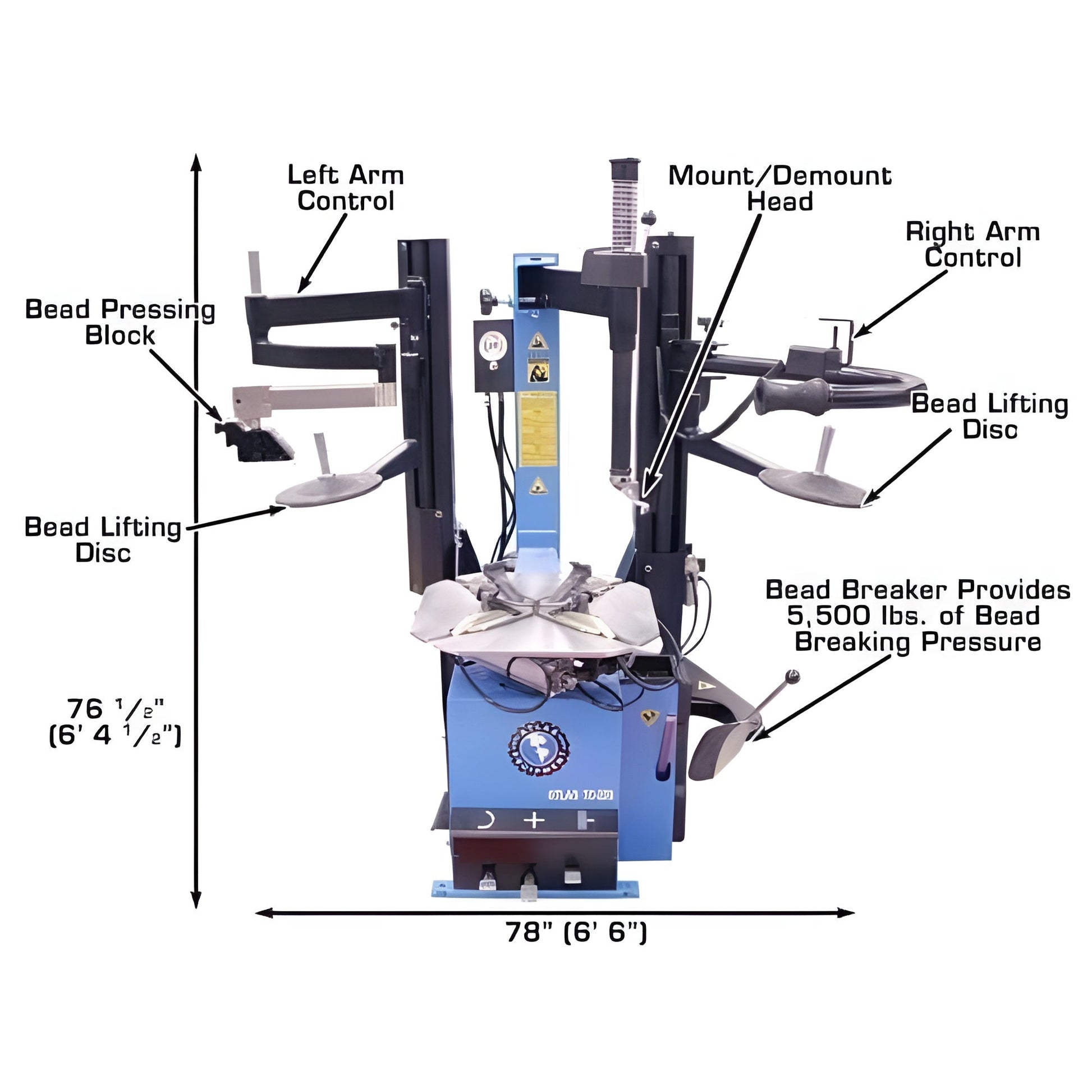

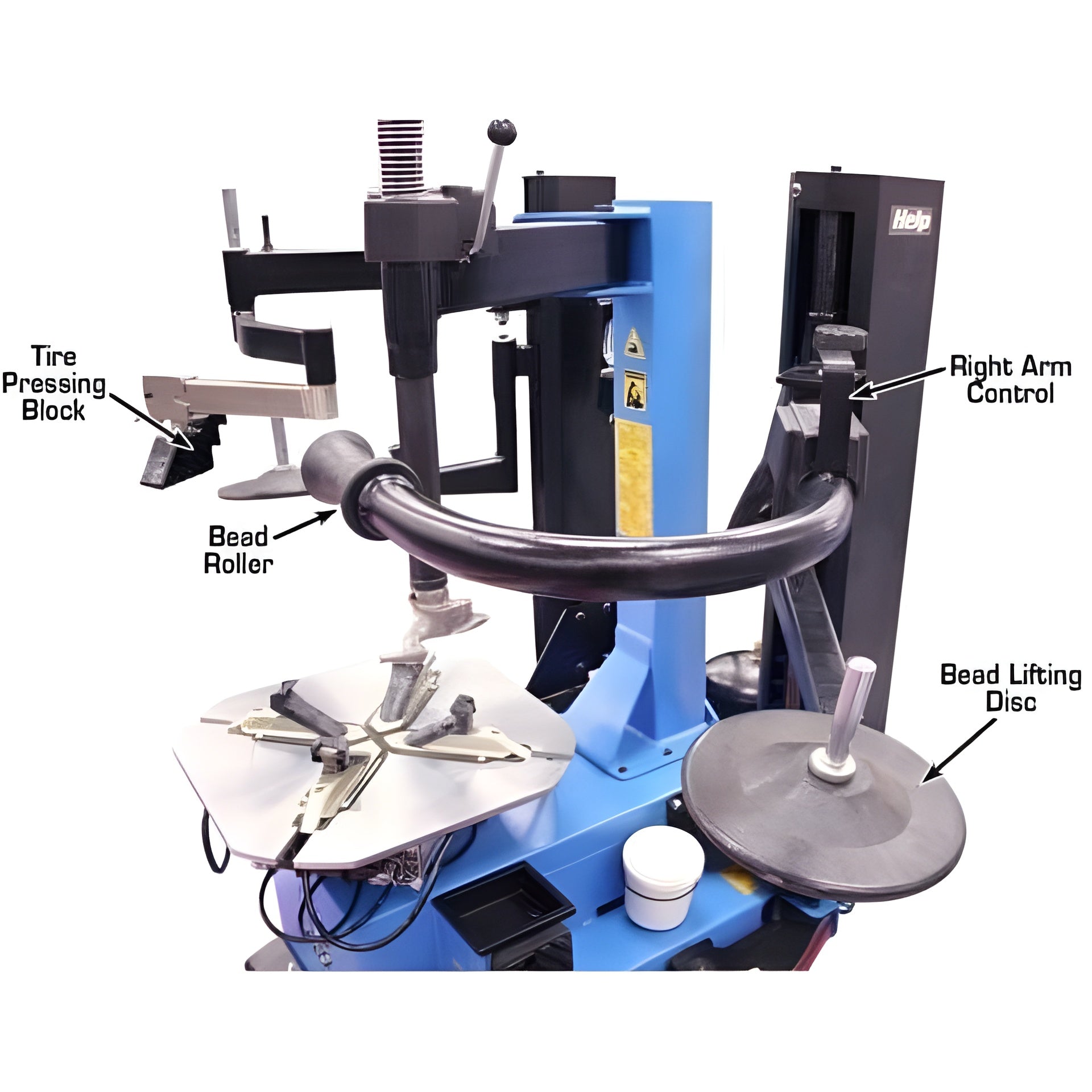

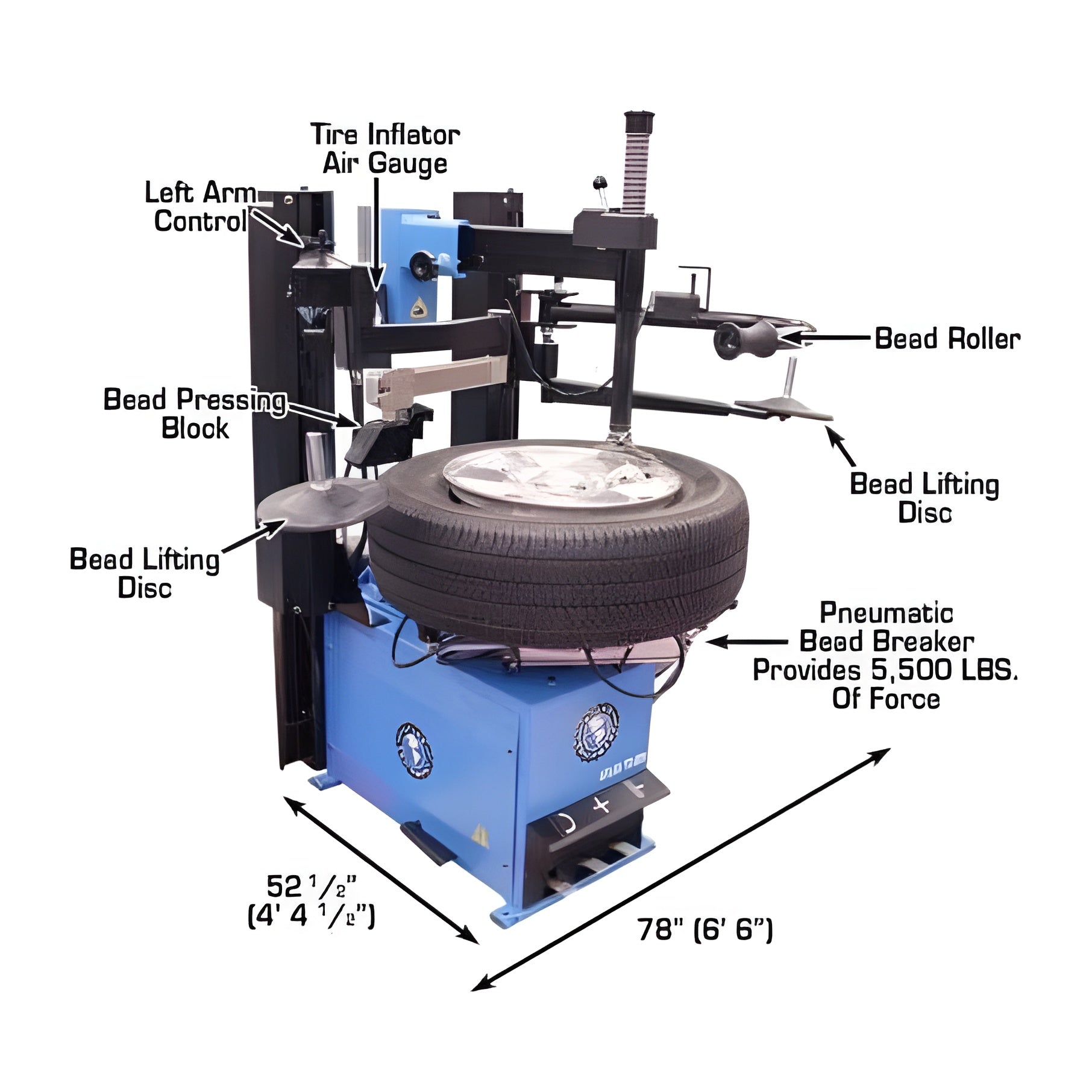

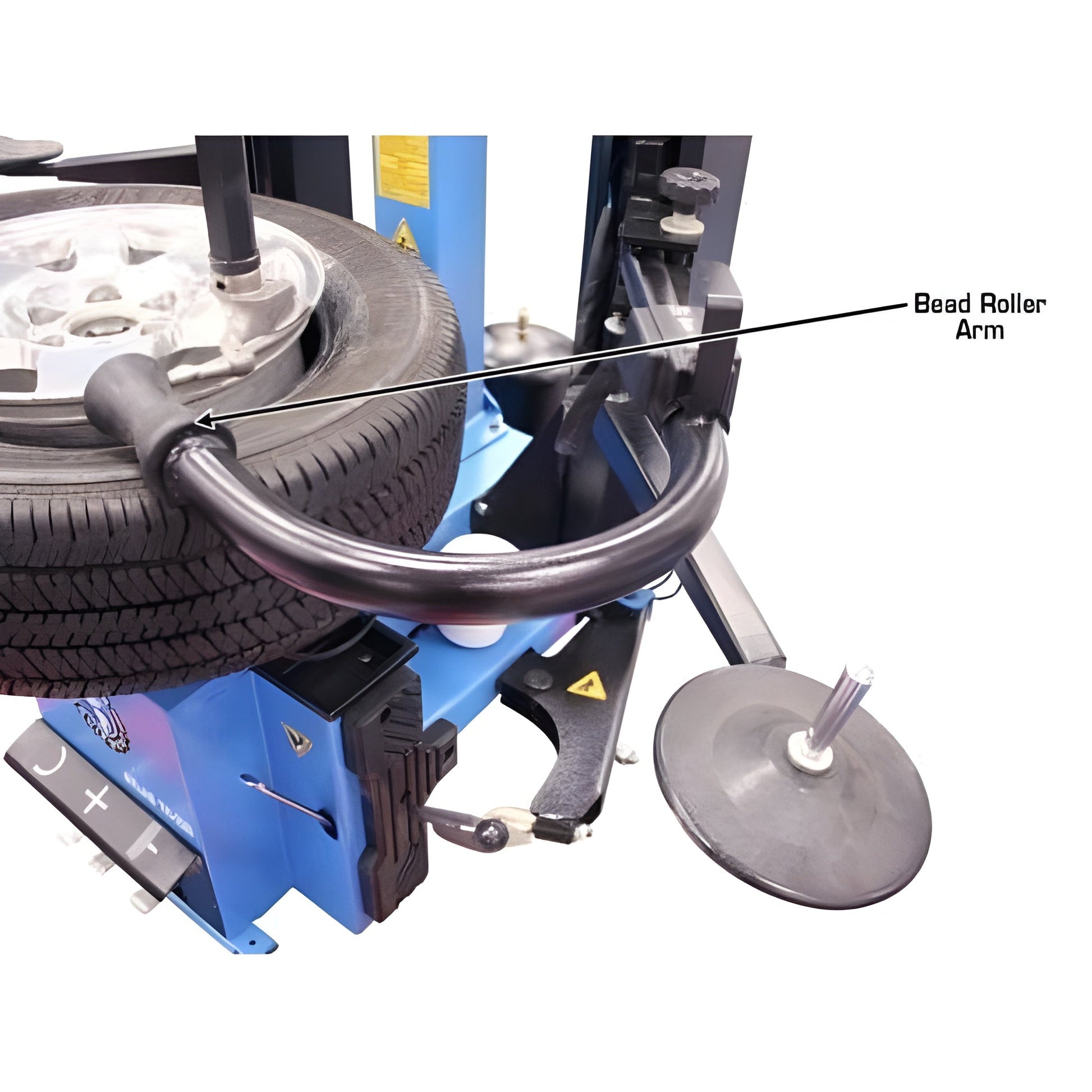

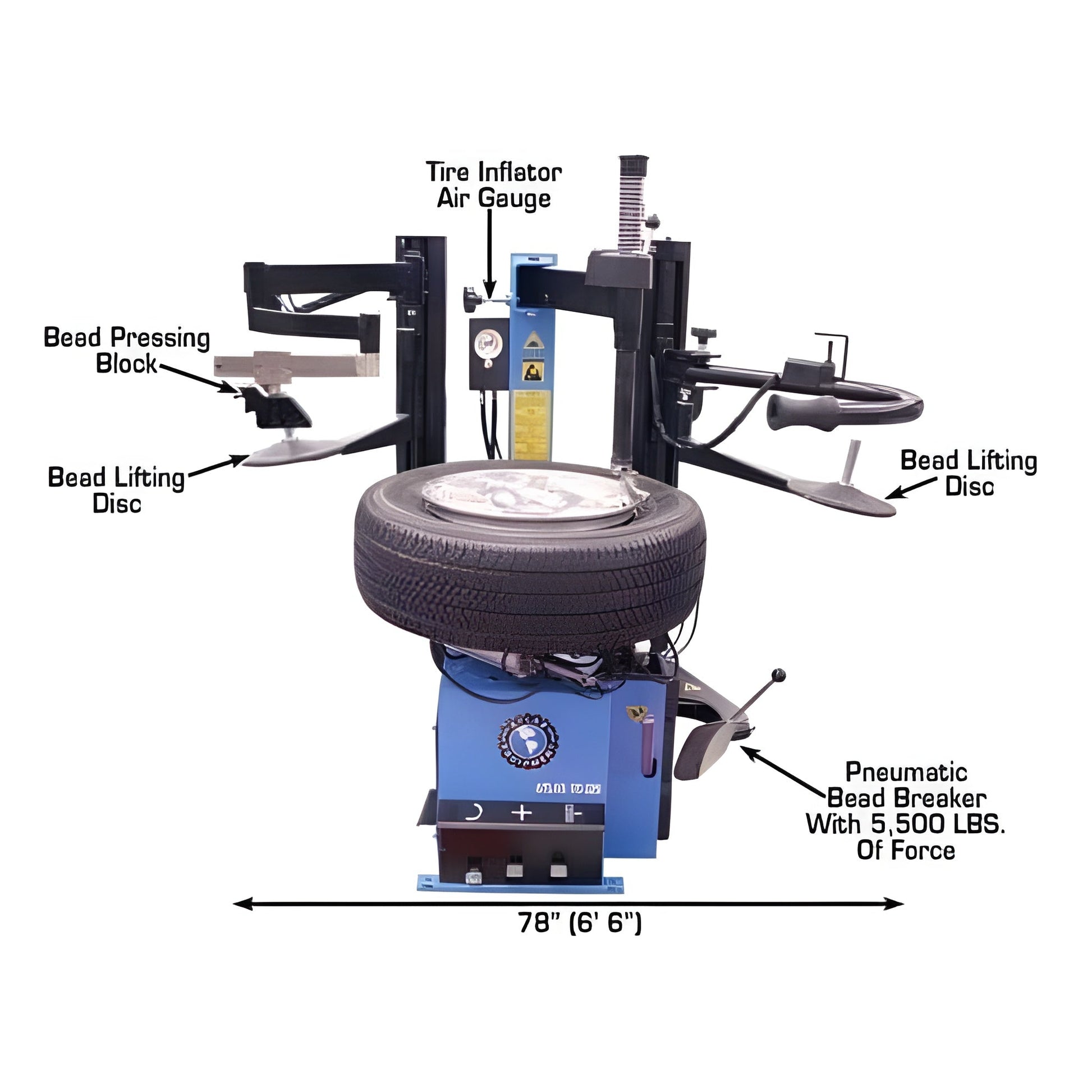

The Atlas TC229DAA rim clamp, swing arm tire changer is the perfect machine for homeowners, a small commercial garage or an ATV/Motorcycle dealer. This version of the TC229 comes with the Atlas DAA-SA dual assist arm package, made up of a left hand mounted arm with a pressing block and pressing/lifting disk and a right hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms are a necessary tool if you will be changing a high number of stiff sidewall, low profile, runflat style tires. The DAA acts as an extra set of hands saving a single user time and effort. The TC229 also features the added built in “Beadblaster” system. The “Beadblaster” system helps inflate stiff sidewall or other “hard to inflate” tires. If you are plan on changing larger pickup truck (1 ton), large SUV, or agricultural tires (either now or in the future), you may want to consider the Atlas TC289 tire changer.The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the machine is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.The Atlas TC229DAA requires some assembly after purchase.
Features
- Rim Clamp/Swing Arm Tire Changer
- Dual Assist Arms Included
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

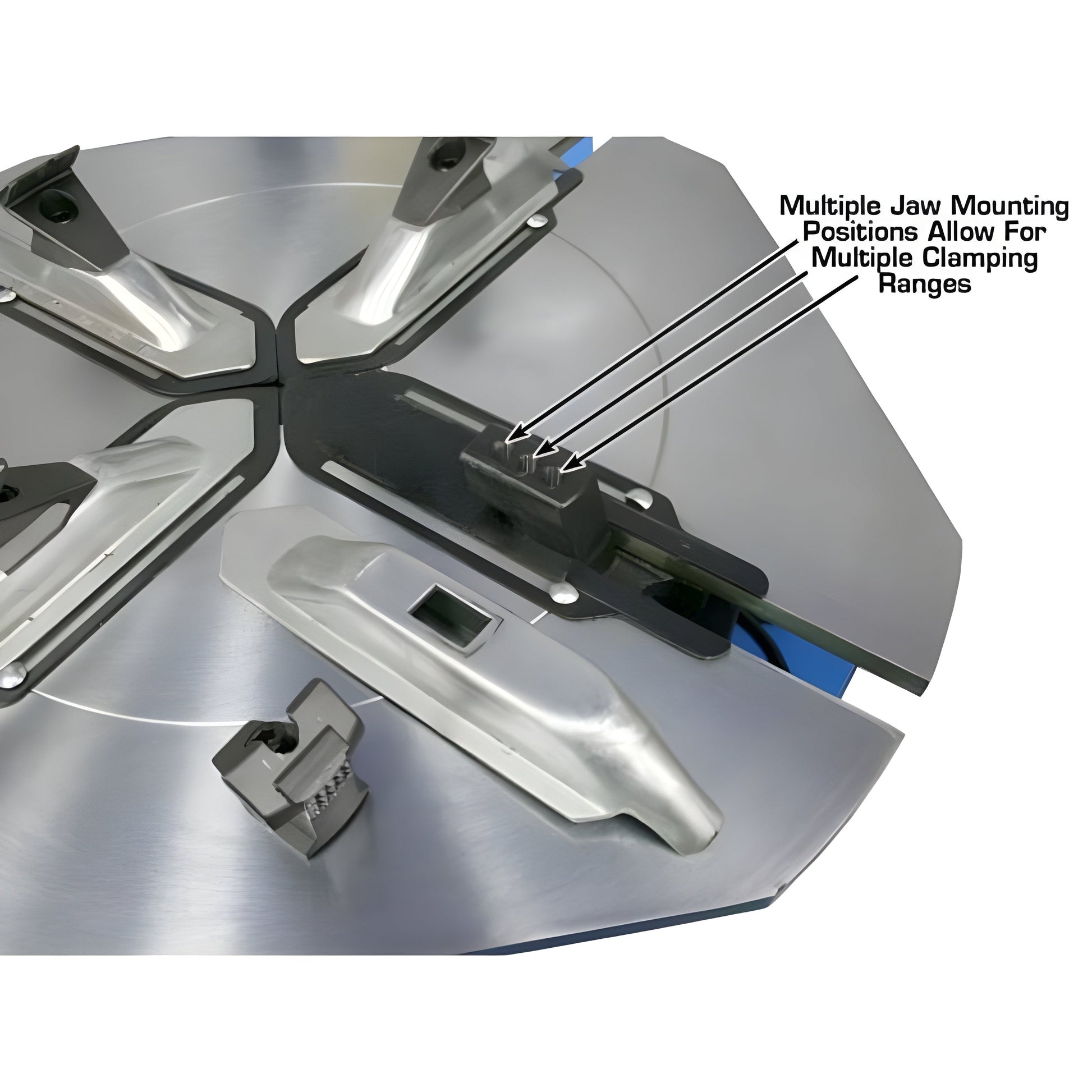

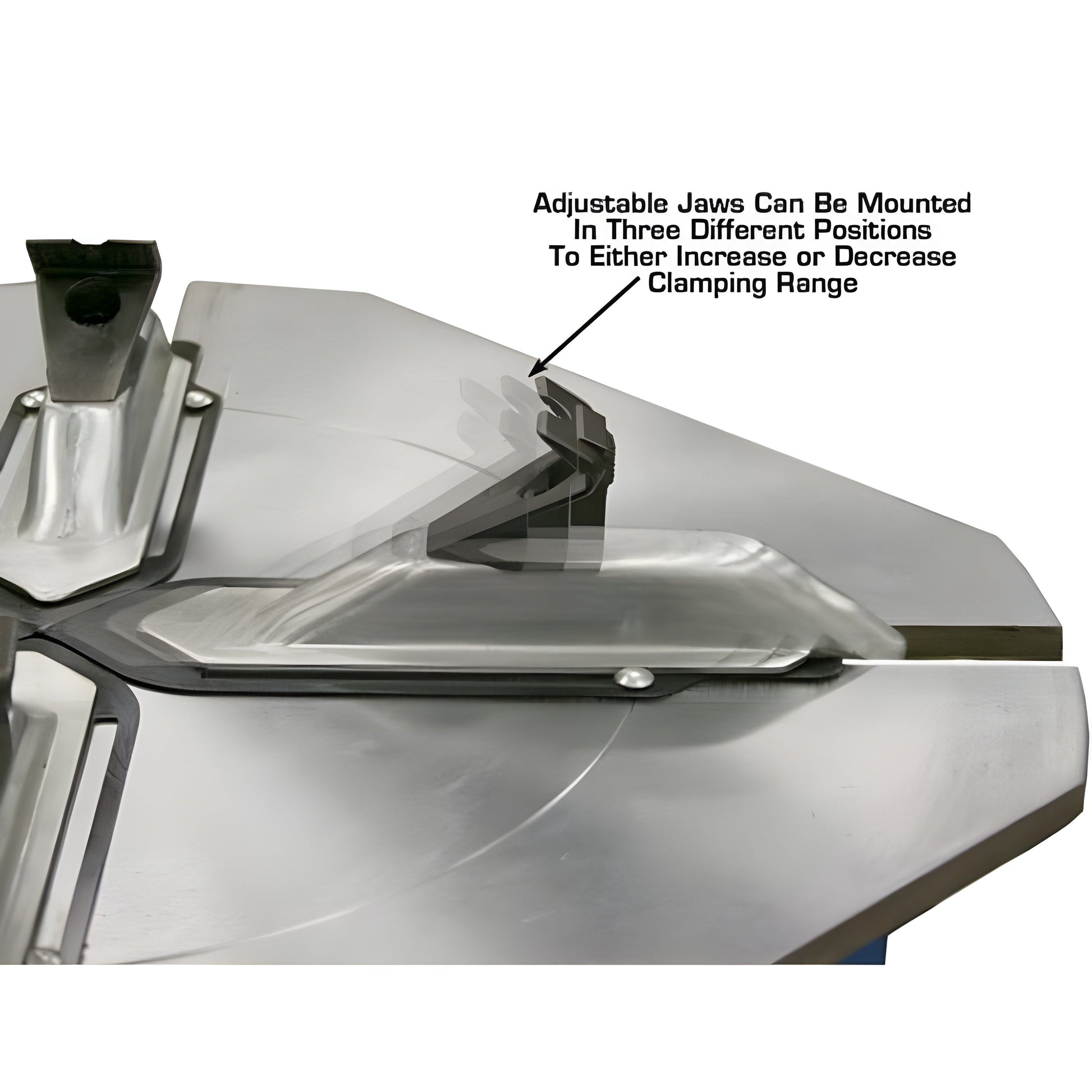

- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Motorcycle and ATV adapters available (sold separately)
- Built in “Beadblaster”
- Replacement Parts & Wear Items Always in Stock
Specifications
| Rims |
Steel, Aluminum, Alloy |
| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|

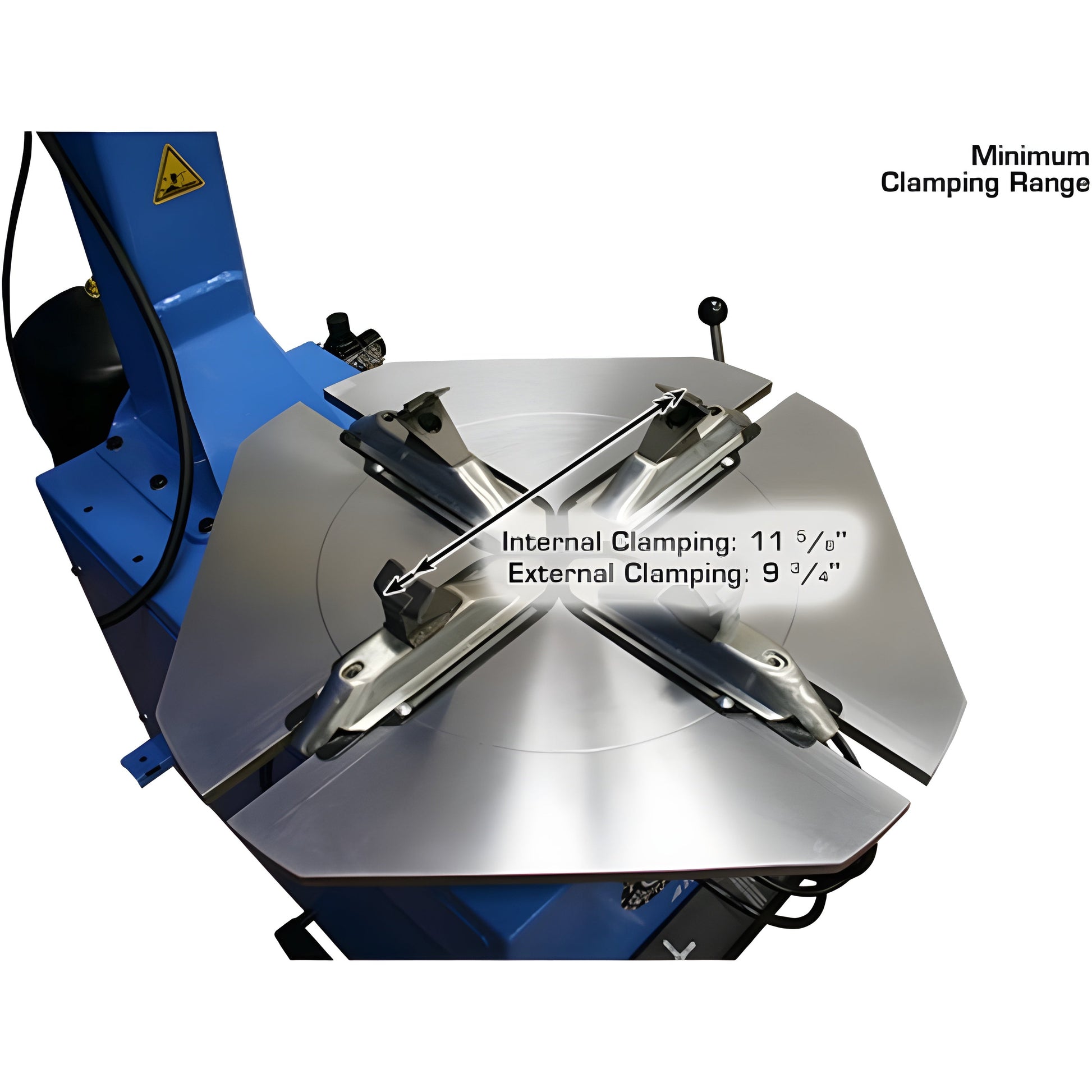

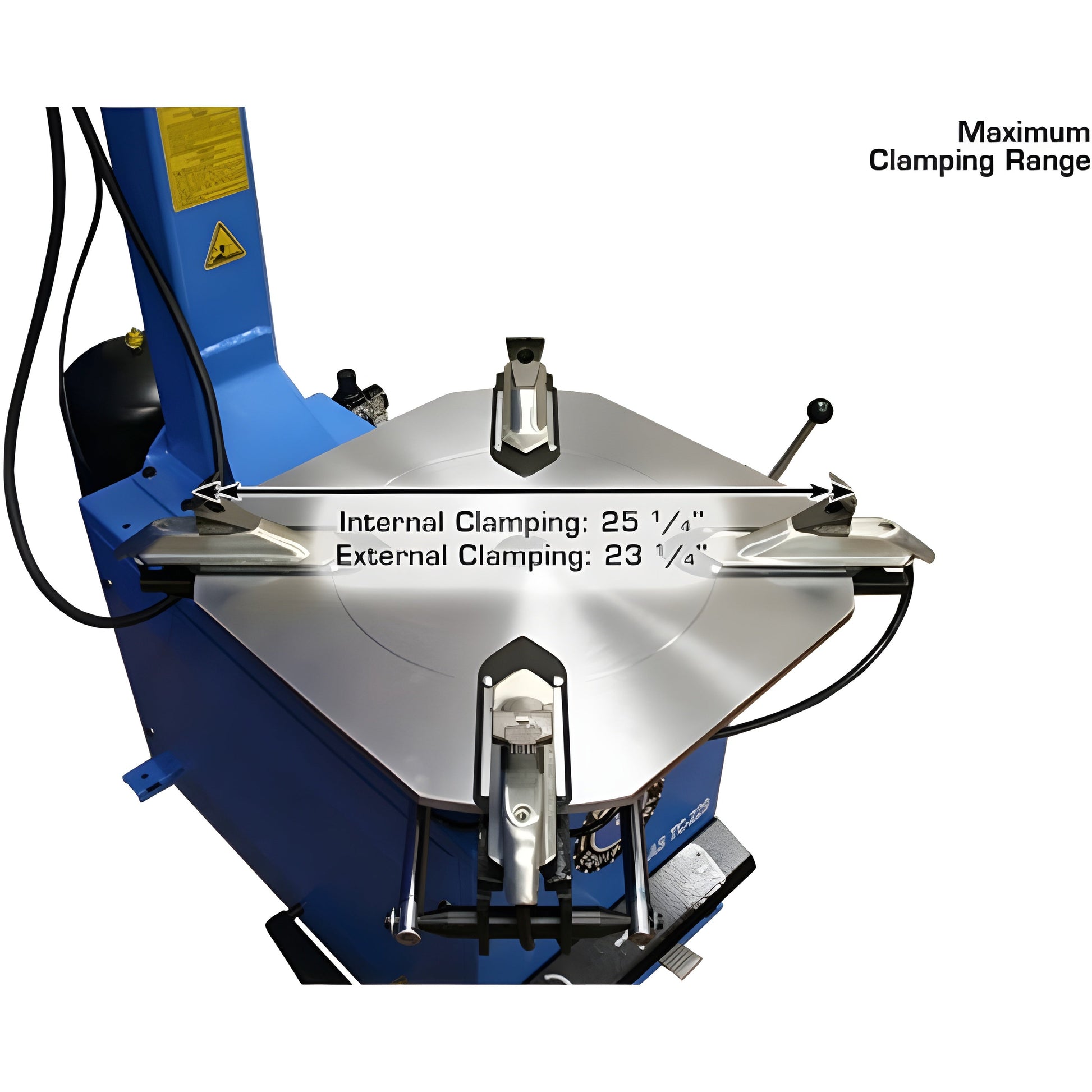

| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
Manual
Atlas TC221 / TC229 Manual
Atlas Left Hand (LH) Assist Arm Manual
What our Expect Think
-
Dual Assist Arms for Ease – The Atlas TC229DAA Tire Changer features dual assist arms, offering extra leverage and ease when mounting and demounting tires, especially on tough and low-profile tires.
-
Enhanced Safety – The rim-clamp design ensures secure tire clamping, minimizing the risk of damage to rims and tires during the changing process, providing a safer and more efficient operation.
-
Ideal for High-Volume Shops – Built for durability, this tire changer is perfect for busy automotive shops, designed to handle a wide variety of tire sizes and types, making it a versatile addition to any workspace.
-
Advanced Technology – Equipped with advanced features, the TC229DAA offers easy setup and precise control, making tire changes faster, reducing time spent on each tire and increasing shop productivity.
-
Heavy-Duty Construction – The machine's robust build ensures it can withstand the pressures of daily use, offering long-lasting, reliable performance even in high-demand environments.
Q&A
Q: Is the Atlas TC229DAA suitable for commercial use?
A: Yes, the Atlas TC229DAA is specifically designed for high-volume commercial use in tire shops, offering quick tire changes with advanced features for optimal efficiency and safety.
Q: Does the Atlas TC229DAA support larger tires?
A: Yes, the dual assist arms and adjustable head make it ideal for handling larger, low-profile, and high-performance tires with ease and precision.
Maintenance Tips
-
Regular Cleaning – Clean the rim-clamp tire changer regularly to remove dirt, tire debris, and grease. Use a soft, damp cloth and avoid abrasive materials to maintain the equipment's appearance.
-
Lubricate Moving Parts – Lubricate all moving components, including the bead breaker, assist arms, and rotating parts, to ensure smooth operation and reduce friction.
-
Check for Wear and Tear – Inspect the mounting head, bead breaker, and assist arms for any signs of wear. Replace worn components immediately to ensure efficient performance and prevent further damage.
-
Calibrate the Equipment – Ensure that the tire changer is calibrated correctly for optimal tire fitting and accurate results.
-
Tighten Fasteners – Periodically check for any loose bolts or screws and tighten them to maintain stability and safe operation.
-
Avoid Overloading – Do not exceed the specified weight limits of the tire changer to prevent overstraining the equipment and causing premature wear.
-
Proper Tire and Rim Compatibility – Always ensure that the tire sizes and rim types used are within the recommended limits for the tire changer to prevent damage to both the machine and tires
