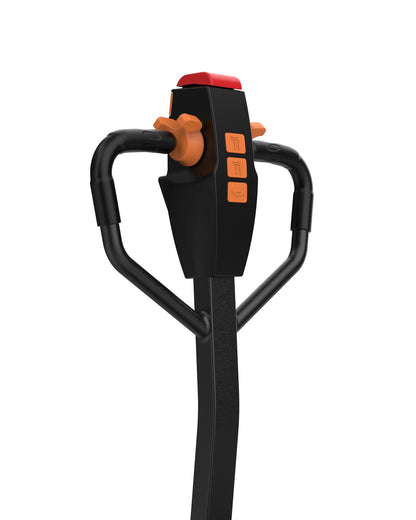

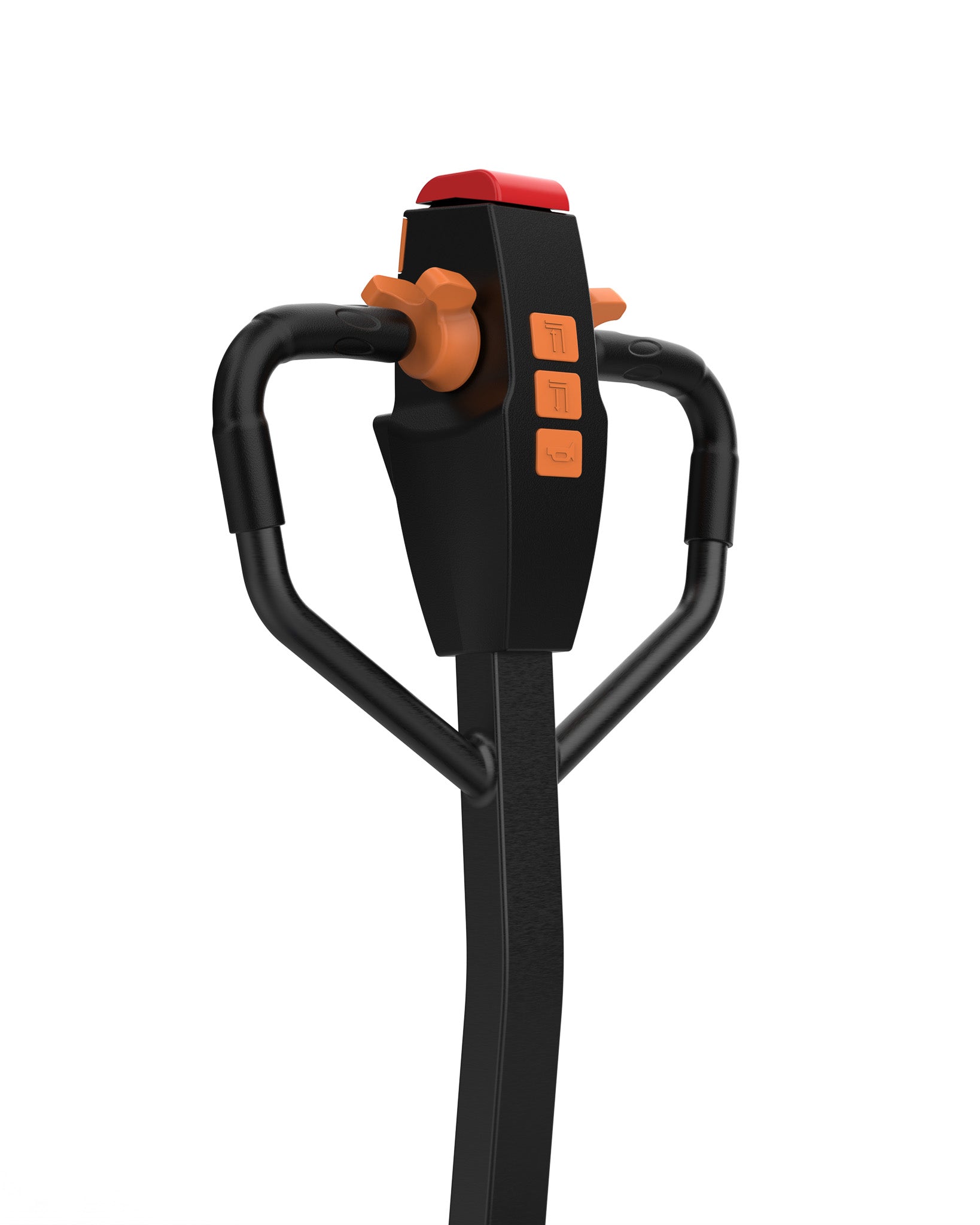

BLUECO ELECTRIC PALLET JACK HANDLE BCO-EPG - BCO-EPGHNDLE

Upgraded magnetic key start up for more reliable long lasting durability.

47.24" length for all size pallets and unique load demands. Long low profile forks unique to the market to allow getting under low profile pallets a breeze! No more tall and bulky forks making getting under even some standard pallets impossible.

Emergency bump stop located on the handle for maximum safety during operations.

Step-less speed control at your finger tips. Almost like a throttle, Giving more push on the orange throttle control speed regulator will speed up or slowly creep the more throttle that is given on the orange speed control handle. Click to creep icon (turtle) on the handle to reduce torque when operating heavy loads from maximum lifting heights.

Cartridge style lithium-ion battery delivers the performance you need for a full days worth of work with a single charge. Standard outlet for recharging, no special circuits required. Cartridge style allows for charging on or off the truck.

The compact design was engineered for compact working areas like cold storage or semi truck distribution logistics. A design that allows insane turning radius for more maneuverability while still keeping the max load capacity at a sweltering 4,409lbs. Click to creep, allows the truck to maneuver with the handle in the upright position tucked against the frame. Resulting in a tighter turning radius.

Specification

MODEL	ELECTRIC PALLET TRUCK
SKU	BCO-EPG
Max load capacity	4,409.245lbs
Power source	DC motor
Maximum lift height	8.07"
Fork width	6.96"
minimum height of cargo forks	3"
Fork length	47.24"
Driving speed km/h	3/4.3
Stock fork lifting speed mm/s	70-105mm
Battery	30AH Battery
Outside fork width	27"
Inside fork width	15"
Net weight	304lbs
Certification	ISO9001 CE
Wheels	Polyurethane

 What Our Experts Think

• Ergonomic Design: The handle is engineered for comfortable operation, reducing operator fatigue during extended use.

• Integrated Speed Control: Features a step-less speed regulator, allowing precise control from slow creep to faster movements, enhancing maneuverability in various environments.

• Safety Features: Equipped with an emergency bump stop on the handle, providing immediate shutdown capabilities to ensure operator safety.

• Durable Construction: Built with high-quality materials to withstand rigorous industrial use, ensuring longevity and reliability.

Q&A

Q: What is the BLUECO Electric Pallet Jack Handle BCO-EPG (BCO-EPGHNDLE)?
A: It is the control handle designed for the BLUECO Electric Pallet Jack BCO-EPG, facilitating precise maneuvering and operation.

Q: Is this handle compatible with other pallet jack models?
A: The BCO-EPGHNDLE is specifically designed for the BLUECO BCO-EPG model; compatibility with other models is not guaranteed.

Q: Where can I purchase the BCO-EPGHNDLE?
A: It is available through BLUECO's official website and authorized distributors.

Maintenance Tips

• Inspect for Damage – Check for cracks, loose components, or worn grips.
• Test Controls Regularly – Ensure buttons, throttle, and safety features function properly.
• Lubricate Moving Parts – Apply grease to pivot points for smooth operation.
• Check Wiring & Connections – Look for loose or frayed wires that may affect performance.
• Keep Clean & Dry – Wipe down to prevent buildup and store in a dry environment.
