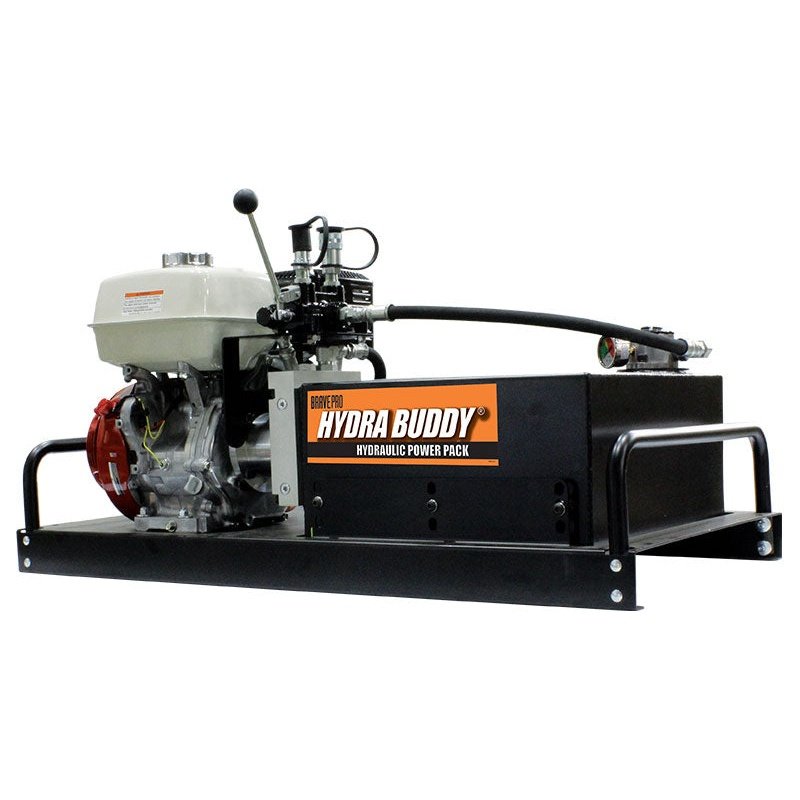

BravePro Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX)
Remote units come standard with a control valve and quick disconnect couplings. They are powered by Honda® GX commercial engines and are ideal for job sites where no power or air is available. They're compatible for use with single or double-acting cylinders.
Highlights
- Comes standard with control valve and quick disconnect couplings

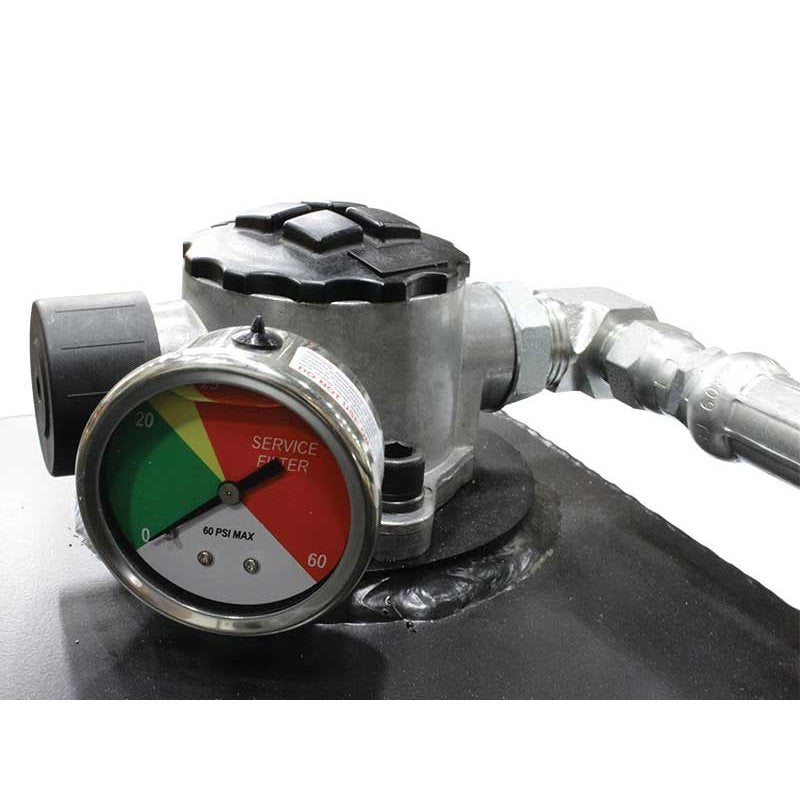

- Zinga in-tank hydraulic filter with indicator
- System relief valve
Compatible for use with single or double-acting cylinders

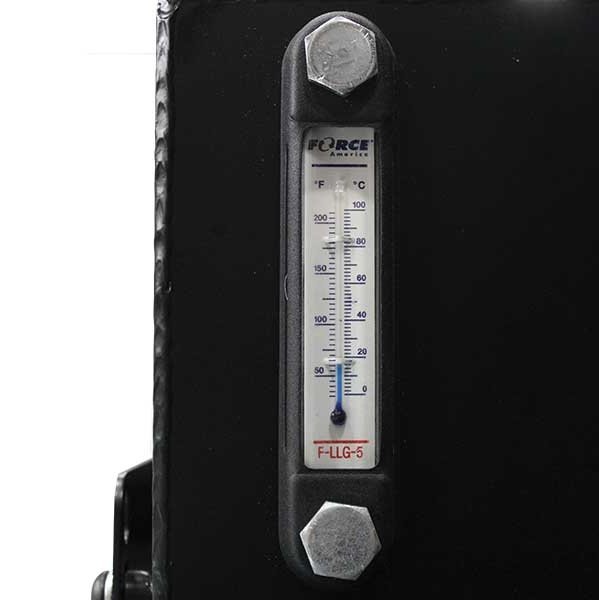

- Large hydraulic oil tank with sight / temperature gauge
Specifications
-
Shipping: Free (standard ground shipping)
-
Manual: Download PDF
-
UPC: __
-

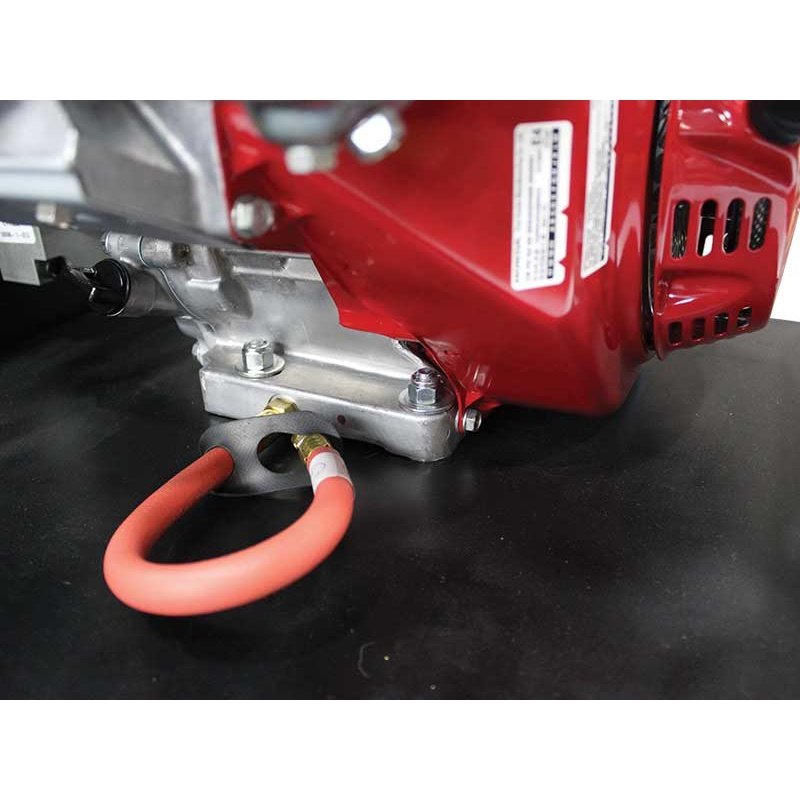

Engine: 390cc Honda GX390
-
Start: Recoil
-
Flow: 7 GPM
-
Pump Displacement: .51 CIR
-
Pump Ports: Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
-
Pump Rotation Direction: Clockwise
-
Hydraulic Tank Volume: (Nominal, Actual, Useable) 15, 13.6, 10.3
-
Hydraulic Tank Material: 12 Gauge Steel
-
Hydraulic Tank Drain Port: 1/2' NPT
-
Hydraulic Valve: 2,000 PSI
-
Hydraulic Valve Type: 3-Position, 4-Way Spring to Center Direction Control Valve with Integral Adjustable Main Relief Valve
-
Hydraulic Valve: Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed
-
Weight (Dry): 198 lbs
-
Dimensions (LxWxH): 44' x 24.5' x 20'
-
Warranty: 2 years
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
What Our Experts Think
The BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX) is a versatile and efficient solution for remote hydraulic applications. Here’s why it stands out:
-
Powerful Honda GX Series Engine: Provides reliable, high-performance power for demanding hydraulic tasks.
-
Remote Control Operation: Offers convenience and flexibility, allowing operation from a safe distance.
-
Compact and Portable: Designed for easy transport and use in various remote job sites.
-
Durable and Weather-Resistant: Built to handle tough environments with high durability and reliability.
-
Adjustable Hydraulic Flow: Enables precise control for a variety of hydraulic equipment.
Ideal for industries and professionals requiring remote-controlled hydraulic power for equipment operation in challenging conditions.
Q&A
Q: What type of engine powers this remote hydraulic power pack?
A: It features a reliable Honda GX350 engine.
Q: What hydraulic flow does it provide?
A: It delivers up to 10.5 GPM for efficient hydraulic performance.
Q: Is this model designed for remote operation?
A: Yes, it includes remote control capabilities for convenient and flexible use.
Q: What applications is it best suited for?
A: Ideal for remote hydraulic applications such as log splitters, hydraulic winches, and other remote-powered equipment.
Q: Does it have a durable construction?
A: Yes, it features a heavy-duty, weather-resistant housing for durability in tough environments.
Q: What are the key features?
A: Honda GX350 engine, remote operation, high hydraulic flow, and compact, portable design.
Q: Can it be used in harsh conditions?
A: Yes, its rugged design makes it suitable for demanding outdoor and industrial use.
Maintenance Tips
-
Regular Oil Checks: Inspect and maintain hydraulic fluid levels regularly. Replace fluid and filter as recommended by the manufacturer.
-
Inspect Hoses and Fittings: Check hydraulic hoses and fittings for leaks, cracks, or wear. Replace any damaged components immediately.
-
Clean Cooling System: Ensure the cooling system is free of debris and maintained to prevent overheating of the engine and hydraulic components.
-
Lubricate Moving Parts: Apply grease to pivot points, bearings, and other moving parts to reduce wear and ensure smooth operation.
-
Engine Maintenance: Maintain the Honda GX engine by regularly checking oil levels, air filters, and spark plug condition.
-
Monitor Pressure Levels: Regularly check hydraulic pressure levels to ensure they are within the recommended range.
-
Battery and Electrical Maintenance: Inspect and maintain the battery and electrical system, including wiring and connections, to avoid malfunctions.
-
Secure Fasteners: Check and tighten bolts, nuts, and other fasteners regularly to prevent loosening during operation.
-
Storage: Store the remote power pack in a dry, secure location to prevent damage from environmental factors.
-
Professional Servicing: Schedule regular inspections and maintenance with a qualified technician to ensure optimal performance and safety.
