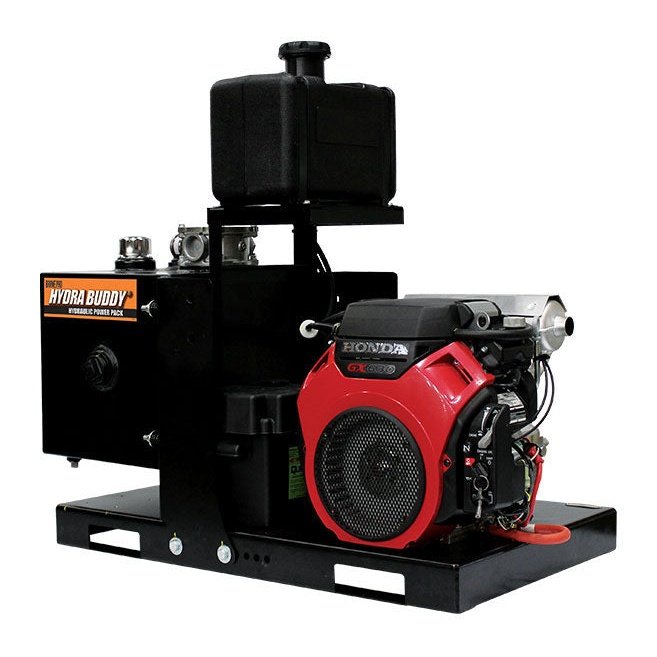

BravePro Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS600GXE)
Powered by Honda GX commercial engines these units mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.
Highlights
- Mounts securely to your trailer or application
- Spin-on hydraulic return filter with indicator
- System relief valve
- Compatible for use with single or double-acting cylinders

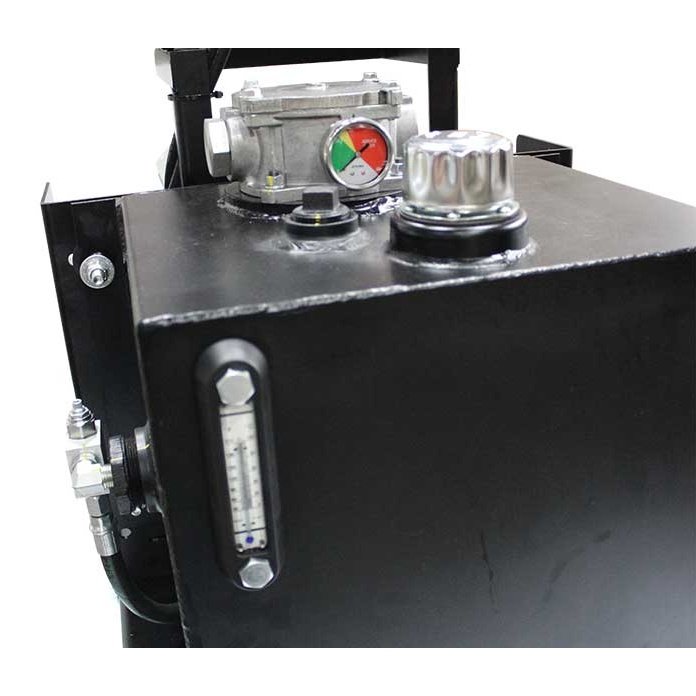

- Large hydraulic oil tank with sight / temperature gauge
- Fork lift accessible
Specifications
-
Shipping: Free (standard ground shipping)
-
Manual: Download PDF
-
UPC: __
-

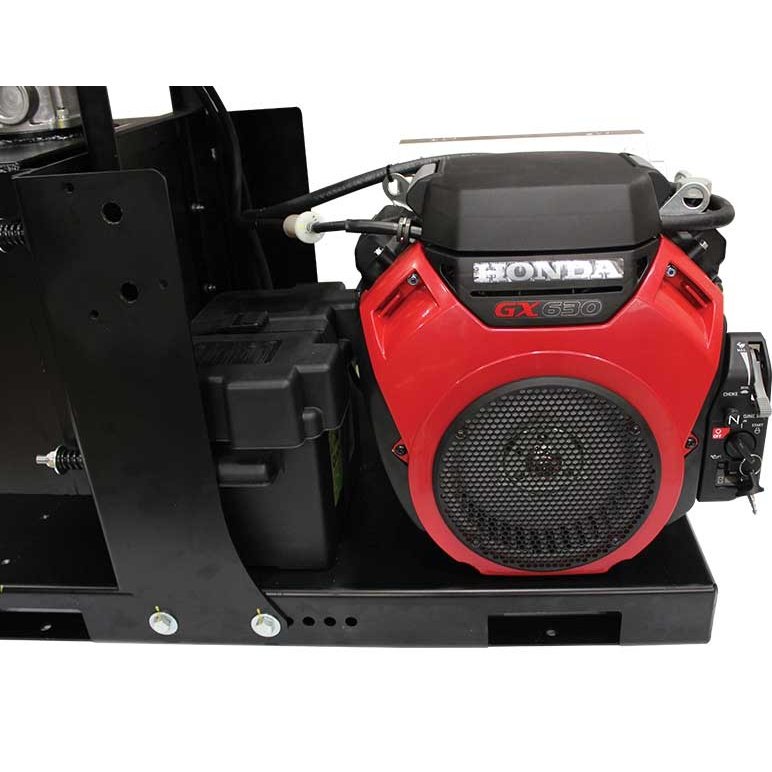

Engine: 688cc Honda GX630
-
Start: Electric
-
Flow: 9 GPM
-
Pump Displacement: .66 CIR
-
Pump Ports: Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
-
Pump Rotation Direction: Clockwise
-
Hydraulic Tank Volume: (Nominal, Actual, Useable) 19.2, 17.5, 13.5
-
Hydraulic Tank Material: 12 Gauge Steel
-
Hydraulic Tank Drain Port: 3/4' NPT
-
Hydraulic Valve: 3,000 PSI
-
Hydraulic Valve Type: Optional kits available (see product options)
-
Hydraulic Valve: Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed
-
Weight (Dry): 368 lbs
-
Dimensions (LxWxH): 48' x 24.5' x 43'
-
Warranty: 2 years
What Our Experts Think
The BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS600GXE) is a versatile and powerful hydraulic solution designed for demanding applications. Here’s why it stands out:
-
High-Performance Honda GX Series Engine: Reliable and efficient, delivering consistent power for heavy-duty tasks.
-
Compact Skid-Mount Design: Easy to transport and mount, perfect for industrial and outdoor use.
-
Durable Construction: Built with high-quality materials to withstand harsh working environments.
-
Variable Flow and Pressure Control: Provides precise control for a wide range of hydraulic equipment.
-
User-Friendly Operation: Simple controls and easy maintenance ensure smooth operation and minimal downtime.
A robust choice for contractors and industries requiring a reliable, portable hydraulic power solution.
Q&A
Q: What is the power source of this hydraulic power pack?
A: It is powered by a Honda GX630 engine.
Q: What type of hydraulic flow does it provide?
A: It provides up to 16 GPM (Gallons Per Minute) for efficient hydraulic power.
Q: Is it designed for heavy-duty use?
A: Yes, it is built for professional-grade performance, ideal for demanding hydraulic applications.
Q: What applications is it best suited for?
A: Perfect for skid steer attachments, log splitters, trenchers, and other hydraulic-powered equipment.
Q: Does it feature a durable frame?
A: Yes, it features a robust, skid-mounted steel frame for stability and durability.
Q: What are the key features?
A: Honda GX630 engine, adjustable hydraulic pressure, easy-to-use controls, and portability with skid design.
Q: Can it handle various attachments?
A: Yes, it supports a variety of hydraulic attachments and tools.
Maintenance Tips
-
Regular Oil Checks: Inspect and maintain hydraulic fluid levels regularly. Replace the fluid and filter according to the manufacturer’s guidelines.
-
Inspect Hoses and Fittings: Check hydraulic hoses and fittings for leaks, cracks, or damage. Replace any worn or damaged components immediately.
-
Clean Cooling System: Ensure the cooling system (if equipped) is free from debris and properly maintained to prevent overheating.
-
Lubricate Moving Parts: Apply lubrication to pivot points, bearings, and other moving components to reduce wear.
-
Check Engine Maintenance: Regularly inspect and maintain the Honda GX engine, including oil changes, air filter checks, and spark plug replacement.
-
Monitor Pressure Levels: Keep an eye on hydraulic pressure levels and ensure they are within recommended limits.
-
Electrical Safety: Inspect and maintain electrical connections and wiring for proper operation and safety.
-
Secure Fasteners: Regularly tighten bolts, nuts, and fasteners to prevent loosening and maintain structural integrity.
-
Storage: Store the power pack in a dry, secure location to prevent environmental damage and ensure long-term reliability.
-
Professional Servicing: Schedule regular inspections and servicing with a qualified technician to maintain peak performance.
