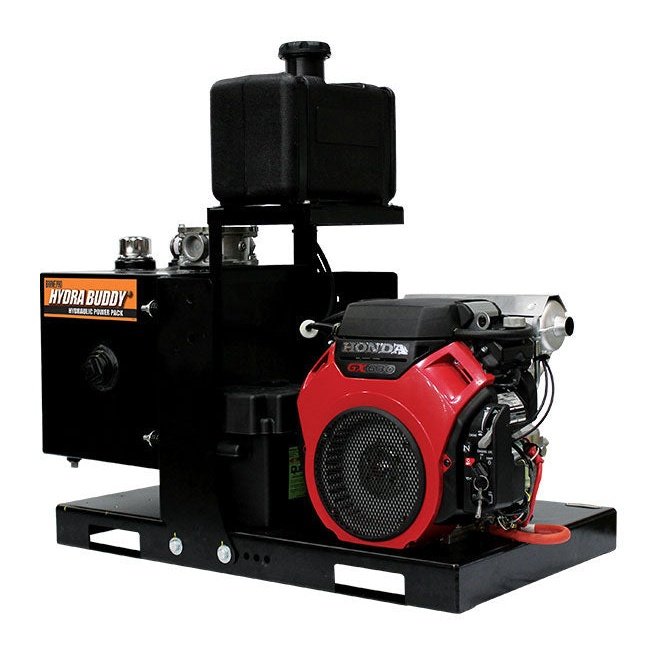

BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS610GXE)
Powered by Honda GX commercial engines these units mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.
Highlights
- Mounts securely to your trailer or application
- Spin-on hydraulic return filter with indicator
- System relief valve
- Compatible for use with single or double-acting cylinders

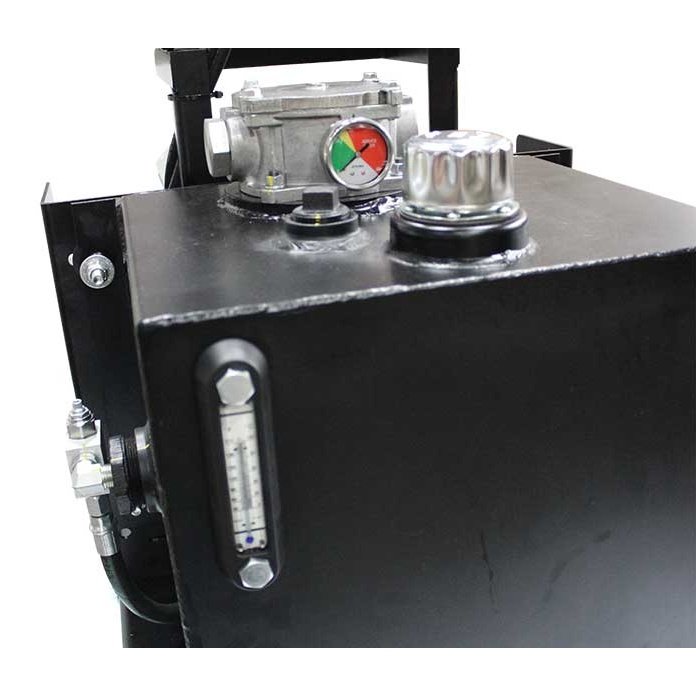

- Large hydraulic oil tank with sight / temperature gauge
- Fork lift accessible
Specifications
-
Shipping: Free (standard ground shipping)
-
Manual: Download PDF
-
UPC: __
-

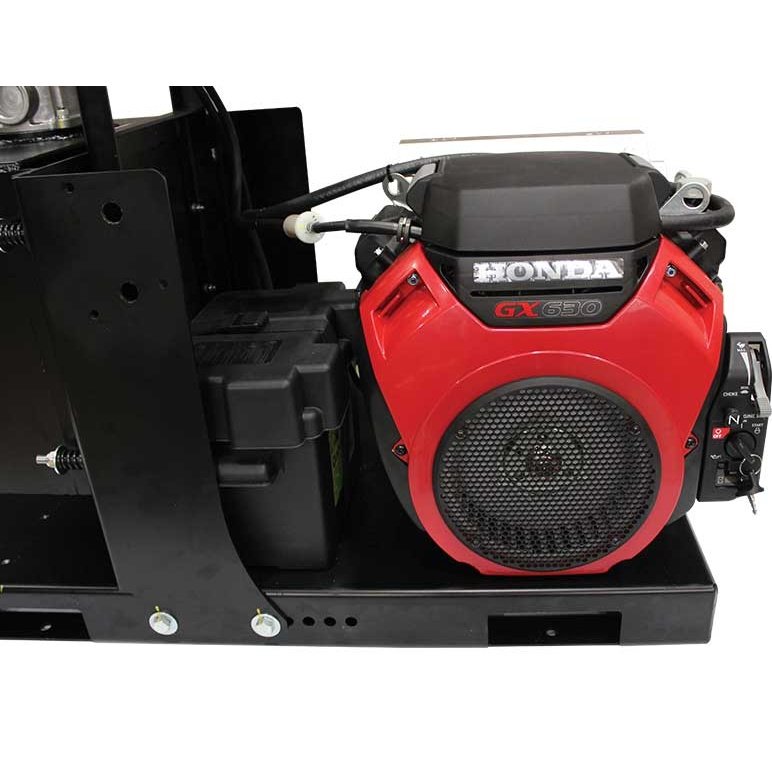

Engine: 688cc Honda GX630
-
Start: Electric
-
Flow: 12 GPM
-
Pump Displacement: .88 CIR
-
Pump Ports: Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
-
Pump Rotation Direction: Clockwise
-
Hydraulic Tank Volume: (Nominal, Actual, Useable) 19.2, 17.5, 13.5
-
Hydraulic Tank Material: 12 Gauge Steel
-
Hydraulic Tank Drain Port: 3/4' NPT
-
Hydraulic Valve: 2,250 PSI
-
Hydraulic Valve Type: Optional kits available (see product options)
-
Hydraulic Valve: Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed
-
Weight (Dry): 368 lbs
-
Dimensions (LxWxH): 48' x 24.5' x 43'
-
Warranty: 2 years
What Our Experts Think
The BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS610GXE) is a powerful and versatile solution for hydraulic applications in demanding environments. Here’s why it stands out:
-
High-Performance Honda GX Engine: Provides reliable and efficient power for heavy-duty hydraulic tasks.
-
Skid-Mount Design: Offers portability and easy installation on various equipment and job sites.
-
Durable and Weather-Resistant Construction: Built to withstand harsh conditions and provide long-lasting performance.
-
Variable Hydraulic Output: Allows for precise control, making it suitable for a wide range of hydraulic tools and machinery.
-
User-Friendly Operation: Simple controls and minimal maintenance ensure seamless operation and efficiency.
Ideal for contractors and industries requiring a dependable, portable hydraulic power source for challenging projects.
Q&A
Q: What engine powers this hydraulic power pack?
A: It features a reliable Honda GX610 engine.
Q: What hydraulic flow does it provide?
A: It delivers up to 30 GPM for efficient hydraulic performance.
Q: Is it designed for heavy-duty applications?
A: Yes, it is built for high-demand hydraulic applications including skid steer attachments and construction equipment.
Q: What are the main features?
A: Honda GX610 engine, adjustable hydraulic pressure, durable skid-mounted frame, and user-friendly controls.
Q: Can it handle various hydraulic tools and equipment?
A: Yes, it supports a wide range of hydraulic tools and attachments.
Q: Is it easy to transport?
A: Yes, its skid-mounted design allows for easy transport and stability on uneven surfaces.
Q: Is it suitable for commercial use?
A: Yes, it is designed for professional-grade performance in industrial and construction environments.
Maintenance Tips
-
Check Hydraulic Fluid: Regularly inspect and maintain hydraulic fluid levels. Refill or replace fluid as necessary.
-
Inspect Hoses and Fittings: Check for leaks, wear, or damage in hydraulic hoses and fittings. Replace as needed.
-
Lubricate Moving Parts: Apply grease to pivot points, shafts, and other moving components to reduce wear and ensure smooth operation.
-
Engine Maintenance: Ensure the Honda GX engine is properly maintained—check oil levels, air filter, and spark plug condition regularly.
-
Cooler System Cleaning: Clean the cooler and radiator to prevent overheating and ensure optimal cooling performance.
-
Secure Fasteners: Check and tighten all bolts, nuts, and fasteners to maintain stability and safety.
-
Monitor Pressure and Flow: Regularly check hydraulic pressure and flow rates to ensure proper system performance.
-
Inspect Filters: Replace hydraulic and air filters at recommended intervals to maintain system efficiency.
-
Storage: Store the power pack in a dry, covered area to protect it from environmental elements and debris.
-
Professional Servicing: Schedule regular maintenance with a qualified technician to ensure peak performance and safety.
