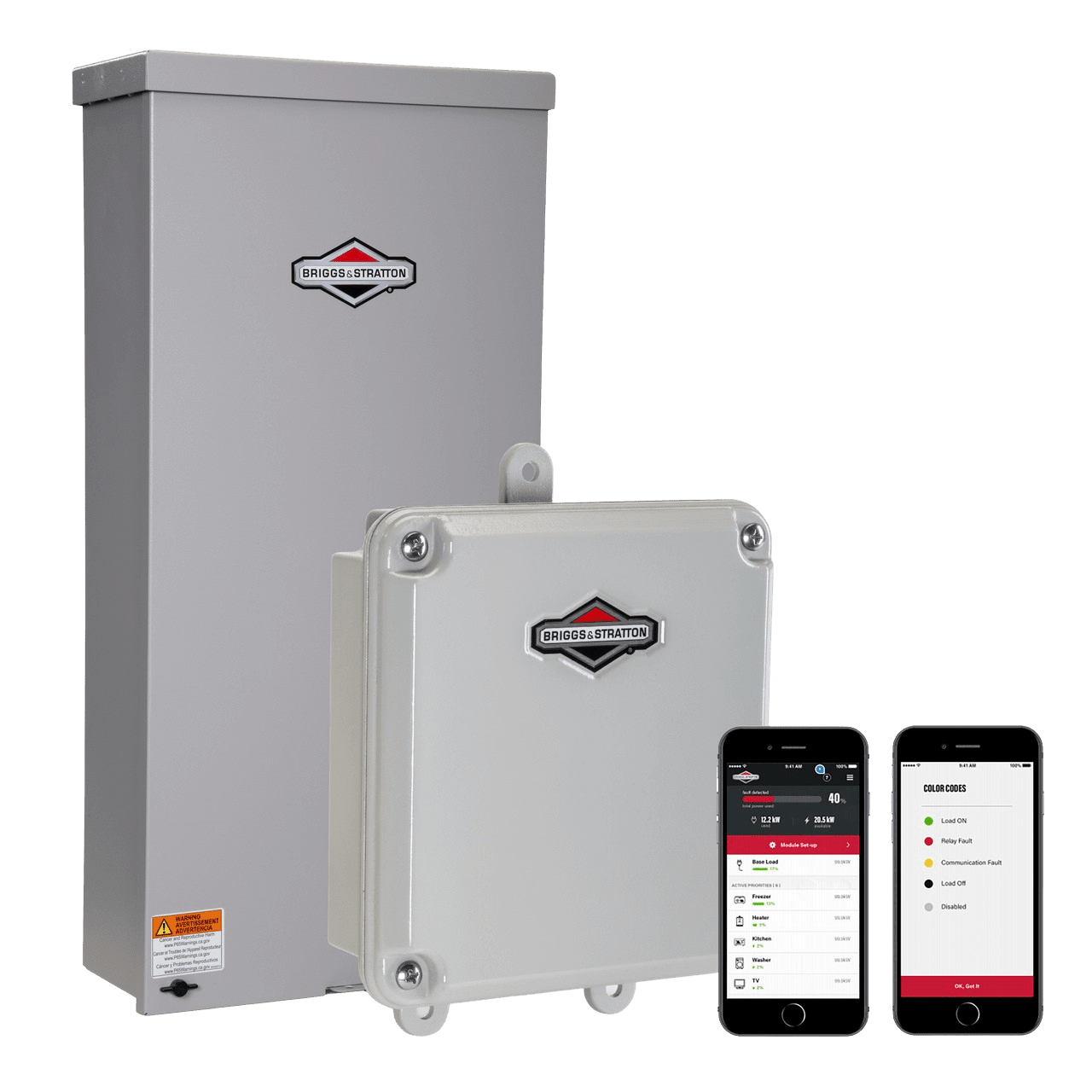

Briggs and Stratton 071271 200-Amp Service Disconnect Outdoor Automatic Transfer Switch New
Briggs and Stratton makes it easy by offering the Amplify Power Management System with a 200 amp transfer switch and a Gateway bundle. These systems help a homeowner prioritize the power they need during a power outage.
The Amplify âStandby Generator Managementâ app allows you to set or change priorities as well as monitor your generator status from your smartphone allowing flexibility in your backup power management.
Features
- Type:Â Service Disconnect
- Amp Rating:Â 200
- Load Mgmt.:Â Sold Separately
- Voltage:Â 120/240 Single-Phase
- Enclosure:Â NEMA 3R
- Briggs and Stratton 200-Amp Automatic Transfer Switch
- For Briggs and Stratton air-cooled generators with the GC-1031 controller
- Service Entrance Rated (200A @ 240V)
- Offers ability to power all circuits without a sub-panel
- Saves money - Whole-House Power with A Smaller Generator
- A reduced initial investment, lower fuel and installation costs
- NEMA 3R Outdoor Rated Enclosure
- Flexibility in mounting locations - indoor or outdoor
- Amplify Power Management
- Active management of high wattage appliances
- Real time ability to change priorities
- Standby Generator Management App
- Easily change priorities and two-way communication
- Provides real-time generator status
- Manage Up-To 32 Modules (Sold Separately)
- Eliminates risk of overloading your generator
- Easier Module Installation - No Neutral Required
- Wireless communication to power management modules
- No requirement for separate 120V for Low voltage modules
- Amplify Gateway (Included)
- Works exclusively with GC-1031 controllers
- Designed for current Briggs and Stratton generators
- Optional Battery UPS (Not Included)
- Allows you to backup Wi-Fi router to maintain signal
- 6-Year Warranty
Specifications
| Voltage |
120/240 Single-Phase |
| Frequency |
60 Hertz |
| Rated Amps |
200 Amps |
| Enclosure |
NEMA 3R |
| Transfer Switch Style |
Service Disconnect |
| ATS Load Shedding |
Sold Separately |
| ATS Poles |
2 Poles |
| ATS Service Disconnect |
Yes |
| Max Utility Input |
200 Amps |
| Max Generator Input |
200 Amps |
| Maximum Wattage |
48000 Watts |
| UL Listed |
Yes |
Manual
Product Manual
Manual - Amplify
What Our Experts Think
-
Seamless Power Transition: Automatically transfers power during outages, ensuring uninterrupted operation.
-
High Capacity: Supports up to 200 amps, ideal for large residential or light commercial applications.
-
Outdoor-Ready: Designed for outdoor installation with a weatherproof enclosure.
-
Service Disconnect Feature: Simplifies maintenance and enhances safety by disconnecting service during repairs.
-
Reliable Compatibility: Pairs perfectly with Briggs & Stratton standby generators for optimal performance.
-
Durable and Efficient: Built with premium materials to withstand harsh conditions while delivering efficient functionality.
A dependable solution for reliable power transfer and maximum convenience during outages.
Q&AÂ
Q: What is the primary function of this transfer switch?
A: It automatically transfers power from the utility to your generator during outages.
Q: What is the amperage capacity?
A: This switch supports up to 200 amps, suitable for whole-home backup.
Q: Is this transfer switch weather-resistant?
A: Yes, it is designed for outdoor use with a durable, weather-resistant enclosure.
Q: Does it include service disconnect capability?
A: Yes, it features a built-in service disconnect for safety and convenience.
Q: Is it compatible with all Briggs & Stratton generators?
A: It is compatible with most Briggs & Stratton standby generators for seamless integration.
Q: What safety standards does it meet?
A: The switch complies with UL and NEC safety standards.
Q: Can it support multiple circuits?
A: Yes, it efficiently manages power distribution for multiple circuits in your home.
Q: What warranty is included?
A: It comes with a 5-year limited warranty for added reliability.
Maintenance TipsÂ
-
Inspect Connections: Check wiring and terminal connections for tightness and corrosion every 6 months.
-
Clean the Enclosure: Remove debris and ensure vents are unobstructed for proper airflow.
-
Test Operation: Conduct a manual transfer test quarterly to ensure smooth switching.
-
Lubricate Components: Apply electrical contact lubricant to moving parts annually.
-
Check Weatherproofing: Inspect seals and gaskets regularly to prevent moisture intrusion.
-
Professional Servicing: Schedule an annual inspection by a certified electrician.
Follow manufacturer guidelines for maintenance to ensure reliability and safety.
