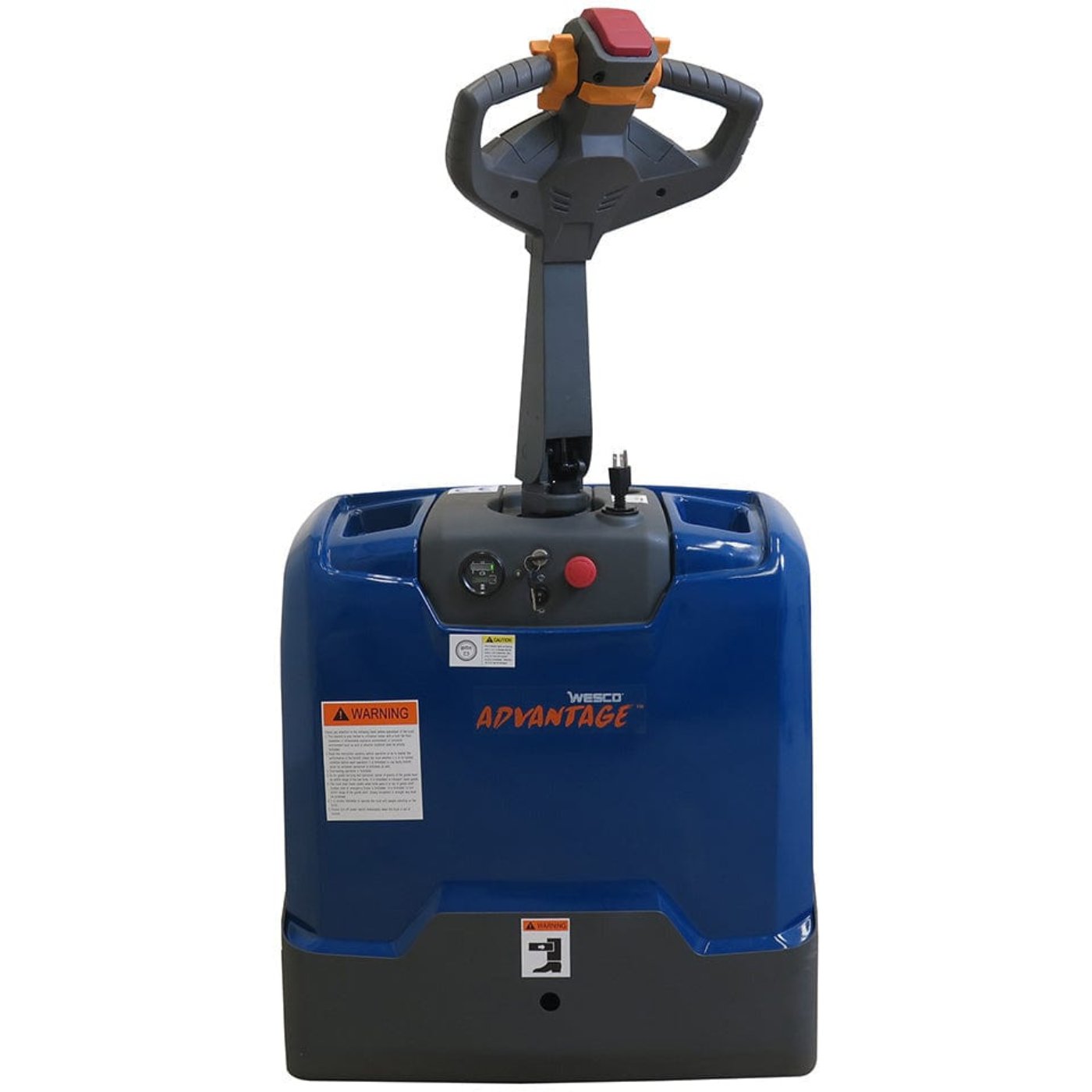

Wesco ADVANTAGE™ PRO-MAX HEAVY DUTY POWER PALLET TRUCK - 274723
Features
- 3 year pump warranty.
- 4,400 lb capacity
- 24 Volt battery with 105AH capacity
- High travel speed: 3.3 / 3.6 mph loaded/unloaded
- Compact design with 53" turning radius
- Controls operate with handle raised for tight spaces
- DC permanent magnet brushless motor
- Stepless controls for accurate speed control
- Battery meter with charge indicator light on handle
Specifications
| CAPACITY |
4,400 lb |
| W-1 X L-1 |
27" x 48" |
| W-2 |
6" |
| L-2 |
63" |
| WHL-1 / WHL-2 |
8" / 3" |
| H-1 / H-2 / H-3 |
51.5" / 3.3" / 7.5" |
| WEIGHT |
552 lb |
Drawing
What Our Experts Think
-
Heavy-Duty Performance: Designed to handle up to 4,500 lbs, making it perfect for the toughest pallet handling tasks in demanding environments.
-
Powerful Electric Lift: Features a high-capacity electric lift for effortless movement of heavy loads, reducing strain on operators.
-
Sturdy Construction: Built with reinforced materials to ensure durability and reliability in industrial applications, even under heavy use.
-
Smooth Operation: Equipped with easy-to-use controls for efficient operation, enhancing productivity while minimizing operator fatigue.
-
Enhanced Maneuverability: Designed for smooth and stable movement, even with heavy loads, offering excellent control and stability.
Q&A
Q: What is the weight capacity of the Wesco Advantage™ Pro-Max Heavy Duty Power Pallet Truck?
A: The Wesco 274723 can lift up to 6,000 lbs.
Q: What type of power does this pallet truck use?
A: It is powered by a heavy-duty electric motor for lifting and moving pallets with minimal manual effort.
Q: What are the dimensions of the forks?
A: The forks are designed to accommodate standard pallets, typically measuring 27 inches by 48 inches.
Q: Is this pallet truck suitable for heavy-duty use?
A: Yes, it is designed to handle heavy loads, making it ideal for industrial and warehouse settings that require frequent lifting and transport of heavy materials.
Q: What is the lift height?
A: This pallet truck can lift pallets up to 7.5 inches in height.
Q: Is this pallet truck easy to maneuver?
A: Yes, it is designed with ergonomic controls and smooth-rolling wheels for easy maneuverability, even in tight spaces.
Q: What are the primary applications for this pallet truck?
A: Perfect for transporting and lifting heavy pallets and materials in warehouses, distribution centers, and industrial environments.
Q: Does it require charging?
A: Yes, the electric motor requires charging to operate the lift function.
Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting performance and reliability in tough environments.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions included.
Maintenance Tips
-
Inspect Regularly: Check the forks, hydraulic system, wheels, and overall frame for any wear, damage, or loose parts monthly.
-
Lubricate Moving Parts: Grease wheels, rollers, and pivot points every 3 months for smooth operation and to avoid premature wear.
-
Battery Maintenance: Fully charge the battery before use, and inspect cables and terminals for signs of corrosion or wear.
-
Hydraulic Fluid Check: Ensure hydraulic fluid is at the correct level and check for any leaks in the hydraulic pump or system.
-
Clean After Use: Wipe down the pallet truck to remove dirt, debris, and moisture, preventing rust and prolonging its lifespan.
-
Check Fasteners: Tighten all bolts, screws, and fasteners to ensure stability and safe operation.
-
Test Functionality: Regularly test the lift, lowering, and braking systems to ensure they are operating correctly.
-
Respect Load Limits: Never exceed the pallet truck's rated capacity for safe and efficient use.
