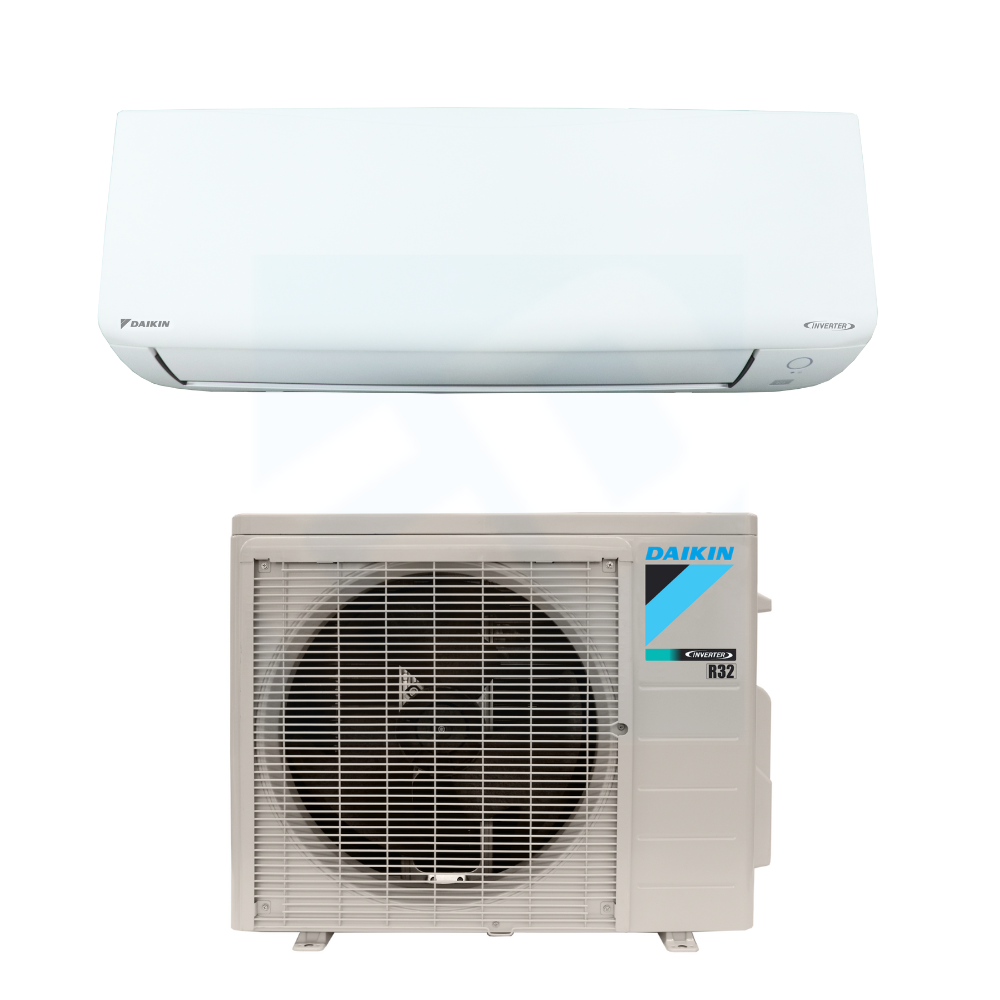

Daikin FTXF09AXVJU & RXF09AXVJU – 9,000 BTU R-32 Wall-Mounted Mini-Split Heat Pump System
The Daikin FTXF09AXVJU indoor unit and RXF09AXVJU outdoor unit deliver exceptional 9,000 BTU heating and cooling performance using eco-friendly R-32 refrigerant. Designed for single-zone applications, this Oterra Series mini-split offers quiet comfort, inverter-driven efficiency, and advanced air purification—all backed by Daikin’s industry-leading warranty and reliability.
General Information
System Type: Wall-mounted ductless mini-split heat pump (indoor & outdoor)

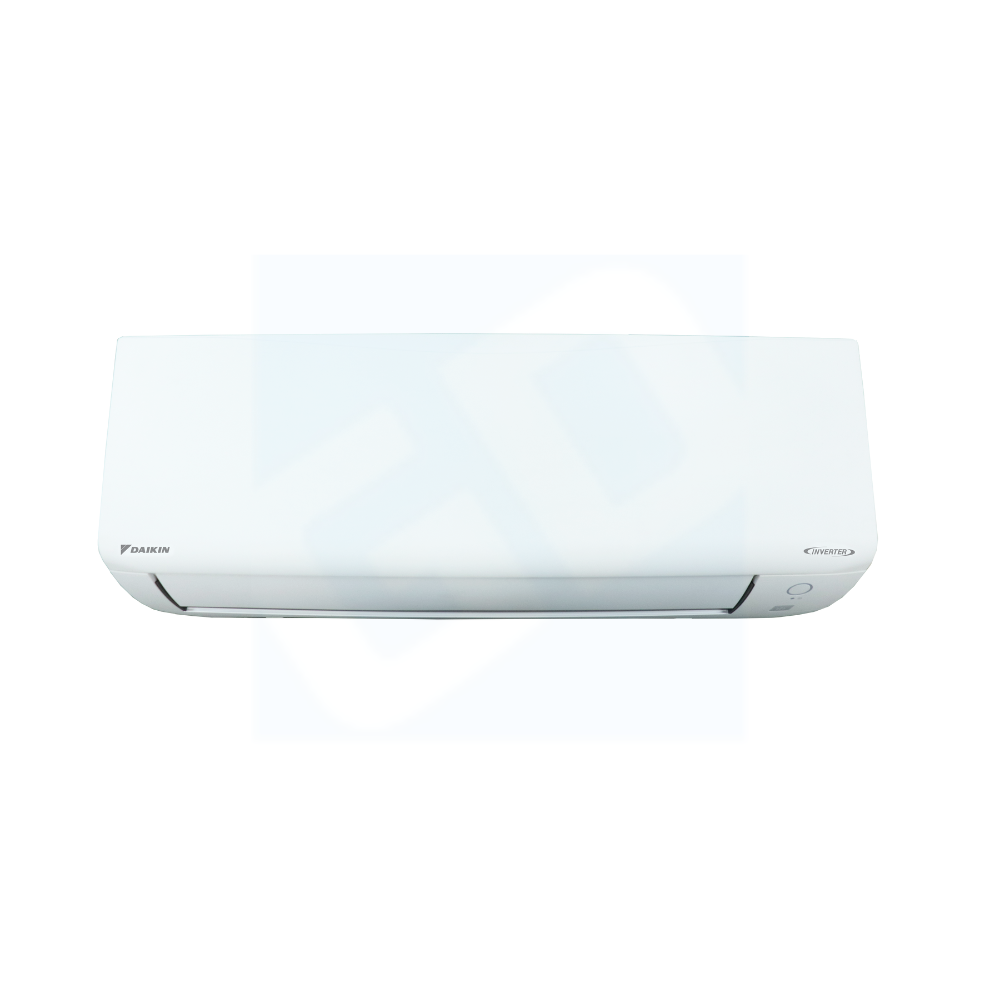

Indoor Model: FTXF09AXVJU

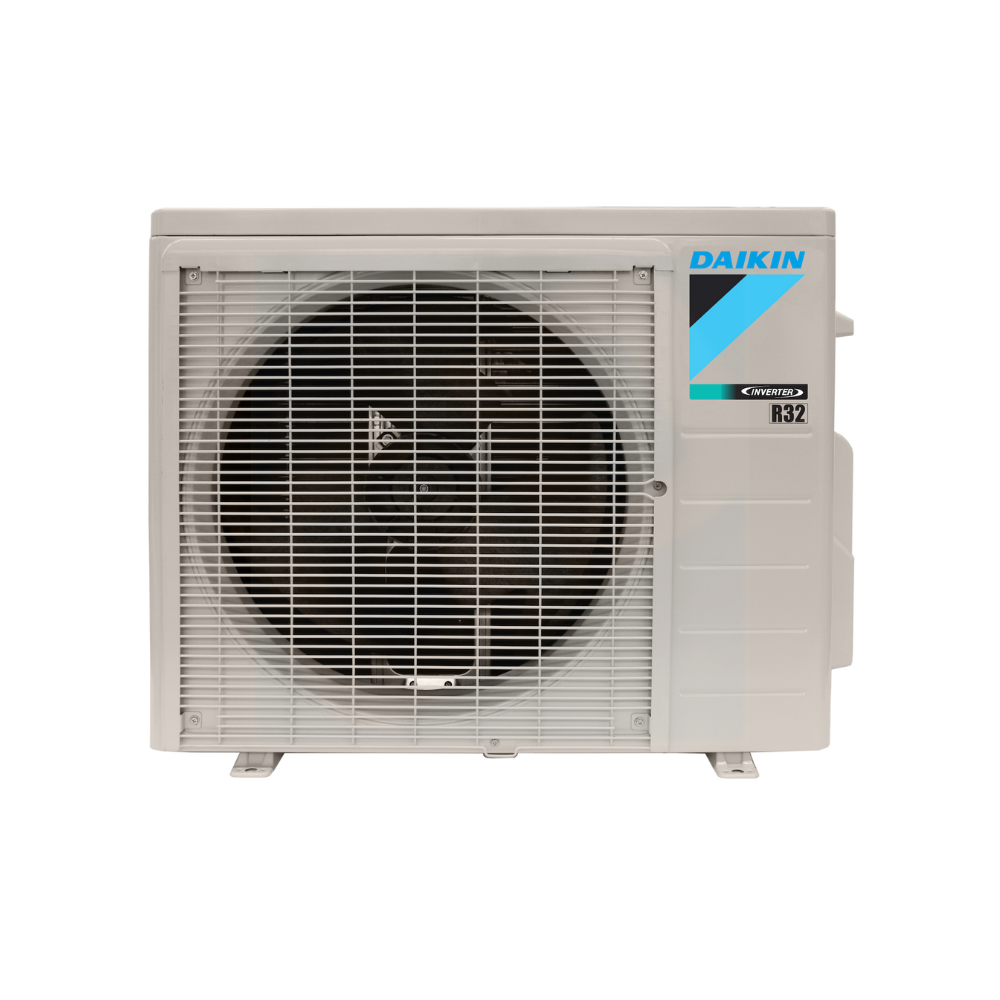

Outdoor Model: RXF09AXVJU
Capacity: 9,000 BTU Cooling / 10,000 BTU Heating (0.75 Ton)
Room Size: Ideal for small to medium spaces
Operating Modes: Cool, Heat, Dry, Fan, Auto, Sleep
Refrigerant: R-32 (low-GWP, pre-charged up to 33 ft)
Included Remote: Wireless handheld remote with backlight
Key Features
• Daikin Swing Compressor with Inverter Technology – Provides efficient, precise temperature control and reduced energy consumption.
• Whisper-Quiet Operation – Indoor sound levels as low as 19 dB(A) ensure minimal noise disturbance.
• Energy Efficient Performance – SEER2 up to 21.0 and HSPF2 up to 10.2 for outstanding year-round savings.
• Wide Operating Range – Cooling from -4°F to 118°F and heating from 5°F to 65°F for versatile climate performance.
• Advanced Air Filtration – Titanium Apatite Air-Purifying Filter helps capture airborne particles and neutralize odors.
• Auto Functions – Includes Auto Restart, Auto Defrost, and Sleep Mode for comfort and convenience.
• Corrosion Protection – Outdoor coil treated with anti-corrosion coating for enhanced durability.
• Optional Wi-Fi Control – Compatible with Daikin DKN Cloud Wi-Fi Adapter (sold separately).
• Extended Warranty – 12-year limited parts and compressor warranty (with online registration).
Specifications (Rated Conditions)
Cooling Capacity (Rated/Range): 9,000 BTU | 4,400 – 11,200 BTU
Heating Capacity (Rated): 10,000 BTU
SEER2 / EER2: 21.0 / 12.5
HSPF2 (Non-Ducted): 10.2
COP (47°F): 4.1
Airflow (Indoor – CFM): 466 / 431 / 322 / 249 / 142 (HH–SL)
Moisture Removal: 0.1 gal/hr
Operating Temp Range (Cooling/Heating): -4°F–118°F / 5°F–65°F
Refrigerant Charge: 1.65 lbs (pre-charged up to 33 ft; add 0.18 oz/ft beyond)
Max Pipe Length / Height Difference: 66 ft / 49 ft
Electrical: 208–230V • 1-Phase • 60Hz
Indoor Unit Dimensions / Weight: 11-1/3″H × 30-5/16″W × 9-3/16″D • 19.8 lb
Outdoor Unit Dimensions / Weight: 21-11/16″H × 26-1/2″W × 11-3/16″D • 60 lb
Sound Pressure (Indoor / Outdoor): 19–44 dB(A) / 46 dB(A)
Included Components
• FTXF09AXVJU indoor wall-mounted unit
• RXF09AXVJU outdoor heat pump unit
• Wireless handheld remote controller
• 12-year limited parts and compressor warranty (with registration)
Ideal For
Homeowners seeking a high-efficiency, ultra-quiet single-zone comfort system. The Daikin FTXF09AXVJU & RXF09AXVJU Oterra Series delivers reliable year-round heating and cooling, exceptional energy savings, and advanced filtration in a sleek, compact design.
