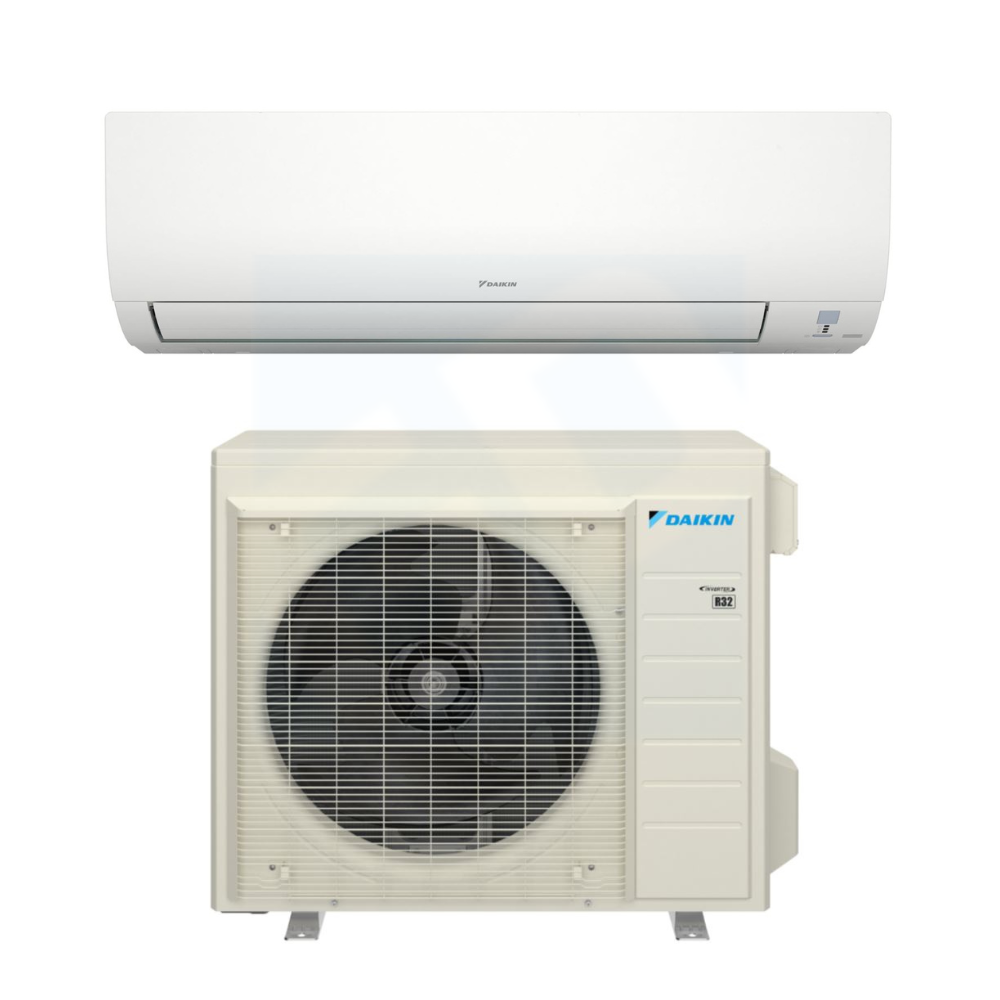

Daikin FTXF09BVJU9 & RXF09BVJU9 – 9,000 BTU R-32 Wall-Mounted Mini-Split Heat Pump System
The Daikin FTXF09BVJU9 indoor unit and RXF09BVJU9 outdoor unit provide efficient 9,000 BTU heating and cooling performance using eco-friendly R-32 refrigerant. Designed for single-zone applications, this Oterra Series system combines built-in Wi-Fi connectivity, inverter-driven comfort, and ultra-quiet operation. With advanced air purification and corrosion protection, it delivers dependable year-round climate control backed by Daikin’s 12-year limited parts and compressor warranty.
General Information
System Type: Wall-mounted ductless mini-split heat pump (indoor & outdoor)
Indoor Model: FTXF09BVJU9
Outdoor Model: RXF09BVJU9
Capacity: 9,000 BTU Cooling / 10,900 BTU Heating (0.75 Ton)
Room Size: Ideal for small to medium spaces
Operating Modes: Cool, Heat, Dry, Fan, Auto, Sleep
Refrigerant: R-32 (low-GWP, pre-charged up to 49 ft)
Included Remote: Wireless handheld remote controller
Key Features
• Built-in Wi-Fi Connectivity – Easily control and monitor your system from anywhere.
• Daikin Swing Compressor with Inverter Technology – Delivers smooth, energy-efficient temperature control.
• Ultra-Quiet Operation – Indoor sound levels as low as 19 dB(A) for whisper-quiet comfort.
• Energy Efficient Performance – SEER2 up to 21.0, HSPF2 up to 10.2, and EER2 up to 12.5 for year-round savings.
• Wide Operating Range – Cooling from 50°F to 118°F (down to -4°F with baffle) and heating from 5°F to 65°F.
• Titanium Apatite Air-Purifying Filter – Helps capture airborne particles and neutralize odors.
• Anti-Corrosion Treatment – Outdoor heat exchanger coated for enhanced durability.
• Pre-Charged Line Set – Factory pre-charged for up to 49 feet of refrigerant piping.
• Optional Accessories – Compatible with Daikin DKN Cloud Wi-Fi Adapter, wired remotes, and centralized controllers.
• Extended Warranty – 12-year limited parts and compressor warranty (residential, with registration).
Specifications (Rated Conditions)
Cooling Capacity (Rated / Range): 9,000 BTU | 4,400 – 11,200 BTU
Heating Capacity (Rated): 10,900 BTU
SEER2 / EER2: 21.0 / 12.5
HSPF2 (Non-Ducted): 10.2
Cooling Input Power: 0.97 kW
Refrigerant Charge: 1.65 lbs (pre-charged up to 49 ft; add 0.22 oz/ft beyond)
Max Pipe Length / Height Difference: 66 ft / 49 ft
Operating Temp Range (Cooling/Heating): 50°F–118°F / 5°F–65°F
Cooling Range w/Baffle: -4°F–118°F
Electrical: 208–230V • 1-Phase • 60Hz
Indoor Unit:
Airflow (CFM – H/M/L/SL): 381 / 272 / 230 / 124
Sound Pressure (dB[A]): 44 / 35 / 30 / 19
Dimensions (HxWxD): 11-1/4″ × 30-5/8″ × 8-3/4″
Net Weight: 19 lb
Outdoor Unit:
Compressor: Inverter-driven
Sound Pressure (dB[A]): 49
Airflow (CFM): 1088
Dimensions (HxWxD): 21-15/16″ × 26-9/16″ × 11-3/16″
Net Weight: 63 lb
Included Components
• FTXF09BVJU9 indoor wall-mounted unit
• RXF09BVJU9 outdoor heat pump unit
• Wireless handheld remote controller
• Titanium Apatite Air-Purifying Filter
• 12-year limited parts and compressor warranty (with registration)
Ideal For
Homeowners seeking a reliable, energy-efficient, and quiet single-zone solution. The Daikin FTXF09BVJU9 & RXF09BVJU9 Oterra Series system combines comfort, connectivity, and performance—perfect for year-round heating and cooling in small to medium spaces.
