Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC)

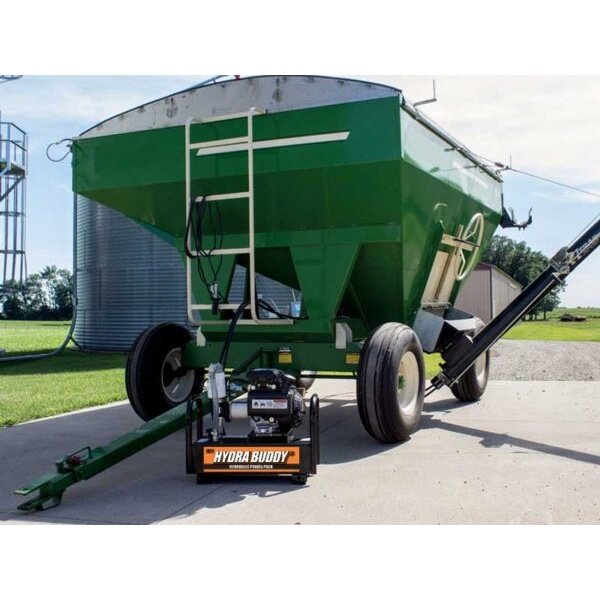

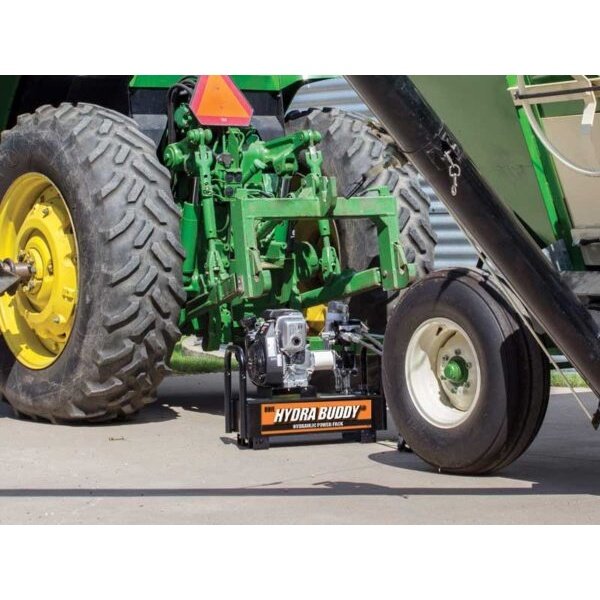

The Hydra Buddy™ replaces tractor power for augers, conveyors, dump wagons and more. These portable power units save you time & money by using less fuel and less maintenance than a tractor.
This Hydra Buddy™ unit comes with the standard Honda® GC160 motor. The 'big brother' of this unit (the HBH13GX) comes with the commercial Honda® GX160 engine.
With a 7 GPM Haldex Single-Stage Pump (900 PSI), will deliver a constant flow and pressure without spikes. Comes standard with 1/2” Stainless Steel Ports with Quick Disconnect Couplers which will minimize any downtime when changing applications.
The large 5.6-gallon hydraulic tank provides ample fluid for your applications.
Specifications
-
Shipping: Free (standard ground shipping)
-
UPC: 011343000244
-
Engine: Honda GC160
-
Pump Capacity: 7 GPM
-
Pump Ports: 1/2' (14 O-Ring)
-
Pump Direction: Counterclockwise
-
Hydraulic Fluid Type: AW32, ASLE H-150 or ISO 32
-
Hydraulic Tank: 5.6 gal
-
Hydraulic Tank: 3/16' Steel
-
Tank Drain Port: Yes - 1/2' NPT
-
Hydraulic Valve Rating: 900 PSI
-
Valve Type: One-Way Detent, One Way Spring Return
-
Hydraulic Valve Inlet: 3/4-14 NPT
-
Hydraulic Valve Outlet: 3/4-14 NPT
-
Filter Type: Parker 12AT25CN25BBN
-
Quick Disconnects: ISO 7241-1 Series A
-
Unit Dimensions: 27'L x 14'W x 25'H
-
Weight: 133 lbs
-
Warranty: 2 Year
Warranty
2-Year Limited Warranty
Hydra Buddy Brochure
What Our Experts Think
The Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC) is a versatile and reliable solution for hydraulic power in remote and demanding environments. Here’s why it stands out:
-
Powerful Honda 16HP Engine: Delivers robust performance for various hydraulic applications.
-
Portable and Compact: Lightweight design allows for easy transport and setup in different locations.
-
Durable and Reliable: Built with high-quality materials to withstand challenging conditions and heavy use.
-
Variable Hydraulic Output: Provides precise control, ideal for a wide range of hydraulic tools and equipment.
-
User-Friendly Design: Simple controls and minimal maintenance ensure smooth operation and efficiency.
An excellent choice for contractors, landscapers, and industries requiring portable hydraulic power for remote operations.
Q&A
Q: What engine powers this portable hydraulic unit?
A: It features a Honda GX160 engine for reliable and efficient performance.
Q: What hydraulic flow does it provide?
A: It delivers up to 16 GPM (Gallons Per Minute) for effective hydraulic power.
Q: Is it designed for portability?
A: Yes, it is lightweight and comes with a durable frame for easy transport.
Q: What applications is it best suited for?
A: Ideal for log splitters, trenchers, and other hydraulic-powered equipment.
Q: What are the main features?
A: Compact design, robust Honda engine, adjustable hydraulic pressure, and portability.
Q: Can it handle demanding hydraulic tasks?
A: Yes, it is built to handle heavy-duty hydraulic applications with precision and efficiency.
Q: Is it easy to operate?
A: Yes, the user-friendly controls and durable construction ensure ease of use in various environments..
Maintenance Tips
-
Regular Oil Checks: Inspect and maintain hydraulic fluid levels regularly. Replace fluid and filter as recommended by the manufacturer.
-
Inspect Hoses and Fittings: Check hydraulic hoses and fittings for leaks, cracks, or wear. Replace any damaged components immediately.
-
Clean Cooling System: Ensure the cooling system is free of debris and properly maintained to prevent overheating.
-
Lubricate Moving Parts: Apply grease to pivot points and other moving components to reduce wear and ensure smooth operation.
-
Engine Maintenance: Regularly check and maintain the engine, including oil levels, air filter, and spark plug condition.
-
Monitor Pressure Levels: Regularly check hydraulic pressure levels to ensure they are within the recommended range.
-
Electrical System: Inspect and maintain electrical connections and wiring for proper functionality and safety.
-
Secure Fasteners: Ensure bolts, nuts, and other fasteners are tight to prevent loosening during operation.
-
Storage: Store the unit in a dry, secure location to prevent damage from environmental factors.
-
Professional Servicing: Schedule regular maintenance and inspections with a qualified technician for optimal performance and safety.
