Imperial (Middleby) Gas Ranges - ISPA-18
(Middleby Essentials • QUICK SHIP – Leaves Warehouse in 1-2 Days)

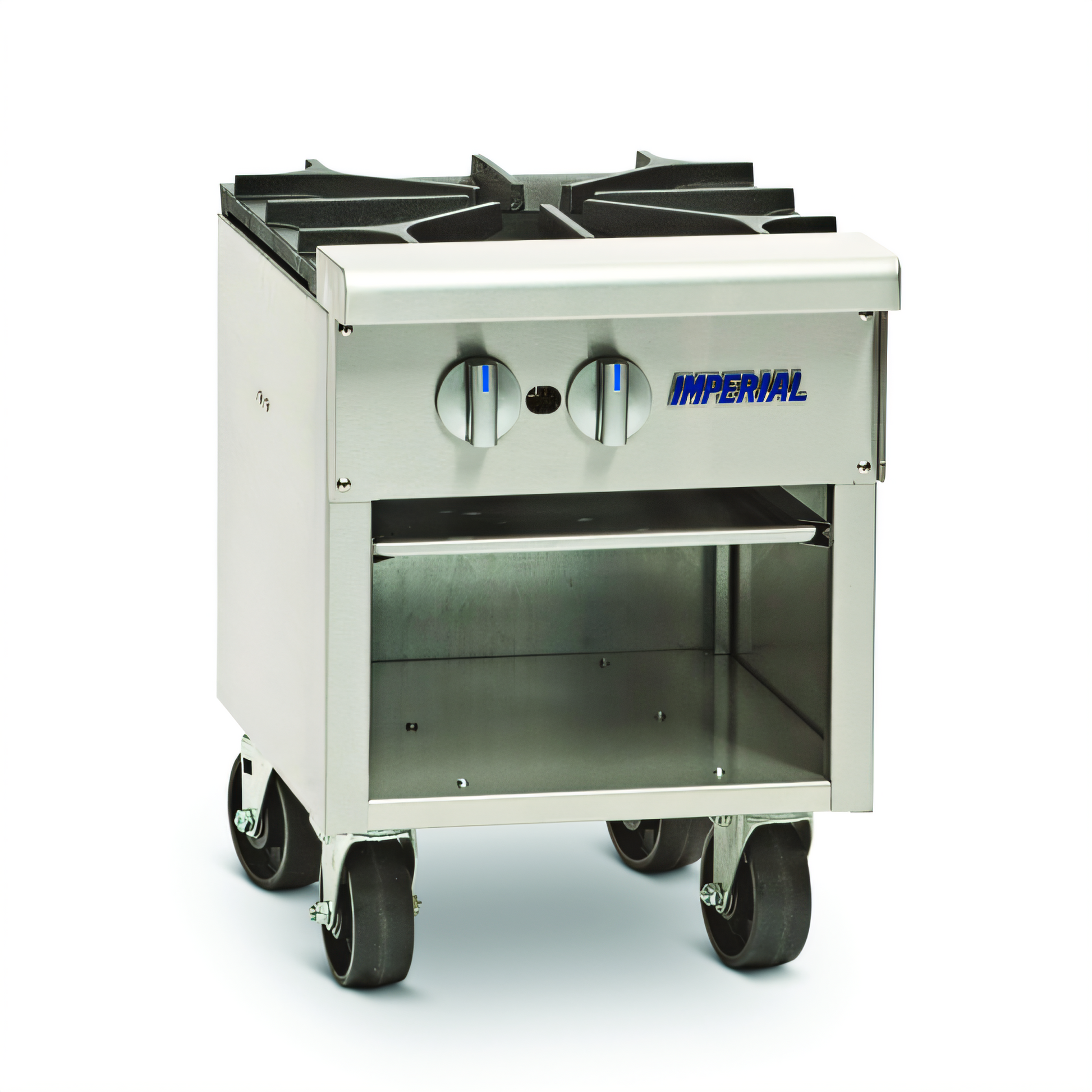

Built for high-volume kitchens that need big heat in a small footprint, the Imperial ISPA-18 delivers a powerful 90,000 BTU punch from a single, 3-ring cast-iron burner. Stainless steel construction, removable drip pan and an open front cabinet make it a rugged, easy-to-clean workhorse that’s ready to ship when you are.
Key Features & Benefits
-
90,000 BTU (26 kW) 3-ring burner handles everything from a slow simmer to rapid boiling.
- Two independent gas valves let you fine-tune the inner and outer rings separately for maximum control and fuel savings.
- Reinforced, removable cast-iron top grate with rolled front edge for easier loading of heavy stock pots.
-
Manual, restaurant-grade controls with continuous pilot for instant ignition.
- Full-width, slide-out stainless steel drip pan speeds daily cleanup.
-
Open front cabinet provides convenient storage for utensils, pans or cleaning supplies.
- Durable stainless steel front & sides with welded seams stand up to years of commercial abuse.
- 6" heavy-duty legs with adjustable feet for quick leveling on uneven floors.
- Certified to ETL-Sanitation & NSF standards for food-service safety.
-
One-year parts & labor warranty backed by Imperial’s nationwide service network.
Technical Specifications
| Model |
ISPA-18 |
| Overall Dimensions (W × D × H) |
18" × 21" × 24-3/4" (457 × 533 × 629 mm) |
| Number of Burners |
1 (3-ring cast iron) |
| Total Output |
90,000 BTU / 26 kW |
| Gas Type |
Natural or Propane (field convertible) |
| Manifold Pressure |
5" W.C. Natural • 10" W.C. LP |
| Gas Connection |
3/4" NPT (rear) |
| Shipping Weight |
125 lb / 57 kg |
| Clearances |
0" rear & sides (non-combustible) • 6" side (combustible) |
| Certifications |
ETL-Sanitation, NSF |
| Warranty |
1 year parts & labor |
