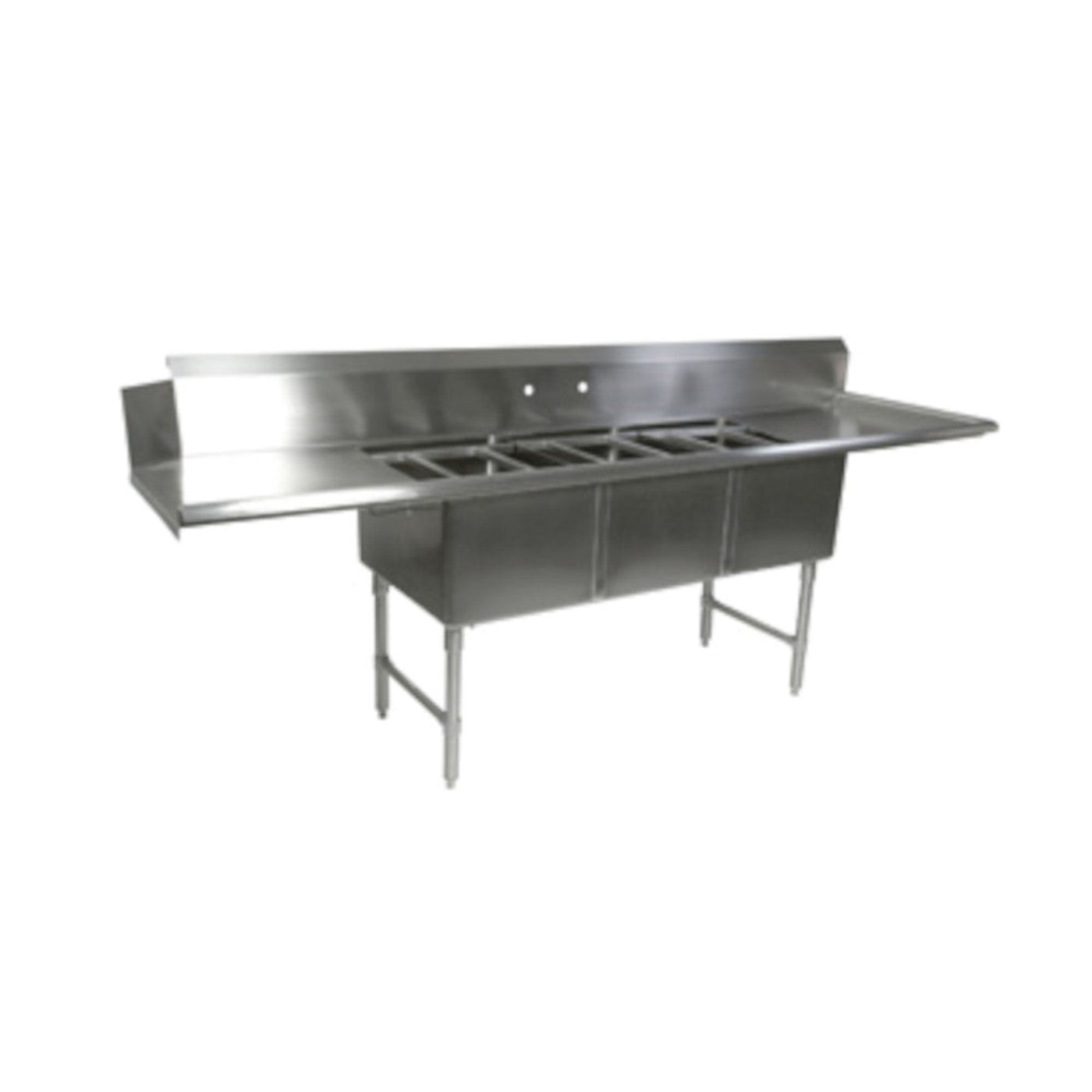

John Boos DT3B18244-2D24R 103.5"W x 30"D Dishtable/Pot Sink Two 24" Drainboards - JBDT3B182442D24R
This John Boos DT3B18244-2D24R Dishtable / Pot Sink is durable, easy to use, and perfect for commercial or industrial applications. With a 16 gauge stainless steel construction, it's top and bowls have been finished with a #4 satin polish. It has stainless steel legs, gussets, feet, and bracing. Its corners have been coved at a 3/4" radius. The sink tops are TIG welded and the bases are MIG welded. The exposed welds have been polished to match the adjacent surfaces. This DT3B18244-2D24R has a 3-1/2" diameter die stamped opening in the bottom of the bowls to aid drainage. While the backsplash does have 8" on-center with 1-1/8" faucet holes, this Dishtable / Pot Sink does not come with a faucet. (Faucet must be purchased separately).
FeaturesÂ
- (3) sink compartments
- (2) 24" drainboards
- Dish machine attachment on left side
- 16 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45 degree
- 1" turned down rear lip
- 8" on-center with 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed
- Bull-nosed corners provide safe, clean, and polished edge
- Standard stainless steel legs are 1-5/8" in diameter
- Legs located directly under sink bowls, providing increased stability and max weight support
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surface
- Stainless steel bases are MIG welded
- Material
- 16 gauge type 300 stainless steel bowls and top with #4 polish, satin finish
- 1-5/8" Round O.D. stainless steel legs
- 1-1/4" Round O.D. stainless steel bracing
- Stainless steel gussets
- 1" adjustable stainless steel bullet feet
Specifications
| Model |
DT3B18244-2D24R |
| Compartment Dimensions |
18" W × 24" (front-to-back) × 14" D |
| Overall Dimensions |
36" H × 103.5" W × 30" D |
| Approximate Weight |
420 lbs. |
What our Experts Think
-
Heavy‑Duty Construction: Built with commercial‑grade stainless steel for long‑lasting corrosion resistance and everyday reliability.
-
Efficient Workflow: Two roomy deep basins combined with dual 24" drainboards streamline washing, draining, and staging for high‑volume kitchen tasks.
-
Spacious Work Zone: The 103.5" W × 30" D footprint offers generous space for large pots, sheet pans, and stackable cookware.
-
Sanitation‑Focused Design: Splash‑containing backsplash and smooth surfaces make cleaning fast and support strict hygiene standards.
-
Stable & Adjustable: Sturdy legs with adjustable feet keep the unit level on uneven floors, ensuring a secure working station.
Q&A
Q: What are the dimensions of this dishtable?
A: Measures 103.5″ W x 30″ D with two 24″ drainboards for efficient dish handling.
Q: What material is it made from?
A: Constructed from commercial-grade stainless steel for durability, corrosion resistance, and easy cleaning.
Q: How many compartments does it have?
A: Features a three-compartment sink for washing, rinsing, and sanitizing dishes or pots.
Q: Are the drainboards included?
A: Yes, two 24″ drainboards provide ample space for drying and organizing dishes.
Q: Is it suitable for commercial kitchens?
A: Yes, designed for restaurants, cafeterias, and high-volume food prep areas.
Q: How is it installed?
A: Compatible with standard commercial kitchen plumbing for sinks and faucets.
Q: Is it easy to clean and maintain?
A: Yes, stainless steel surfaces allow for quick, sanitary cleaning.
Q: Does it improve workflow?
A: Yes, the straight dishtable design with drainboards streamlines dishwashing and increases kitchen efficiency.
Maintenance Tips
-
Clean daily: Wash sink bowls and drainboards with warm water and mild detergent; rinse thoroughly and wipe dry to prevent water spots and buildup.
-
Sanitize regularly: Apply a food‑safe sanitizer across all surfaces to maintain hygiene in high‑use environments.
-
Avoid harsh abrasives and chlorine cleaners: These can scratch and dull the stainless steel finish.
-
Polish periodically: Use a stainless steel cleaner to maintain shine and resist fingerprints and stains.
-
Keep drainboards clear: Remove debris so water drains freely and doesn’t pool.
-
Check drains and fittings: Ensure strainers, plumbing connections, and mounting hardware are secure and leak‑free.
