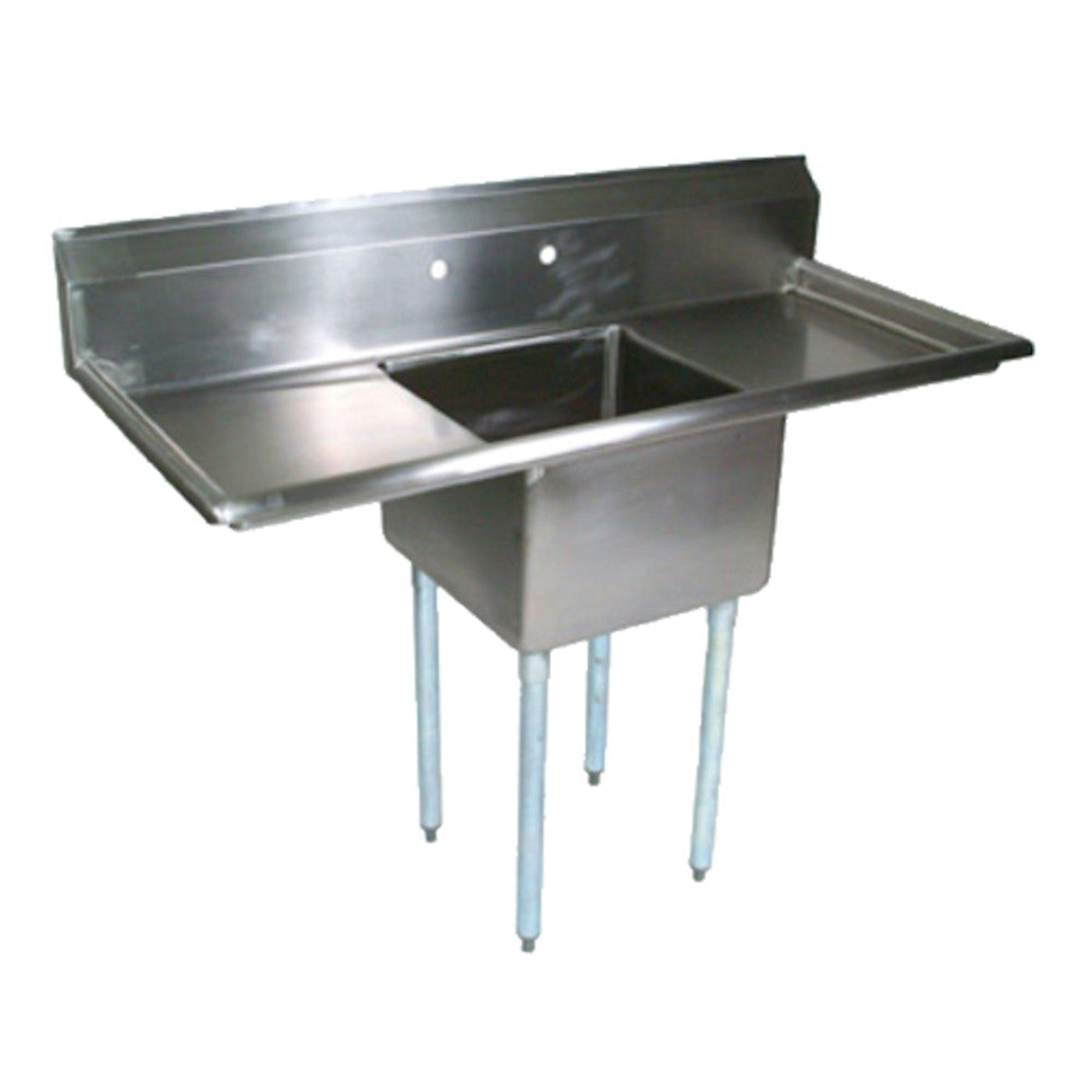

John Boos E1S8-24-14T24 One-Compart. E-Series Sink with Two 24" L&R Drainboards - JBE1S82414T24
This John Boos E1S8-24-14T24 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction with an 18 gauge type 300 stainless steel bowl and top. Both the bowl and top have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The adjustable bullet feet are made of plastic. This E1S8-24-14T24 E-Series Sink has a full length 10" high boxed backsplash. It has 1" faucet holes in the backsplash, but the faucet is not included. It does include a 24" right drainboard.
FeaturesÂ
- (1) sink compartment
- (2) 24" left and right drainboards
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degrees
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
- 1-5/8" Round O.D. galvanized steel legs
- Galvanized steel gussets
- 1" plastic bullet feet
Specifications
| Model |
E1S8-24-14T24 |
| Compartment Dimensions |
24" W × 24" (front-to-back) × 14" D |
| Overall Dimensions |
43.75" H × 66" W × 29.5" D |
| Approximate Weight |
71 lbs. |
What our Experts Think
-
Durable Stainless Steel: Built to withstand heavy commercial use and resist corrosion.
-
Single Sink with Dual Drainboards: Two 24" L&R drainboards provide ample space for washing, draining, and prep tasks.
-
Efficient Workflow: Integrated design streamlines cleaning and dish-handling operations.
-
Easy to Sanitize: Smooth surfaces and rounded edges simplify maintenance.
-
Expert-Recommended: Perfect for busy kitchens needing a versatile, high-capacity, and hygienic sink solution.
Q&A
Q: What is the John Boos E1S8-24-14T24?
A: It’s a one-compartment E-Series sink with two 24" left and right drainboards, designed for commercial kitchens.
Q: What material is it made from?
A: Heavy-duty stainless steel ensures durability, hygiene, and easy cleaning.
Q: How many compartments does it have?
A: One large compartment for washing, with dual drainboards for efficient drying.
Q: Is it suitable for commercial use?
A: Yes, ideal for restaurants, bars, and high-volume food service areas.
Q: How easy is maintenance?
A: Smooth stainless steel surfaces allow quick, hygienic cleaning.
Q: What are its dimensions?
A: Sink compartment measures 24" x 24" x 14", with 24" drainboards on each side.
Maintenance Tips
-
Clean daily with mild soap and warm water; avoid abrasive cleaners.
-
Wipe dry to maintain stainless steel finish and prevent water spots.
-
Inspect faucets, drains, and plumbing connections regularly for leaks.
-
Sanitize sink and drainboards with a food-safe disinfectant for hygiene.
-
Check mounting hardware and tighten as needed.
