John Boos Three-Compartment E-Series Sink, 18" Left Drainboard - JBE3S8162012L18

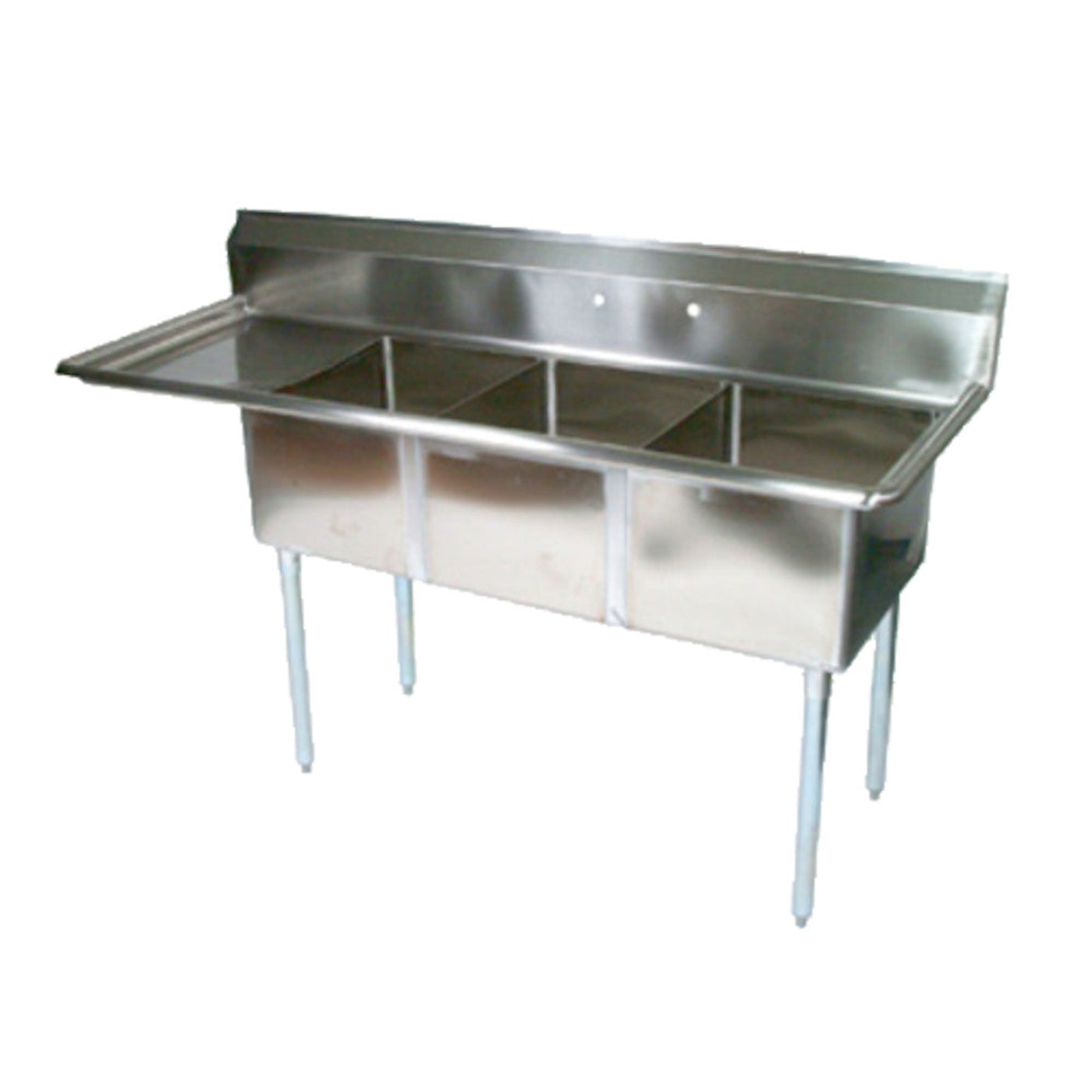

This John Boos E3S8-1620-12L18 is a three-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E3S8-1620-12L18 has galvanized steel gussets and legs. It comes with an 18" left drainboard.
Features
- (3) sink compartments
- (1) 18" left drainboard
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degree
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
- 1-5/8" Round O.D galvanized legs
- Galvanized steel gussets
- 1" plastic bullet feet
- NOTE: Faucet NOT included
- Model: E3S8-1620-12L18
- Compartment Dimensions: 16" W x 20" front-to-back x 12" deep
- Dimensions: 43.75" H x 68.5" W x 25.5" D
- Approximate Weight: 87 lbs.
What Our Experts Think
-
Three-compartment design streamlines washing, rinsing, and sanitizing.
-
18" left drainboard adds extra space for drying or staging.
-
Made with durable 18-gauge stainless steel for long-term use.
-
Deep 12" bowls accommodate large pots, pans, and kitchen tools.
-
Ideal for restaurants, catering kitchens, and foodservice operations.
Q&A
Q: What are the bowl dimensions?
A: Each compartment measures 16" W x 20" D x 12" H.
Q: Is this sink NSF certified?
A: Yes, it meets NSF standards for commercial foodservice.
Q: Does it come with faucets?
A: No, faucets and accessories are sold separately.
Maintenance Tips
-
Rinse thoroughly after each use to prevent residue buildup.
-
Clean with mild soap and warm water; avoid harsh chemicals.
-
Dry surfaces to prevent spotting and maintain shine.
-
Use stainless steel cleaner occasionally for a polished look.
-
Inspect drain connections regularly to avoid leaks.
