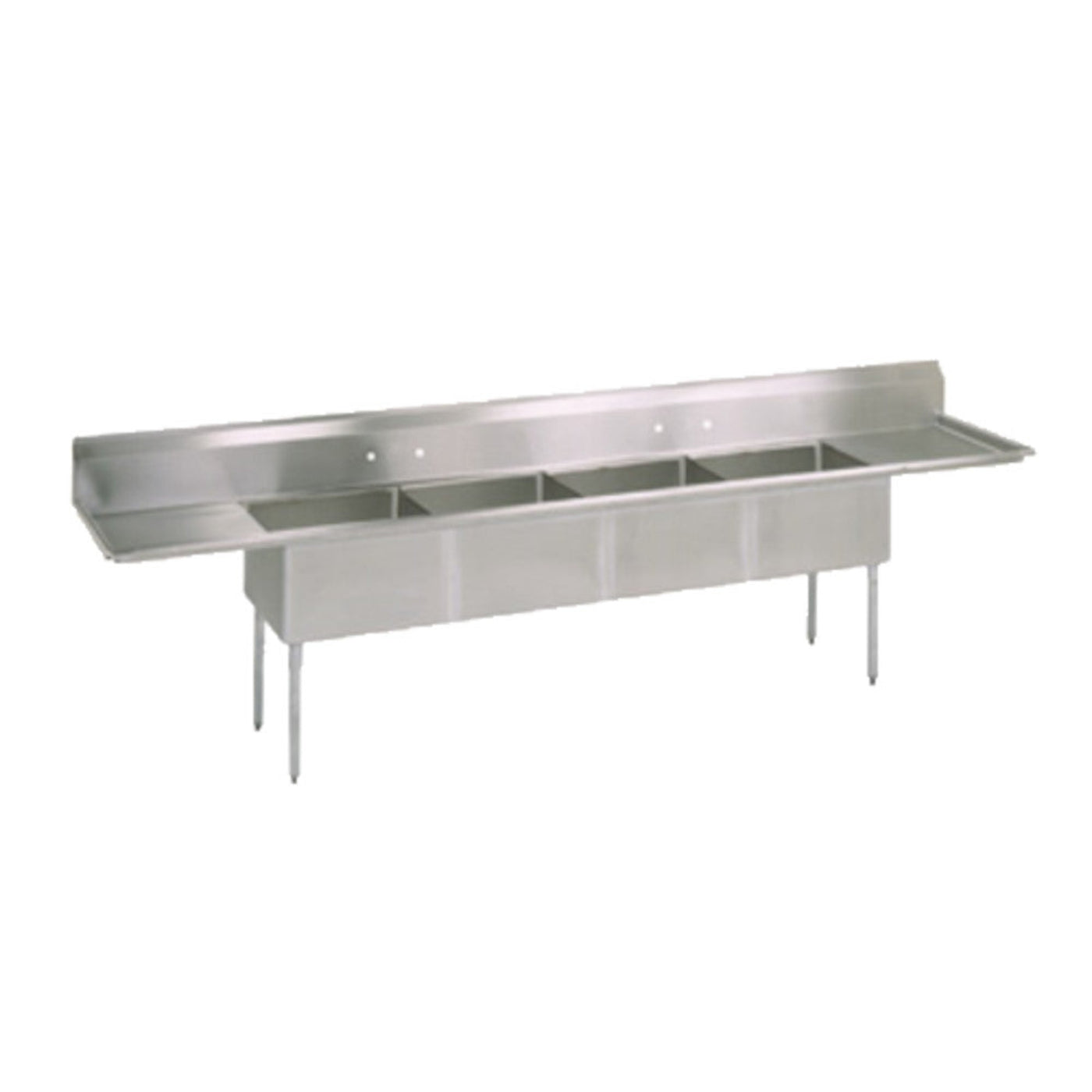

John Boos E4S8-1620-14T18 Four-Compartment E-Series Sink, Two 18" Drainboards - JBE4S8162014T18
This John Boos E4S8-1620-14T18 is a four-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E4S8-1620-14T18 has galvanized steel gussets and legs. It includes two 24" drainboards.
Features
- (4) sink compartments
- (2) 18" drainboards
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degree
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized steel legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
- 1-5/8" Round O.D galvanized legs
- Galvanized steel gussets
- 1" adjustable plastic bullet feet
- NOTE: Faucet NOT included
Specifications
- Model: E4S8-1620-14T18
- Compartment Dimensions: 16" W x 20" front-to-back x 14" deep
- Dimensions: 43.75" H x 100" W x 25.5" D
- Approximate Weight: 122 lbs.
- Certifications: NSF, CSA-Sanitation
What Our Experts Think
-
Four-compartment stainless steel sink ideal for commercial kitchens.
-
Two 18" drainboards provide ample space for drying and prep.
-
Heavy-duty E-Series design ensures durability and long-lasting performance.
-
Spacious compartments accommodate large pots, pans, and utensils.
-
Easy to clean and maintain, designed for high-volume kitchen use.
Q&A
Q: How many compartments does this sink have?
A: Four large compartments for efficient washing and rinsing.
Q: Are drainboards included?
A: Yes, two 18" drainboards are integrated for convenient drying space.
Q: Is it suitable for heavy-duty use?
A: Yes, built with commercial-grade stainless steel for frequent daily use.
Maintenance Tips
-
Clean sink and drainboards daily with a non-abrasive cleaner.
-
Rinse thoroughly to remove soap and food residue.
-
Inspect seams and joints periodically for leaks or damage.
-
Schedule professional plumbing checks annually to maintain optimal performance.
