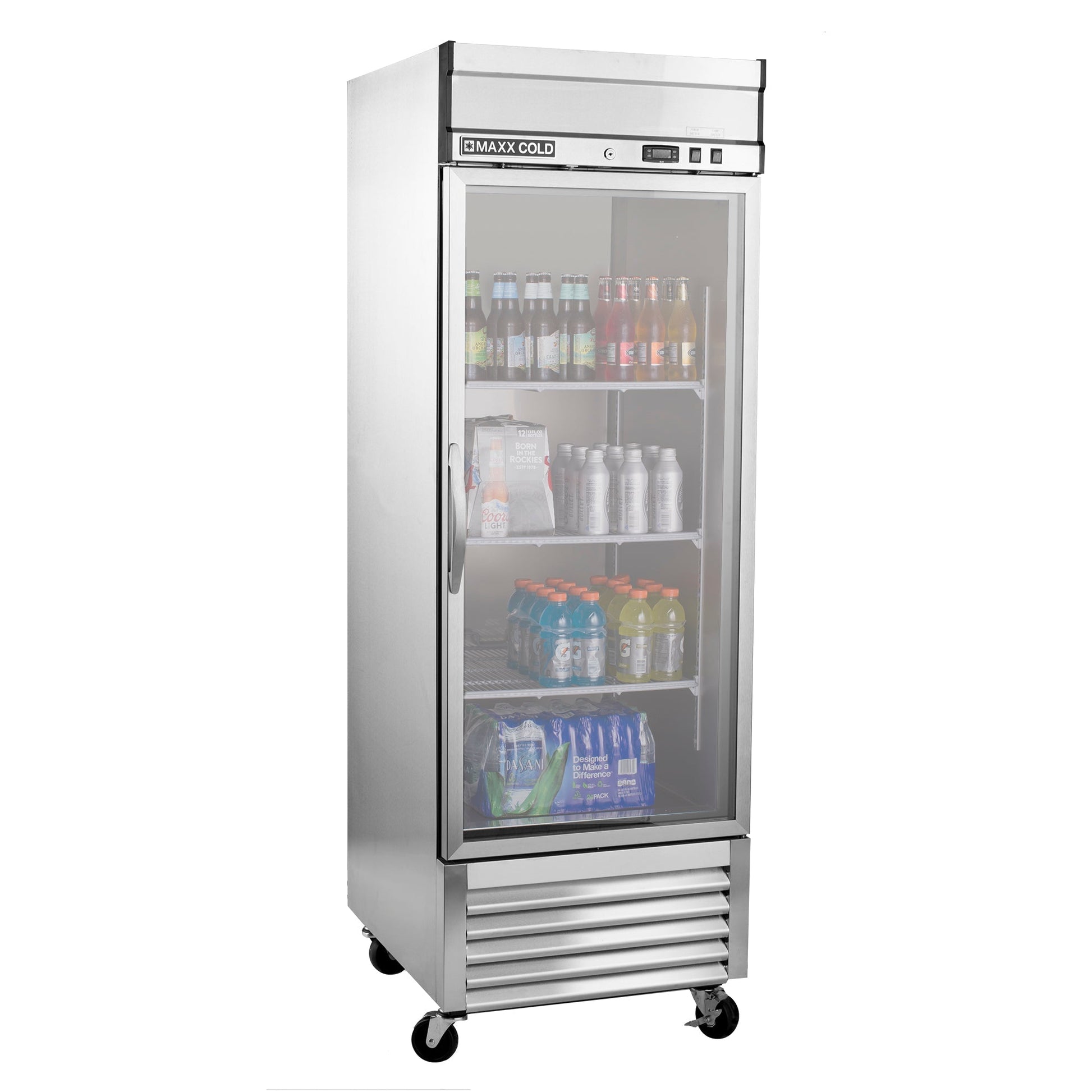

Maxx Cold Single Glass Door Reach-In Refrigerator, Bottom Mount, 27"W, 23 cu. ft. Storage Capacity, in Stainless Steel - MXSR-23GDHC
Maxx Cold reach-in refrigerators are constructed from stainless steel, engineered with digital controls and polyurethane insulation for optimal temperature control and easy maintenance. Available in 1 and 2 door configurations, each model features curved handles, door locks and PE coated wire shelving with storage space for full size sheet pans.
Features
- Stainless steel exterior and painted aluminum interior
- CFC-free polyurethane foam insulation
- 3 heavy-duty, adjustable, PE coated wire shelves per section
- Self-closing glass doors with locks
- 4â diameter swivel casters with (2) front brakes
- Utilizes environmentally friendly CFC-free R404A & R-134A refrigerant
- Automatic defrost system keeps the unit at peak operating condition
- Bottom mount compressor
- Automatic defrost system
- Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
- Net storage capacity of 19.3 Cubic Ft. (547 L)
- Gross storage capacity of 23 Cubic Ft. (651 L)
- Holding temperature 34°F to 40°F (2â°C to 5â°C)
- Available in 120/60Hz/1pH and International voltage options
Specifications
- Adjustable Shelves: Yes
- Adjustable Temperature Control: Yes
- Amperage: 2.6A
- Assembled Dimensions (LxWxH): 33.30" x 27" x 83.50"
- Assembled Weight (lb): 291.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 23 cu. ft.
- Caster Size: 2.75"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 60.30"
- Depth - Excluding Door: 27"
- Depth - Excluding Handles: 33"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Glass
- Door Material: Glass
- Door Swing Orientation: Right
- Electric: Yes
- Features: Maxx Cold Select Series Upright Refrigerator, reach-in, one-section, 23 cu. ft. storage capacity, (1) hinged glass door with lock, (3) wire shelves, digital temperature controls with LED display, automatic defrost, polyurethane foam insulation, stainless steel interior & exterior, (4) 4" casters (2 with brakes), R290a Hydrocarbon refrigerant, 3/8 HP cETLus, ETL-Sanitation
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Fresh Food Capacity: 23 cu. ft.
- Height - Excluding Top Hinge: 79.70"
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters, PE Coated Shelves
- Installation Type: Freestanding
- Integrated Lock: Yes
- Interior Depth: 26.80"
- Interior Width: 22.30"
- Interior Height: 55"
- Material: Stainless Steel
- Number of Doors: 1.0
- Number of Items: 1.0
- Number of Shelves: 3.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 27"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 299W
- Case Pack Dimensions: 40" x 40" x 88"
- Case Pack Weight: 368.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 200.0
What Our Experts Think
-
27" wide single glass door reach-in refrigerator designed for reliable cold storage in commercial kitchens
-
Provides 23 cu. ft. storage capacity, ideal for beverages, produce, or prepped items
-
Features a bottom-mount compressor for improved efficiency and easier maintenance access
-
Double-pane glass door allows clear visibility of stored items without opening, helping maintain temperature consistency
-
Built with durable stainless steel interior and exterior, offering long-lasting performance and easy cleaning
Q&A
Q: How much storage space does this refrigerator provide?
A: The MXSR-23GDHC offers 23 cu. ft. of refrigerated storage, making it a great fit for small to medium foodservice operations.
Q: What type of door does it have?
A: It features a single glass door with a double-pane design for visibility and insulation.
Q: Who is this best suited for?
A: Perfect for restaurants, cafes, convenience stores, and bars needing a reliable single-door reach-in with clear product visibility.
Maintenance Tips
-
Wipe down stainless steel surfaces daily with mild soap and water.
-
Clean the glass door regularly with a non-abrasive cleaner to maintain visibility.
-
Inspect and clean the door gasket weekly to ensure a proper seal.
-
Keep condenser coils free of dust and debrisâcheck monthly for best efficiency.
-
Avoid overloading shelves to maintain proper airflow and consistent cooling.
