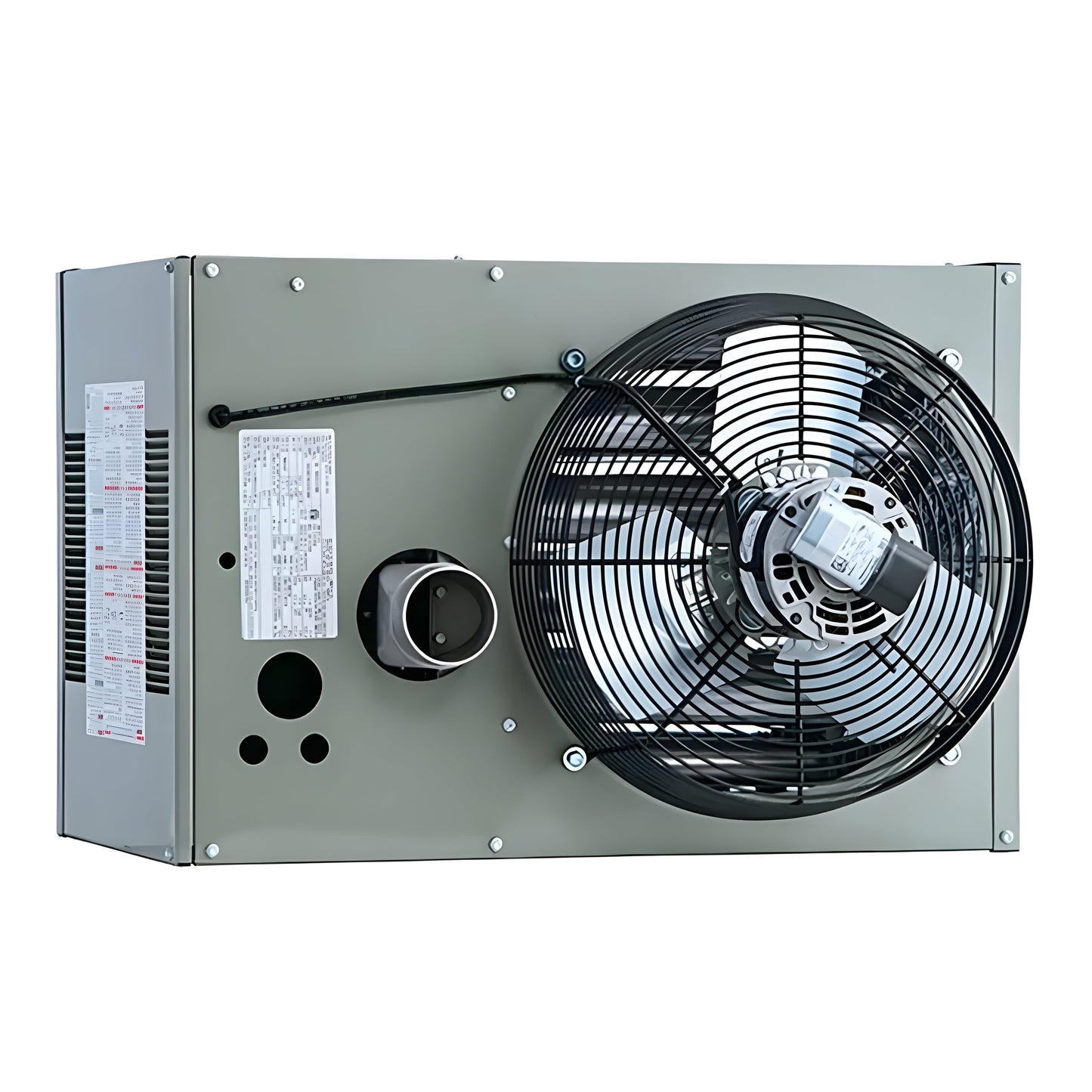

Modine Hot Dawg Garage Heater - 75K BTU/Direct Spark Ignition/LP/Single Stage w/Stainless Steel Heat Exchanger
Features
- Made in the USA
- Low profile, lightweight design easily installs 1” from ceiling with only two angle brackets (included)
- Field fuel conversion kits available
- Finger-proof fan guards on all units
- Reduce the need for maintenance with the permanently lubricated motor
- 100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn’t light on the first try
- Right or left hand controls available on 30-75 units by rotating unit 180 degrees
- Power vented model simplifies side-wall or roof venting with small-diameter vent pipe
- Draws combustion air from inside the workspace
- 3" vent connection
- Liquid Propane
- 75,000 BTU
- Direct spark ignition
- Single stage - on/off operation
- Stainless steel heat exchanger
Specifications
| Fuel Type |
Propane |
| Control Type |
Electronic/IPI |
| Color/Finish |
Gray |
| Size |
26.8"W x 19"T x 25"D |
What Our Experts Think
-
75,000 BTU Heating Capacity: Ideal for medium-sized garages, workshops, or commercial spaces, providing efficient and powerful heat.
-
Liquid Propane (LP) Fuel: Perfect for areas without natural gas availability, offering an effective and portable heating solution.
-
Direct Spark Ignition: Eliminates the need for a pilot light, providing more reliable and energy-efficient operation.
-
Single-Stage Operation: Easy to operate, delivering consistent heat without complex controls.
-
Stainless Steel Heat Exchanger: Built to last, with enhanced durability and resistance to rust, ensuring long-term reliability and performance.
Q&A
Q: What is the heating capacity of the Modine 75K BTU Hot Dawg Garage Heater?
A: This model provides 75,000 BTUs of heat, perfect for heating larger garages or workshops up to 1,500 sq. ft.
Q: What type of fuel does this heater use?
A: This version uses liquid propane (LP), ideal for locations with propane availability.
Q: How does the direct spark ignition system work?
A: The direct spark ignition system eliminates the need for a pilot light, providing a more energy-efficient and reliable ignition process.
Q: What materials are used in the construction of the heat exchanger?
A: This heater features a high-quality stainless steel heat exchanger, ensuring enhanced durability and corrosion resistance.
Q: Is this heater ideal for residential use?
A: Yes, the Modine 75K BTU heater is perfect for heating residential garages, workshops, or other medium to large spaces.
Q: Does this heater include a blower?
A: No, this model does not come with a blower, but it is designed for efficient, single-stage heating.
Q: Is the Modine Hot Dawg energy-efficient?
A: Yes, the direct spark ignition and stainless steel heat exchanger provide an efficient and durable heating experience while minimizing energy consumption.
Maintenance Tips
-
Check Gas Lines and Connections – Inspect the LP gas connections for any leaks, cracks, or wear. Tighten any loose fittings and replace damaged parts immediately to prevent gas leaks.
-
Clean the Stainless Steel Heat Exchanger – Regularly clean the heat exchanger to remove dirt and debris, ensuring optimal heat transfer and preventing overheating.
-
Inspect Burner Flames – Ensure that the burner flames are steady, blue, and even. Adjust the burner if the flames appear yellow or flickering to maintain efficient combustion.
-
Clear Venting System – Regularly check the venting system for blockages to prevent the buildup of dangerous gases. Ensure proper airflow for safe operation.
-
Test Direct Spark Ignition – Test the ignition system to ensure the heater starts reliably. If the ignition fails, clean or replace the components as necessary.
-
Replace or Clean Air Filters – Keep the air filters clean and replace them as needed to maintain proper airflow and prevent dust buildup in the system.
-
Monitor Thermostat Settings – Check that the thermostat is operating accurately and maintaining the desired temperature to avoid energy waste.
-
Annual Professional Inspection – Schedule a professional inspection annually to ensure the heater is working properly, safely, and efficiently.
