OakWorks 26 Inch EA Vascular Table with Fowler - OWK-84792-T01

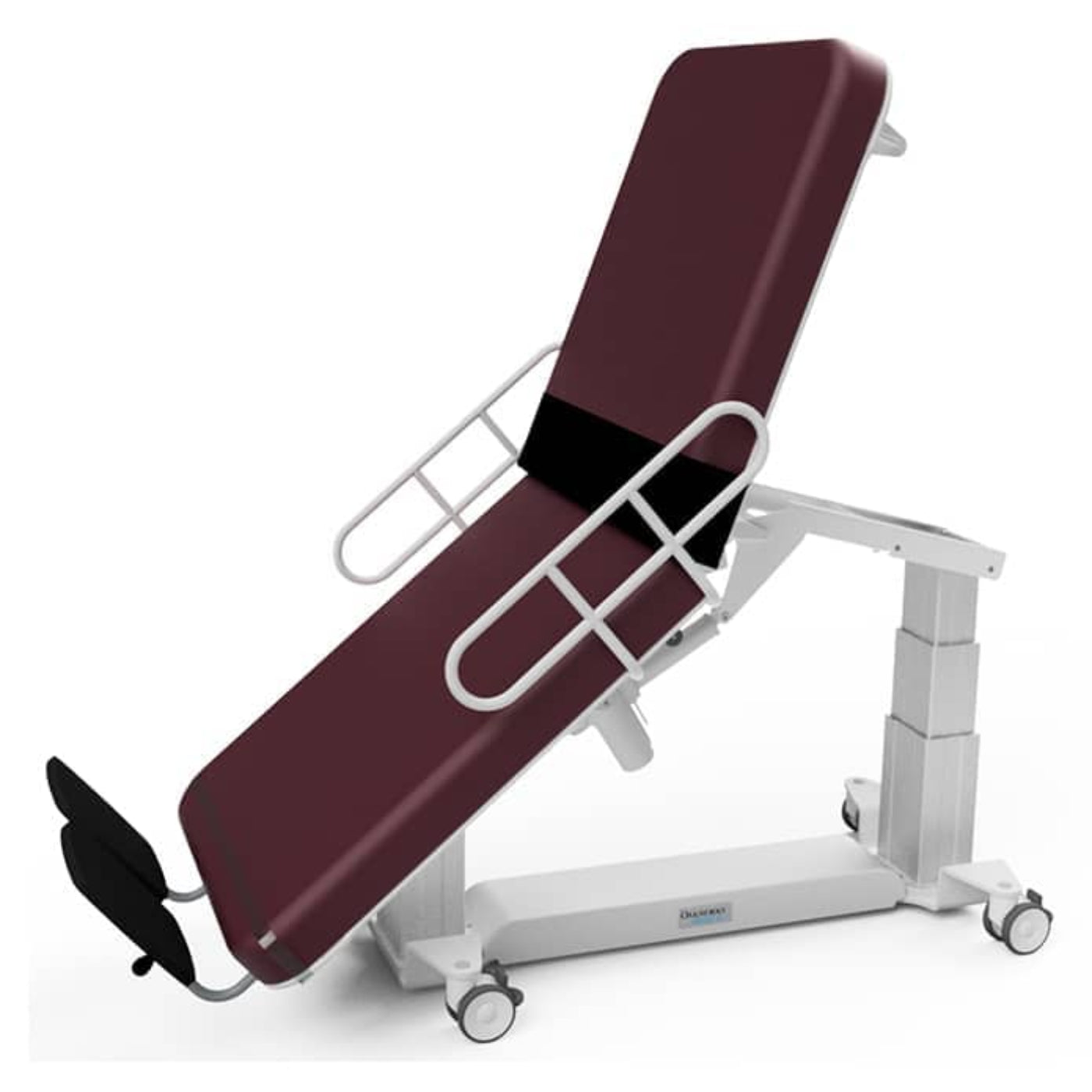

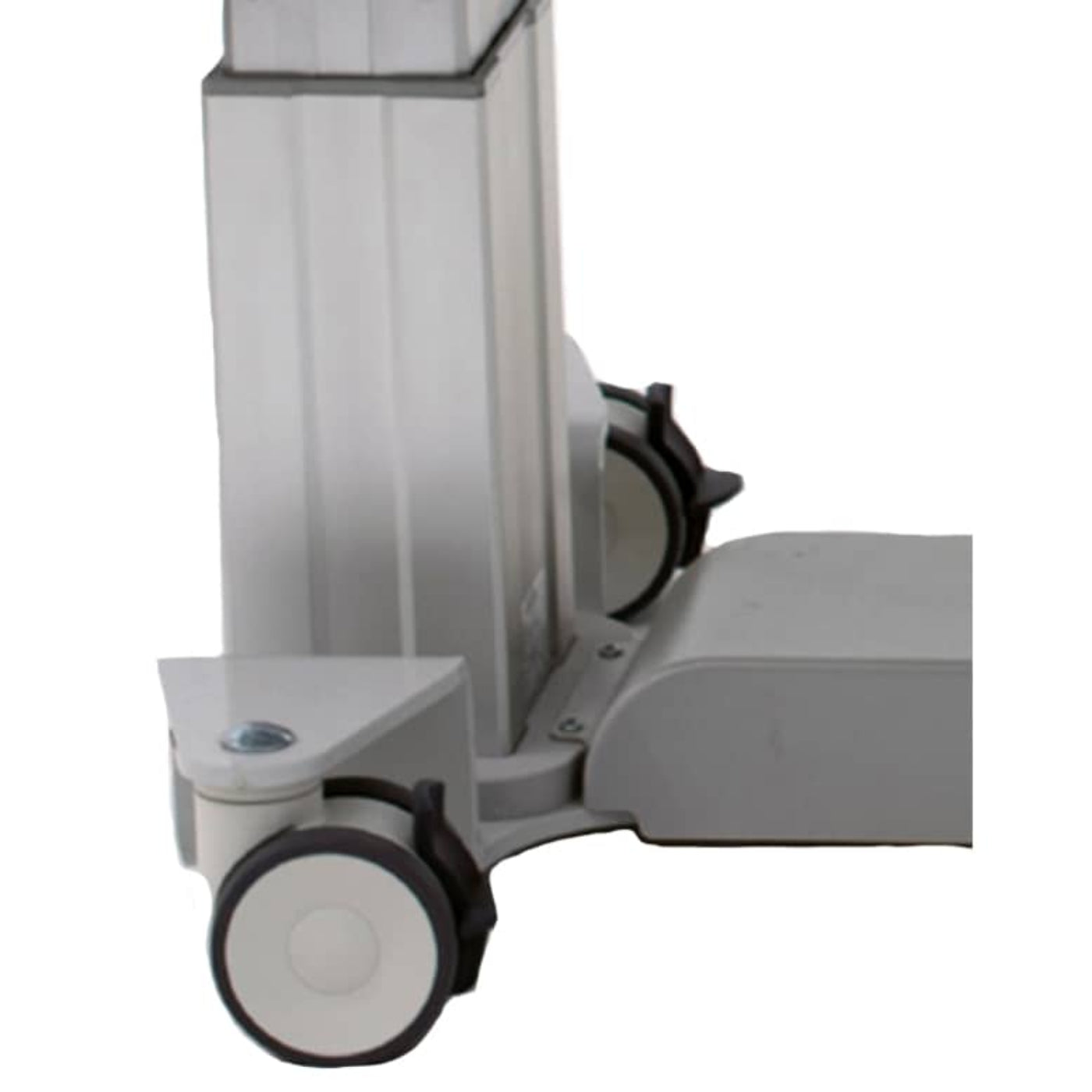

The OakWorks 26 Inch EA Vascular Table with Fowler (#84792) includes 4" (10 cm) locking casters, an integrated foot board (split, drop away), a paper roll holder, a patient safety strap, and two (2) side rails that measure 25" (64 cm) long x 6" (15 cm) tall (from the surface of the table).
OakWorks new, innovative Ergonomic Advantage line of tables boast a bevy of new powered features that speed up exam times and make positioning patients easier. Capable of up to 70° reverse Trendelenburg, the top-of-the-line 26 Inch EA Vascular Table with Fowler is designed for vascular ultrasound and recommended for venous reflux studies, all other vascular exams, abdominal & superficial structures exams, musculoskeletal exams, and biopsies.
Features
 Features
- Dual towers and electric fowler makes 70° reverse Trendelenburg possible.
- Allows you to safely position clients for venous reflux studies.
- Split foot board design allows you to conduct non-weight bearing exams.
- Foot boards also fold down out of the way for carotid artery exams.
- Specially designed by leading ergonomic specialists to exceed the "industry standards for sonography".
- Sleek base design promotes unobstructed compatibility with ultrasound equipment making for better ergonomic conditions for the sonographer.
Specifications
 Specifications
| 2 Section Top |
26" (66 cm) wide × 72" (183 cm) long |
| Backrest |
34" (86 cm) long |
| Seat |
38" (97 cm) long |
| Motion 1 |
Electric Height Range 19"–33" (48–83 cm) |
| Motion 2 |
Electric Trendelenburg/Reverse Tilt ± 18° |
| Motion 3 |
Electric Additional Reverse Trendelenburg 0–25° (40° total) |
| Motion 4 |
Electric 0–75° Backrest (at 40° max tilt, 70° functional) |

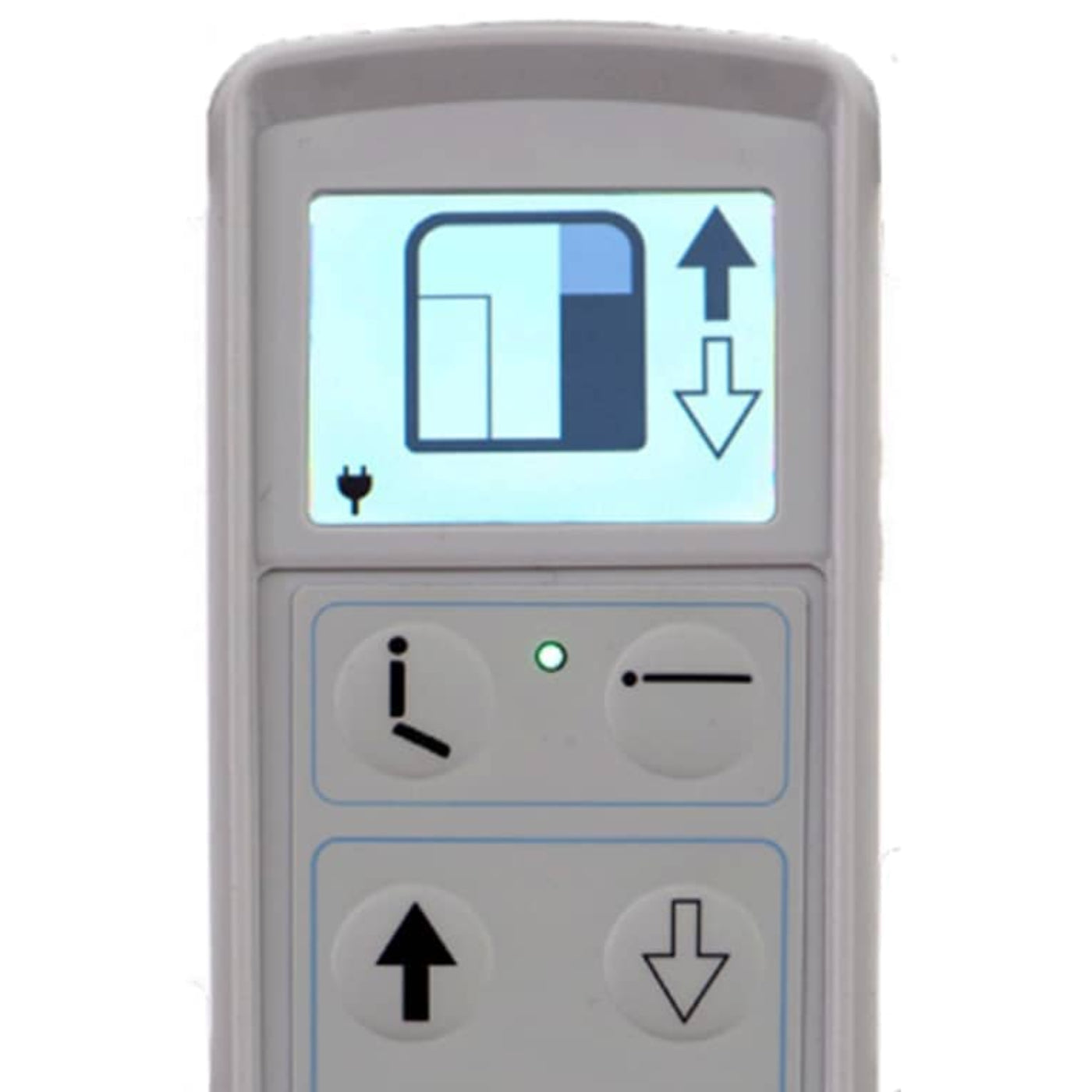

| Hand Control |
All powered motions |
| Weight Capacity |
550 lb (250 kg) |
| Product Weight |
359 lb (205 kg) |

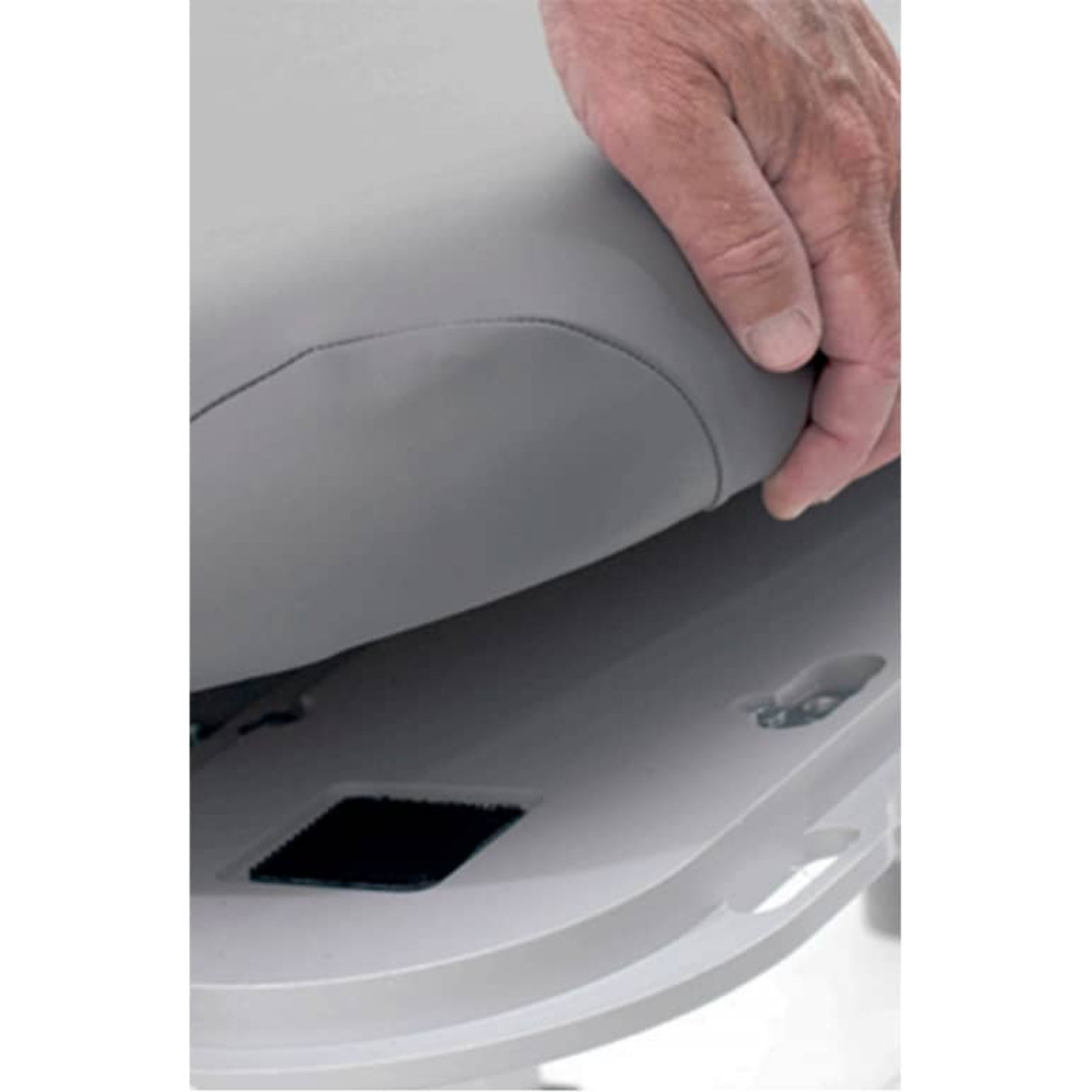

| Padding |
3" (8 cm) Comfort Foam |
| Fabric |
Premium, PVC-free TerraTouch |
| Safety Listings |
FDA listed, CE marked, cETLus listed, CB Certificate |
Â
Colors
Accessories
 Accessories
The OakWorks 26 Inch EA Vascular Table with Fowler is commonly purchased with the:
-
#62192: OakWorks Detachable Arm Board.
-
#83139: OakWorks T-Rail Adapter.
-
#63487: OakWorks Table Extender.
-
#PKG7554: OakWorks Medical Head Rest System (QuickLock and AeroCel).
Literature
Literature
OakWorks Medical Brochure
OakWorks White Paper Exam Table Eval 2010
OakWorks EA Vascular Table with Fowler Flyer
What our Experts Think
-
Exceptional value-entry: High-quality, portable massage table with professional-level build, ideal for students or therapists on a budget.
-
Portable yet strong: Weighs around 32–34 lb and supports up to 500 lb.
-
Comfortable padding: Features 3″ of multi-layer comfort foam for balanced support and softness.
-
Adjustable height: Legs extend from 24″ to 34″, offering flexibility for different bodywork styles.
-
Durable frame: IntegraHingeâ„¢ construction with single-knob leg extension system ensures strength and portability.
-
Quick setup and breakdown: UniLockâ„¢ closure system allows fast folding and storage.
-
Fully loaded package: Includes adjustable face-rest platform, Aero-celâ„¢ crescent cushion, arm hammock, and carry case.
-
Eco-friendly upholstery: TerraTouchâ„¢ PVC-free fabric provides comfort and sustainability.
-
Heavy-duty support: Reinforced legs and aircraft-quality cable system ensure stability and safety.
Q&A
Q: What is the OakWorks ONE Table Package (OWK‑PKG8179‑T01)?
A: A complete portable massage table package including the ONE table, adjustable face rest, and arm hammock.
Q: What frame and build features make it strong?
A: IntegraHingeâ„¢ for strength, UniLockâ„¢ closure system, and single-knob leg extension for stability and easy setup.
Q: What accessories are included?
A: Adjustable face rest with Aero-Celâ„¢ crescent pad, arm hammock, and carry case.
Q: Who is this table package ideal for?
A: Students, mobile massage therapists, or home use; perfect for those needing a lightweight yet durable table supporting up to 500 lb.
Maintenance Tips
-
Clean surfaces regularly: Wipe tabletops, frames, and accessories with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect joints and hardware: Check screws, bolts, and hinges for tightness; tighten or replace as needed to maintain stability.
-
Lubricate moving parts: Apply light lubricant to hinges, pivots, and adjustable mechanisms for smooth operation.
-
Check leveling and stability: Ensure all tables and attachments are properly leveled and secure before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to ensure hygiene and comfort.
-
Store properly: Keep tables in a dry, covered area when not in use to prevent corrosion and extend lifespan.
-
Follow weight guidelines: Avoid overloading any table component to prevent damage and ensure safe use.
