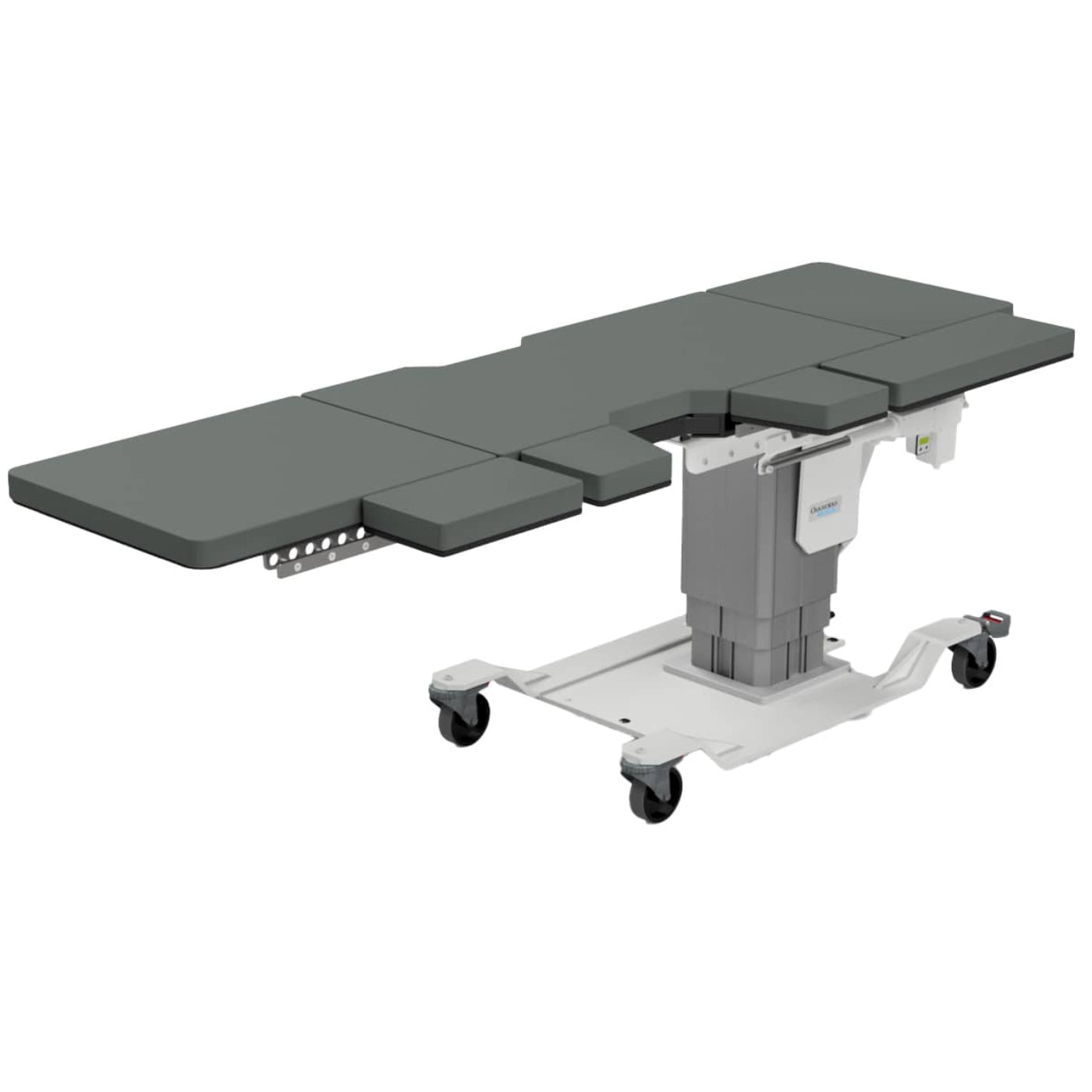

OakWorks CFLU401 Lithotripsy/Urology Table - OWK-82014
The OakWorks CFLU401 Lithotripsy/Urology Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 5 inch (13 cm) locking casters, two patient restraint straps (2), a Digital angle gauge, industry standard full length T-rails on each side, an Urology bag hoop (bag not included), and six table extensions (6).
The CFLU401 table sports a unique design with moveable panels that permit left or right side lithotripsy procedures while offering large support surfaces where needed. The panels are attached to t-rails which allows for flexible positioning along the length of the table. It is easily converted for urology.
Features
 Features
- Slow speed longitudinal and lateral movement for easier targeting.
- Designed to work with most portable lithotripters and C-Arms.
- Left and right Lithotripter access.
- Rugged design perfect for mobile or stationary use.
- 500 lb pateint weight rating.
Specifications
Specifications
| Carbon Fiber Top |
53" (135 cm) metal-free imaging space with Patient Transfer Extension |
| Top Dimensions |
23" (58 cm) wide × 47" (119 cm) long |
| Motion 1 |
Electric Height Range 27"–45" (69–114 cm) |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Motion 3 |
Electric Longitudinal Travel 10" (25 cm) |
| Motion 4 |
Electric Lateral Travel ±4" (10 cm) |
| Controls |
Multi-function hand control and foot control |
| Weight Capacity |
500 lb (227 kg); Each Extension – 200 lb (91 kg) |
| Product Weight |
618 lb (280 kg) |
| Radiolucent Lateral Extensions |
(1) 8" × 24" (20 × 60 cm), (1) 8" × 14" (20 × 36 cm), (2) 8" × 11" (20 × 28 cm) |
| Radiolucent Patient Transfer Extensions |
(1) End Extension 23" × 28" (58 × 71 cm), (1) Short End Extension 23" × 16" (58 × 40 cm) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#82014: Standard - 4 Motion with Carbon Fiber Top, 2" Pad, Hand Control, and Foot Control.
-
#82014-75078: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFLU401 Lithotripsy/Urology Table is commonly purchased with the following:
-
#69389: OakWorks CFLU Table Protective Drape.
-
#8194: OakWorks Special Platinum Stirrup Package.
Literature
OakWorks CFLU401 Lithotripsy/Urology Table Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks Lithotripsy/Urology Table Drape Instructions
OakWorks CFLU401 Lithotripsy Brochure
What our Experts Think
-
Ultra-high capacity: Supports up to 750 lb, making it suitable for bariatric patients.
-
Large, radiolucent top: 24″ × 80″ carbon-fiber surface with 52.5″ of metal-free imaging space for C-arm and fluoroscopic procedures.
-
Versatile positioning: Three powered motions — height (26″–44″), Trendelenburg tilt (+15° / –11°), and 10″ longitudinal travel — allow precise patient alignment.
-
Comfortable and clinical: Includes a 2″ radiolucent Comfort Foam® pad and two patient restraint straps.
-
Mobile and stable: 5″ locking casters provide portability and secure positioning during procedures.
-
Durable and safe: Rigid lifting column ensures stability; meets FDA, CE, and cETLus safety standards.
-
Long-term support: Backed by a 4-year parts and 3-year labor warranty.
-
Control flexibility: Multi-function hand control with optional foot control for hands-free operation.
Q&A
Q: What is the OakWorks CFPMB301 Imaging Table (OWK‑81812)?
A: A heavy-duty, 3‑motion C‑arm-compatible pain management and imaging table, designed for interventional procedures and high patient loads.
Q: What are its tabletop dimensions and material?
A: 24″ wide × 80″ long carbon-fiber top, offering 52.5″ of metal-free imaging space.
Q: What is the patient weight capacity?
A: Rated for up to 750 lb (340 kg).
Q: How much does the table weigh?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery does it use?
A: 2″ radiolucent Comfort Foam with TerraTouch™ medical-grade PVC-free upholstery.
Q: How is it controlled?
A: Multi-function hand control for all three motions.
Q: Does it include casters and safety features?
A: Yes — 5″ locking casters and two patient safety straps.
Q: What certifications does it have?
A: FDA-listed, CE marked, cETLus approved, and CB certified.
Q: Who is this table ideal for?
A: Interventional radiology, pain-management clinics, and C‑arm procedure rooms needing a high-capacity, stable, and radiolucent table.
Maintenance Tips
-
Clean surfaces regularly: Wipe tabletop, frame, and imaging components with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect mechanical and imaging components: Check hinges, joints, slides, and attachments for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and adjustable mechanisms for smooth operation.
-
Check stability and leveling: Ensure the table is level, secure, and properly aligned before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to maintain safe and reliable operation.
