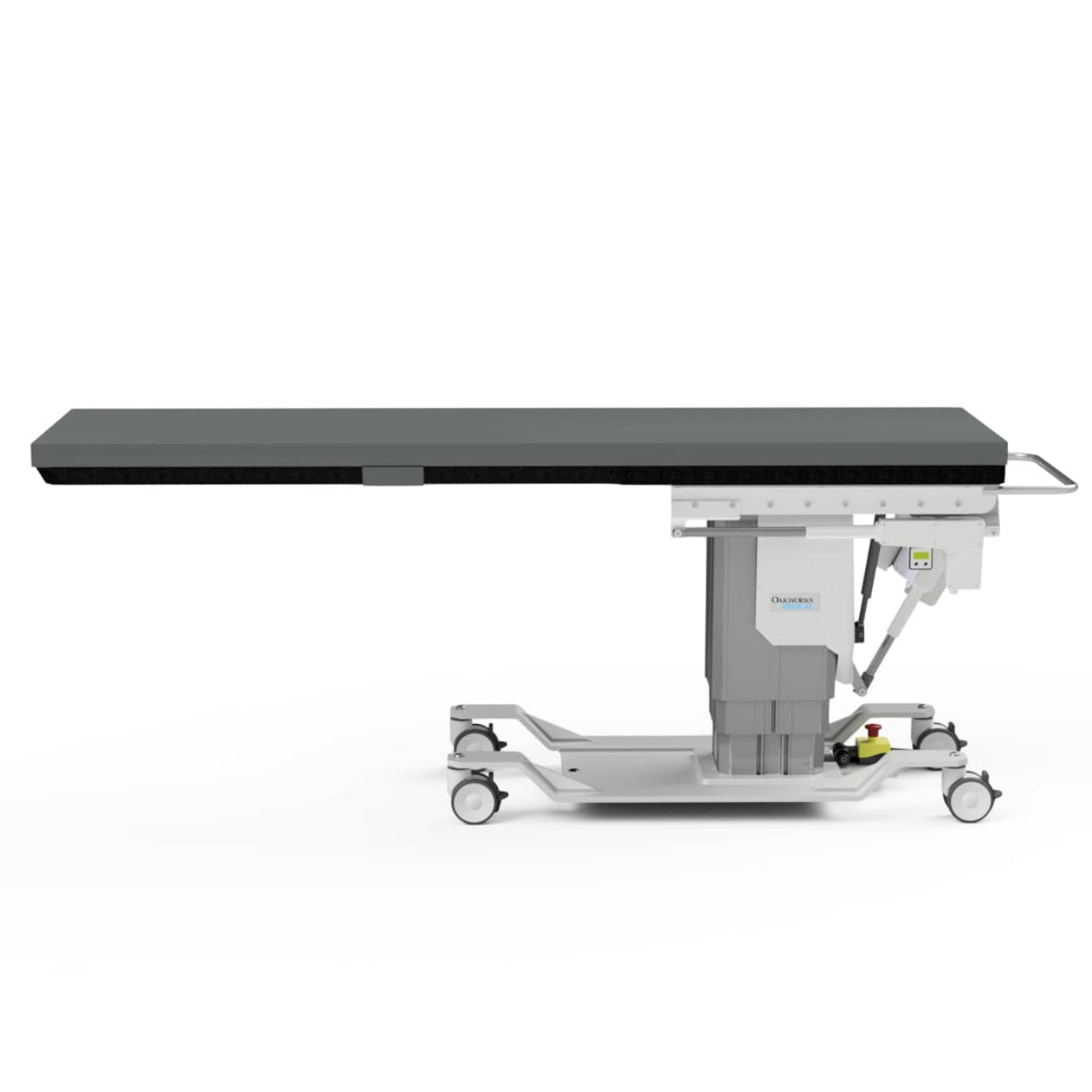

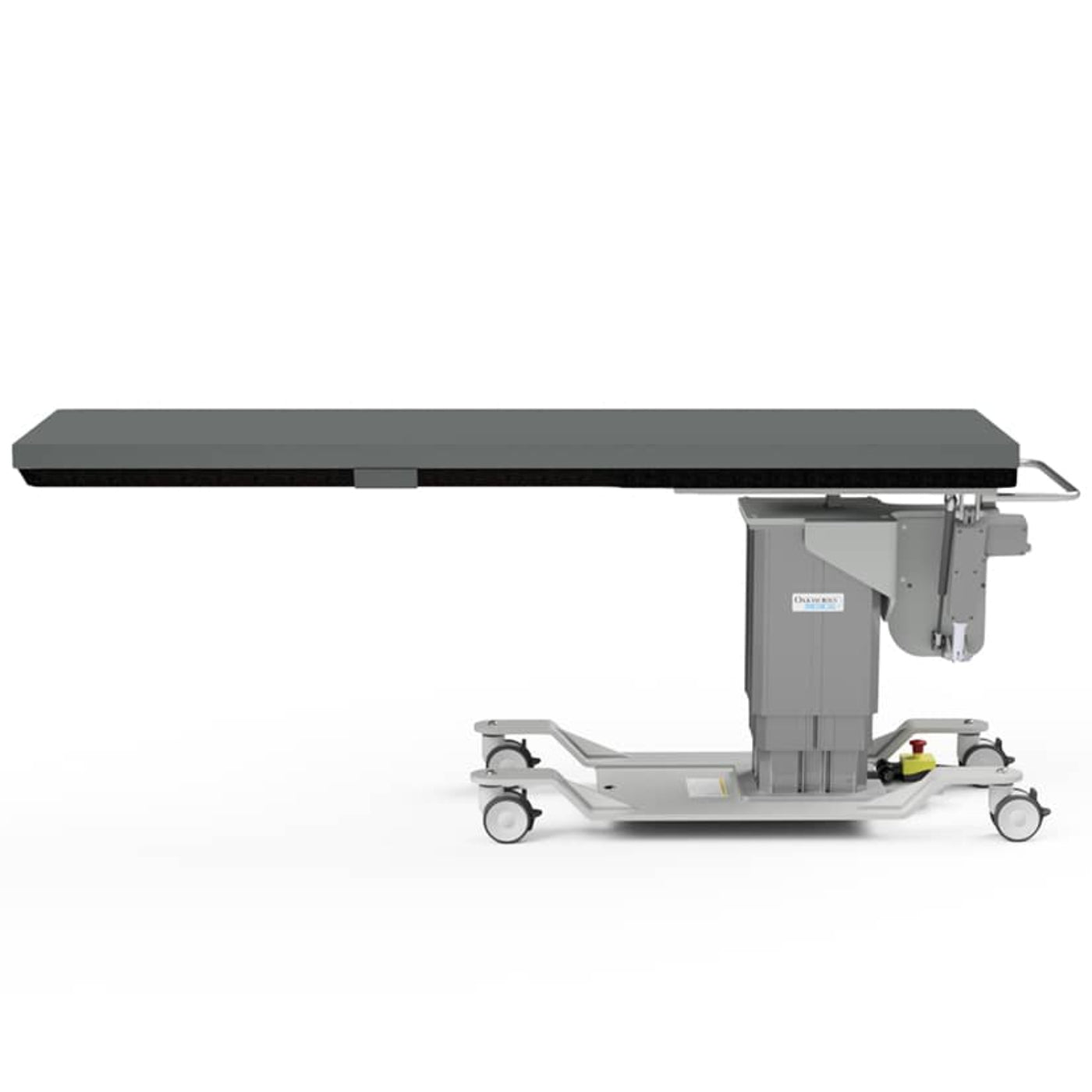

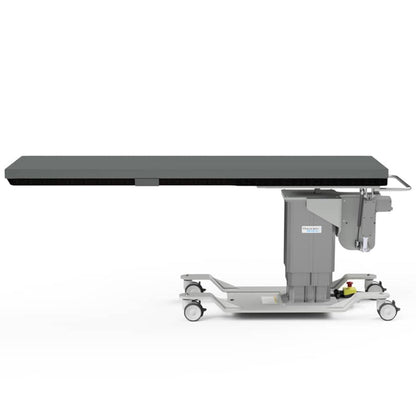

OakWorks CFPM200-Rectangular Top Imaging-Pain Management Table - OWK-84524
The OakWorks CFPM200-Rectangular Top Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, and two patient straps (2).
The CFPM200 table with Rectangular Top boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Rectangular top.
- Large height range table 25 "- 43".
- 52" (133 cm) of metal free imaging space.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" × 84" (56 × 214 cm) |
| Motion 1 |
Electric Height Range 25"–43" (64–109 cm) without pad |
| Motion 2 |
Electric Lateral Tilt ±15° |
| Controls |
All functions hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
 Configurations
-
#84524: Standard - 2-Motion with Rectangular Top, 2" Pad, and Hand Control.
-
#84524-65427: with 5" Fallshaw Casters.
-
#84524-84502: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM200-Rectangular Top Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM200/201 Flyer
What our Experts Think
-
Versatile height adjustment: Electric lift from 25″ to 43″ allows safe patient transfers and ergonomic working height.
-
Imaging-ready surface: 24″ × 80″ carbon-fiber top with 52″ of metal-free imaging space, ideal for C-arm or fluoroscopy procedures.
-
Two-axis motion: Powered lateral tilt (±15°) enables precise patient positioning.
-
Strong load support: Rated for up to 500 lb (227 kg) distributed weight.
-
Comfortable padding: 2″ Radiolucent Comfort Foam® balances cushioning with imaging performance.
-
Secure mobility: Locking 4″ casters and patient restraint straps provide stability during procedures.
-
Easy control: Hand control allows smooth adjustment of all motions.
-
Safety & compliance: CE-marked, cETLus-approved, and FDA-listed.
Q&A
Q: What is the OakWorks OWK‑84524?
A: A powered imaging and pain-management table with a rectangular carbon-fiber top, designed for C-arm procedures.
Q: What motions does it support?
A: Electric height adjustment (25″–43″) and electric lateral tilt (±15°).
Q: What are the tabletop dimensions and material?
A: 22″ wide × 84″ long carbon-fiber rectangular top.
Q: How much imaging space is metal-free?
A: 52″ of metal-free space for C-arm access.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: What padding and upholstery are used?
A: 2″ radiolucent Comfort Foam with medical-grade, PVC-free fabric.
Q: What mobility features are included?
A: 4″ locking casters with optional 5″ upgrade.
Q: What safety and control features are included?
A: Hand control for all functions, two patient restraint straps, and a crescent face rest pad.
Q: What safety certifications does it have?
A: FDA listed, CE marked, cETLus approved, CB certified.
Maintenance Tips
-
Unplug the table before cleaning to prevent electrical hazards.
-
Clean visible soil weekly using mild soap or an approved cleaner, working top → bottom.
-
Rinse thoroughly with clean water and dry before disinfecting.
-
Disinfect only with manufacturer-approved solutions; avoid hydrogen peroxide, phenolics, and acetic acid.
-
Keep the table flat during cleaning; ensure disinfectant stays wet for the full contact time but do not let liquid pool.
-
Wipe away excess disinfectant and rinse after the recommended contact time.
-
Dry all surfaces thoroughly after cleaning and disinfection.
-
Inspect power cord, hand-control cables, and exposed wiring regularly for wear or damage.
-
Check and tighten all fasteners (screws, bolts) periodically to maintain structural integrity.
-
Test all powered motions (height, tilt) regularly for smooth operation; listen for binding or unusual noise.
-
Avoid exposing upholstery to extreme temperatures (<32°F or >95°F) or direct sunlight.
-
Use fitted sheets, fluid-proof covers, or barriers to protect the pad during use.
-
Maintain a log of cleaning, inspections, disinfection, and any maintenance or repairs to support longevity and warranty.
