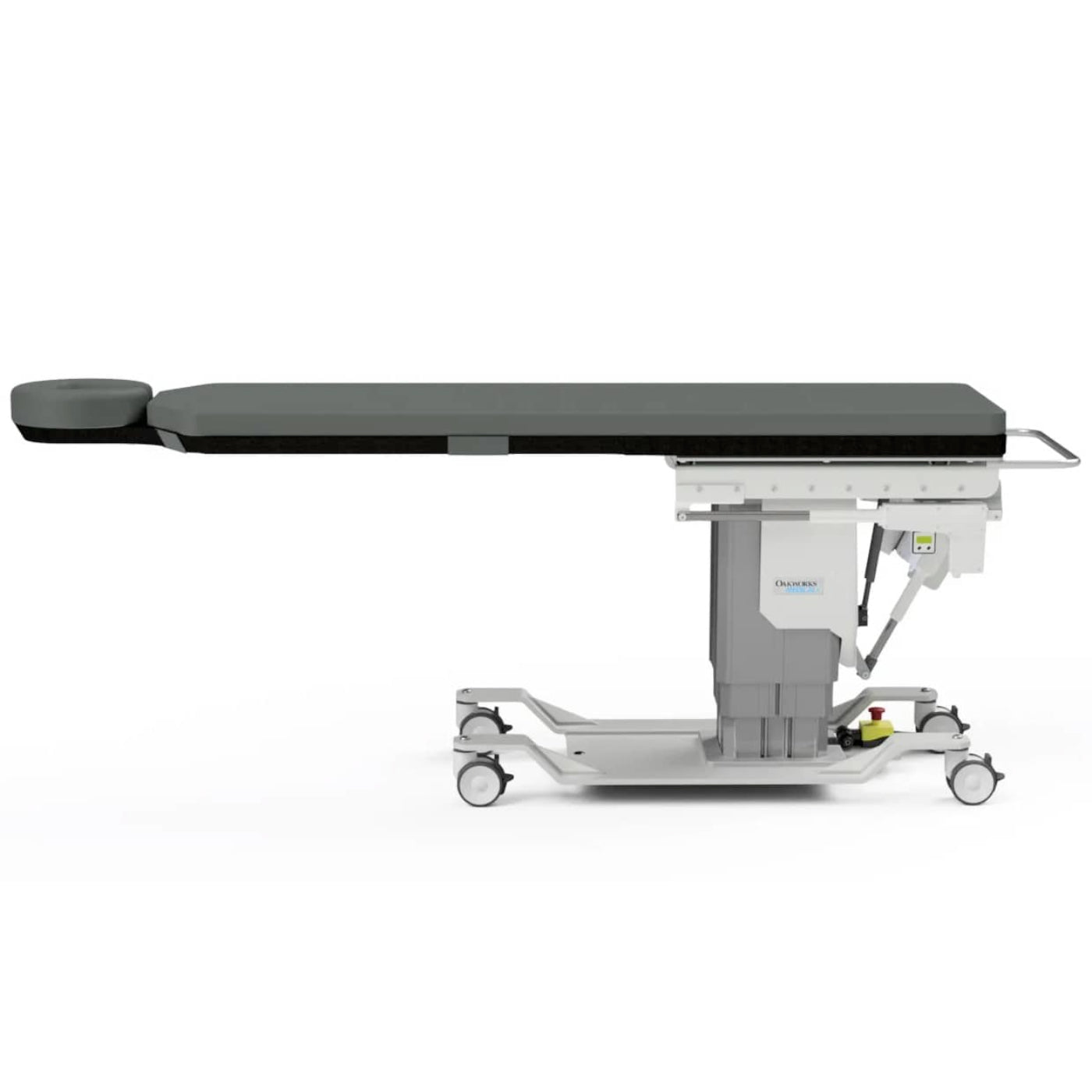

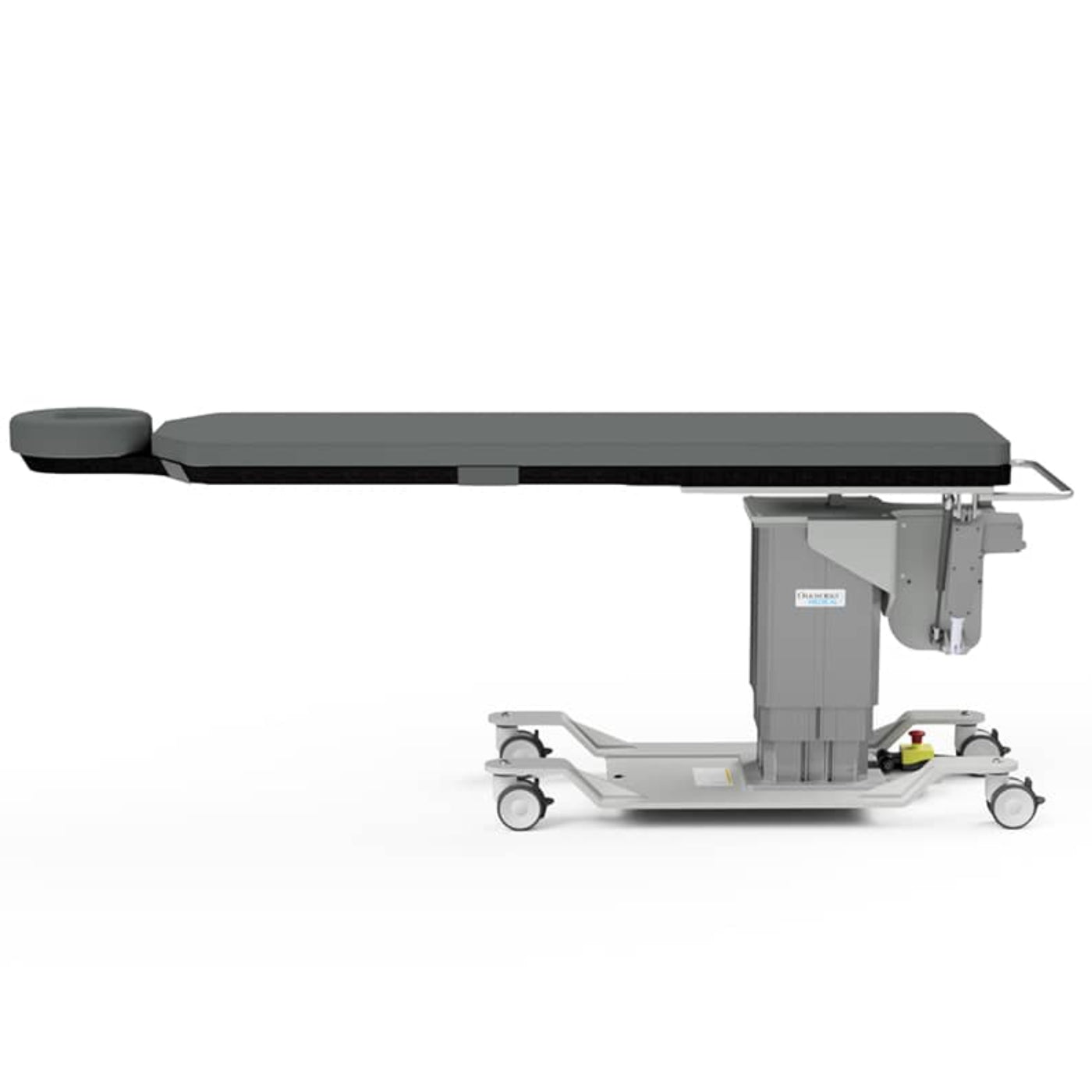

OakWorks CFPM201-Integrated Headrest Imaging-Pain Management Table - OWK-84526
The OakWorks CFPM201-Integrated Headrest Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, a Crescent face rest pad (included with integrated headrest top), and two patient straps (2).
The CFPM201 table with Integrated Headrest boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Integrated head rest.
- Large height range table 25" - 42".
- 56" (133 cm) of metal free imaging space.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" × 84" (56 × 214 cm) |
| Motion 1 |
Electric Height Range 25"–42" (64–107 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Controls |
All functions hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#84526: Standard - 2-Motion with Integrated Headrest Top, 2" Pad, and Hand Control.
-
#84526-65427: with 5" Fallshaw Casters.
-
#84526-84503: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM201-Integrated Headrest Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM200/201 Flyer
What our Experts Think
-
Excellent imaging coverage: Carbon-fiber top (22″ × 84″) provides ~56″ of metal-free space, ideal for C-arm or fluoroscopy.
-
Wide adjustability: Electric lift from 25″ to 42″ allows safe patient transfers and optimal clinician ergonomics.
-
Precise tilt control: Trendelenburg tilt +15° / –11° for targeted positioning.
-
Solid patient support: Rated for up to 500 lb, ensuring stability and durability.
-
Comfort + radiolucency: 2″ radiolucent Comfort Foam® pad balances comfort with imaging clarity.
-
Integrated headrest: Built-in crescent face pad eliminates need for additional accessories.
-
Reliable control: Hand-held controller simplifies adjustments; easy and safe operation.
-
Easy mobility: Locking 4″ casters secure table during procedures while allowing repositioning.
-
Clinical-grade build: PVC-free TerraTouchâ„¢ upholstery; meets FDA, CE, and cETLus standards.
Q&A
Q: What is the OakWorks CFPM201 Integrated Headrest Imaging / Pain‑Management Table (OWK‑84526)?
A: A 2‑motion C‑arm–compatible pain‑management table with an integrated carbon-fiber headrest, designed for imaging-guided procedures.
Q: What is the tabletop size, material, and imaging area?
A: Carbon-fiber top, 22″ wide × 84″ long, with 56″ of metal-free imaging space.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: How heavy is the table itself?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery are used?
A: 2″ Radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free upholstery.
Q: How do you control its movements?
A: Multi-function hand control.
Q: What mobility and safety features are included?
A: Locking casters, two patient safety straps, and a crescent face rest integrated into the headrest.
Q: What warranty and certifications does it have?
A: 4-year parts, 3-year labor; FDA-listed, CE marked, cETLus, and CB certified.
Q: Who is this table ideal for?
A: Pain-management clinics, interventional radiology suites, and C‑arm procedure rooms needing a stable, radiolucent table with ergonomic positioning.
Maintenance Tips
-
Clean surfaces regularly: Wipe tabletop, headrest, and frame with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect mechanical and imaging components: Check hinges, joints, slides, and attachments for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and adjustable mechanisms for smooth operation.
-
Check stability and leveling: Ensure the table and headrest are level, secure, and properly aligned before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and patient comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to maintain safe and reliable operation.
