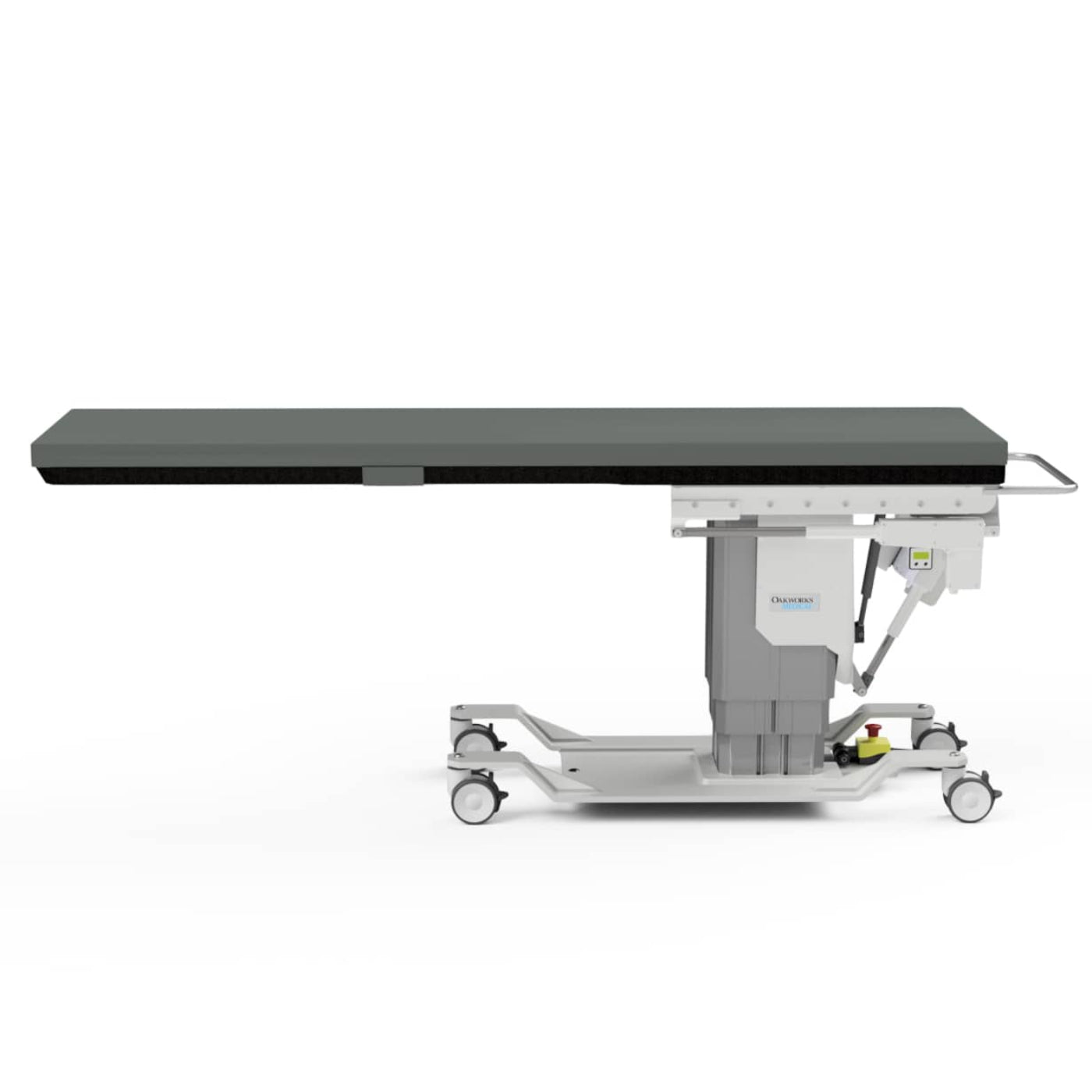

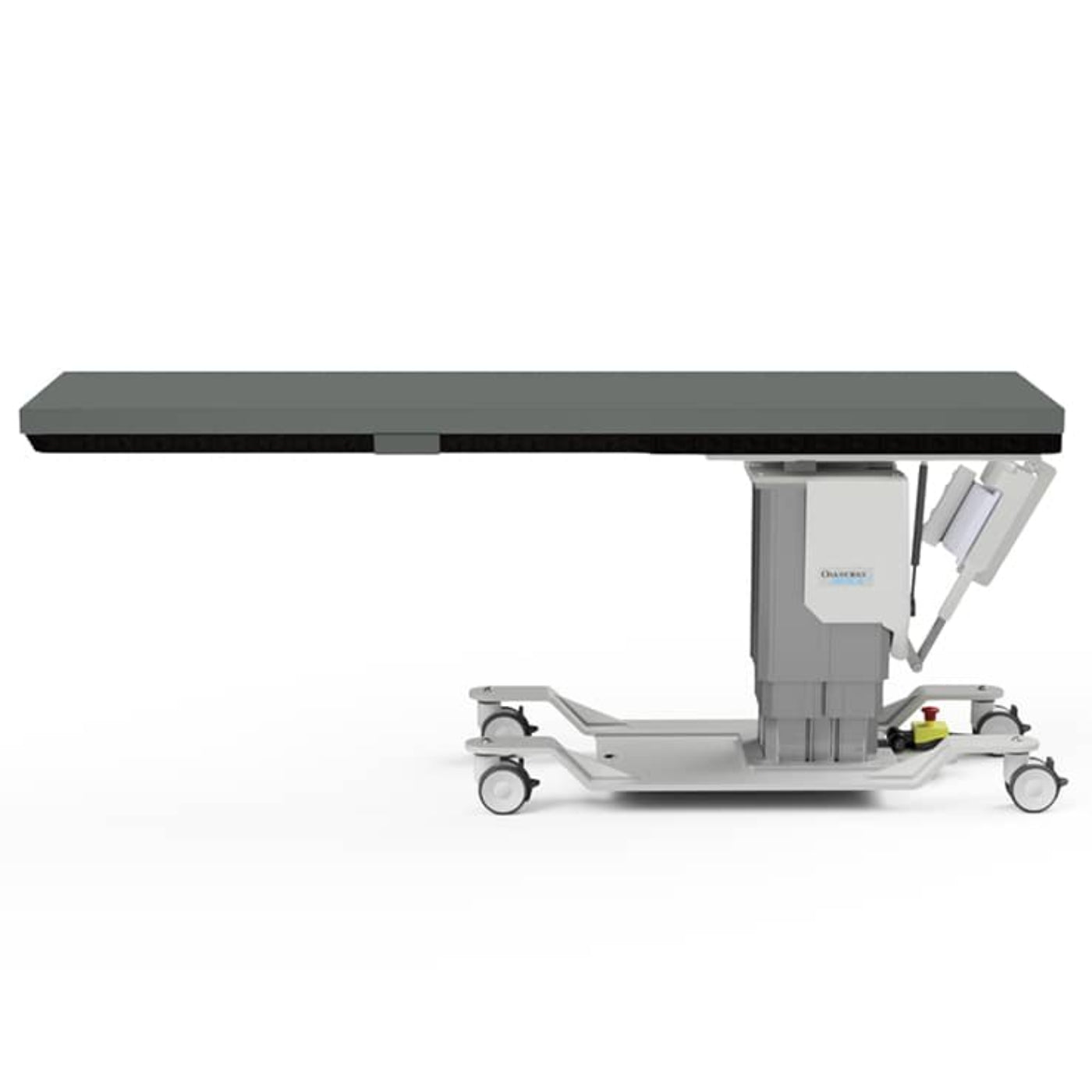

OakWorks CFPM201-Rectangular Top Imaging-Pain Management Table - OWK-84528
The OakWorks CFPM201-Rectangular Top Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, and two patient straps (2).
The CFPM201 table with Rectangular Top boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
Features
- Rectangular head rest.
- Large height range table 25" - 42".
- 56" (133 cm) of metal free imaging space.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" × 84" (56 × 214 cm) |
| Motion 1 |
Electric Height Range 25"–42" (64–107 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Controls |
All functions hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#84528: Standard - 2-Motion with Rectangular Top, 2" Pad, and Hand Control.
-
#84528-65427: with 5" Fallshaw Casters.
-
#84528-84503: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM201-Rectangular Top Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM200/201 Flyer
What our Experts Think
-
Wide height range: Electric lift from 25″ to 42″ enables safer patient transfers and ergonomic positioning for clinicians.
-
Trendelenburg tilt: Powered tilt of +15° / –11° optimizes patient positioning during procedures.
-
Imaging‑friendly design: Carbon-fiber tabletop (24″ × 80″) with 56″ of metal-free imaging space for C-arm access.
-
High weight capacity: Supports up to 500 lb (227 kg), accommodating a broad range of patients.
-
Comfortable pad: 2″ Radiolucent Comfort Foam® balances patient comfort with imaging needs.
-
Mobility & stability: Locking 4″ casters ensure secure positioning during procedures.
-
Easy control: Hand control allows precise height and tilt adjustments.
Q&A
Q: What is the OakWorks OWK‑84528?
A: A powered imaging and pain-management table with a rectangular carbon-fiber top, designed for C-arm procedures.
Q: What motions does it support?
A: Electric height adjustment (25″–42″) and Trendelenburg tilt (+15° / –11°).
Q: What are the tabletop dimensions and material?
A: 22″ wide × 84″ long carbon-fiber rectangular top.
Q: How much imaging space is metal-free?
A: 56″ of metal-free space for C-arm access.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: What safety and control features are included?
A: Hand control for all motions, two patient straps, and 4″ locking casters.
Q: What padding and upholstery are used?
A: 2″ radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: What safety certifications does it have?
A: FDA listed, CE marked, cETLus approved, CB certified.
Maintenance Tips
-
Unplug the table before cleaning to prevent electric shock.
-
Clean visible soil weekly using a mild soap or approved cleaner, working from top to bottom.
-
Rinse with clean water and dry thoroughly before disinfecting.
-
Disinfect only with manufacturer-approved solutions; avoid hydrogen peroxide, phenolics, and acetic acid.
-
Keep the table flat during cleaning to prevent liquid pooling.
-
Wipe off excess disinfectant and dry all surfaces after cleaning.
-
Inspect power cord and hand-control cables monthly for wear or damage.
-
Check and tighten all screws and bolts periodically.
-
Operate height and tilt functions periodically and listen for creaking or binding.
-
Avoid exposing upholstery to extreme temperatures or direct sunlight.
-
Use fitted sheets or fluid-resistant covers during procedures to protect the surface.
-
Maintain a log of cleaning, disinfection, inspections, and maintenance to support longevity and warranty.
