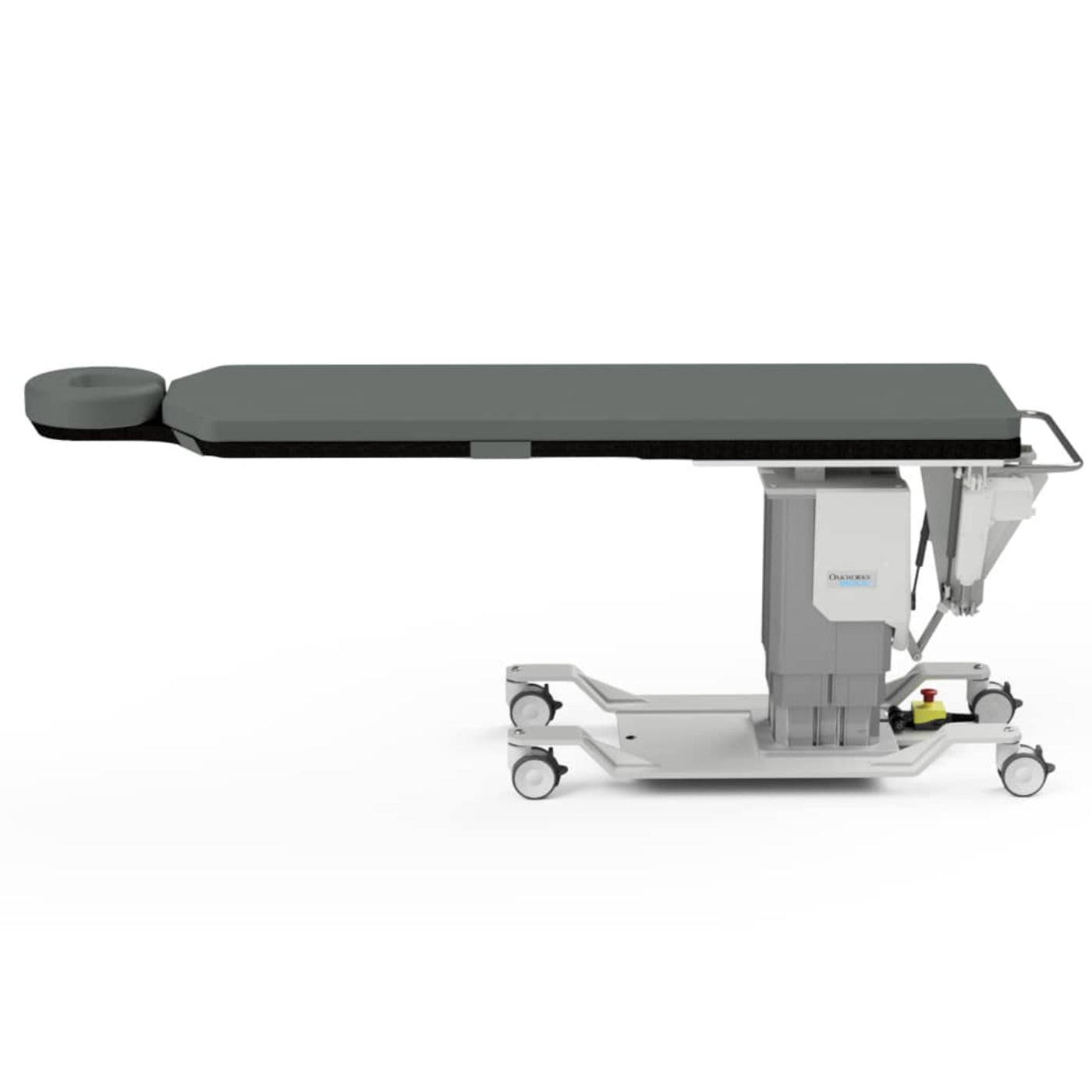

OakWorks CFPM300-Integrated Headrest Imaging-Pain Management Table - OWK-81803
The OakWorks CFPM300-Integrated Headrest Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, Crescent face rest pad (included with integrated headrest top), and two patient straps (2).
The CFPM300 table with Integrated Headrest boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
Features
- Integrated Head Rest.
- Large adjustable height range.
- 56 inches of metal free imaging space.
- Cost effective 3 movement table.
- 500 lb patient weight capacity.
- Pewter fabric color.
Specifications
Specifications
| Carbon Fiber Top |
22" (56 cm) wide × 84" (214 cm) long |
| Motion 1 |
Electric Height Range 26"–43" (66–109 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Motion 3 |
Electric Lateral Tilt ±15° |
| Controls |
Multi-function hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouch Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA Listed |
Â
Configurations
 Configurations
-
#81803: Standard - 3 Motion with 2" Pad and Hand Control.
-
#81803-65427: with 5" Fallshaw Casters.
-
#81803-75074: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM300-Integrated Headrest Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM300/CFPM301 Flyer
What our Experts Think
-
Highly flexible positioning: Three powered motions — height, Trendelenburg tilt (+15° / –11°), and lateral tilt (±15°) — provide precise control for imaging and procedures.
-
Wide height range: Adjustable from approximately 26″ to 43″, facilitating safe patient transfers and optimal working height.
-
Excellent imaging access: 56″ of metal-free space under the carbon-fiber top minimizes interference with C-arm imaging.
-
Built for strength: Supports up to 500 lb, accommodating a wide range of patient sizes.
-
Comfort-focused pad: 2″ radiolucent Comfort Foam® top balances patient comfort with imaging transparency.
-
Integrated headrest: Carbon-fiber top includes a built-in headrest and crescent face pad, eliminating the need for add-ons.
-
User-friendly control: Operated via multifunction hand control, with optional foot control for hands-free adjustment.
-
Safe and mobile: Equipped with locking casters and an emergency stop switch for both fixed and mobile settings.
-
Durable, clinical-grade build: TerraTouchâ„¢ PVC-free fabric, FDA listed, CE marked, and cETLus approved.
Q&A
Q: What is the OakWorks CFPM300 Integrated Headrest Imaging / Pain Management Table (OWK‑81803)?
A: A 3‑motion C‑arm compatible table with an integrated headrest, designed for interventional procedures and fluoroscopic imaging.
Q: What is the imaging space like?
A: 56″ of metal-free C‑arm imaging space.
Q: What are the tabletop dimensions and material?
A: 22″ wide × 84″ long, carbon-fiber top.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: How much does the table weigh?
A: Approximately 475 lb (216 kg).
Q: What padding is used?
A: 2″ Radiolucent Comfort Foam.
Q: What upholstery is used?
A: TerraTouchâ„¢ medical-grade, PVC-free fabric.
Q: What safety or certification features does it have?
A: CE-marked, cETLus approved, CB certified, and FDA-listed.
Q: How is it controlled?
A: Multi-function hand control.
Q: What accessories are included?
A: Two patient straps and a crescent face-rest pad..
Q: Who is this table ideal for?
A: Pain management clinics, interventional radiology, and C‑arm procedure rooms requiring durable, imaging-compatible patient support.
Maintenance Tips
-
Clean surfaces regularly: Wipe the tabletop, headrest, and frame with a mild, non-abrasive cleaner to remove dust, oils, and bodily fluids.
-
Inspect mechanical and imaging components: Check hinges, joints, and adjustable mechanisms for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and hinges for smooth operation.
-
Check stability and leveling: Ensure the table and headrest are properly leveled and securely locked before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to maintain safe and reliable operation.
