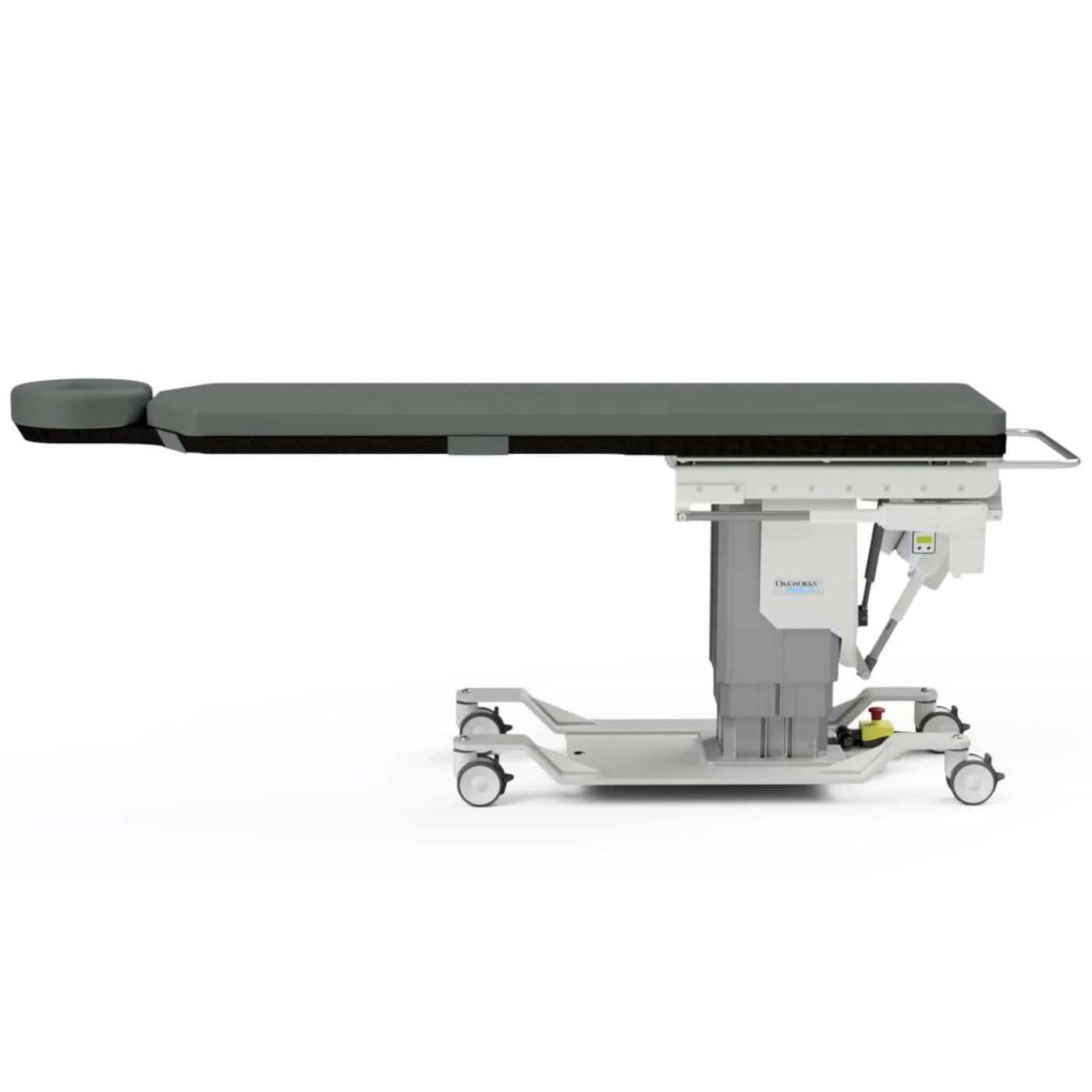

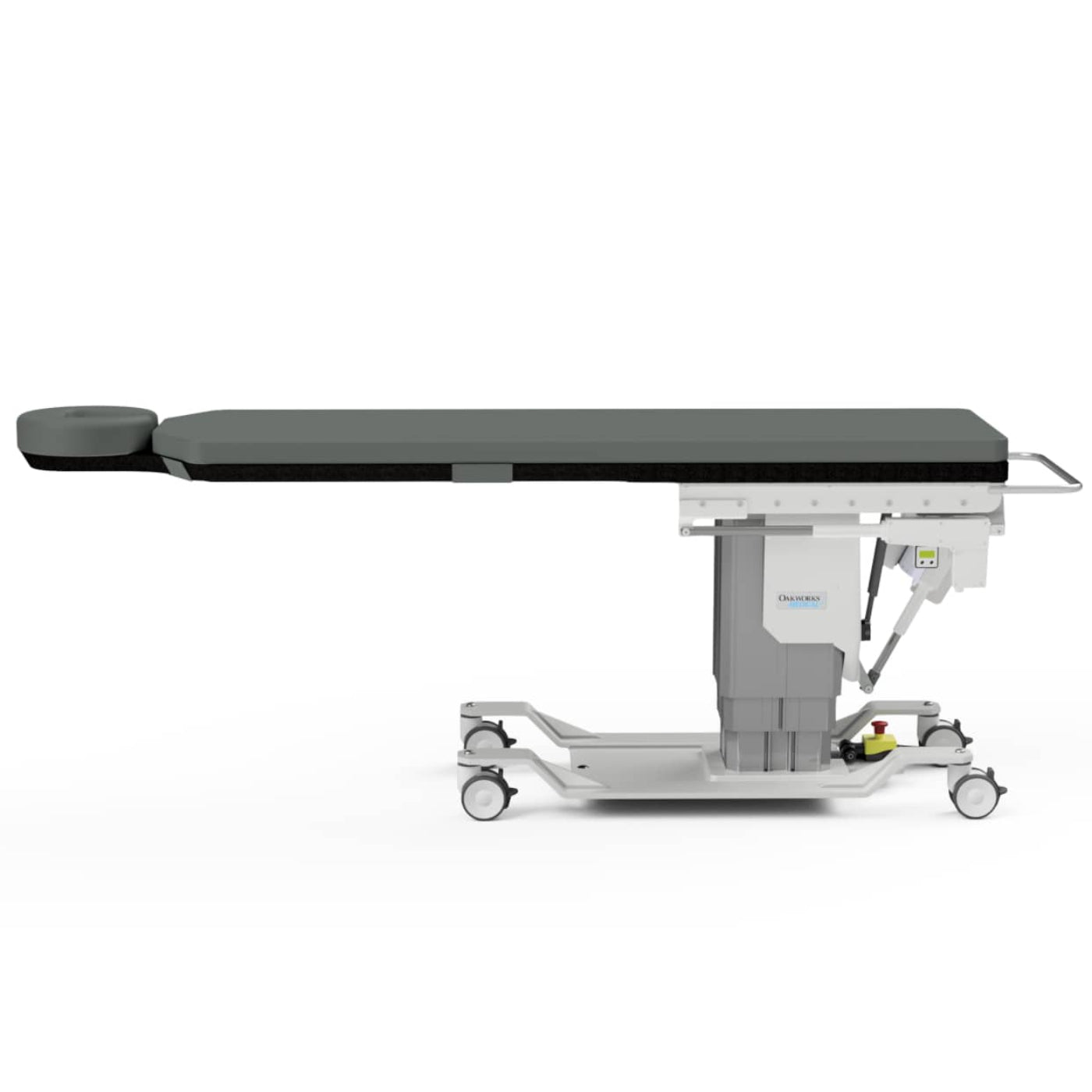

OakWorks CFPM301-Integrated Headrest Imaging-Pain Management Table - OWK-81804
The OakWorks CFPM301-Integrated Headrest Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, a Crescent face rest pad (included with integrated headrest top), and two patient straps (2).
The CFPM301 table with Integrated Headrest boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Integrated headrest.
- Large adjustable height range.
- 56 inches of metal free imaging space.
- Cost effective three movement table.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" (56 cm) wide × 84" (214 cm) long |
| Motion 1 |
Electric Height Range 25"–43" (64–109 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Motion 3 |
Electric Longitudinal Travel 10" (25 cm) |
| Controls |
Multi-function hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
 Configurations
-
#81804: Standard - 3 Motion with Integrated Headrest Top, 2" Pad, and Hand Control.
-
#81804-65427: with 5" Fallshaw Casters.
-
#81804-75076: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM301-Integrated Headrest Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM300/CFPM301 Flyer
What our Experts Think
-
High weight capacity: Supports up to 550 lb, making it suitable for a wide range of patients.
-
Excellent imaging access: Carbon-fiber top provides long metal-free imaging zone for C-arm use.
-
Flexible three-motion control: Powered height adjustment, Trendelenburg tilt, and lateral tilt for precise patient positioning.
-
Comfort with clarity: 2″ radiolucent Comfort Foam® pad ensures patient comfort without compromising image quality.
-
Integrated headrest: Built-in crescent face pad and headrest eliminate the need for separate accessories.
-
Safe & mobile: Equipped with locking casters to secure position during procedures; strong frame supports stability.
-
User-friendly control: Hand controller allows for intuitive movement — optional foot control available.
-
Long-term reliability: Covered by multi-year warranty on both parts and labor, showing confidence in durability.
-
Clinical-grade design: Engineered for professional pain‑management and imaging environments with regulatory certifications.
Q&A
Q: What is the OakWorks CFPM301 Integrated Headrest Imaging / Pain‑Management Table (OWK‑81804)?
A: A 3‑motion, C‑arm–compatible pain‑management and imaging table with an integrated carbon-fiber headrest.
Q: What does the tabletop look like?
A: Carbon-fiber top, 22″ wide × 84″ long, with 56″ of metal‑free imaging area.
Q: What is the patient weight capacity?
A: 500 lb (227 kg).
Q: How heavy is the table itself?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery does it use?
A: 2″ radiolucent Comfort Foam with TerraTouch™ PVC‑free medical-grade fabric.
Q: How is it controlled?
A: 3‑motion multi-function hand control.
Q: What mobility and safety features are included?
A: 4″ locking casters, integrated crescent face pad, and two patient restraint straps.
Q: Who is this table ideal for?
A: Pain‑management clinics, interventional radiology suites, and C‑arm procedure rooms needing a stable, radiolucent table with ergonomic patient positioning.
Maintenance Tips
-
Clean surfaces regularly: Wipe the tabletop, headrest, and frame with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect mechanical and imaging components: Check hinges, joints, slides, and attachments for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and adjustable mechanisms for smooth operation.
-
Check stability and leveling: Ensure the table and headrest are level, secure, and properly aligned before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and patient comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to maintain safe and reliable operation.
