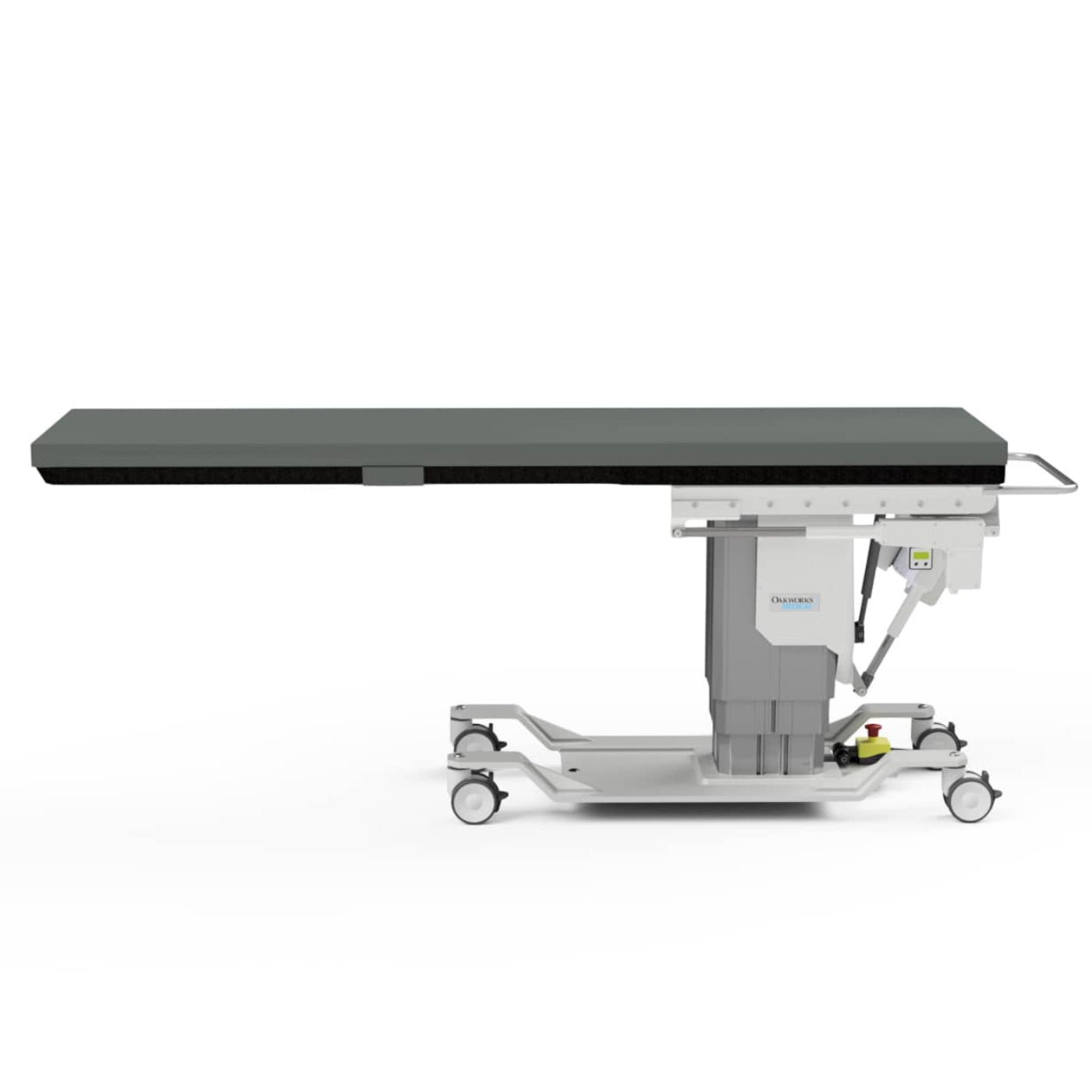

OakWorks CFPM301-Rectangular-Top Imaging-Pain Management Table - OWK-81811
The OakWorks CFPM301-Rectangular-Top Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, and two patient straps (2).
The CFPM301 table with Rectangular Top boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Rectangular top.
- Large adjustable height range.
- 52 inches of metal Free Imaging Space.
- Cost effective three movement table.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
24" (61 cm) wide × 80" (203 cm) long |
| Motion 1 |
Electric Height Range 26"–43" (66–109 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Motion 3 |
Electric Longitudinal Travel 10" (25 cm) |
| Controls |
Multi-function hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#81811: Standard - 3 motion with Rectangular Top, 2" Pad, and Hand Control.
-
#81811-65427: with 5" Fallshaw Casters.
-
#81811-75076: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM301-Rectangular-Top Imaging-Pain Management Table is commonly purchased with the following:
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM300/CFPM301 Flyer
What our Experts Think
-
Wide height adjustability: Electric height control from 26″ to 43″ for safe patient transfers and ergonomic clinician positioning.
-
Imaging-optimized design: 24″ × 80″ carbon-fiber top with 52″ of metal-free imaging space for C-arm access.
-
Three powered motions: Electric Trendelenburg tilt (+15° / –11°) and 10″ longitudinal travel for precise positioning.
-
Strong weight capacity: Supports up to 500 lb (227 kg), accommodating a wide range of patients.
-
Comfortable surface: 2″ Radiolucent Comfort Foam pad balances cushioning with imaging performance.
-
Mobility and safety: Locking 4″ casters and patient safety straps ensure stability during procedures.
-
Durable construction & compliance: PVC-free TerraTouchâ„¢ upholstery; CE-marked, cETLus-approved, and FDA-listed.
Q&A
Q: What is the OakWorks OWK‑81811?
A: A powered imaging and pain-management table with a rectangular carbon-fiber top, designed for C-arm procedures.
Q: What motions does it support?
A: Electric height adjustment (26″–43″), electric longitudinal travel (10″), and Trendelenburg/reverse tilt (+15° / –11°).
Q: What are the tabletop dimensions and material?
A: 24″ wide × 80″ long carbon-fiber rectangular top.
Q: How much imaging space is metal-free?
A: 52″ of metal-free space for C-arm access.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: What is the table weight?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery are used?
A: 2″ radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: What mobility features are included?
A: 4″ locking casters (optional 5″ upgrade).
Q: What safety and control features are included?
A: Multi-function hand control, two patient safety straps, and an emergency-stop switch.
Q: What safety certifications does it have?
A: FDA listed, CE marked, cETLus approved, CB certified
Maintenance Tips
-
Unplug the table before cleaning to reduce risk of electric shock.
-
Clean visible soil weekly using mild soap or an approved cleaner, working top → bottom.
-
Rinse with clean water and dry thoroughly before disinfecting.
-
Disinfect only with manufacturer-approved solutions; avoid hydrogen peroxide, phenolics, and acetic acid.
-
Keep the table flat during cleaning and ensure disinfectant stays wet for the full contact time; do not let liquid pool.
-
Inspect power cord, hand-control cables, and wiring monthly for wear or damage.
-
Check fasteners (screws, bolts) regularly and tighten as needed.
-
Operate all powered motions (height, tilt, longitudinal travel) occasionally and listen for unusual noises or binding.
-
Avoid exposing upholstery to very low (<50°F / 10°C) or very high (>104°F / 40°C) temperatures and direct sunlight.
-
Use fitted sheets or fluid-proof covers during procedures to protect the padding.
