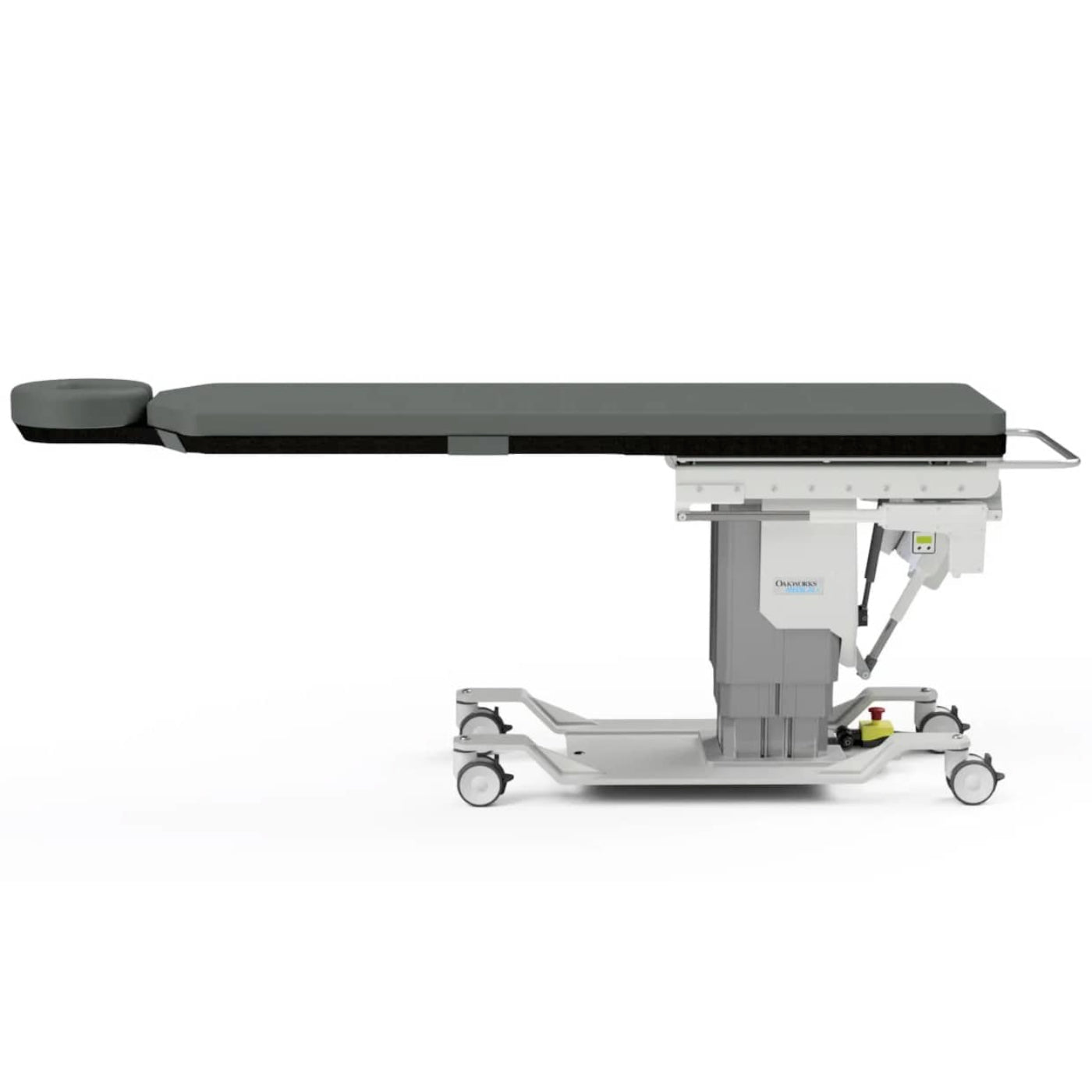

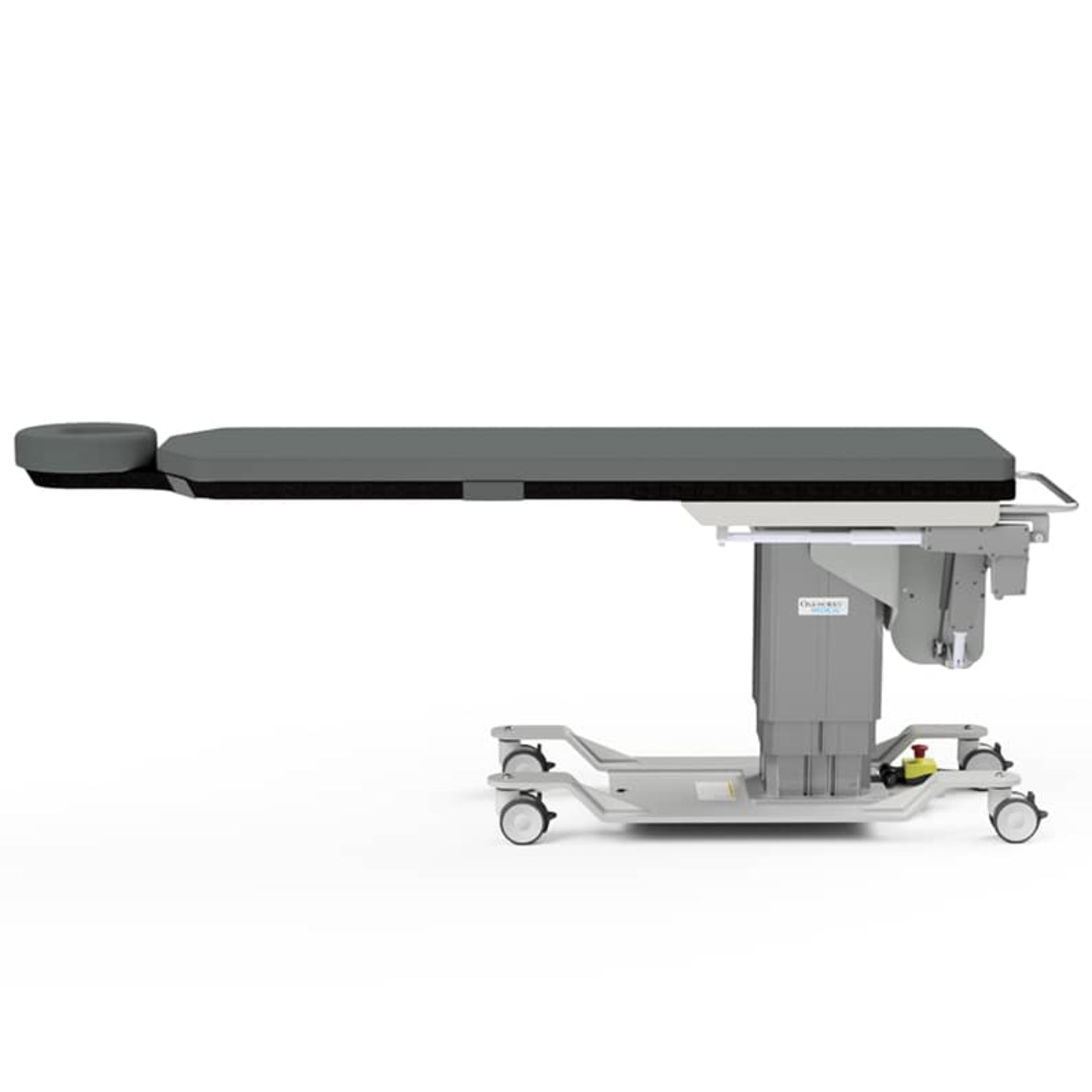

The OakWorks CFPM302-Integrated Headrest Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, a Crescent face rest pad (included with integrated headrest top), and two patient straps (2).
The CFPM302 table with Integrated Headrest boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Integrated head rest.
- Large height range table 26"-44".
- 56" (133 cm) of metal free imaging space.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" × 84" (56 × 214 cm) |
| Motion 1 |
Electric Height Range 25"–43" (64–109 cm) without pad |
| Motion 2 |
Electric Longitudinal Travel 10" (25 cm) |
| Motion 3 |
Electric Lateral Tilt ±15° |
| Controls |
All functions hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#84530: Standard - 3-Motion with Integrated Headrest Top, 2" Pad, and Hand Control.
-
#84530-65427: with 5" Fallshaw Casters.
-
#84530-84504: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM302-Integrated Headrest Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM302 Flyer
What our Experts Think
-
Highly versatile positioning: Three powered movements — height (26″–44″), 10″ longitudinal travel, and ±15° lateral tilt — for precise patient alignment.
-
Optimal imaging access: 22″ × 84″ carbon-fiber top with 56″ of metal-free imaging space, ideal for C-arm procedures.
-
Generous load capacity: Supports up to 500 lb, suitable for a wide range of patients.
-
Comfortable yet radiolucent: 2″ radiolucent Comfort Foam® pad balances patient comfort with imaging needs.
-
Integrated headrest design: Built-in headrest and crescent face pad eliminate the need for extra attachments.
-
Control & safety: Hand control manages all functions; locking 4″ casters provide mobility and stability.
-
Durable build: Backed by a 4‑year parts and 3‑year labor warranty.
Q&A
Q: What is the OakWorks CFPM302 Integrated Headrest Imaging / Pain‑Management Table (OWK‑84530)?
A: A 3-motion, C‑arm–compatible pain‑management table with an integrated headrest, designed for imaging-guided procedures.
Q: What is the tabletop like?
A: Carbon-fiber top, 22″ wide × 84″ long; provides 56″ of metal-free imaging space.
Q: What patient weight can it support?
A: Up to 500 lb (227 kg).
Q: What is the table’s own weight?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery does it use?
A: 2″ radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: How is it controlled?
A: Multi-function hand controller for all movements.
Q: What mobility or safety features are included?
A: Locking 4″ casters, two patient restraint straps, and a crescent face rest pad with integrated headrest.
Q: Who is this table ideal for?
A: Pain-management clinics, interventional radiology suites, and C‑arm procedure rooms needing a stable, high-performance imaging table with integrated headrest.
Maintenance Tips
-
Clean surfaces regularly: Wipe tabletop, headrest, and frame with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect mechanical and imaging components: Check hinges, joints, slides, and attachments for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and adjustable mechanisms for smooth operation.
-
Check stability and leveling: Ensure the table and headrest are level, secure, and properly aligned before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and patient comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to ensure safe and reliable operation.
