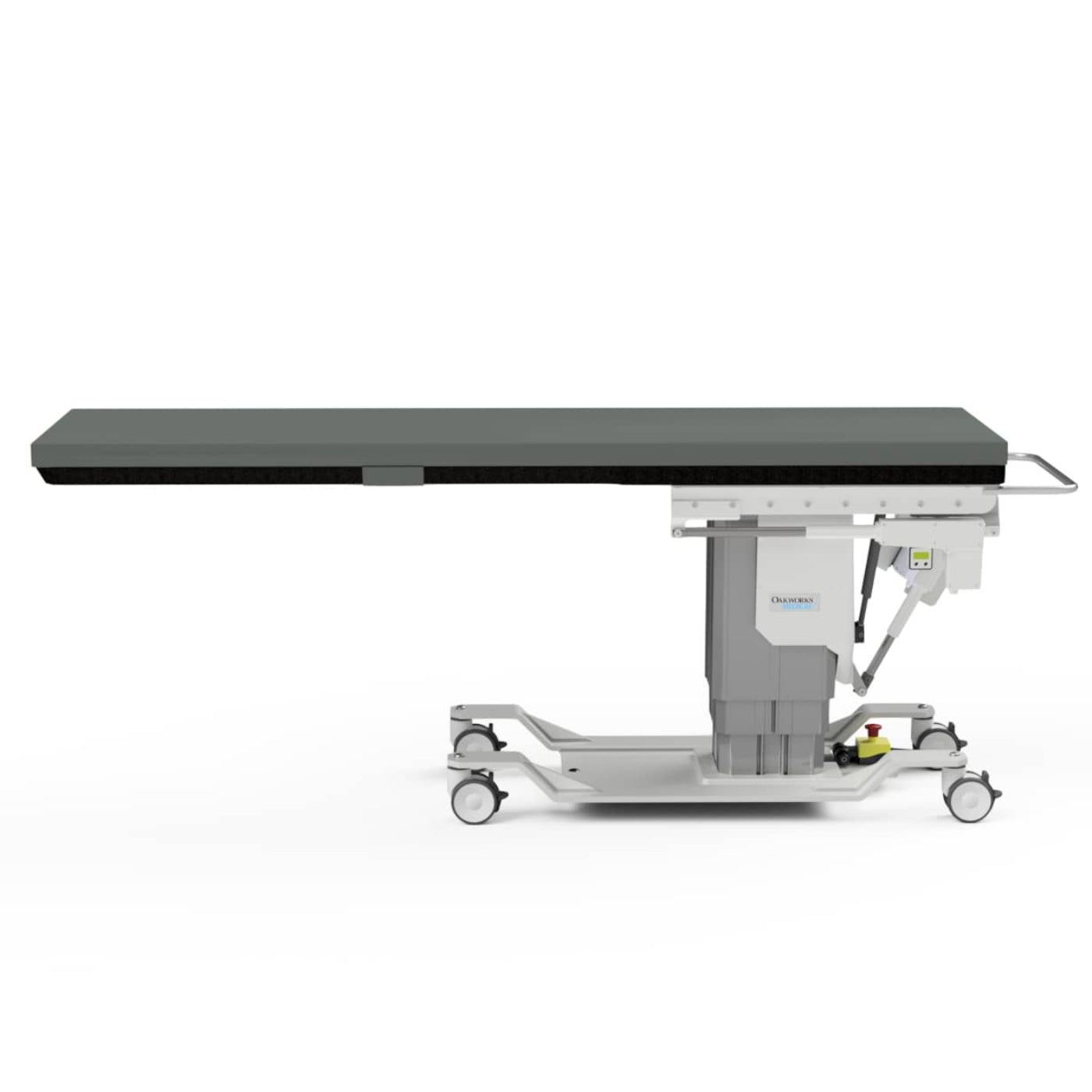

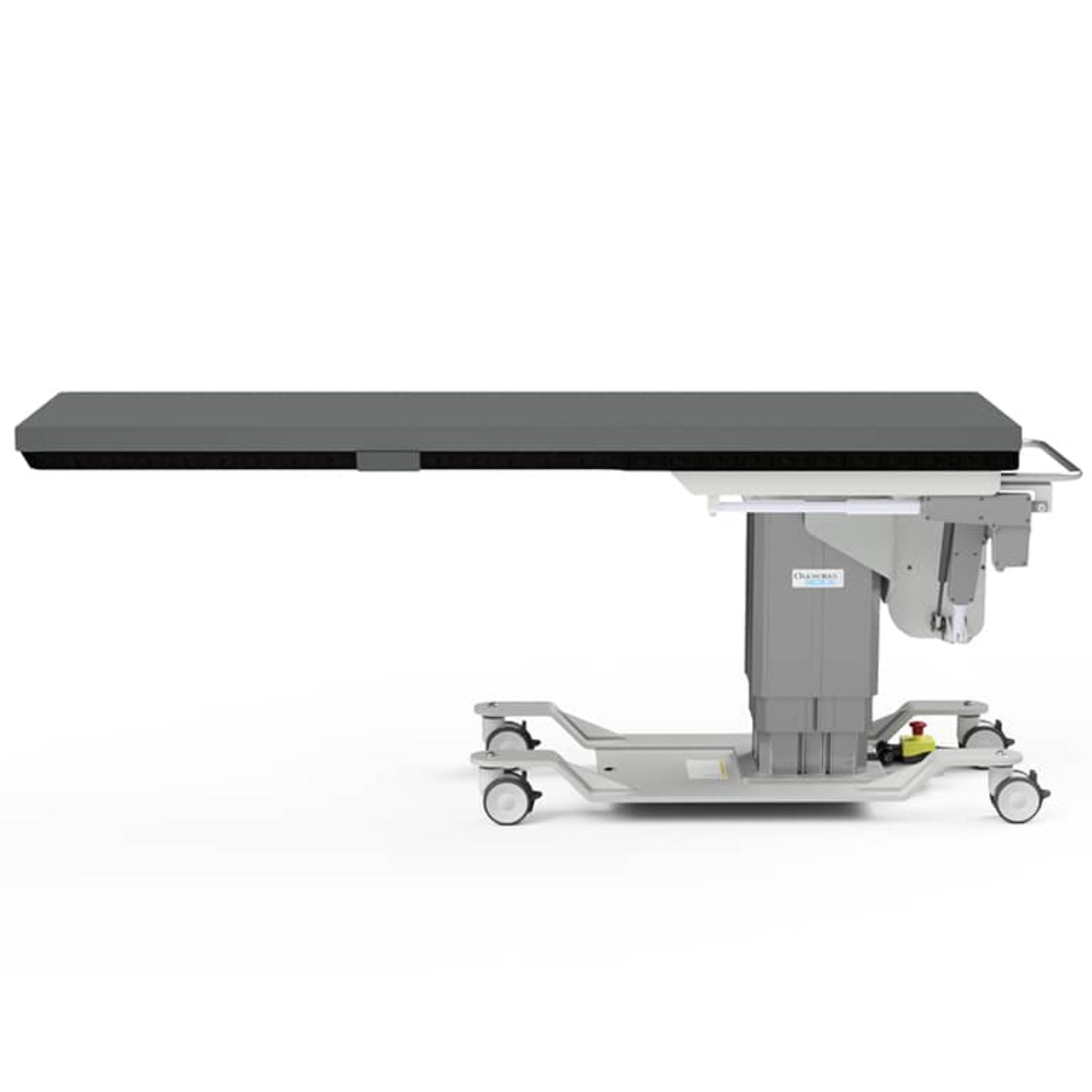

OakWorks CFPM302-Rectangular Top Imaging-Pain Management Table - OWK-84532
The OakWorks CFPM302-Rectangular Top Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, and two patient straps (2).
The CFPM302 table with Rectangular Top boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Rectangular top.
- Large height range table 26" - 44".
- 56" (133 cm) of metal free imaging space.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
24" × 80" (61 × 203 cm) |
| Motion 1 |
Electric Height Range 26"–44" (66–111 cm) without pad |
| Motion 2 |
Electric Longitudinal Travel 10" (25 cm) |
| Motion 3 |
Electric Lateral Tilt ±15° |
| Controls |
All functions hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Configurations
 Configurations
-
#84532: Standard - 3-Motion with Rectangular Top, 2" Pad, and Hand Control.
-
#84532-65427: with 5" Fallshaw Casters.
-
#84532-84504: with Multi-Function Foot Control.
Accessories
Accessories
The OakWorks CFPM302-Rectangular Top Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM302 Flyer
What our Experts Think
-
Wide height range: Motorized adjustment from 26″ to 44″ for safe patient transfers and ergonomic clinician positioning.
-
Imaging-friendly: 56″ of metal-free space under a 24″ × 80″ carbon-fiber top, ideal for C-arm and fluoroscopy procedures.
-
Three powered motions: Electric height lift, 10″ longitudinal travel, and lateral tilt (±15°), all via hand control.
-
High patient capacity: Supports up to 500 lb distributed weight.
-
Comfortable surface: 2″ radiolucent Comfort Foam® pad balances cushioning with imaging performance.
-
Safety and mobility: Locking 4″ casters and patient restraint straps for stability during procedures.
-
Durable construction: Carbon-fiber tabletop and rigid lift column ensure stable support under rapid adjustments.
Q&A
Q: What is the OakWorks OWK‑84532?
A: A powered imaging and pain-management table with a rectangular carbon-fiber top, designed for C-arm procedures.
Q: What motions does it support?
A: Electric height adjustment (26″–44″), electric longitudinal travel (10″), and electric lateral tilt (±15°).
Q: What are the tabletop dimensions and material?
A: 24″ wide × 80″ long rectangular carbon-fiber top.
Q: How much imaging space is metal-free?
A: 56″ of metal-free space for C-arm access.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: What is the table weight?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery are used?
A: 2″ radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: What casters and mobility features are included?
A: 4″ locking casters (optional 5″ upgrade available).
Q: What safety and control features are included?
A: Hand control for all motions, emergency-stop switch, and two patient restraint straps.
Q: What safety certifications does it have?
A: FDA listed, CE marked, cETLus approved, and CB certified.
Maintenance Tips
-
Clean visible soil at least weekly using a mild, approved cleaner, working top → bottom.
-
Rinse thoroughly with clean water and dry with a soft cloth to remove any soap residue.
-
Disinfect only with manufacturer-approved disinfectants; keep the surface wet for the full contact time, but do not let liquid pool.
-
Unplug the table before cleaning to reduce risk of electric shock.
-
Avoid cleaners containing hydrogen peroxide, phenolics, or acetic acid to prevent upholstery damage.
-
Inspect power cord, hand-control cables, and visible wiring monthly for wear or damage.
-
Check and tighten all fasteners (bolts, screws) periodically to maintain structural integrity.
-
Test all table motions (height, longitudinal travel, tilt) regularly for smooth operation and listen for unusual noise or binding.
-
Avoid exposing the upholstery to very low or very high temperatures, or direct sunlight.
-
Use protective covers, fitted sheets, or fluid-proof barriers to shield the surface during use.
-
Maintain a log of cleaning, disinfection, inspections, and repairs to support longevity and warranty
