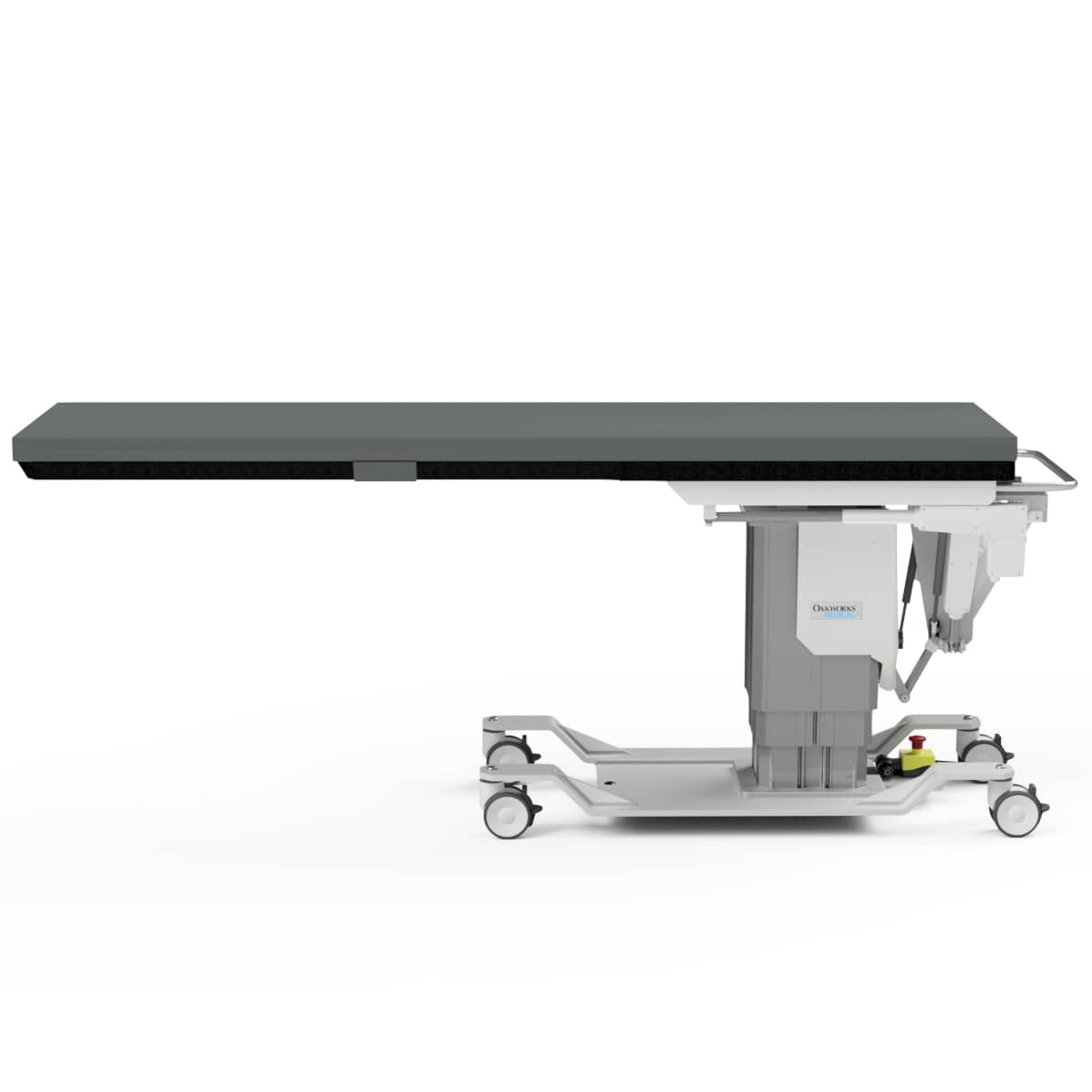

The OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, and two patient straps (2).
Warranty: 4 years parts, 3 years labor.
The CFPM400 table with Rectangular Top boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table Features
- Rectangular top.
- Large adjustable height range.
- 52 inches of metal free imaging space.
- Cost effective 4 movement table.
- 500 lb patient weight capacity.
Specifications
OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table Specifications
-
Carbon Fiber Top: 24" (61 cm) wide x 80" (203 cm) long.
-
Motion 1: Electric Height Range 26 inches - 43 inches (66-109 cm) Height Range without pad.
-
Motion 2: Electric Trendelenburg Tilt +15°/-11°.
-
Motion 3: Electric Longitudinal travel 10 inches (25 cm).
-
Motion 4: Electric Lateral tilt ±15°.
-
Controls: Multi-function hand control.
-
Weight Capacity: 500 lb (227 kg).
-
Product Weight: 475 lb (216 kg).
-
Safety Listings: CE marked, cETLus approved, CB Certificate, FDA listed.
-
Fabric: Premium, PVC free TerraTouchâ„¢ Medical Grade Fabric is ISO 10993 Certified.
Configurations
OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table Configurations
-
#81808: Standard - 4 Motion with Rectangular Top, 2" Pad, and Hand Control.
-
#81808-65427: with 5" Fallshaw Casters.
-
#81808-75077: with Multi-Function Foot Control.
Accessories
OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table Accessories
The OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table is commonly purchased with the following:
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
OakWorks CFPM400-Rectangular Top Imaging-Pain Management Table Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM400/CFPM401 Flyer
