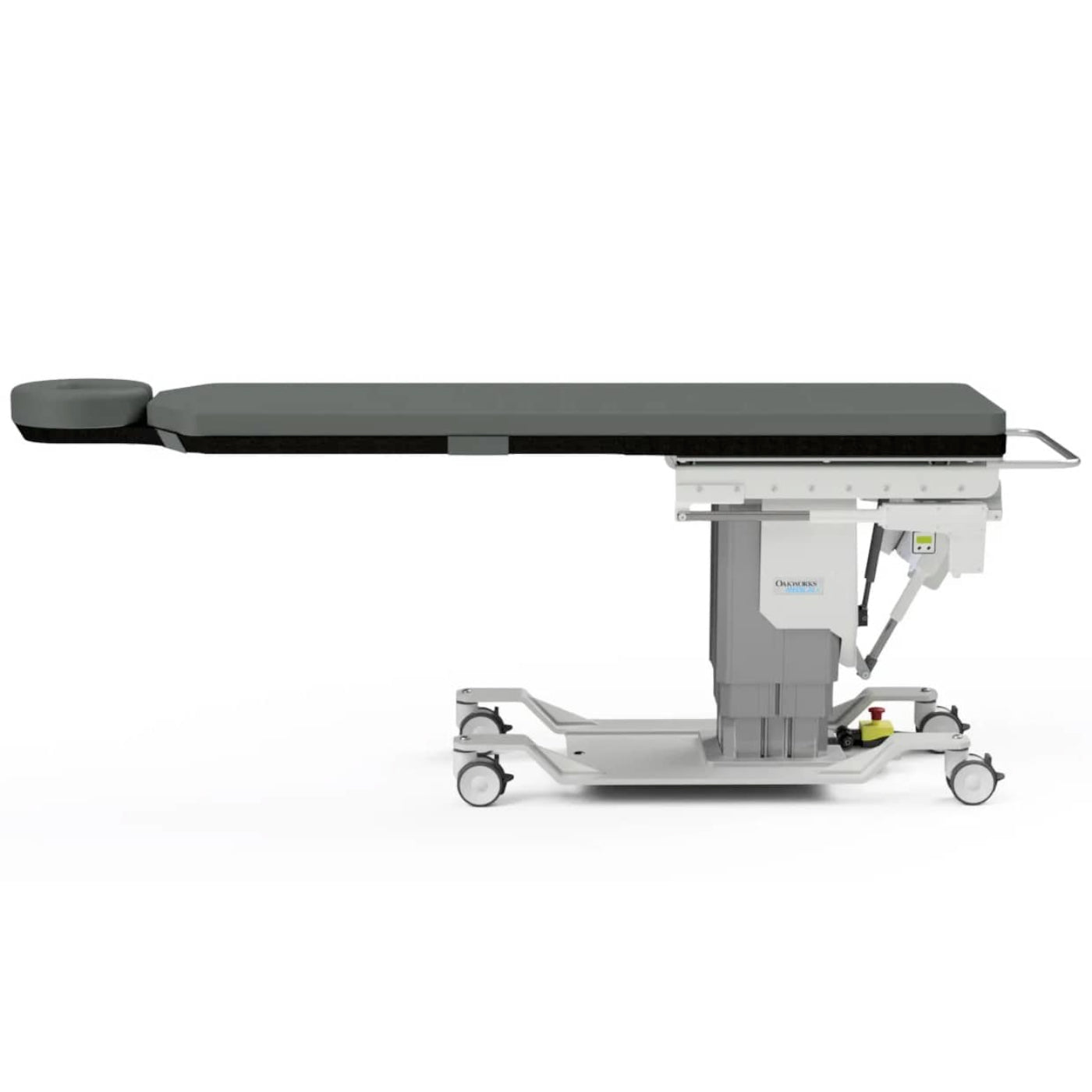

OakWorks CFPM401-Integrated Headrest Imaging-Pain Management Table - OWK-81802
The OakWorks CFPM401-Integrated Headrest Imaging-Pain Management Table comes standard with a 2 inch (5 cm) Radiolucent Comfort Foam table top pad, 4 inch (10 cm) locking casters, a Crescent face rest pad (included with integrated headrest top), and two patient straps (2).
The CFPM401 table with Integrated Headrest boasts a large height range to help with safe patient transfers while allowing doctors to stand comfortably. Plus, the large lifting column is very rigid, ensuring rock solid support for fast imaging and procedures.
Features
 Features
- Integrated head rest.
- Large adjustable height range.
- 56 inches of metal free imaging space.
- Cost effective 4 movement table.
- 500 lb patient weight capacity.
Specifications
 Specifications
| Carbon Fiber Top |
22" (56 cm) wide × 84" (214 cm) long |
| Motion 1 |
Electric Height Range 26"–44" (66–112 cm) without pad |
| Motion 2 |
Electric Trendelenburg Tilt +15°/-11° |
| Motion 3 |
Electric Longitudinal Travel 10" (25 cm) |
| Motion 4 |
Electric Lateral Travel 8" (20 cm), ±4" (10 cm) |
| Controls |
Multi-function hand control |
| Weight Capacity |
500 lb (227 kg) |
| Product Weight |
475 lb (216 kg) |
| Fabric |
Premium, PVC-free TerraTouchâ„¢ Medical Grade Fabric (ISO 10993 Certified) |
| Safety Listings |
CE marked, cETLus approved, CB Certificate, FDA listed |
Â
Configurations
 Configurations
-
#81802: Standard - 4 Motion with Integrated Headrest Top, 2" Pad, and Hand Control.
-
#81802-65427: with 5" Fallshaw Casters.
-
#81802-75078: with Multi-Function Foot Control.
Accessories
 Accessories
The OakWorks CFPM401-Integrated Headrest Imaging-Pain Management Table is commonly purchased with the following:
-
#85377: OakWorks Arm Hammock.
-
#81822: OakWorks Single Carbon Fiber Arm Board - Pewter with 1" Pad.
-
#83575: OakWorks Single Carbon Fiber Arm Board - Pewter with 2" Pad.
-
#33975: OakWorks Fluoro Extender.
-
#81821: OakWorks Interventional Supine Pillow System.
-
#81819: OakWorks Spine Positioning System II.
-
#63336: OakWorks CFPM Adjustable T-Rail Clamp.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Imaging Tables & Accessories Catalog
OakWorks Imaging and Pain Management Tables Manual
OakWorks Imaging Table Movements
OakWorks CFPM400/CFPM401 Flyer
What our Experts Think
-
Payload strength: Supports up to 550 lb, making it capable for a wide range of patients.
-
Full C-arm compatibility: Carbon-fiber top delivers 60″ of radiolucent imaging space, minimizing interference during fluoroscopy.
-
Flexible movement control: Offers three powered motions — height (26″–44″), Trendelenburg tilt (+15° / –11°), and lateral tilt (±15°).
-
Comfort and imaging: 2″ Comfort Foam® top pad offers a comfortable surface that still supports high-quality imaging.
-
Integrated headrest: Built-in crescent pad and headrest eliminate the need for separate accessories, streamlining procedures.
-
Safe and mobile: Locking 5″ casters allow secure placement and easy repositioning when needed.
-
Robust frame: Rigid column and steel base ensure stability during complex imaging tasks.
-
Control options: Comes with hand control for easy adjustment; a foot control option is available for hands-free use.
Q&A
Q: What is the OakWorks CFPM401 Integrated Headrest Imaging / Pain Management Table (OWK‑81802)?
A: A 4‑motion C‑arm-compatible table with an integrated headrest, ideal for interventional pain‑management procedures and radiographic imaging.
Q: What are the tabletop size and imaging space?
A: Carbon-fiber top, 22″ wide × 84″ long, providing 56″ of metal-free imaging space.
Q: What is the patient weight capacity?
A: Supports up to 500 lb (227 kg).
Q: How much does the table weigh?
A: Approximately 475 lb (216 kg).
Q: What padding and upholstery are used?
A: 2″ Radiolucent Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: What control options are available?
A: Multi-function hand control for all motions.
Q: What mobility and safety features does it include?
A: 4″ locking casters and 2 patient safety straps.
Q: What warranty and certifications does it have?
A: 4 years parts, 3 years labor; FDA-listed, CE, cETLus, and CB certified.
Q: Who is this table ideal for?
A: Pain-management clinics, interventional radiology, and C‑arm procedure rooms needing a stable, radiolucent, and ergonomically adjustable table.
Maintenance Tips
-
Clean surfaces regularly: Wipe the tabletop, headrest, and frame with a mild, non-abrasive cleaner to remove dust, oils, and debris.
-
Inspect mechanical and imaging components: Check hinges, joints, slides, and attachments for wear; tighten or service as needed.
-
Lubricate moving parts: Apply light lubricant to pivots, slides, and adjustable mechanisms for smooth operation.
-
Check stability and leveling: Ensure the table and headrest are level, secure, and properly aligned before use.
-
Maintain upholstery: Clean padding with a gentle disinfectant and inspect for tears or wear to maintain hygiene and patient comfort.
-
Store properly: Keep in a dry, protected area to prevent corrosion and extend table lifespan.
-
Follow weight capacity guidelines: Avoid overloading the table to maintain safe and reliable operation.
