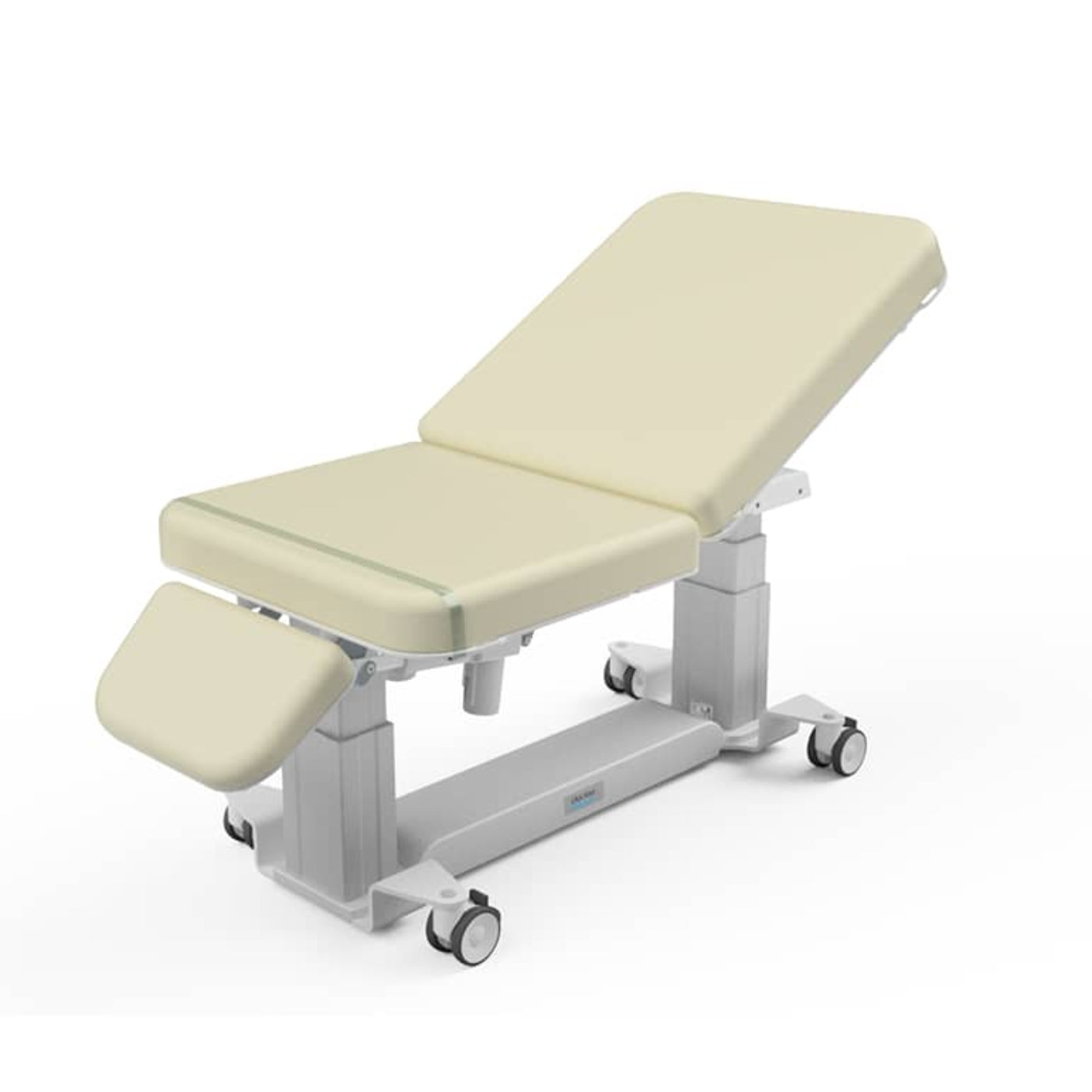

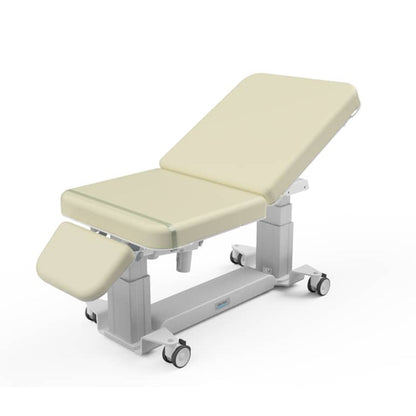

OakWorks General 3-Section Top EA Ultrasound Table - OWK-84783-T01
The OakWorks General 3-Section Top EA Ultrasound Table comes with 4 in (10 cm) locking casters and a paper roll holder.
Part of OakWorks' new Ergonomic Advantage line, the 3-Section Top EA Ultrasound Table combines the classic ergonomic benefits of OakWorks exam chairs and tables with powered features that help make positioning patients easier while speeding up exam times in the process.
Please contact MFI directly to purchase your table with the following optional features/upgrades
- Central Base Locking System.
- Foot Control (Height, Trendelenburg/Reverse, Fowler, Leg Section - H-T-B).
- Side Rails - Set of 2 (25.5” long x 6” tall).
- Procedure Tray (12.25” x 10.25” and holds 2 quarts).
- Battery Backup.
- Retractable Foot Rests (Stirrups).
- Cardio Panel and Adjustable Access Back Support.
- Elecric Sliding Cardio Panel (open 15").
- Left Side Electric Access Panel (opens 10" wide x 22" long).
- Right Side Electric Access Panel (opens 10" wide x 22" long). AVAILABLE on 30" Width ONLY.
Features
Features
- Intended for use as an exam chair or table.
- Designed by industry leading ergonomic specialists to exceed the standards for Sonography.
- Up to a 75° Fowler angle.
- The sleek base makes for unobstructed compatibility with ultrasound equipment.
- Helps decrease the potential for sonographer injury.
- Features minimize exam times.
Specifications
Specifications
| 3 Section Top |
26" (66 cm) or 30" (76 cm) wide × 72" (183 cm) long |
| Backrest |
34" (86 cm) long |
| Seat |
26" (66 cm) long |
| Leg Rest |
11" (28 cm) long |
| Motion 1 – Electric Height Range |
19"–33" (48–83 cm) |
| Motion 2 – Electric Trendelenburg/Reverse Tilt |
±18° |
| Motion 3 – Electric Fowler Backrest |
0–75° |
| Motion 4 – Electric Leg Rest |
0–90° |
| Controls |
Multi-function hand control |
| Weight Capacity |
550 lb (250 kg) |
| Product Weight |
359 lb (163 kg) |
| Removable Padding System |
3" (8 cm) Comfort Foam |
| Fabric |
Premium, PVC-free TerraTouch, ISO 10993 Certified |
| Safety Listings |
FDA listed, CE marked, cETLus listed, CB Certificate |
Configurations
Configurations
-
#84783: 26" Wide.
-
#83892: 30" Wide.
Accessories
Accessories
The OakWorks General 3-Section Top EA Ultrasound Table is commonly purchased with the:
-
#62192-T01: OakWorks Detachable Arm Board.
-
#83139: OakWorks T-Rail Adapter.
-
#63487: OakWorks Table Extender.
-
#PKG7554: OakWorks Medical Head Rest System - QuickLock and AeroCel.
Literature
Literature
OakWorks Medical Brochure
OakWorks Ergonomic Advantage Ultrasound Tables & Accessories Catalog
OakWorks General 3-Section Table Flyer
What our Experts Think
-
Ergonomic design: Fully powered height (19–33″), Trendelenburg/Reverse tilt (±18°), Fowler backrest (0–75°), and leg rest (0–90°) reduce strain for sonographers.
-
Three-section top: Backrest, seat, and leg sections on a 72″ surface accommodate a variety of ultrasound exams.
-
High load capacity: Supports up to 550 lb (250 kg), suitable for bariatric patients.
-
Imaging-friendly base: Sleek twin-tower design provides unobstructed access for ultrasound equipment.
-
Comfort padding: 3″ Comfort Foam balances support and cushioning, replaceable for long-term use.
-
Mobility and safety: Locking 4″ casters and built-in paper roll holder enhance convenience.
-
Durable construction: PVC-free TerraTouch™ upholstery ensures long-lasting, professional use
Q&A
Q: What is the OakWorks OWK‑84783‑T01?
A: A three-section, powered ultrasound table from OakWorks’ Ergonomic Advantage (EA) line, designed for sonography and medical imaging.
Q: What is the tabletop configuration?
A: Three sections: backrest, seat, and leg rest, allowing flexible patient positioning.
Q: What height and tilt motions does it support?
A: Electric height adjustment, Trendelenburg/reverse tilt, and electric Fowler backrest (0°–75°).
Q: How does the leg rest function?
A: Electric leg rest that adjusts from 0° to 90°.
Q: What is the patient weight capacity?
A: Supports up to 550 lb (250 kg).
Q: What padding and upholstery are used?
A: 3″ multilayer Comfort Foam with TerraTouch™ medical-grade, PVC-free fabric.
Q: What is the base design?
A: Twin-tower base for rigidity and easy access for ultrasound equipment.
Q: What mobility and access features are included?
A: Locking casters, paper-roll holder, and multi-function hand control for all powered motions.
Q: What safety certifications does it have?
A: FDA listed, cETLus approved, and CE marked.
Maintenance Tips
-
Clean weekly using mild soap or a recommended cleaner to remove visible soil.
-
After cleaning, disinfect with an approved disinfectant; keep the surface wet for the full contact time, but do not let liquid pool.
-
Position the table flat during cleaning for optimal results.
-
Inspect power cables, hand/foot controls, and any exposed wiring regularly for wear or damage.
-
Check all fasteners (screws, bolts) monthly and tighten as needed.
-
Test all motorized motions (height, tilt, backrest) regularly and listen for unusual noises or binding.
-
Avoid cleaners with hydrogen peroxide, phenolics, or acetic acid to prevent upholstery damage.
-
Protect upholstery from sharp objects or stains; use sheets or covers during use.
-
Remove the pad carefully for deep cleaning or inspection when needed.
-
Maintain a log of cleaning, disinfection, inspections, and maintenance to support longevity and warranty.
