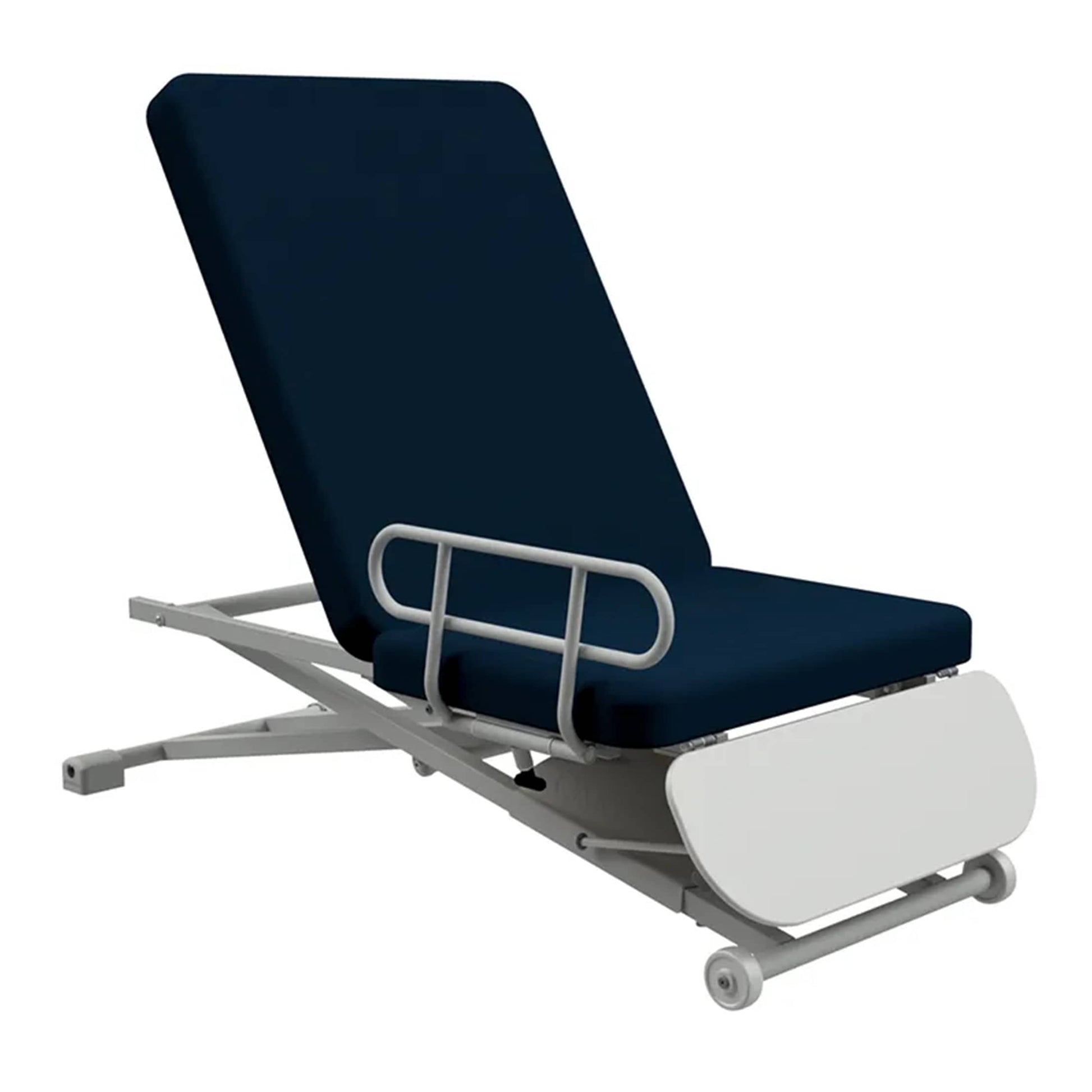

OakWorks Orthopedic Hi-Lo Casting Table - OWK-69268-T01
The OakWorks Orthopedic Hi-Lo Casting Table (#69268) is a cost-effective solution for any medical facility looking to lighten the load that comes with lower extremity casting. Featuring a dual X-brace design and a unique polymer casting, this top-of-the-line exam table will fit right into any medical facilities Ergonomic Safety Lift Plan. It boasts a 550 lb Bariatric lift and load patient weight rating and a 17" to 35" electric height range.
-
#63400: Locking Twin Casters - one end of the table. Helps to easily move your table in the room.
-
#63264: Second Side Rail - 23.5" (60 cm) long x 6" (15 cm) tall (from surface of the table).
Features
 Features
- 17" to 35" electric height range makes wheelchair transfer safe and easy.
- Ideally suited for any medical facilities Ergonomic Safety Lift Plan.
- 550 lb Bariatric lift and load patient weight rating.
- Polymer casting surface makes cleaning those surfaces quick and easy.
- Unique dual X-brace design.
- Measures 31" W.
- Lift-Assist Backrest.
- 2.5" Comfort padding
Specifications
Specifications
| Top |
31" (79 cm) wide × 73" (185 cm) long |
| Motion 1 |
Electric Height 17"–35" (43–89 cm) |
| Motion 2 |
Lift-Assist Backrest 0°–90° |
| Motion 3 |
Manual Leg Section 10°–90° |
| Hand Control |
Controls all powered movements |
| Weight Capacity |
550 lb (250 kg) |
| Product Weight |
200 lb (91 kg) |
| Padding |
2.5" (6 cm) Comfort Foam |
| Fabric |
Premium, PVC-free TerraTouch |
| Safety Listings |
FDA listed, cETLus approved, CB Certificate |
Â
Colors
Accessories
Accessories
The OakWorks Orthopedic Hi-Lo Casting Table is commonly purchased with the:
-
#66180: OakWorks Prone Pillow - Offers superior patient positioning for any size/shape patient.
-
#PKG7554: OakWorks QuickLock Head Rest (Black) & AeroCel Pad - Comfortable, adjustable prone or supine support (requires mounting plate).
-
#11349-02: OakWorks Paper Roll Holder - Vanilla Accommodates 21" (53cm) roll (roll not included).
-
#74735: OakWorks Universal Table Extender with 3" Padding - 21" (53 cm) W x 12.5" (32 cm) L.
-
#74736: OakWorks Universal Table Extender with 4" Padding - 21" (53 cm) W x 12.5" (32 cm) L.
Literature
 Literature
OakWorks Medical Brochure
OakWorks Medical Products Catalog
OakWorks PX Series Exam Table Flyer
What our Experts Think
-
Ergonomic height range: Electric lift adjusts from 17″ to 35″, making transfers safer and reducing strain for clinicians.
-
High patient capacity: Supports up to 550 lb, suitable for bariatric patients.
-
Durable, easy-to-clean surface: Polymer casting top resists casting materials and simplifies clean-up.
-
Stable frame: Dual X-brace construction ensures strength and stability across the full height range.
Q&A
Q: What is the OakWorks Orthopedic Hi‑Lo Casting Table (OWK‑69268‑T01)?
A: A height‑adjustable medical table designed for lower-extremity casting, splinting, and orthopaedic procedures.
Q: What is its height range?
A: Electric adjustment from 17″ to 35″.
Q: What is the patient weight capacity?
A: Supports up to 550 lb (250 kg).
Q: What are the table dimensions?
A: Tabletop measures 31″ wide × 73″ long.
Q: How is the surface constructed?
A: Polymer casting surface for easy cleanup of casting materials.
Q: What motion mechanisms does it have?
A: Electric height, lift-assist backrest (0°–90°), and manually adjustable leg section (10° to –90°).
Q: What padding and upholstery are used?
A: 2.5″ Comfort Foam with TerraTouch™ medical-grade PVC-free fabric.
Q: How much does the table weigh?
A: Approximately 200 lb (91 kg).
Q: How is the height controlled?
A: Foot-operated electric control.
Q: What safety or regulatory certifications does it have?
A: FDA-listed, cETLus-approved, and CB-certified.
Maintenance Tips
-
Clean surfaces regularly: Wipe the table top, rails, and base with a mild, non-abrasive cleaner to remove dust, debris, or casting material residue.
-
Inspect mechanical components: Check hydraulic lifts, joints, and hinges for wear or loose bolts; tighten and service as needed.
-
Lubricate moving parts: Apply light lubricant to hinges, pivots, and casters to ensure smooth operation.
-
Check safety features: Verify brakes, locks, and restraints function properly to prevent accidents.
-
Maintain upholstery: Inspect padding for tears or wear; clean with a gentle disinfectant to maintain hygiene.
-
Store in a dry environment: Avoid moisture exposure to prevent corrosion and extend table lifespan.
