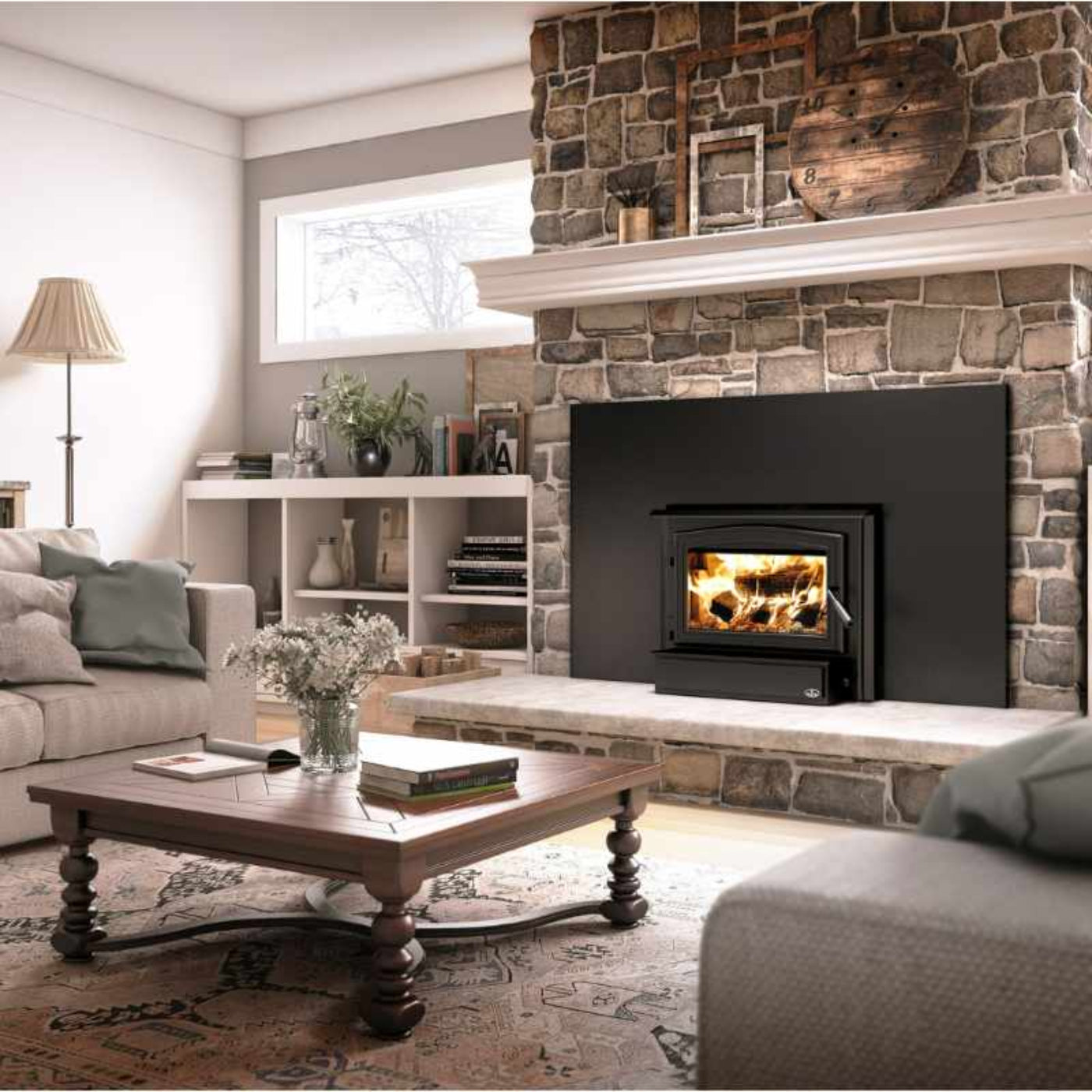

Osburn 1700 Wood Insert - OB01705
The Osburn 1700 Wood Insert from Osburn
Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device!

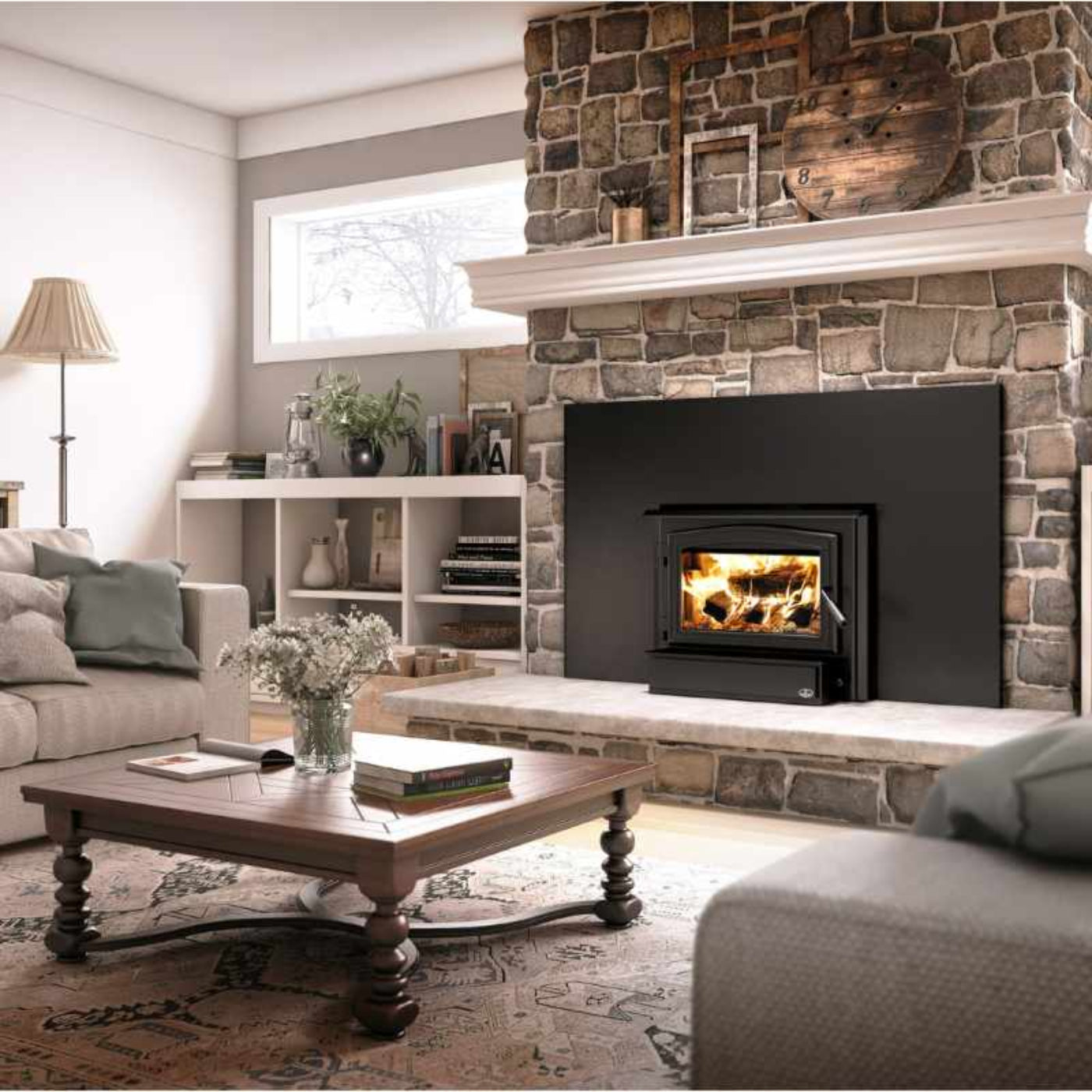

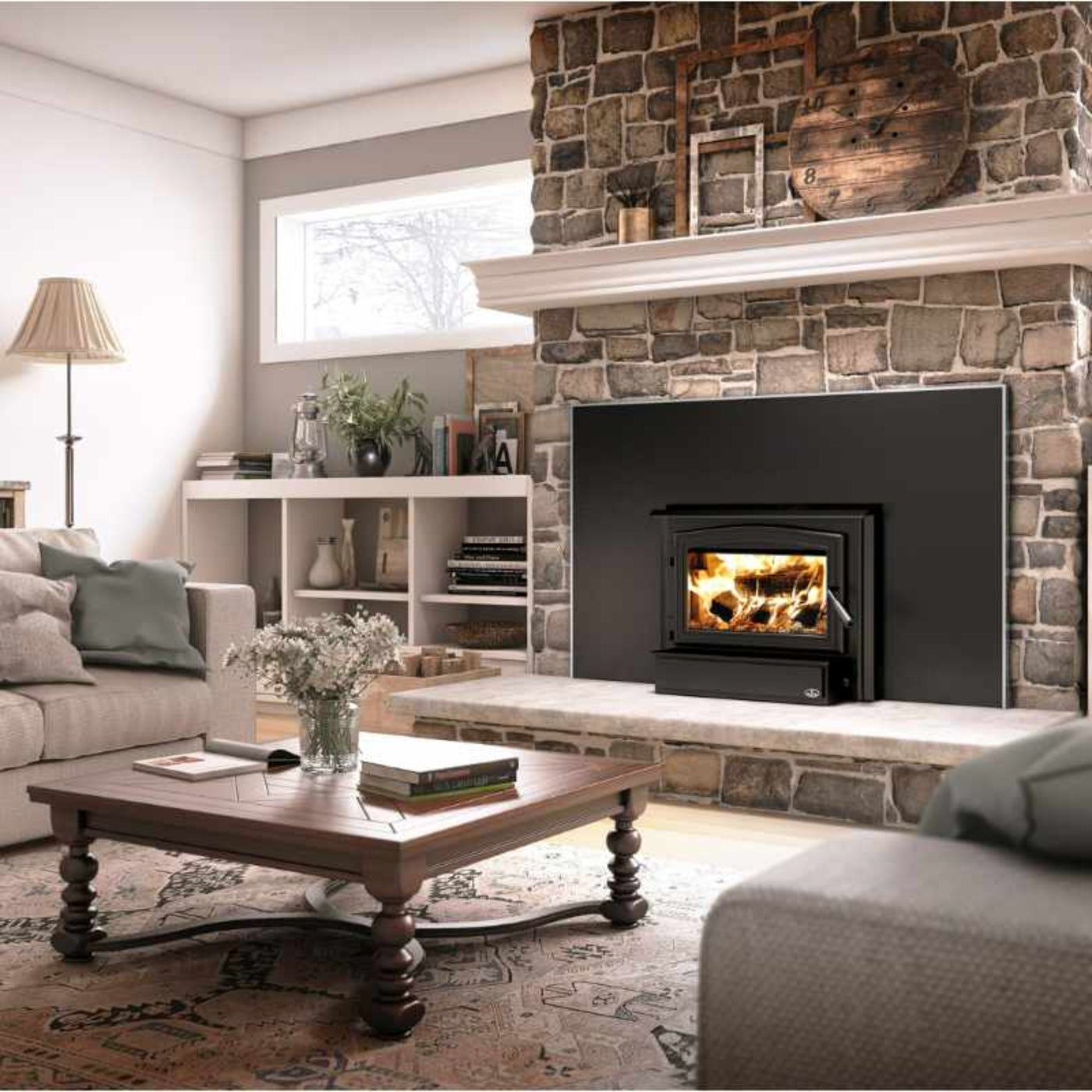

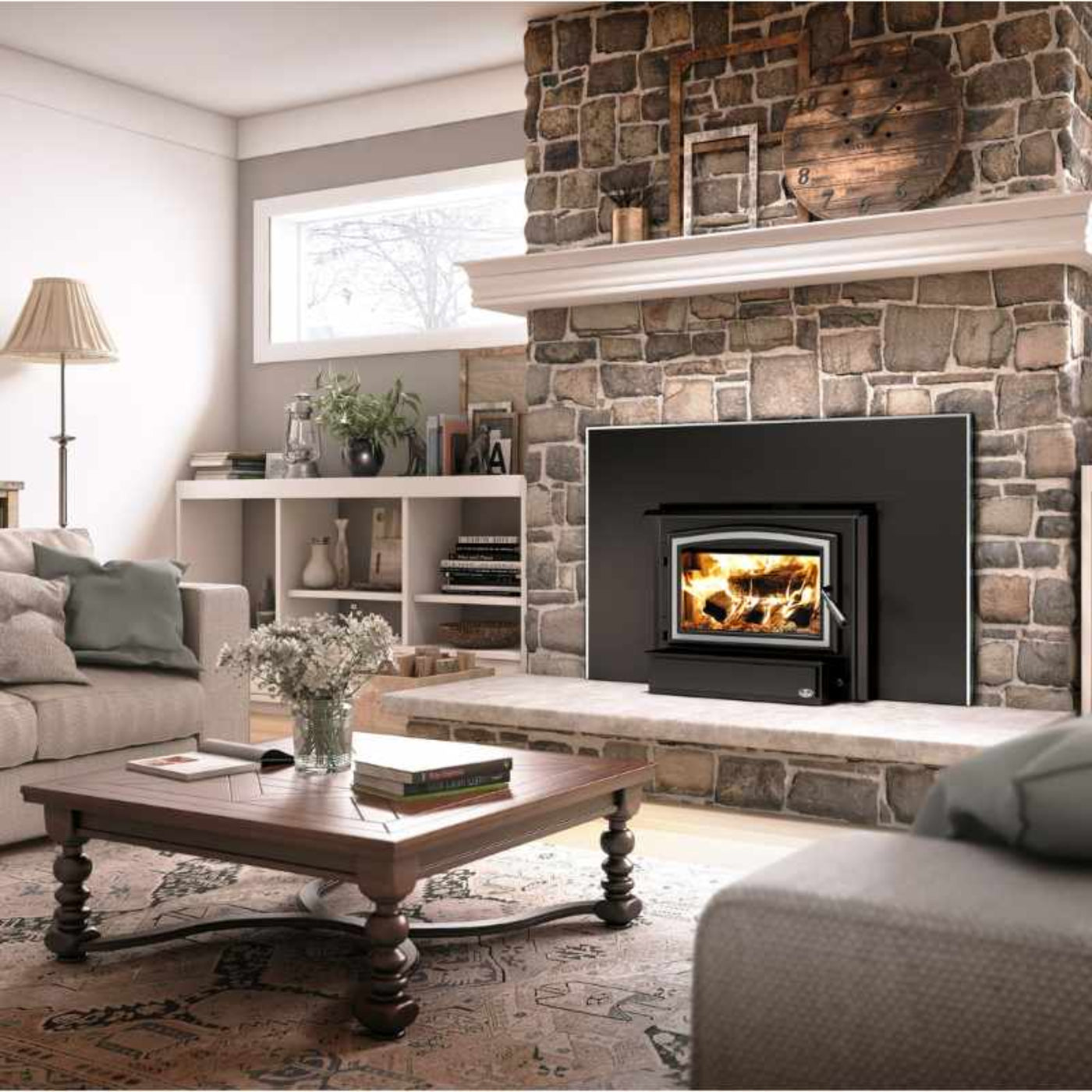

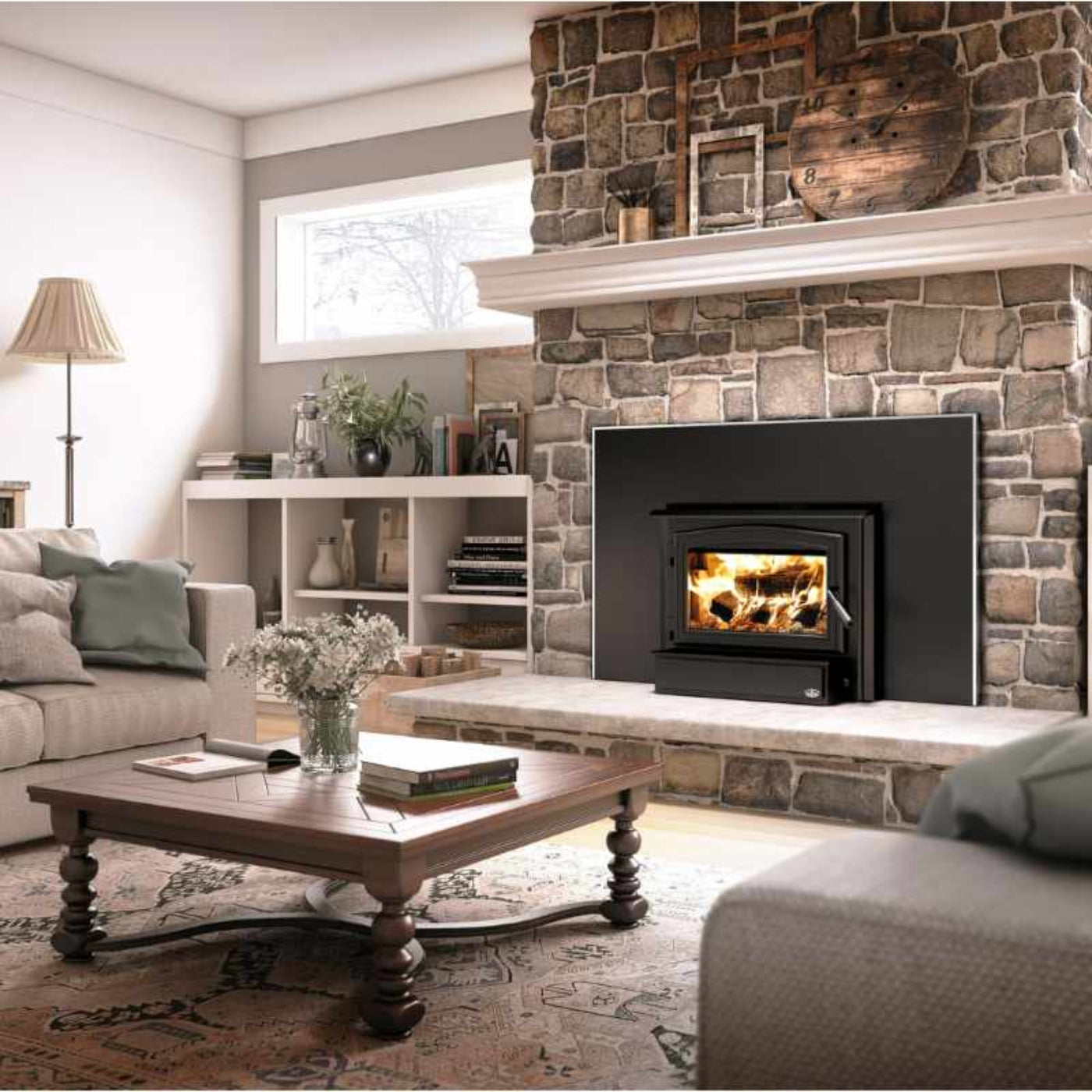

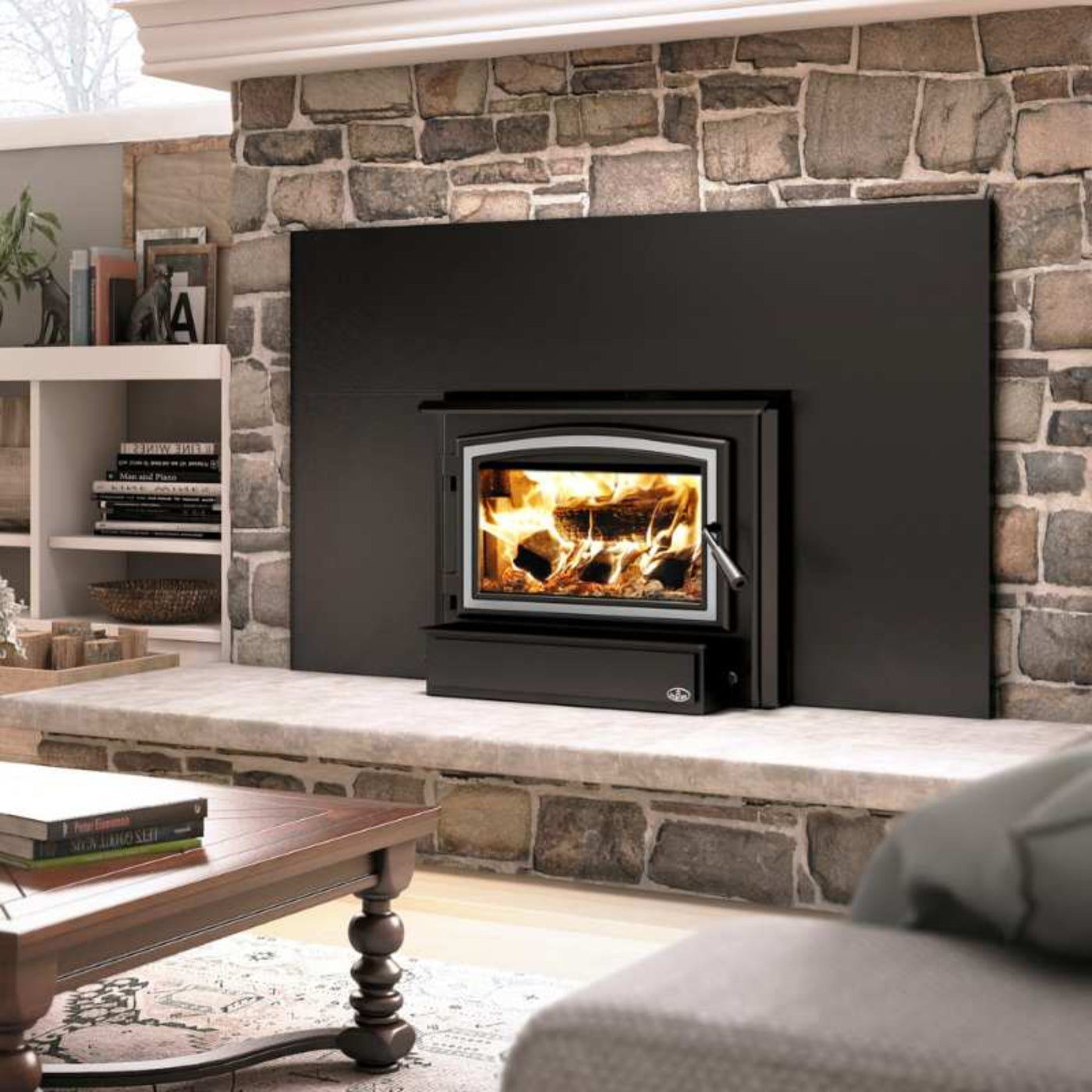

Inside and out, this insert is engineered from high-quality materials that put you at the center of a heating experience for many years: high-density bricks, a stainless steel heat shield added to the C-Cast firestop, a cast iron door, and a quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates, and faceplate trims.
Specifications
| Fuel type |
Dry cordwood (16" recommended) |
| Recommended heating area-ft² |
500 - 1,800 |
| Overall firebox volume-ft³ |
1.86 |
| EPA loading volume-ft³ |
1.44 |
| Maximum burn time : () |
7 h |
| Maximum heat output-dry cordwood |
65,000 BTU/h (19 kW) |
| Overall heat output rate < |
9,800 BTU/h (2.87 kW) to 52,200 BTU/h (15.3 kW) |
| Average overall efficiency (dry cordwood) |
68 % (HHV) |
73 % (LHV) |
| Optimum overall efficiency |
76 % |
| Optimum heat transfer efficiency |
75 % |
| Average particulate emissions rate |
2.4 g/h |
| Average CO |
103 g/h |
Resources
Manual
What Our Experts Think
-
Efficient Heating: Ideal for medium-sized rooms, providing consistent warmth with optimal fuel efficiency.
-
Eco-Friendly Combustion: Low emissions and advanced airwash system ensure a cleaner, greener burn.
-
Compact & Stylish: Modern design fits perfectly into existing fireplaces while maintaining powerful heat output.
-
User-Friendly: Simple controls for easy heat regulation and air intake adjustment.
-
Durable Construction: Built with high-quality materials for long-lasting performance and low maintenance.
-
Cost-Effective: A great solution for reducing heating costs while offering reliable warmth.
Q&A
Q: What type of wood does it burn?
A: It burns seasoned hardwood for optimal heat efficiency and performance.
Q: How long does it burn per load?
A: The insert provides up to 8 hours of burn time, depending on wood type and burn conditions.
Q: Does it come with a blower?
A: The Osburn 1700 Wood Insert includes an optional blower to enhance heat distribution.
Q: What are the insert's dimensions?
A: Approx. 26 ½” W x 23 ½” H x 20 ¾” D.
Q: Does it qualify for tax credits?
A: Yes, it qualifies for federal biomass stove tax credits.
Maintenance Tips
-
Clean Ashes Regularly – Empty the ash pan to maintain proper airflow and prevent buildup in the firebox.
-
Inspect Gaskets – Check door and glass gaskets for wear and replace them if damaged to ensure a tight seal.
-
Clean the Glass – Use a wood stove glass cleaner or a damp cloth with ash to keep the glass clear of soot.
-
Chimney Cleaning – Sweep the chimney annually to remove creosote buildup and ensure efficient operation.
-
Firebrick Inspection – Check firebricks for cracks and replace them if damaged to ensure optimal heat retention.
-
Burn Dry Wood – Use only dry, seasoned wood to reduce creosote buildup and improve combustion efficiency.
