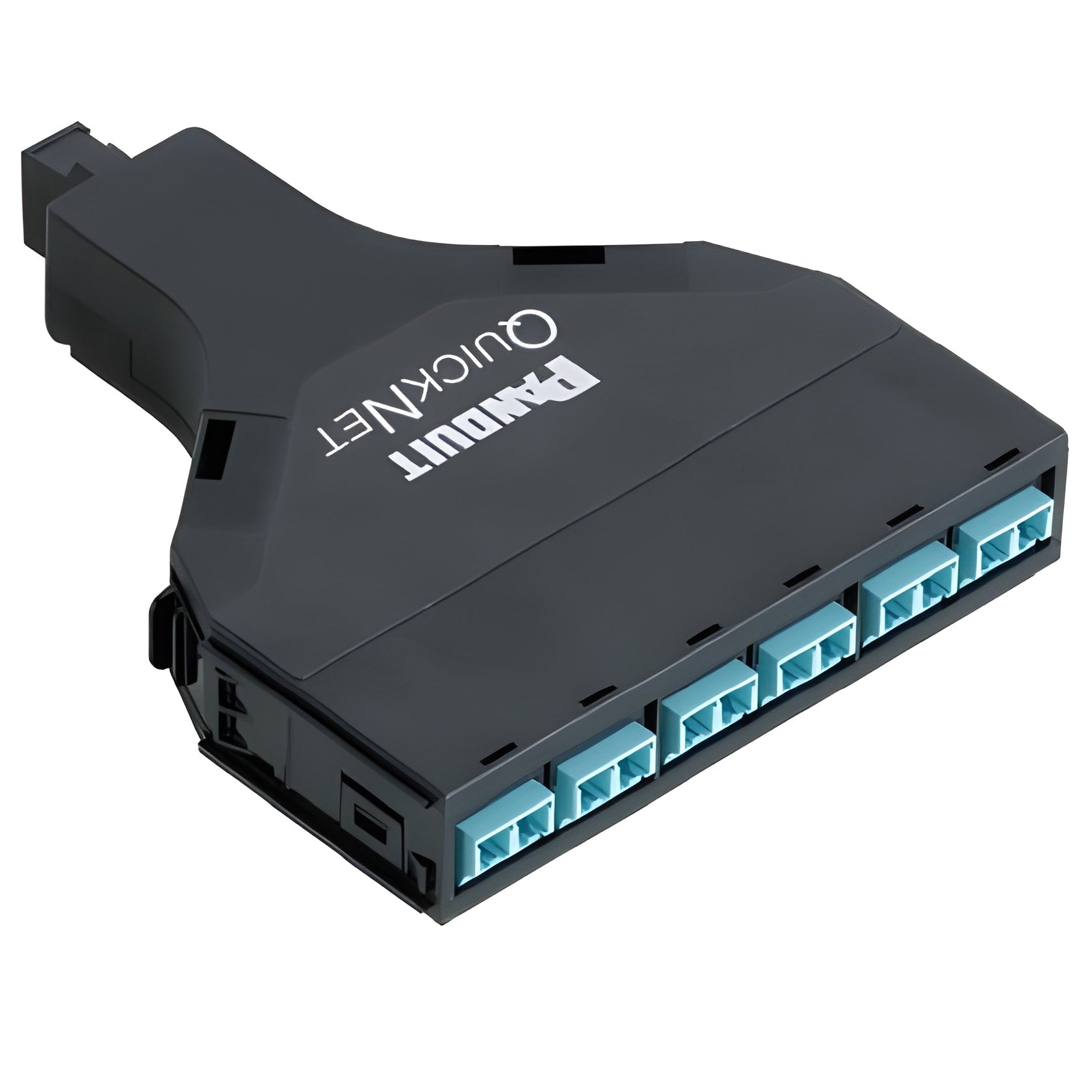

Panduit 12-fiber OM4 QN SFQ Cassette, Duplex LC - FQZN-12-10AS

Panduit 12-fiber OM4 QN SFQ Cassette, Duplex LC - FQZN-12-10AS

Elevate your network performance with the Panduit 12-Fiber OM4 QN SFQ Cassette, meticulously designed for seamless fiber optic connectivity. Crafted by Panduit, a renowned leader in network solutions, this cassette ensures unparalleled performance in data centers, telecommunications networks, and enterprise environments. With its 12 ports (6 Duplex) and LC Duplex connectors, it offers efficient connectivity for your critical applications.

Featuring multimode OM4 10Gig fiber type, this cassette is optimized for high-speed data transmission, delivering exceptional performance for demanding applications. The modified Method A (Pair Flipped) polarity ensures precise signal transmission, minimizing errors and maximizing network efficiency. Compatible with Panduit QuickNet patch panels, it seamlessly integrates into your existing network infrastructure, streamlining installation and maintenance processes.

Features

• Efficient Connectivity: 12 ports (6 Duplex) provide ample capacity for your network requirements.

• High-Speed Data Transmission: Multimode OM4 10Gig fiber type ensures optimal performance for demanding applications.

• Precise Polarity: Modified Method A (Pair Flipped) polarity minimizes errors and ensures reliable signal transmission.

• Seamless Integration: Compatible with Panduit QuickNet patch panels for easy installation and maintenance.

• Reliable Construction: Manufactured by Panduit for durability and reliability in demanding environments.

Specification

What Our Experts Think

• High-Bandwidth OM4 Performance: The Panduit 12-fiber OM4 QN SFQ Cassette (FQZN-12-10AS) is engineered for optimal performance with OM4 multimode fiber, providing high bandwidth for fast, efficient data transmission across short to medium distances.
• Duplex LC Configuration: With a duplex LC configuration, this cassette is ideal for environments that require high-density fiber connections, ensuring efficient utilization of network resources while simplifying cable management.
• Perfect for Data Centers & Enterprise Networks: Designed for high-performance applications, this cassette is perfect for data centers, enterprise backbones, and other demanding network environments, offering reliable and fast connectivity.
• Compact & Space-Efficient: The 12-fiber design allows for a compact, space-saving solution that enables high-density fiber installations, optimizing network infrastructure and reducing clutter.
• Simple Installation & Maintenance: The SFQ design makes installation and maintenance straightforward, allowing for quick setup and easy ongoing network management.

Q&A

Q: What is the Panduit 12-fiber OM4 QN SFQ Cassette, Duplex LC - FQZN-12-10AS?
A: A 12-fiber optical cassette designed for OM4 multimode fiber with duplex LC connectors, providing high-density, efficient, and high-performance connectivity for short to medium-range network applications.

Q: What are the key features?

• 12-Fiber Capacity: Supports up to 12 fiber connections in a single cassette, providing high-density fiber management.
• OM4 Multimode Optimization: Designed for OM4 multimode fiber, offering excellent bandwidth and high-speed performance for modern networks.
• Duplex LC Connectors: Equipped with duplex LC connectors for efficient and compact connectivity in high-density installations.
• Low-Loss Design: Features low insertion loss and high reliability, ensuring optimal signal integrity and network performance.
• Durable Construction: Built to withstand demanding environments, ensuring long-term stability and reliability in data centers or enterprise networks.

Q: Who is this cassette ideal for?
A: Ideal for network engineers, data centers, and enterprise IT professionals looking for high-density, high-performance fiber optic solutions with duplex LC connectivity.

Q: What makes it unique?
A: Its combination of 12-fiber capacity, OM4 optimization, and duplex LC connectors makes it perfect for high-speed, high-bandwidth applications while maintaining a compact and space-efficient design.

Q: Is it easy to install?
A: Yes, the cassette is designed for easy integration into Panduit fiber management systems, allowing for quick and simple installation and configuration.

Q: What applications is this cassette used for?
A: Commonly used in data centers, telecommunications systems, enterprise networks, and other fiber optic systems where high-speed data transmission and high-density connectivity are essential.

Maintenance Tips

• Regular Inspection for Physical Damage:

  • Regularly inspect the cassette and its connectors for physical damage, including cracks, chips, or abrasions on the connectors or fiber strands.
  • Check for misalignment or loose connectors, which can cause signal degradation or loss.

• Keep Fiber Optic Connectors Clean:

  • Ensure that the fiber connectors remain free from dust and contamination. Use fiber optic cleaning solutions, lint-free wipes, or fiber optic cleaning pens to clean the connectors.
  • Avoid using abrasive materials or harsh chemicals that could damage or scratch the delicate fiber ends.

• Monitor Fiber Bend Radius:

  • Follow the manufacturer's recommended bend radius to prevent damage to the fibers. Over-bending can cause signal loss or permanent damage to the fiber optic cables.
  • Use cable management systems like trays or clips to maintain a gentle curve in the cables.

• Store in a Controlled Environment:

  • Store the fiber optic cassette in a clean, dry, and temperature-controlled environment. Extreme temperatures or humidity can degrade the quality and lifespan of the fibers.
  • Avoid exposure to dust, moisture, or chemicals that may negatively affect the connectors or fibers.

• Clean Connectors Before Use:

  • Always clean the connectors before connecting or disconnecting the fiber optic cables to prevent dirt or oils from affecting signal quality.
  • Perform a visual inspection to ensure no contamination or debris is present on the fiber ends.

• Prevent Exposure to Moisture:

  • Ensure that the fiber cassette and its components remain dry and protected from moisture. Water or excessive humidity can cause fiber degradation and connection failures.
  • Use moisture-resistant enclosures or protective covers if the cassette is installed in high-humidity environments.

• Secure Fiber Cables and Cassette:

  • Avoid placing physical stress on the fibers, connectors, or the cassette itself. Ensure that the cables are routed in a way that minimizes tension and risk of damage.
  • Secure fiber cables with appropriate cable management tools to prevent accidental pulls, twists, or impacts.

• Perform Regular Performance Tests:

  • Conduct periodic performance testing to check for signal degradation or other issues. Use optical time-domain reflectometers (OTDRs) or other diagnostic tools to verify the fiber link quality.
  • Address any performance issues such as signal loss or attenuation as soon as possible.

• Ensure Proper Connection of Duplex LC:

  • When using the Duplex LC connectors, make sure they are correctly inserted into the cassette with proper alignment. Misalignment or improper insertion can cause signal issues or damage.
  • Avoid excessive force when inserting or removing the connectors to prevent damage to the fiber ends or connectors.

• Replace Damaged Components Promptly:

  • If any fiber, connector, or component shows signs of damage, replace it immediately to prevent further issues or signal degradation.
  • Contact Panduit for assistance or replacement parts if necessary.
