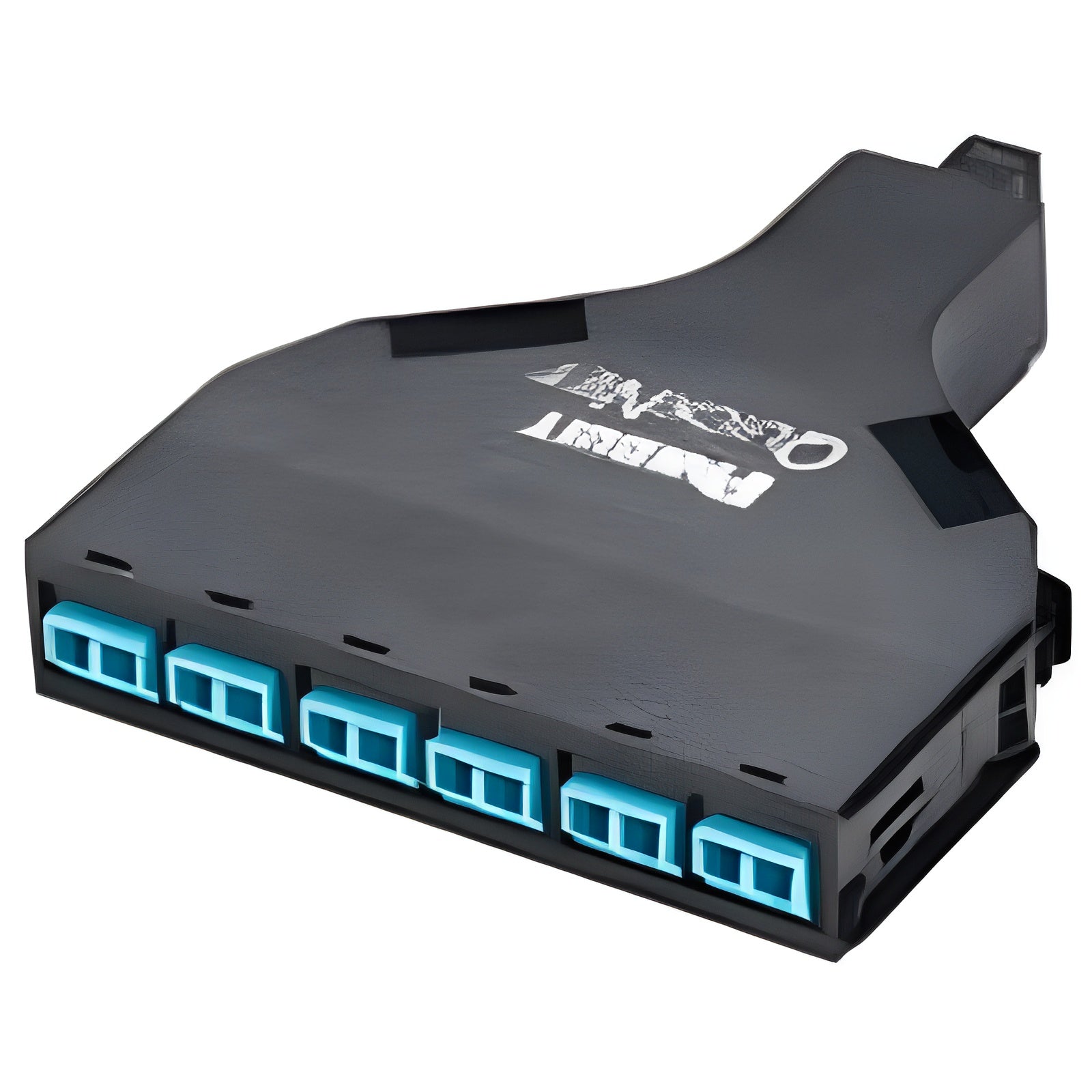

Panduit 12-fiber QN SFQ cassette, optimized OM4 - FQZO-12-10AF

Panduit 12-fiber QN SFQ cassette, optimized OM4 - FQZO-12-10AF

Elevate your network performance with the Panduit 12-Fiber OM4 QN SFQ Cassette, meticulously designed for seamless fiber optic connectivity. Crafted by Panduit, a renowned leader in network solutions, this cassette ensures unparalleled performance in data centers, telecommunications networks, and enterprise environments. With its 12 ports (6 Duplex) and LC Duplex connectors, it offers efficient connectivity for your critical applications.

Featuring multimode OM4 10Gig fiber type, this cassette is optimized for high-speed data transmission, delivering exceptional performance for demanding applications. The modified Method A (Pair Flipped) polarity ensures precise signal transmission, minimizing errors and maximizing network efficiency. Compatible with Panduit QuickNet patch panels, it seamlessly integrates into your existing network infrastructure, streamlining installation and maintenance processes.

Features

• Efficient Connectivity: 12 ports (6 Duplex) provide ample capacity for your network requirements.

• High-Speed Data Transmission: Multimode OM4 10Gig fiber type ensures optimal performance for demanding applications.

• Precise Polarity: Modified Method A (Pair Flipped) polarity minimizes errors and ensures reliable signal transmission.

• Seamless Integration: Compatible with Panduit QuickNet patch panels for easy installation and maintenance.

• Reliable Construction: Manufactured by Panduit for durability and reliability in demanding environments.

Specification

What Our Experts Think

• Optimized for High-Speed OM4 Networks: The Panduit 12-fiber QN SFQ Cassette (FQZO-12-10AF) is designed for OM4 multimode fiber, offering excellent performance for high-bandwidth applications, ensuring reliable, high-speed data transmission over short to medium distances.
• Ideal for Data Centers & Enterprise Networks: With OM4’s higher bandwidth capabilities, this cassette is perfect for applications requiring fast, efficient data transfer in high-performance environments like data centers and enterprise network backbones.
• Compact & Space-Saving Design: The 12-fiber cassette is compact, allowing for efficient use of space and high-density fiber management while supporting multiple connections within a smaller form factor.
• Easy to Install & Maintain: The SFQ cassette offers straightforward integration and maintenance, making it simple to manage fiber connections and reduce installation time in complex network setups.
• Durable & Long-Lasting: Crafted with high-quality materials, this cassette is built to ensure long-term durability and reliable performance, even in demanding, high-traffic network environments.

Q&A

Q: What is the Panduit 12-fiber QN SFQ Cassette, optimized OM4 - FQZO-12-10AF?
A: A 12-fiber optical cassette designed for OM4 multimode fiber, providing optimized connectivity for high-speed data applications, ideal for short to medium-range fiber optic networks.

Q: What are the key features?

• 12-Fiber Capacity: Supports up to 12 fiber connections in one compact unit, maximizing space efficiency.
• OM4 Optimization: Enhanced for OM4 multimode fiber, offering higher bandwidth and better performance for demanding applications.
• Multimode Fiber Design: Best suited for short to medium-range distances with improved signal integrity and reduced loss.
• High-Density Form Factor: Efficiently houses multiple fiber connections in a compact, easy-to-integrate design.
• Durable and Reliable: Built to support demanding network environments, providing long-term, stable performance.

Q: Who is this cassette ideal for?
A: Perfect for network engineers, data centers, and enterprises that need high-density, high-performance multimode fiber solutions for fast, reliable network connectivity.

Q: What makes it unique?
A: Optimized specifically for OM4 multimode fiber, it delivers excellent bandwidth and speed for high-performance data applications over short to medium distances, ensuring superior efficiency and signal quality.

Q: Is it easy to install?
A: Yes, the cassette is designed for quick and simple integration into Panduit fiber management systems, ensuring seamless installation and easy setup.

Q: What applications is this cassette used for?
A: Commonly used in high-speed data transmission applications such as data centers, enterprise networks, telecommunications systems, and other fiber optic systems requiring high bandwidth and fast speeds.

Maintenance Tips

• Inspect for Physical Damage:

  • Regularly inspect the cassette, connectors, and fiber optic cables for any visible damage such as cracks, abrasions, or deformed connectors.
  • Check for fiber bends beyond the recommended bend radius, as this can lead to performance degradation.

• Clean Fiber Optic Connectors:

  • Always ensure that the fiber optic connectors are free of dust and contamination. Use specialized fiber optic cleaning tools such as lint-free wipes or cleaning pens with fiber optic cleaning solution.
  • Avoid using abrasive materials or harsh chemicals that could damage the delicate fiber ends or connectors.

• Proper Storage and Handling:

  • Store the cassette in a clean, dry, and temperature-controlled environment to prevent exposure to moisture or extreme temperatures.
  • Handle the cassette carefully by the edges to avoid contamination from fingerprints or damage to fiber ends. Always store the cassette in a secure location to avoid physical stress or impacts.

• Monitor Fiber Bend Radius:

  • Ensure that the fiber cables are not bent beyond their recommended bend radius. Over-bending fibers can cause signal loss or permanent damage to the fiber strands.
  • Use cable management tools, such as trays or clips, to maintain controlled and gentle routing of the fibers.

• Keep Fiber Connectors Clean:

  • Regularly inspect the connectors for dust and debris. Dust on the fiber ends can severely impact performance.
  • Use fiber optic cleaning tools and solutions to ensure clean connections before making or breaking fiber optic links.

• Prevent Exposure to Moisture:

  • Keep the cassette and fiber optic cables away from moisture or humidity, as exposure can degrade the performance of the fiber optics.
  • If installed in an area prone to humidity, consider using moisture-resistant enclosures or protective covers for the cassette.

• Test Signal Integrity:

  • Perform regular performance testing to verify that signal integrity is maintained over time. Use optical time-domain reflectometers (OTDRs) or other diagnostic tools to detect any faults or degradation.
  • If signal loss or attenuation is detected, investigate for possible issues with the fibers or connectors.

• Avoid Over-tightening:

  • When securing fiber connections, ensure that you do not over-tighten the connectors. Over-tightening can cause damage to the fibers or connectors, potentially affecting the performance of the entire system.
  • Use proper torque when installing and tightening fiber optic connectors.

• Use Proper Cable Management:

  • Properly manage cables to prevent strain or physical damage. Use cable organizers and trays to avoid tangled or overly-tight cables.
  • Ensure that the cables are not under excessive tension, as this can cause strain on the fibers or connectors.

• Replace Damaged Components:

  • If you identify any damaged fibers, connectors, or components, replace them as soon as possible to avoid performance degradation.
  • Reach out to Panduit for assistance or guidance regarding replacement parts or support for damaged items.
