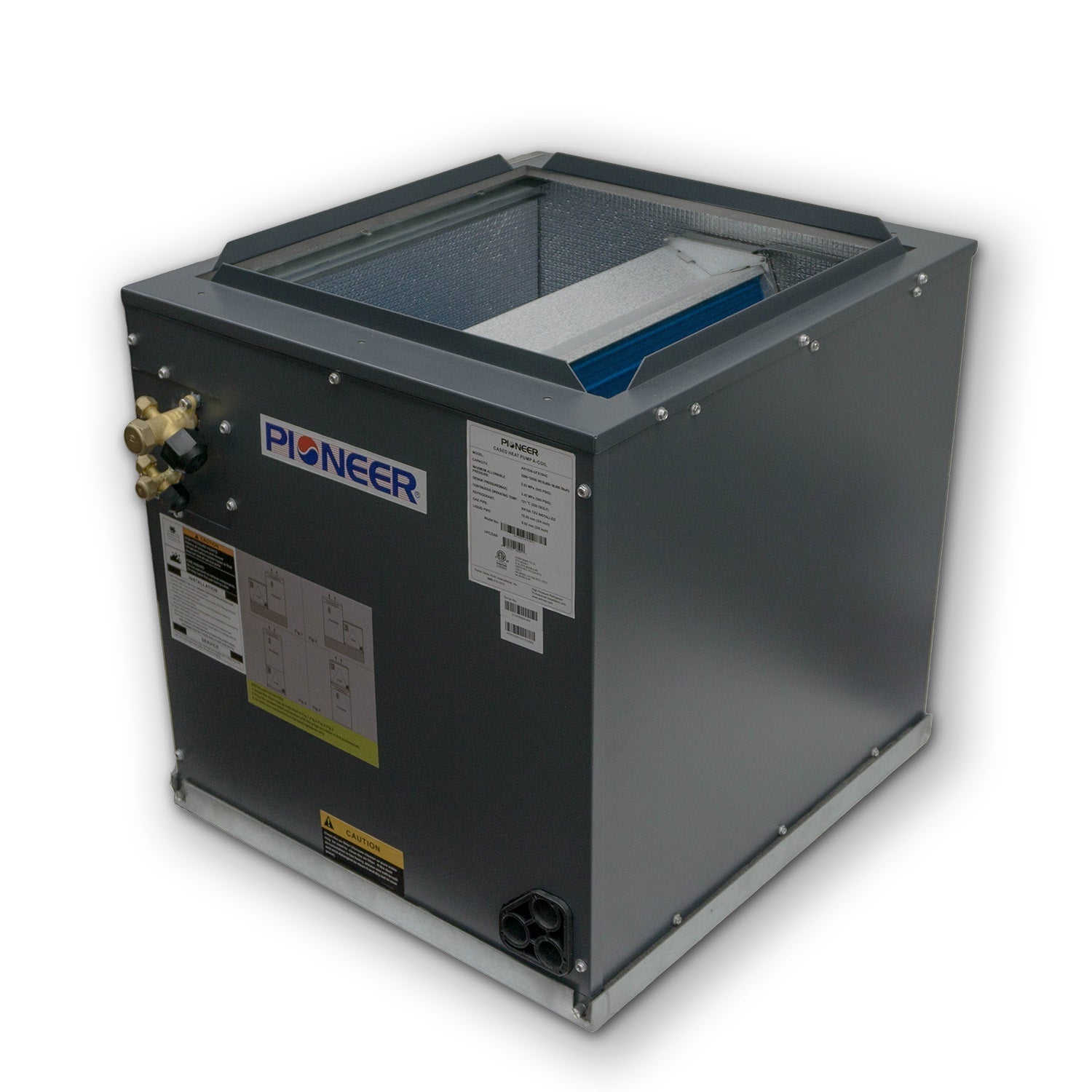

Pioneer 42,000~60,000 BTU Furnace-Connect Multi-Position Cased AC Heat Pump A-Coil - AR4260-UFX18HC
The Pioneer Cased Heat Pump A-Coil is a breakthrough in adaptable and efficient home climate control. This versatile A-coil is crafted to integrate seamlessly with your existing furnace, or, for optimal performance, it can be paired with Pioneer's high-efficiency YH-series heat pump condenser outdoor sections. Designed to work with systems from 42,000 to 60,000 BTU capacity, this A-coil optimizes the heat exchange process, delivering premium heating and cooling for your home. Experience a perfect blend of high-end technology and unparalleled performance with the Pioneer Cased Heat Pump A-Coil.
Features
-

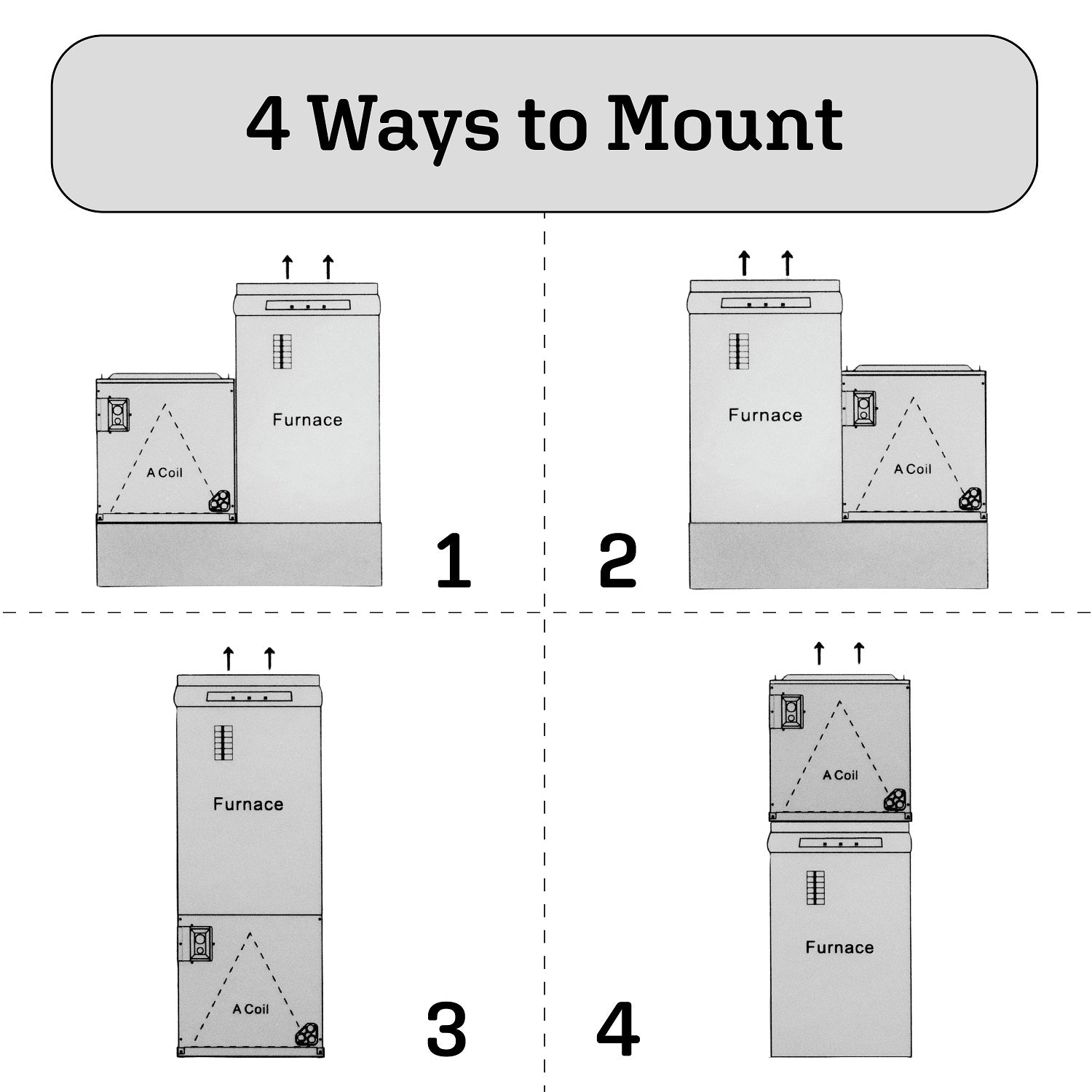

Versatile Compatibility: Pioneer's A-Coil is specifically designed to integrate effortlessly with your current furnace, allowing for a smooth upgrade and enhanced system performance. It can mounted in various configurations, according to your preference.
-
Optional Match-Up: For peak efficiency, match the A-Coil with Pioneer's high-efficiency YH-series heat pump condenser outdoor section (see models YH4248GHFD18R2Â or YH4860GHFD18R2). This combination delivers unrivaled heating and cooling performance.
-
Variable Capacity: Catering to systems ranging from 42,000 to 60,000 BTU, this A-coil's flexible design lets you pair it with various heat pump systems to meet your unique needs.
-
High Efficiency: Pioneer's advanced engineering assures efficient heat exchange, resulting in optimal performance of your heating and cooling system, a more comfortable environment, and significant energy savings.
-
Robust Casing: The A-Coil's durable construction guarantees leak prevention, providing long-lasting service and peace of mind.
-
Condensate Management System: A built-in condensate management system adeptly handles any condensation, ensuring the longevity of your equipment by preventing water damage.
-
Enhanced Comfort: The Pioneer A-Coil promotes consistent indoor temperatures, providing a more comfortable and enjoyable living environment.
-

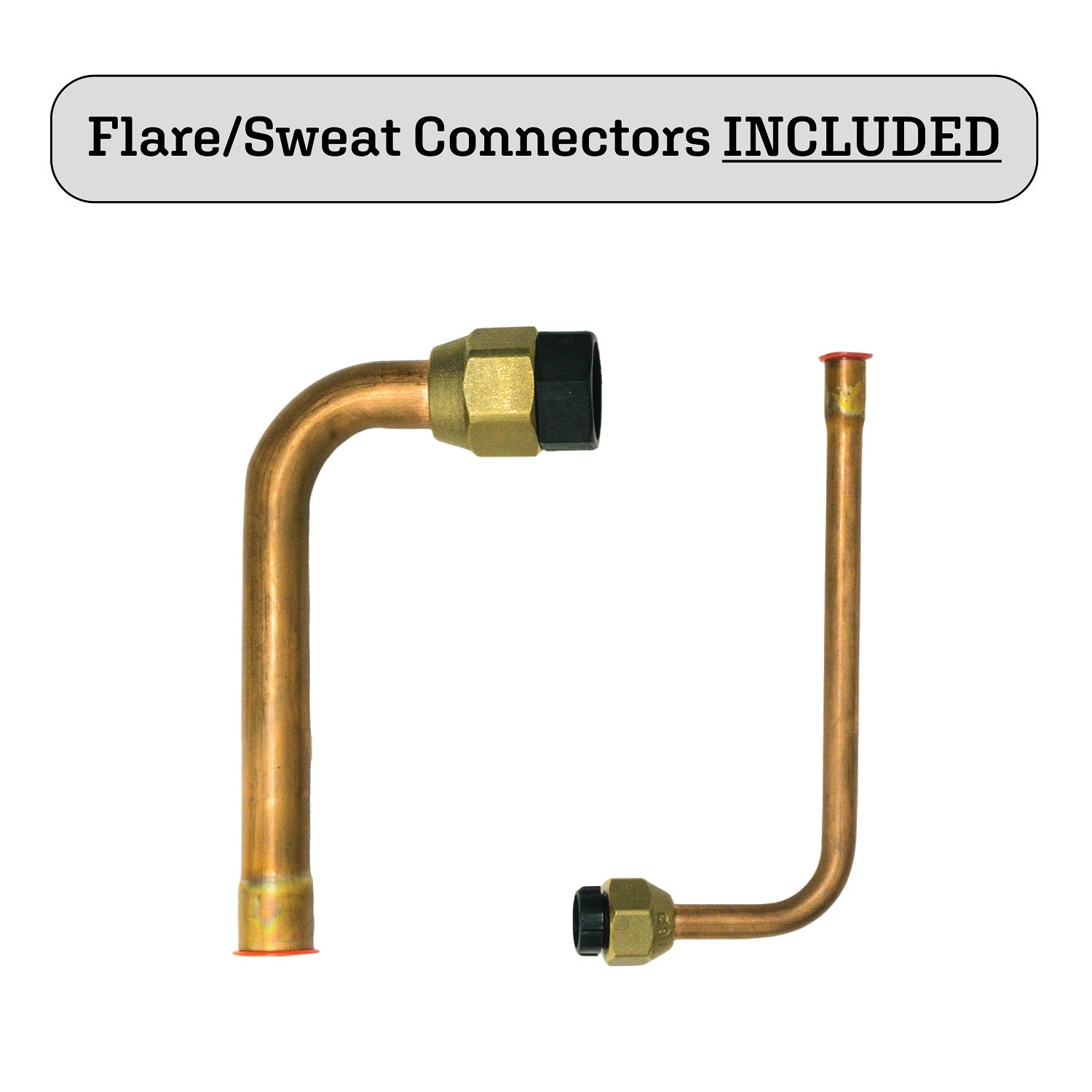

Adaptable Deployment: Easy integration into your existing in-place furnace, with numerous placement selections, and full compatibility with Pioneer YH-series central condenser outdoor section. Included are sweat to flare connectors for simplified commissioning.
-
Energy Savings: Lower your energy consumption and significantly reduce your utility bills thanks to its high-efficiency operation.
-
Quality Assurance: Trust in Pioneer's commitment to high-quality products, superior performance, and exceptional durability.
-
Warranty: We back the Pioneer Cased Heat Pump A-Coil with a generous 5-year warranty, reinforcing our commitment to your satisfaction and comfort.
Specifications
-
Product Dimensions (WDH): 24"-7/16 x 22"-1/16 x 26"-5/16
-

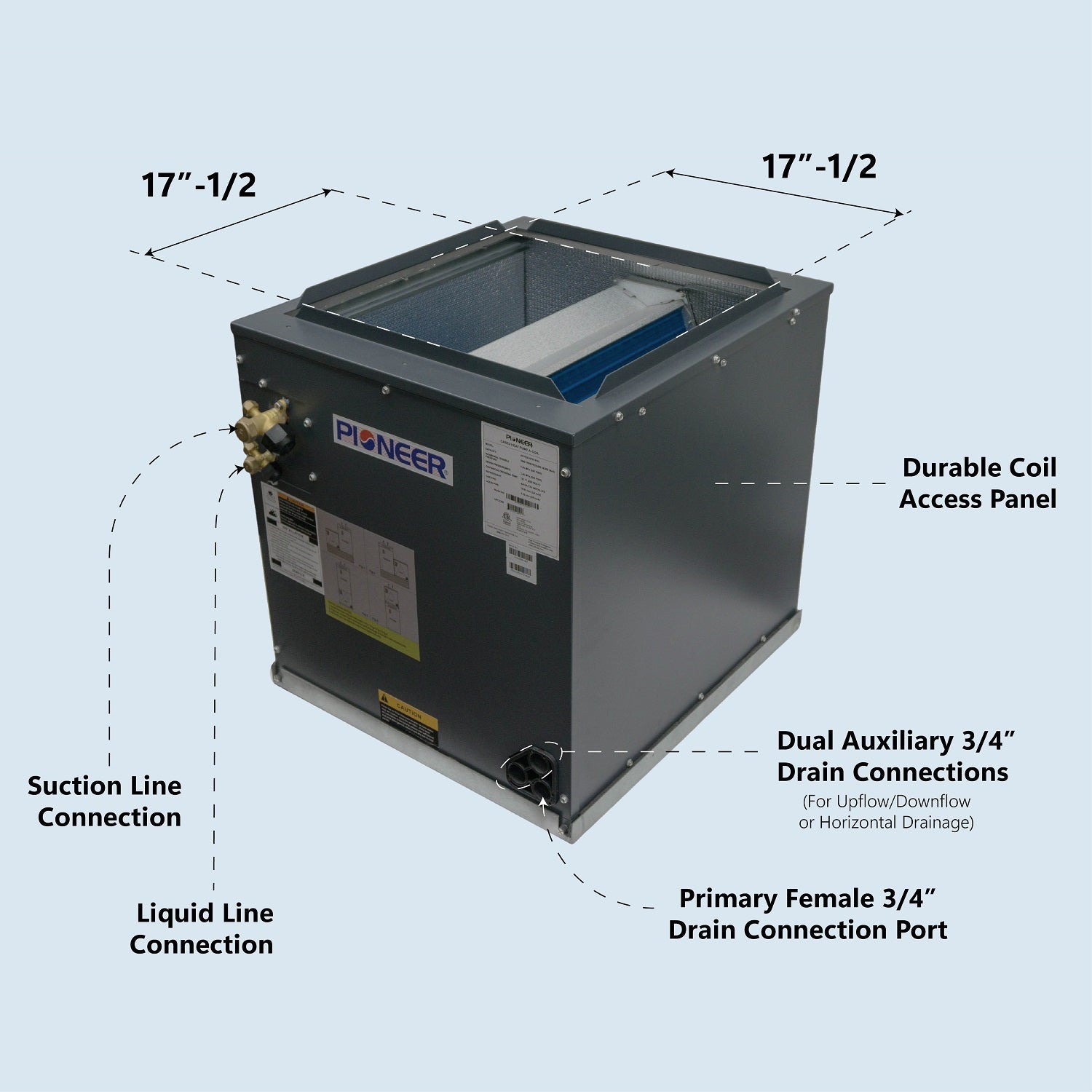

Supply Side Outlet Dimensions: 17"-1/2 x 17"-1/2
-
Electrical Voltage: 208~230V, 60Hz, 1Ph
-
Refrigerant: R-410a with TXV installed
-
Connection Diameters:Â 3/8" (Liquid), 7/8" (Suction)
-
Drain Configurations: Upflow, downflow, left-hand, right-hand discharge
What Our Experts Think
-
High-capacity 42,000–60,000 BTU A-coil for efficient heating and cooling.
-
Designed for seamless furnace connection in residential or light commercial setups.
-
Multi-position design (upflow, downflow, horizontal) ensures flexible installation.
-
Heavy-duty, factory-cased construction for durability and reliability.
-
Compatible with heat pump and air conditioning systems for year-round comfort.
Q&A
Q: What systems is this A-coil compatible with?
A: Works with both air conditioners and heat pumps, connecting directly to a furnace.
Q: Can it be installed in different orientations?
A: Yes, the multi-position design supports upflow, downflow, or horizontal setups.
Q: What is the BTU range?
A: This model supports 42,000 to 60,000 BTU capacity.
Maintenance Tips
-
Keep coil surfaces clean to maintain efficiency.
-
Check for proper airflow and clear any obstructions monthly.
-
Ensure condensate drains are unclogged and draining properly.
-
Schedule annual professional servicing for coil cleaning and refrigerant checks.
