Summary

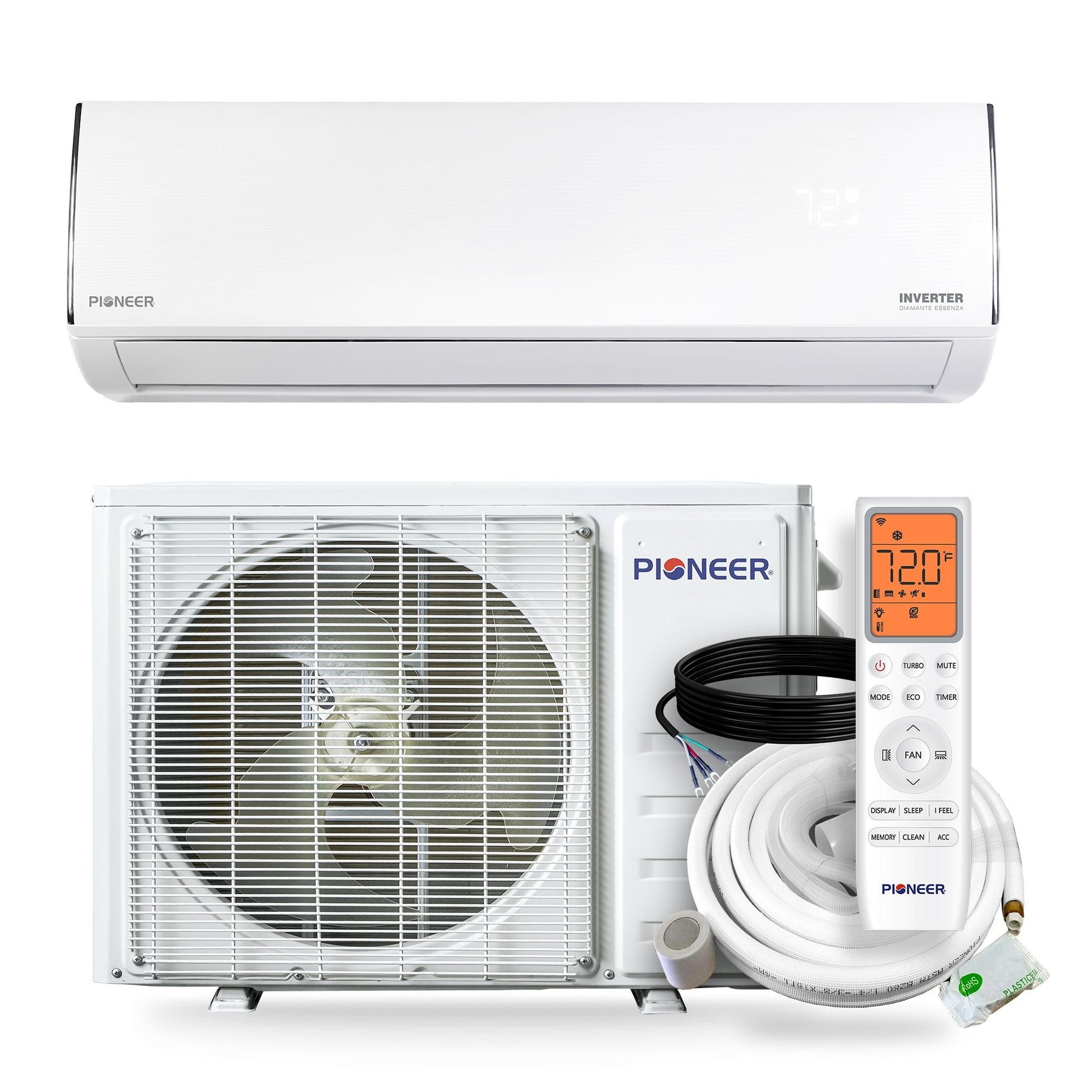

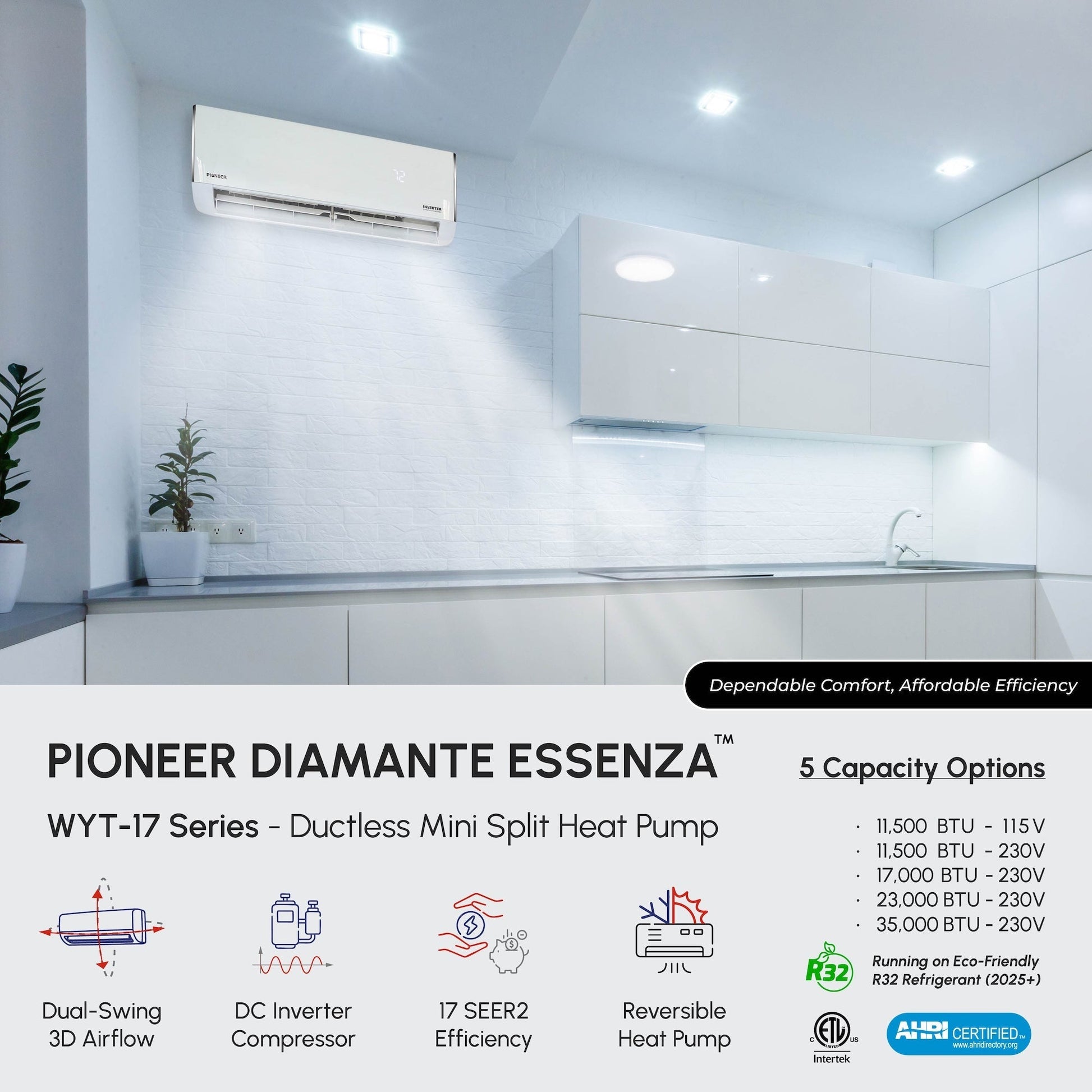

- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 17,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 16,500 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance

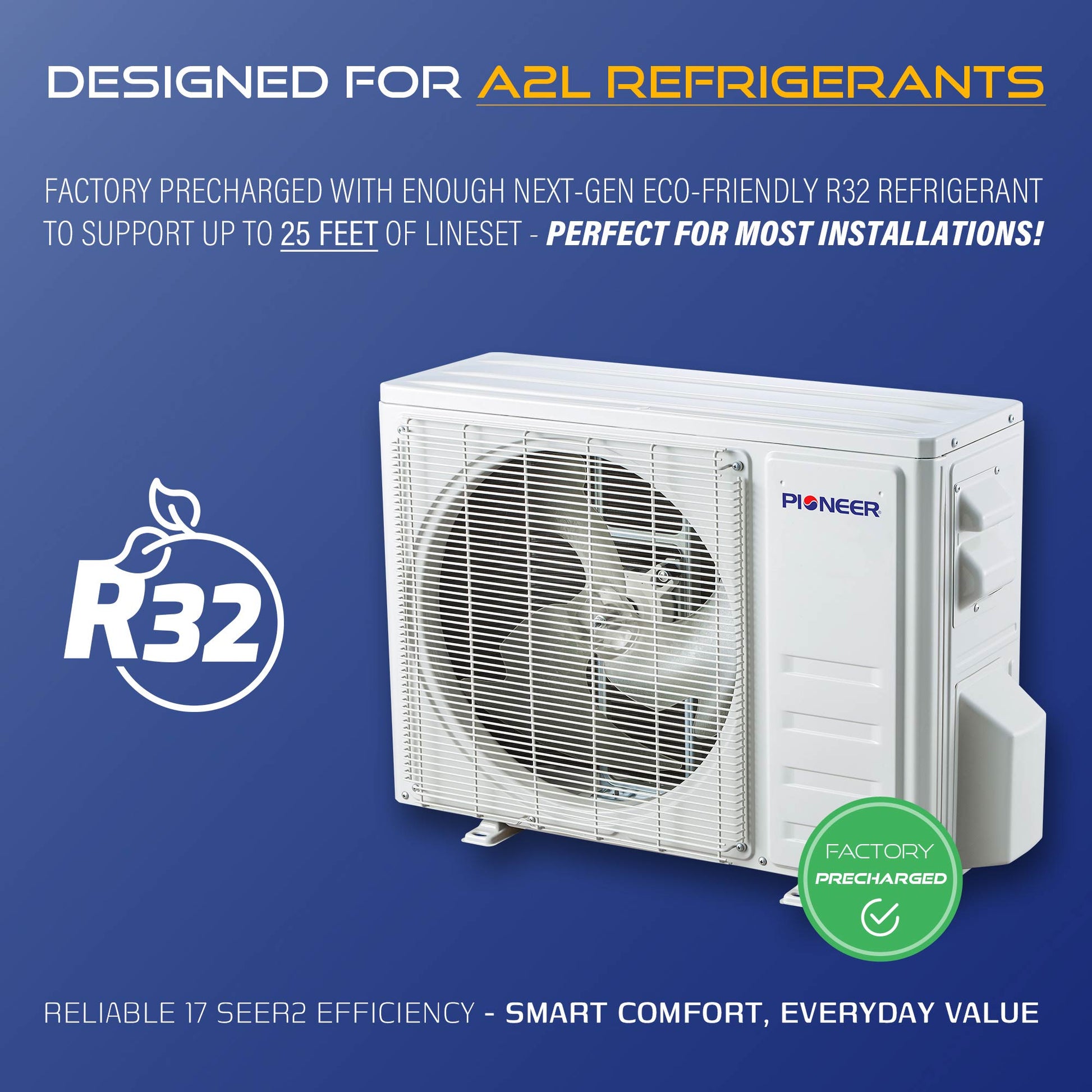

- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
-
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 17,000 BTU/h
-
Cooling Capacity Range: 4,095~17,700 BTU/h
-
Cooling SEER2: 17.0 BTU/W.h
-
Cooling EER2: 9.5 BTU/W.h
-
Heating Rated Capacity: 16,500 BTU/h
-
Heating Capacity Range: 4,095~17,700 BTU/h
-
Heating HSPF2 (Region IV): 8.5 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
-
Refrigerant Type: R-32
-
Recommended Room Size: 400~650 sq ft
-
Minimum Room Size: 27 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4-3/8"
-
AHRI Reference: 217048736
-
Indoor Unit
-
Part Number: WT018GLUI17HLD
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 412 / 364 / 294 / 235 / 208 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 45 / 40 / 34 / 32 dB(A)
-
Product Dimensions (WDH): 35-3/4 x 8-1/8 x 11-1/2 Inches
-
Carton Dimensions (WDH): 38-1/8 x 10-7/8 x 14-5/8 Inches
-
Net / Gross Weight: 20.9 / 27.6 lbs
-
Outdoor Unit
-
Part Number: YN018GLUI17RPD
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 57 dB(A)
-
Net Dimensions (WDH): 31-7/8 x 12 x 21-5/8 Inches
-
Carton Dimensions (WDH): 33-1/2 x 14-1/4 x 25-1/8 Inches
-
Net / Gross Weight: 57.3 / 68.8 lbs
Dimension Chart
What Our Experts Think
-
17,000 BTU capacity provides reliable cooling and heating for medium spaces.
-
17 SEER2 efficiency rating lowers energy bills while maintaining comfort.
-
High-wall ductless design offers quiet, space-saving operation.
-
Inverter technology ensures consistent temperature control with reduced energy use.
-

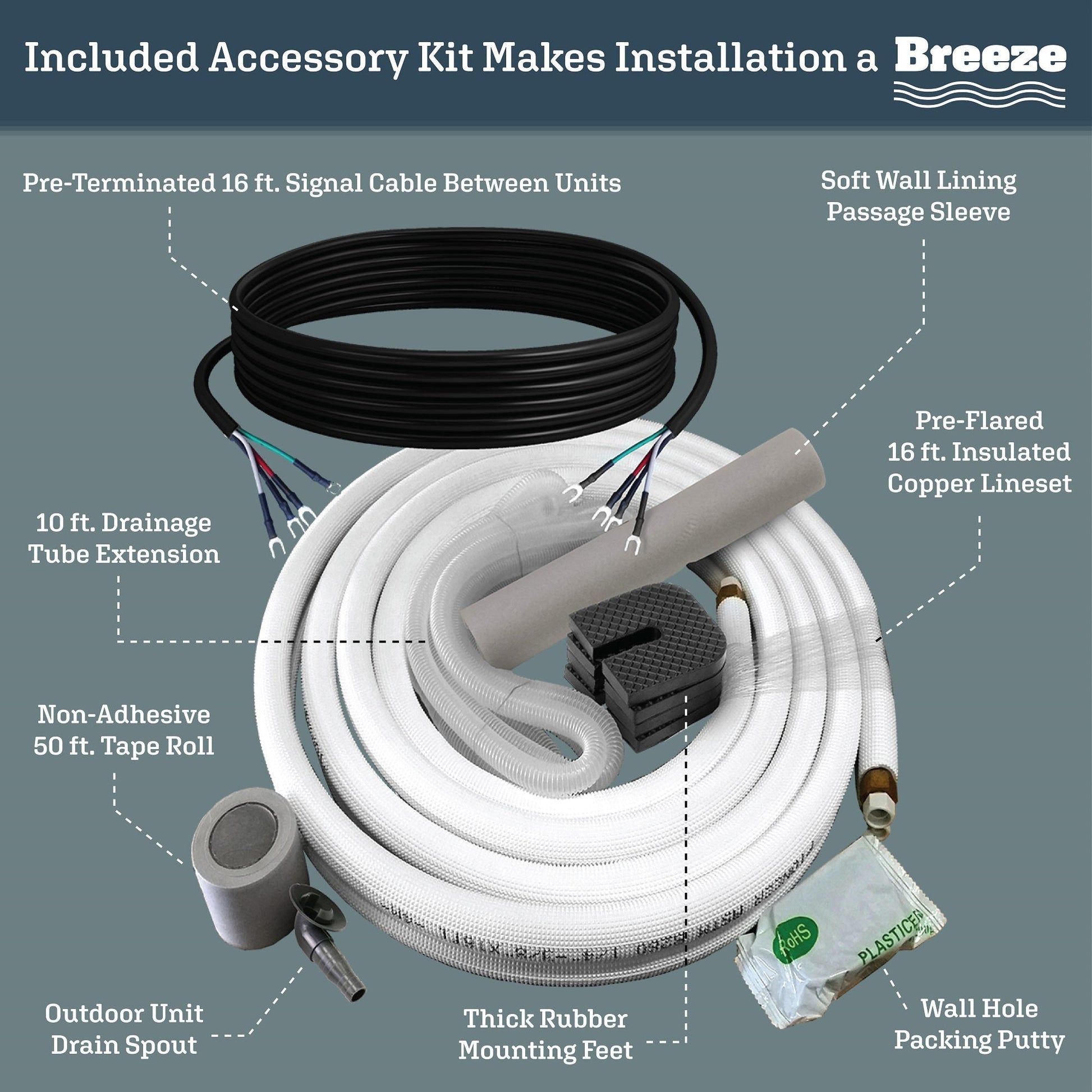

Comes complete with a 16 ft. installation kit for convenience.
Q&A
Q: Does this system provide both heating and cooling?
A: Yes, it functions as both an air conditioner and an inverter heat pump.
Q: Is this mini-split energy-efficient?
A: Yes, with a 17 SEER2 rating, it balances performance and efficiency.
Q: What’s included in the package?
A: The unit includes the indoor and outdoor components plus a 16 ft. installation kit.
Maintenance Tips
-
Clean filters every 4–6 weeks to maintain airflow and efficiency.
-
Wipe indoor unit surfaces with a soft cloth to remove dust.
-
Inspect outdoor condenser fins regularly and keep them clear of debris.
-
Schedule professional servicing annually to check refrigerant and system performance.
