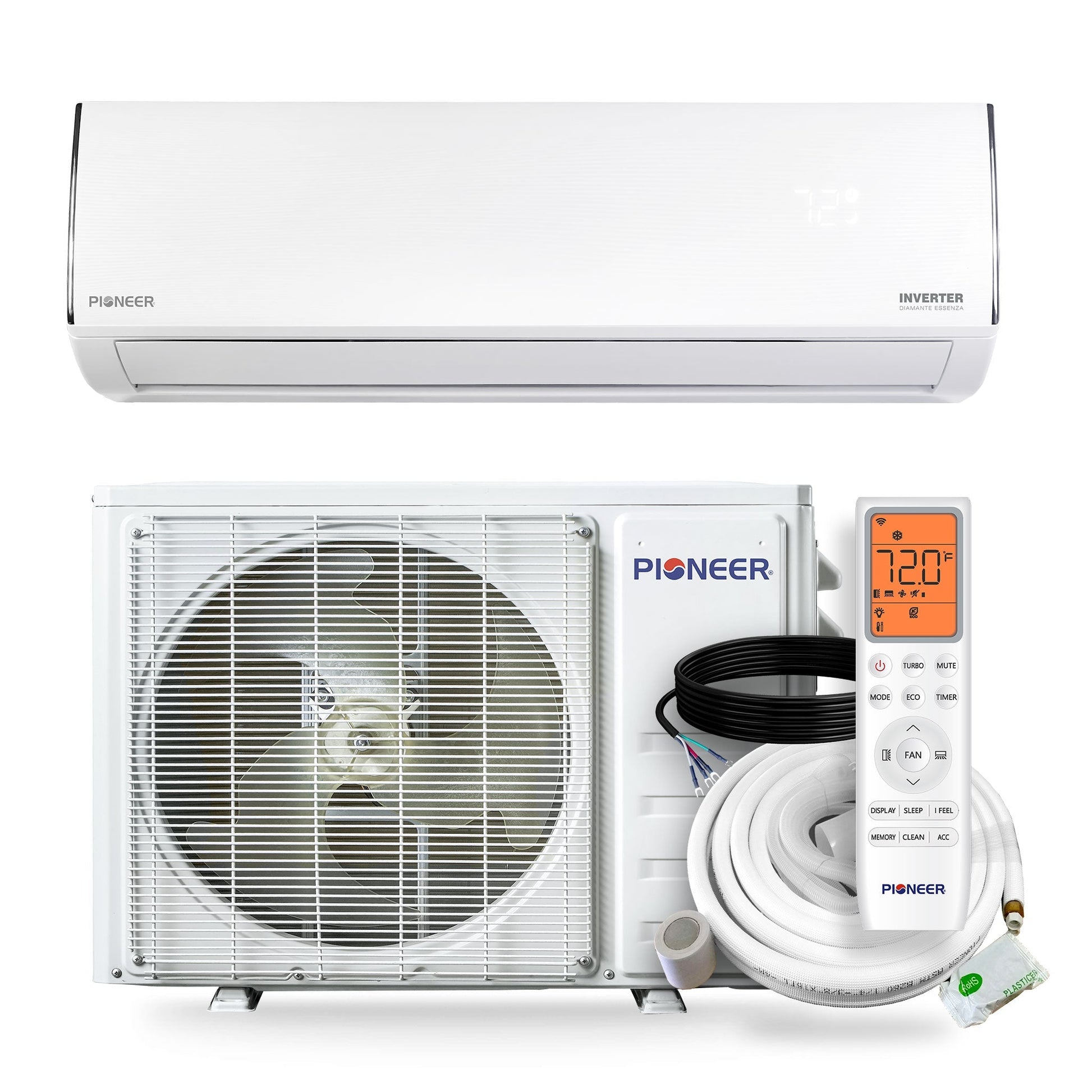

Pioneer Diamante Essenza 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT024GLUI17RL
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance

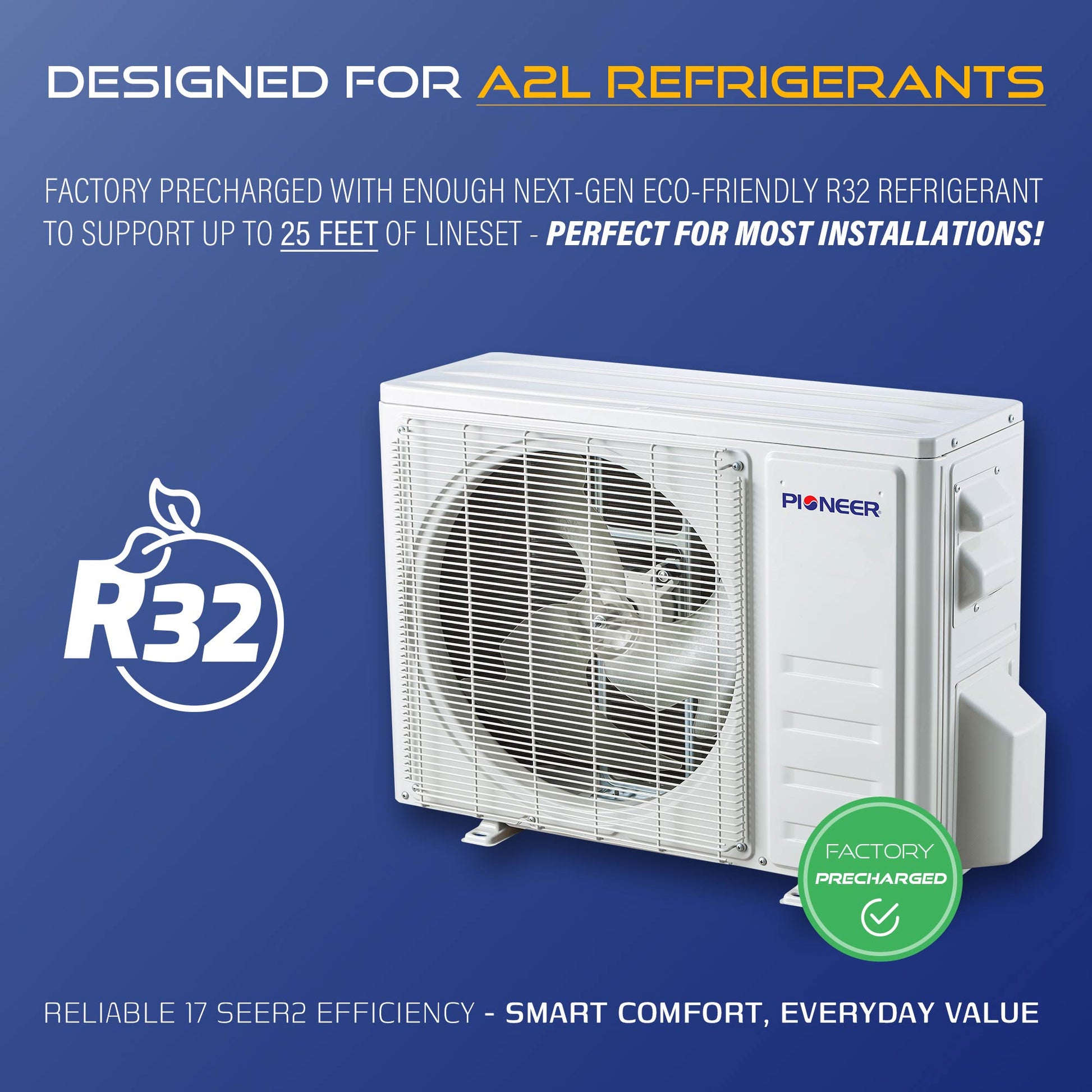

- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
-
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 23,000 BTU/h
-
Cooling Capacity Range: 5,120~24,500 BTU/h
-
Cooling SEER2: 17.0 BTU/W.h
-
Cooling EER2: 9.5 BTU/W.h
-
Heating Rated Capacity: 22,400 BTU/h
-
Heating Capacity Range: 5,120~24,500 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
-
Refrigerant Type: R-32
-
Recommended Room Size: 600~950 sq ft
-
Minimum Room Size: 41 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4-1/2"
-
AHRI Reference: 217048737
-
Indoor Unit
-
Part Number: WT024GLUI17HLD
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
-
Product Dimensions (WDH): 39-3/4 x 8-3/4 x 12-3/8 Inches
-
Carton Dimensions (WDH): 43-1/8 x 11-3/4 x 15-3/8 Inches
-
Net / Gross Weight: 26.5 / 33.1 lbs
-
Outdoor Unit
-
Part Number: YN024GLUI17RPD
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 56 dB(A)
-
Net Dimensions (WDH): 34 x 13-3/4 x 23-5/8 Inches
-
Carton Dimensions (WDH): 35-1/2 x 15-7/8 x 26-7/8 Inches
-
Net / Gross Weight: 70.5 / 82.7 lbs
Dimension Chart
What Our Experts Think
-
23,000 BTU capacity designed for large rooms and open spaces.
-
17 SEER2 efficiency rating ensures strong performance with energy savings.
-
Inverter heat pump provides reliable year-round heating and cooling.
-
230V power supply supports higher-capacity residential and light commercial use.
-

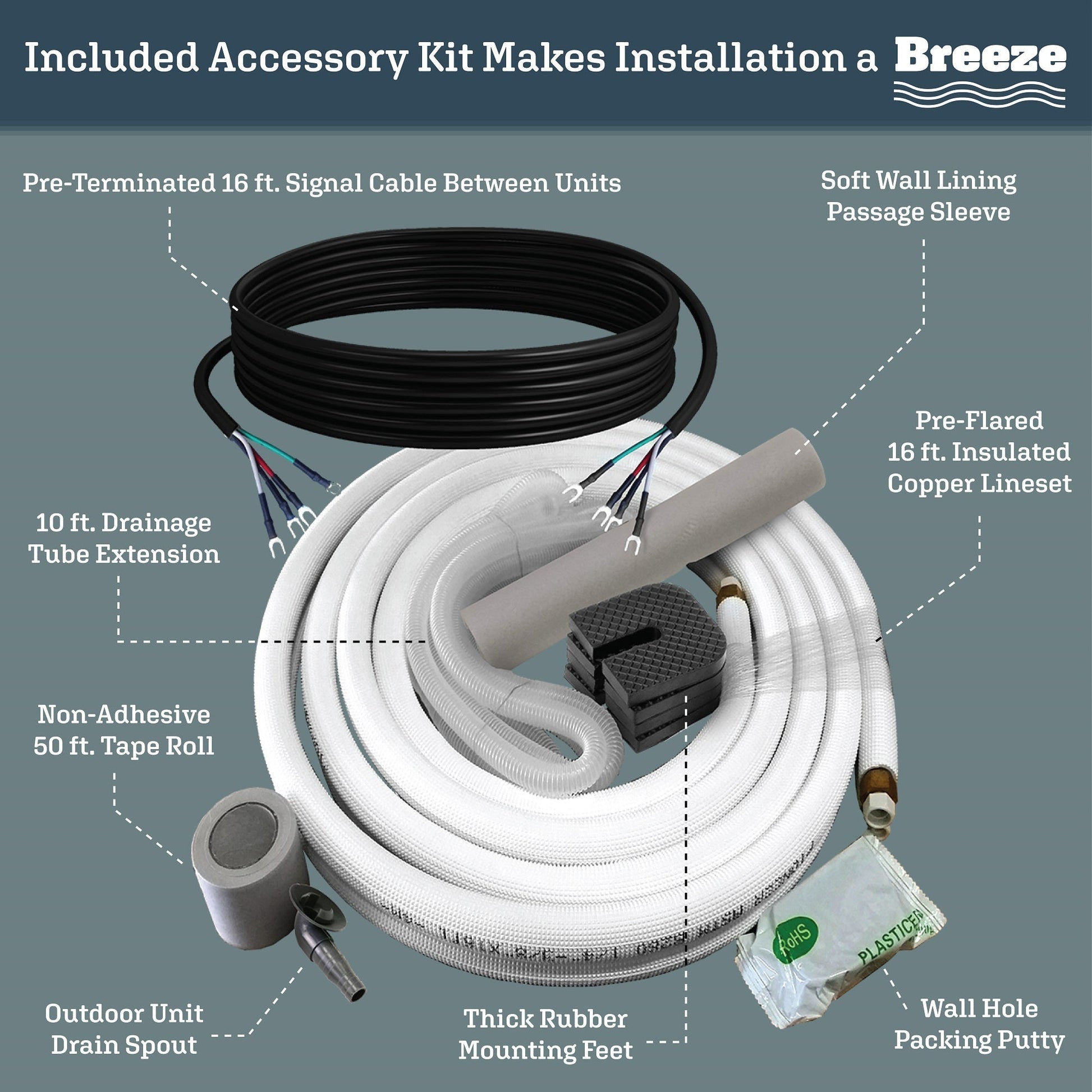

Comes with a 16 ft. installation kit for straightforward setup.
Q&A
Q: What size area can this unit cover?
A: Ideal for large living rooms, open floor plans, or light commercial spaces.
Q: Does it both heat and cool?
A: Yes, inverter heat pump technology offers efficient cooling and heating.
Q: Is installation hardware included?
A: Yes, a 16 ft. line set kit is included for convenience.
Maintenance Tips
-
Clean indoor filters every 2–4 weeks to maintain airflow.
-
Keep outdoor condenser free of dirt, leaves, and obstructions.
-
Inspect refrigerant lines and electrical connections yearly.
-
Schedule annual professional servicing for long-term efficiency.
