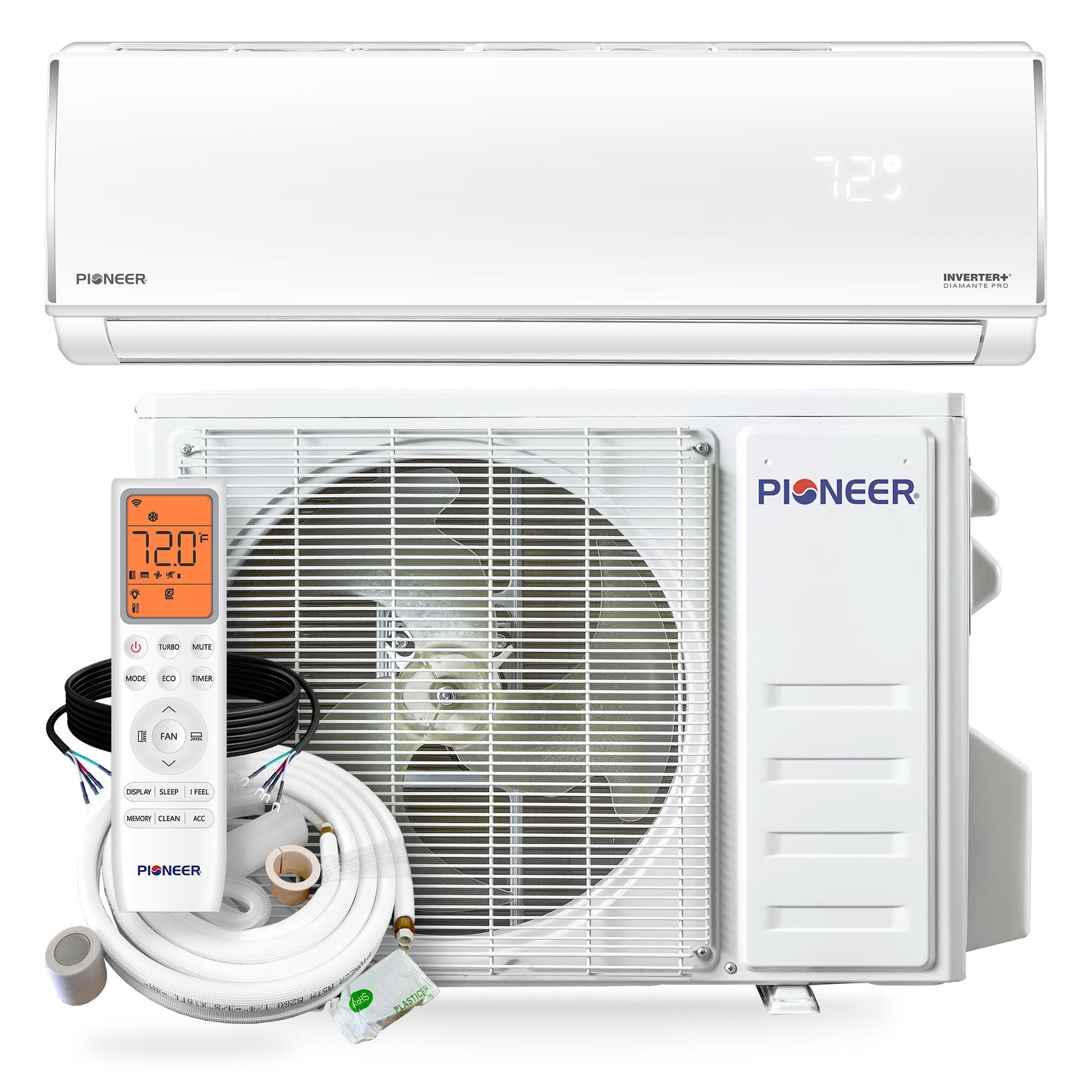

Pioneer Diamante Pro 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 19 SEER2 / 9.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 9.0 HSPF2 / 3.15 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

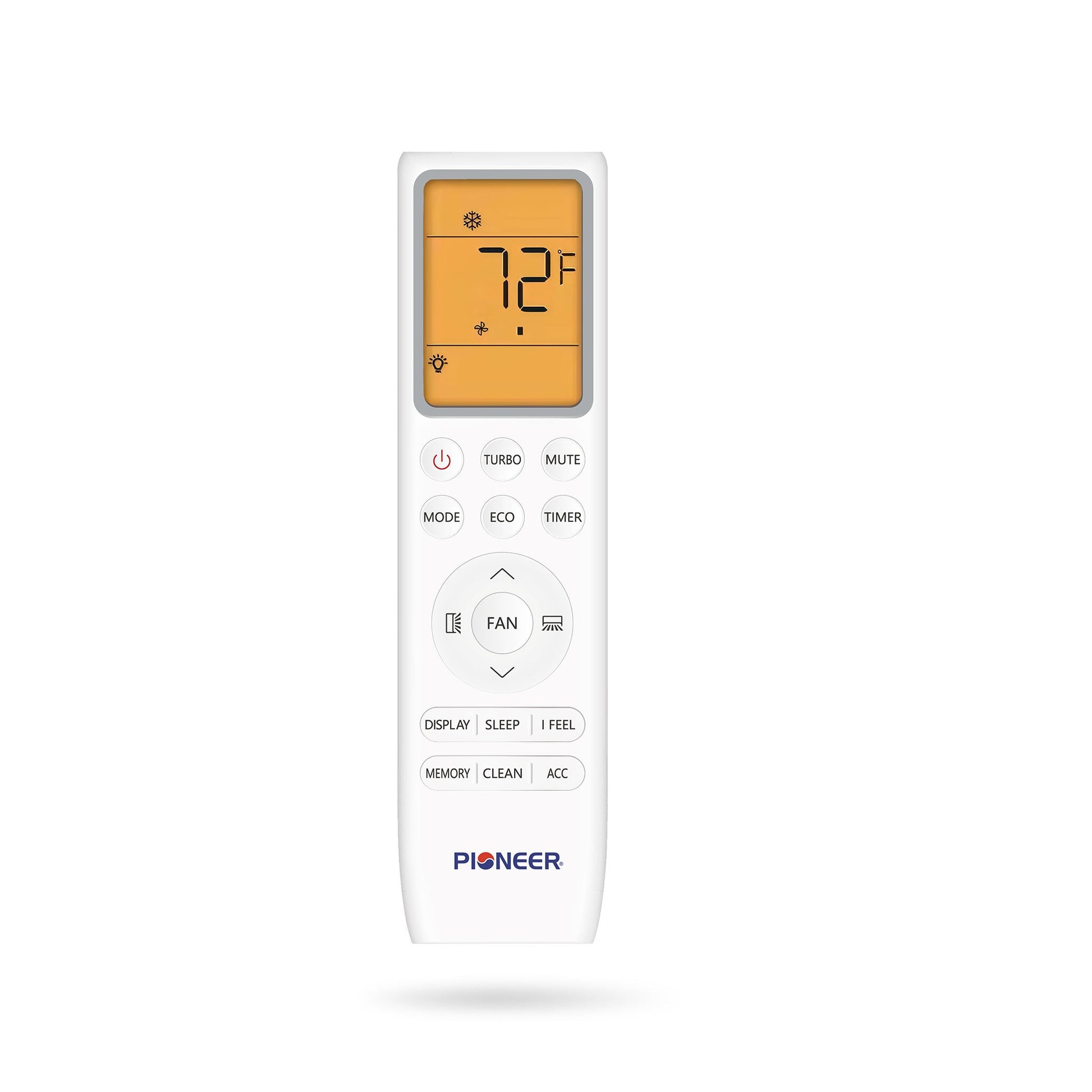

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 36,000 BTU/h
-
Cooling Capacity Range: 7,500~36,000 BTU/h
-
Cooling SEER2: 19.0 BTU/W.h
-
Cooling EER2: 9.0 BTU/W.h
-
Heating Rated Capacity: 36,000 BTU/h
-
Heating Capacity Range: 7,500~36,000 BTU/h
-
Heating HSPF2 (Region IV): 9.0 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.15 / 2.1 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 1000~1400 sq ft
-
Minimum Room Size: 63 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4-5/8"
-
AHRI Reference: 217048747
-

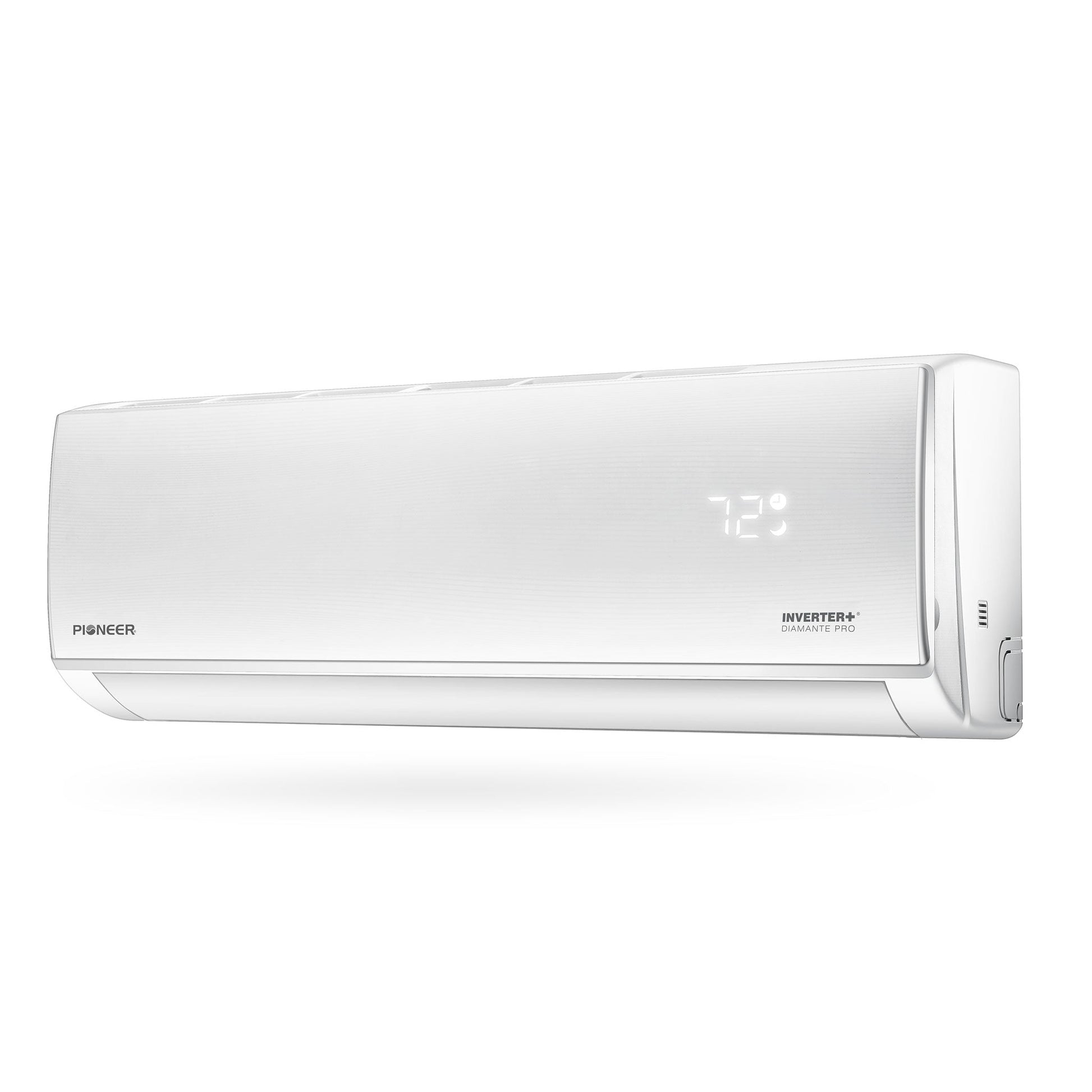

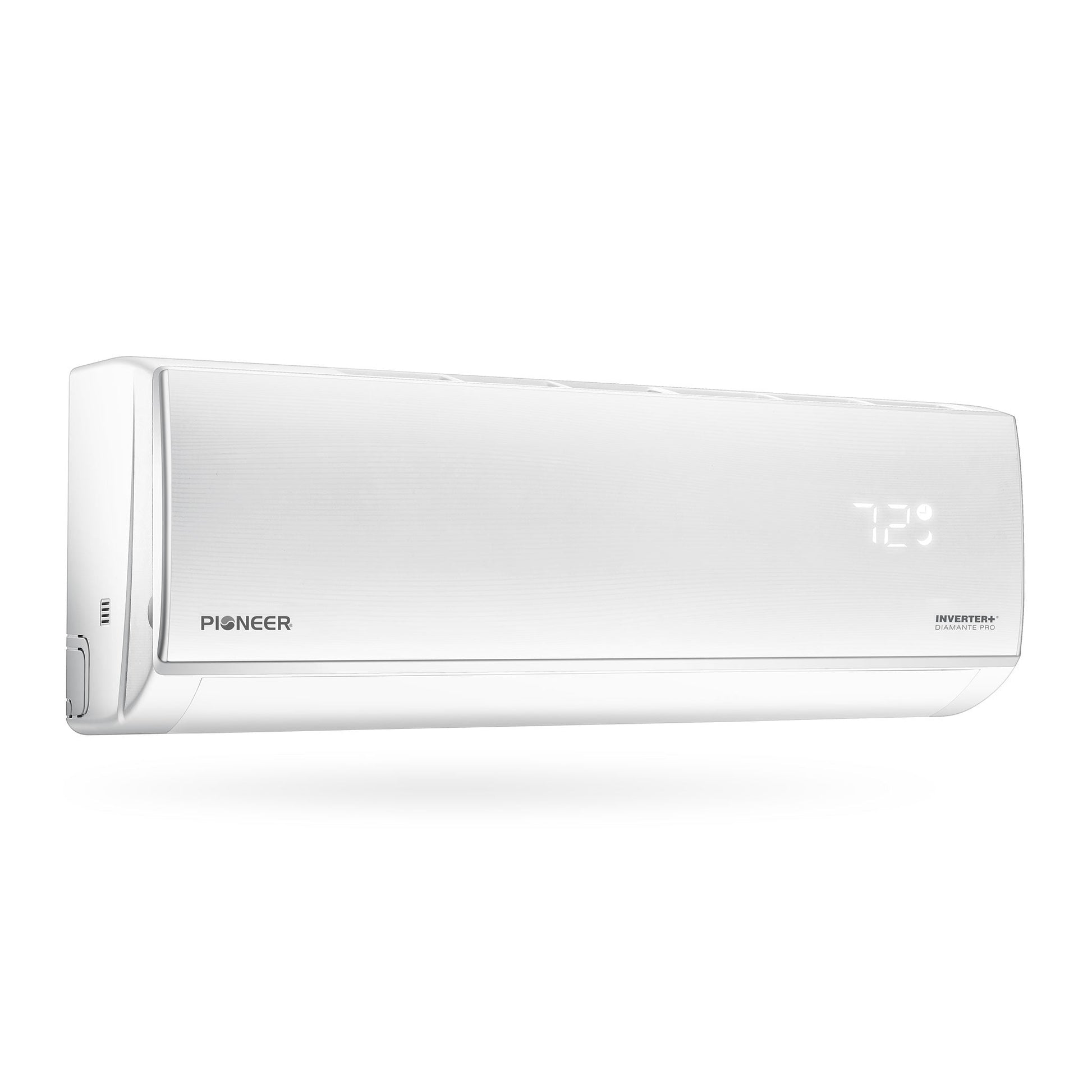

Indoor Unit
-
Part Number: WT036GLSI20HLF
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
-
Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
-
Carton Dimensions (WDH): 49-5/8 x 13 x 17 Inches
-
Net / Gross Weight: 39.7 / 48.5 lbs.
-

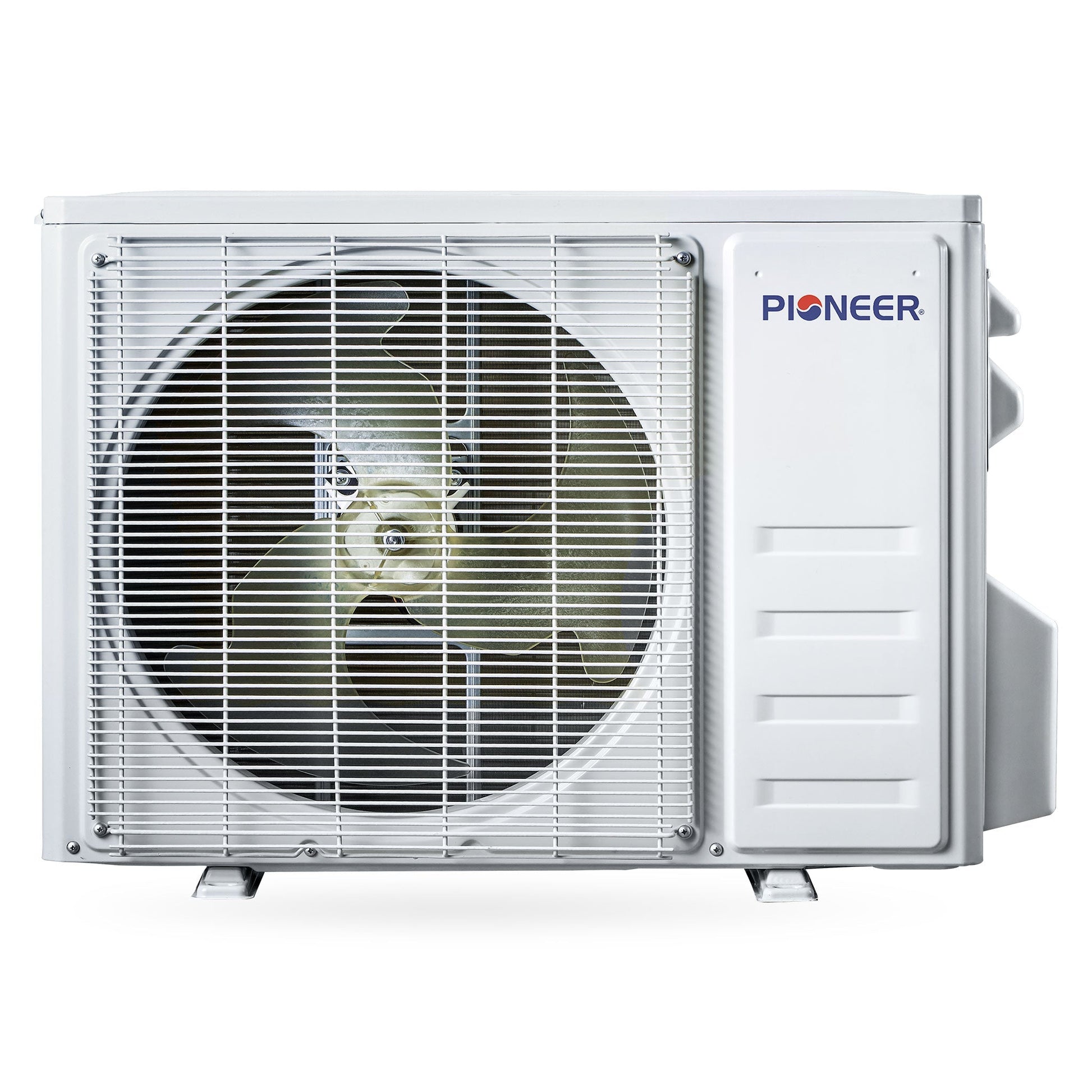

Outdoor Unit
-
Part Number: YN036GLSI20RPF
-
Breaker Needed: 30A (double-pole)
-
Sound Level: 63 dB(A)
-
Net Dimensions (WDH): 38-1/2 x 16-1/2 x 31-5/8 Inches
-
Carton Dimensions (WDH): 40-1/4 x 18-7/8 x 32-7/8 Inches
-
Net / Gross Weight: 105.8 / 120.2 lbs
Dimension Chart
What Our Experts Think
-
Powerful 36,000 BTU capacity for large rooms, open layouts, or light commercial use.
-
High 19 SEER2 efficiency delivers excellent energy savings.
-
Inverter heat pump ensures year-round heating and cooling with quiet operation.
-
230V power supply supports heavy-duty performance.
-
Includes a 16 ft. installation kit for easier setup.
Q&A
Q: What spaces is this unit best suited for?
A: Ideal for large living areas, open-concept spaces, or commercial applications.
Q: Does it provide both heating and cooling?
A: Yes, inverter heat pump technology ensures efficient comfort year-round.
Q: Is installation hardware included?

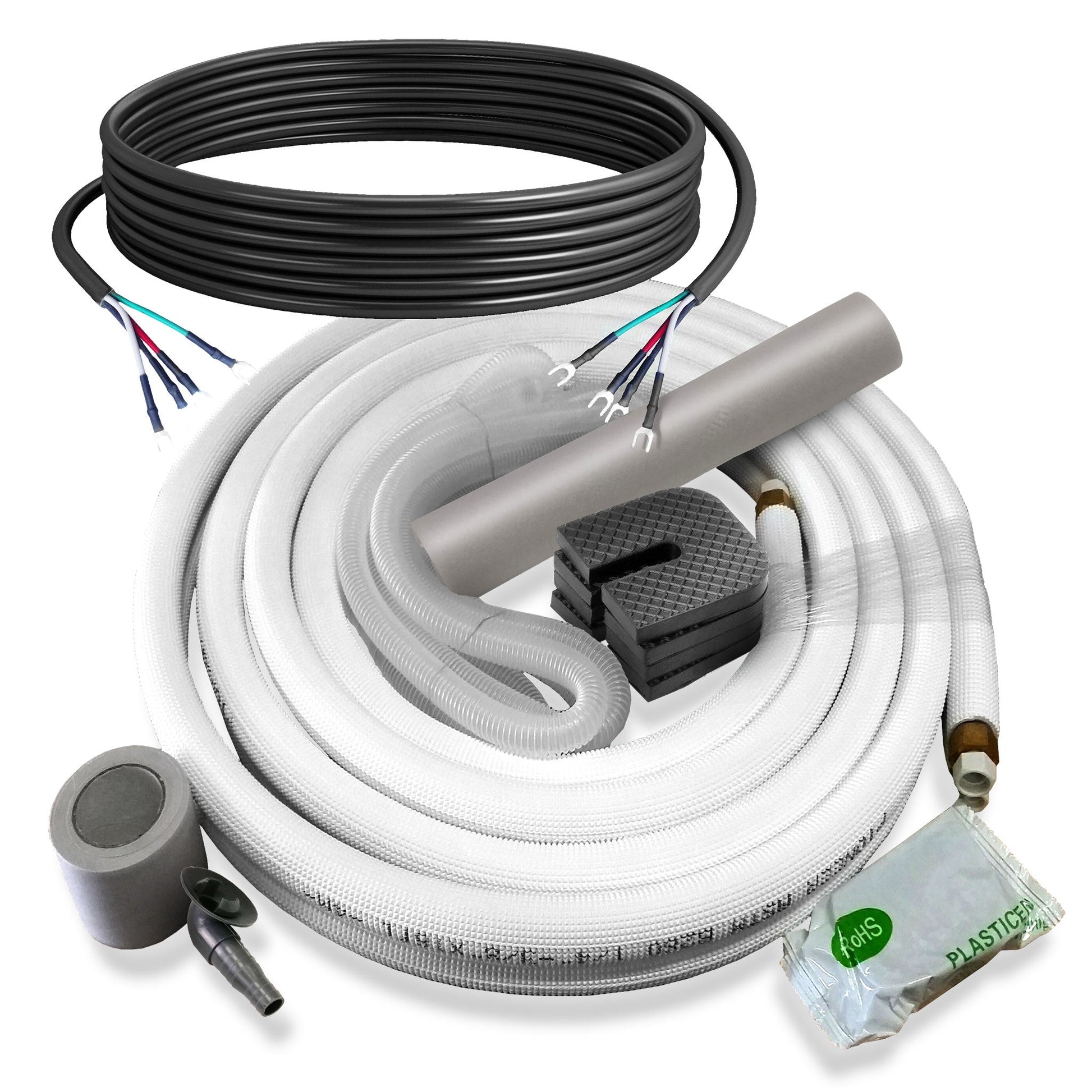

A: Yes, a 16 ft. line set kit is included.
Maintenance Tips
-
Clean air filters every 2–4 weeks for maximum efficiency.
-
Check and clear outdoor condenser of dust, leaves, and debris regularly.
-
Inspect refrigerant lines and electrical connections annually.
-
Schedule yearly professional servicing to maintain peak performance.
